X-Axis Belt Tensioner V2

?
Creation's quality: 5.0/5 (1 vote)
Evaluation of members on the printability, utility, level of detail, etc.
  • 👁 1.4k views
  • 2 likes
  • 43 downloads

3D model description

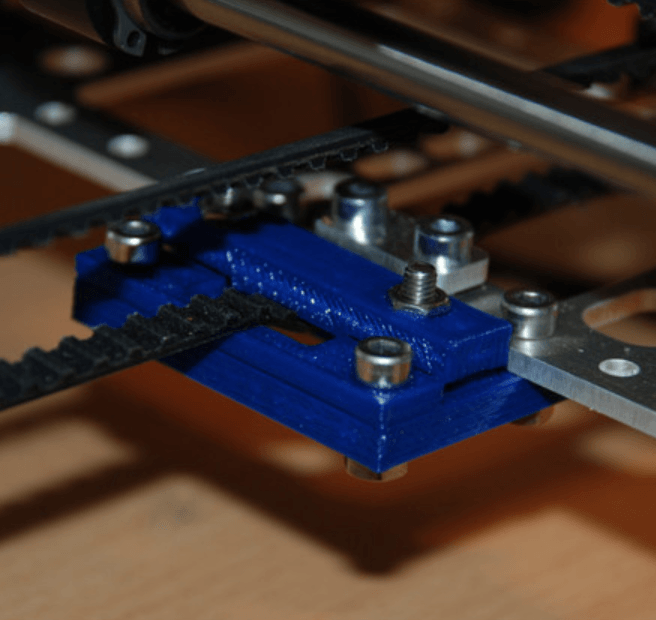

The belt now leaves the tensioner at the same height, as it would be without it.
And there now is more delta in stretching-height.

Designed to be mounted on the fully assembled K8200 afterwards.
Also needed are: 4x screw M4/12mm, 2x screw M4/16mm, 6x nut M4.


3D printing settings

Printer:

Velleman K8200

Rafts:

Doesn't Matter

Supports:

Doesn't Matter

Resolution:

0.25mm

Infill:

30%

3D printer file information

  • 3D design format: STL and ZIP Folder details Close
    • X-Achsen-Riemen-SpannerV2.scad.zip
    • X-Achsen-Riemen-SpannerV2.stl

    Learn more about the formats

  • Publication date: 2018/04/18 at 10:40

License

CC BY
