Waxing Profile

?
Creation's quality: 0.0/5 (0 votes)
Evaluation of members on the printability, utility, level of detail, etc.
  • 1k views
  • 21 downloads

3D model description

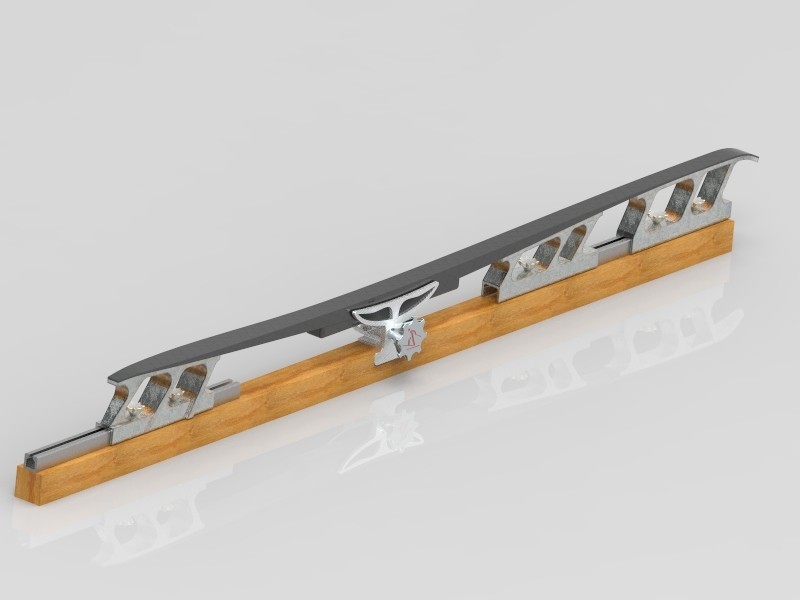

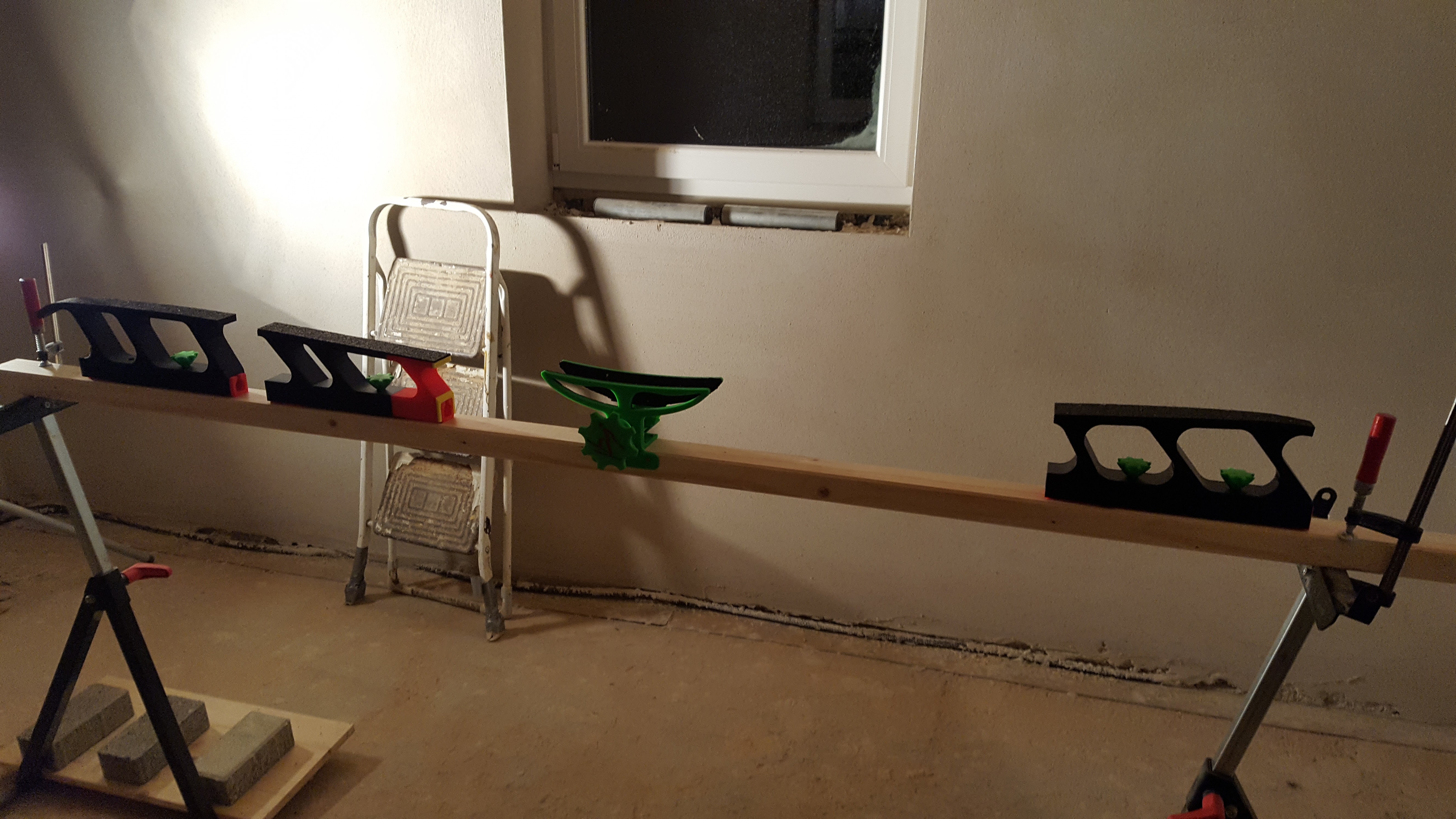

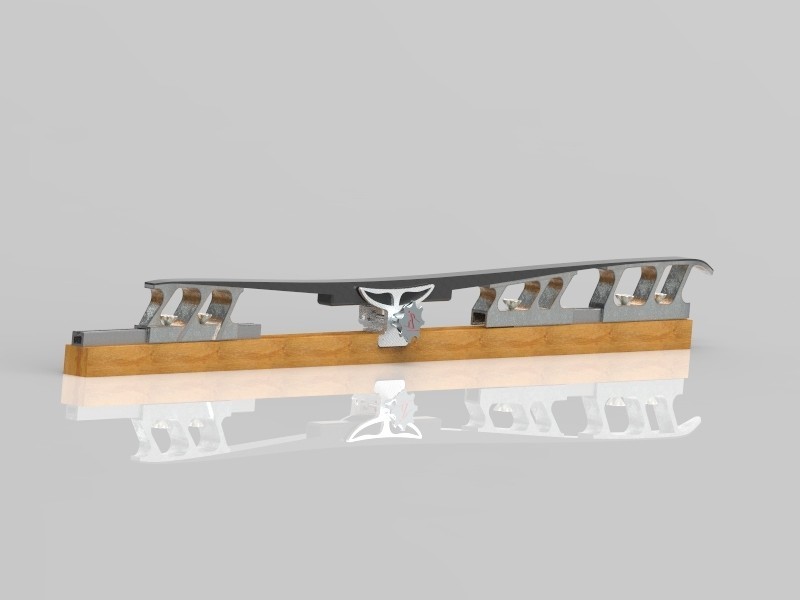

This is a Waxing Profile for all models of Cross-Country-Ski.

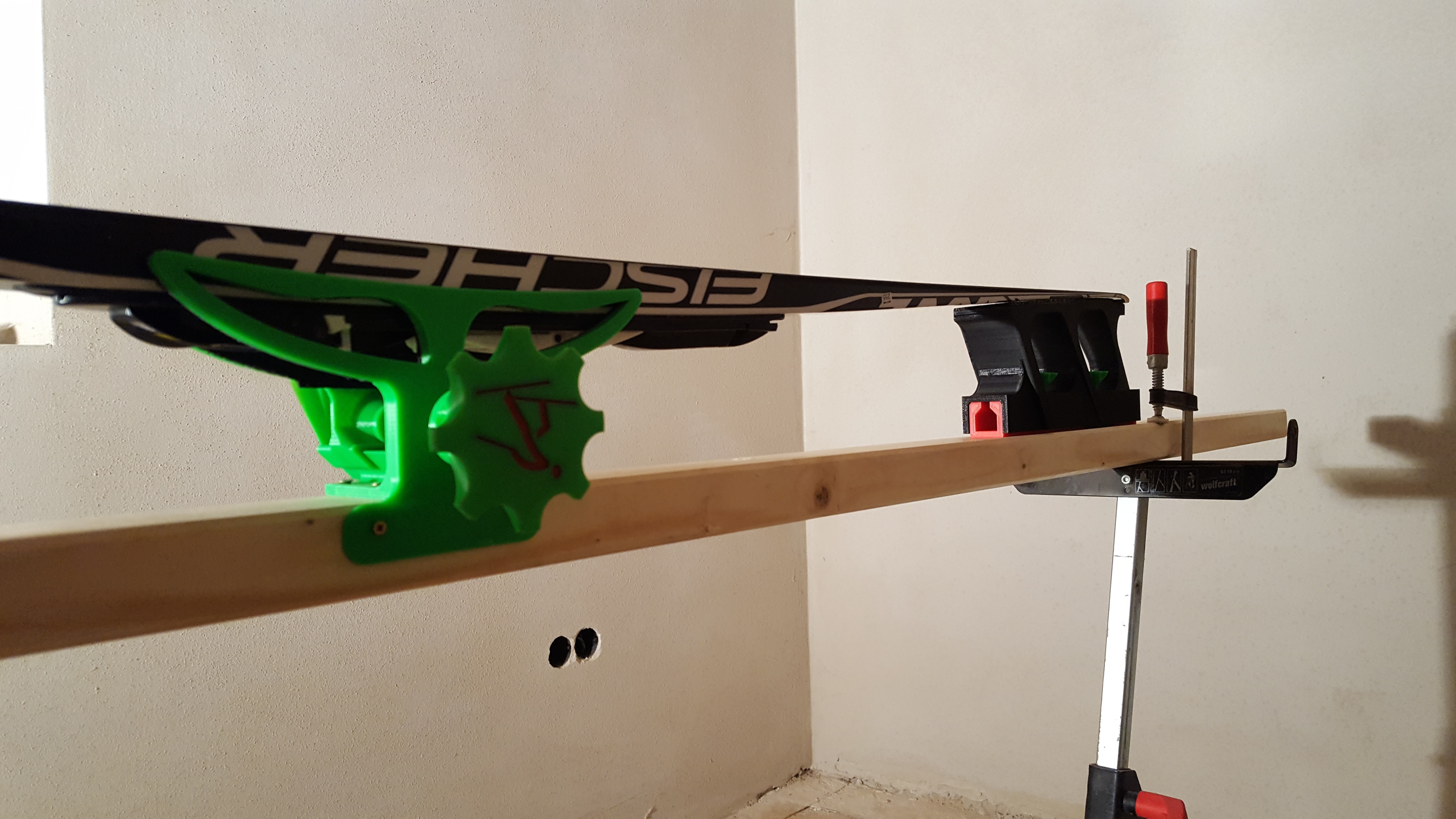

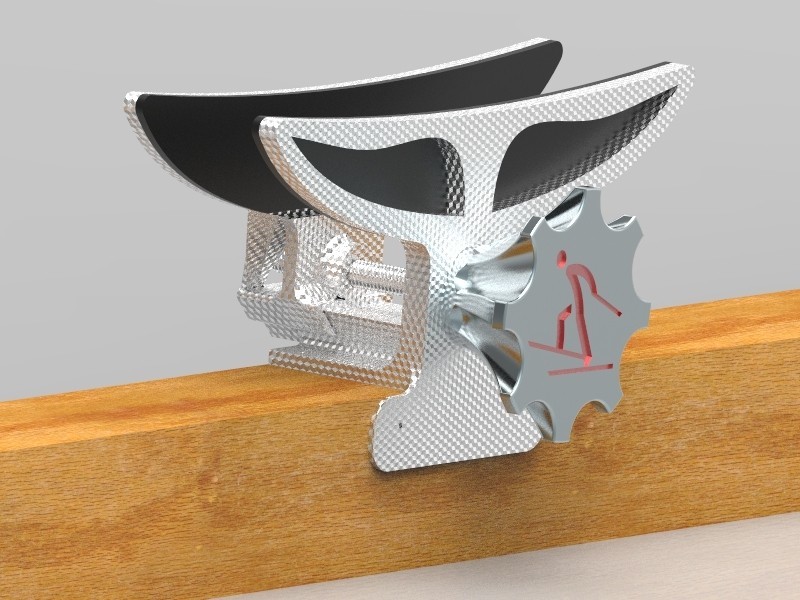

Just lay down your ski on the profile, fix it with the vice and begin with your work.

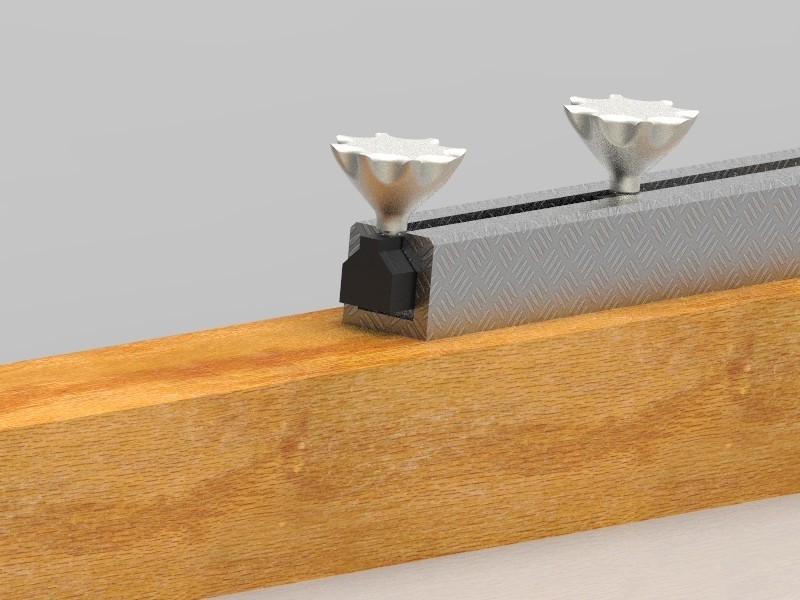

Every pillow block contains a guide bar. So you can adjust the length by opening the fixing screws.

To print:

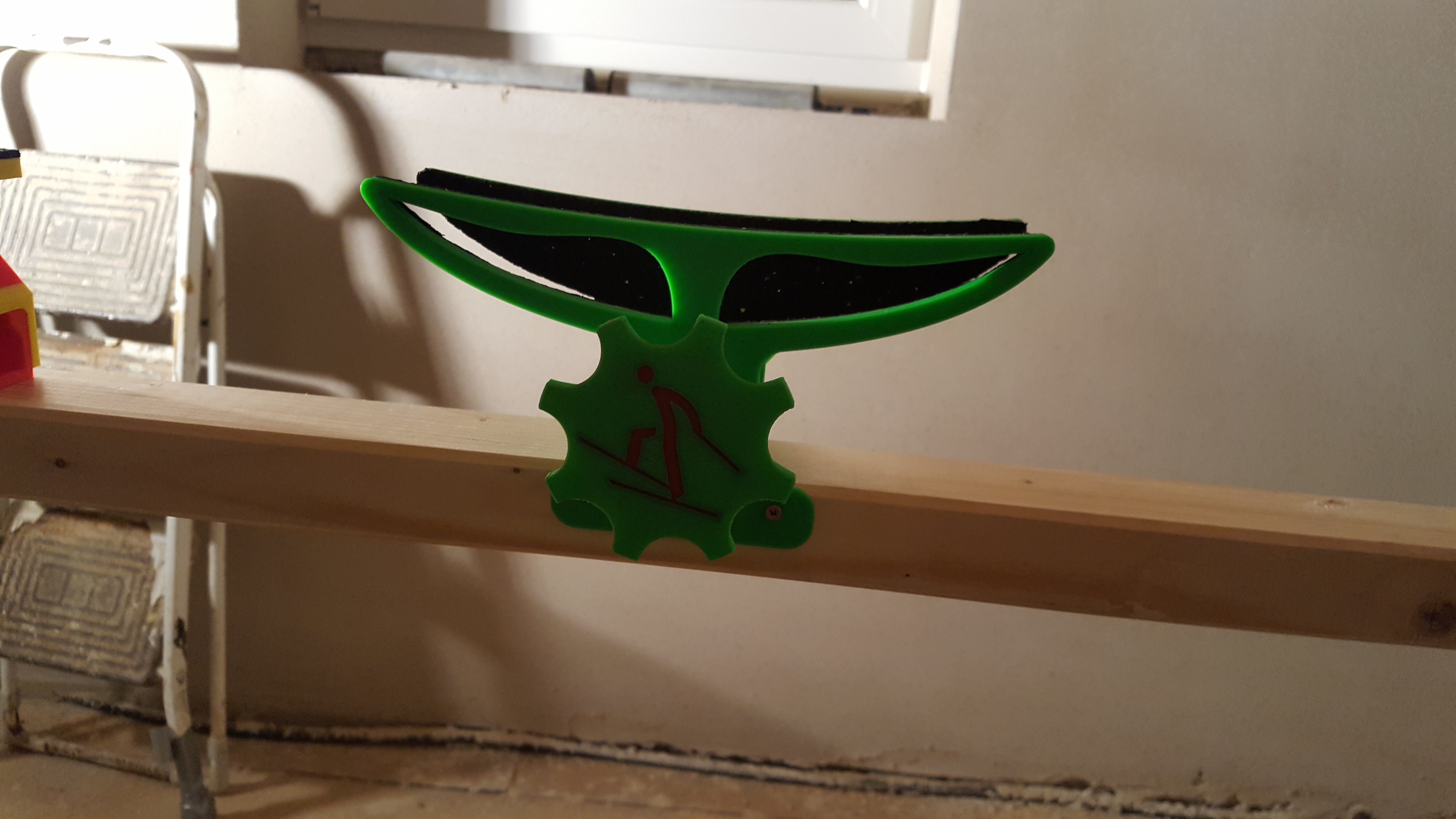

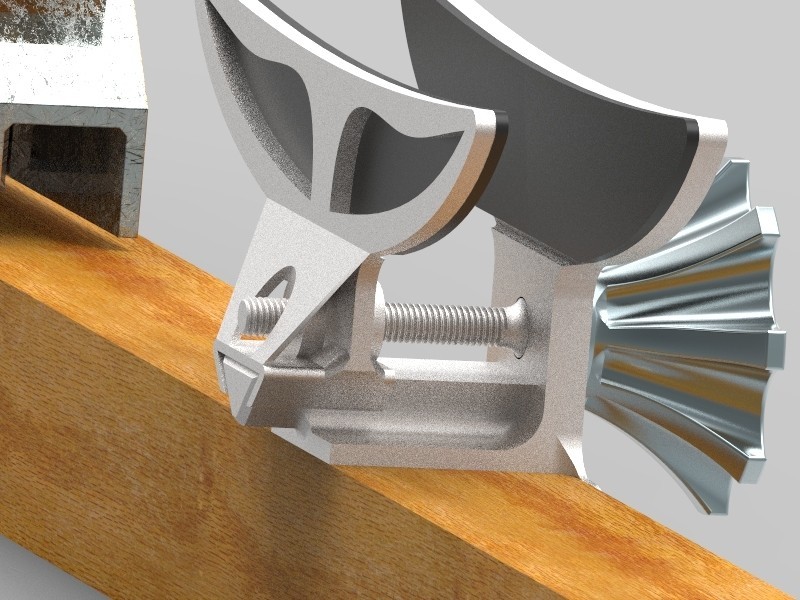

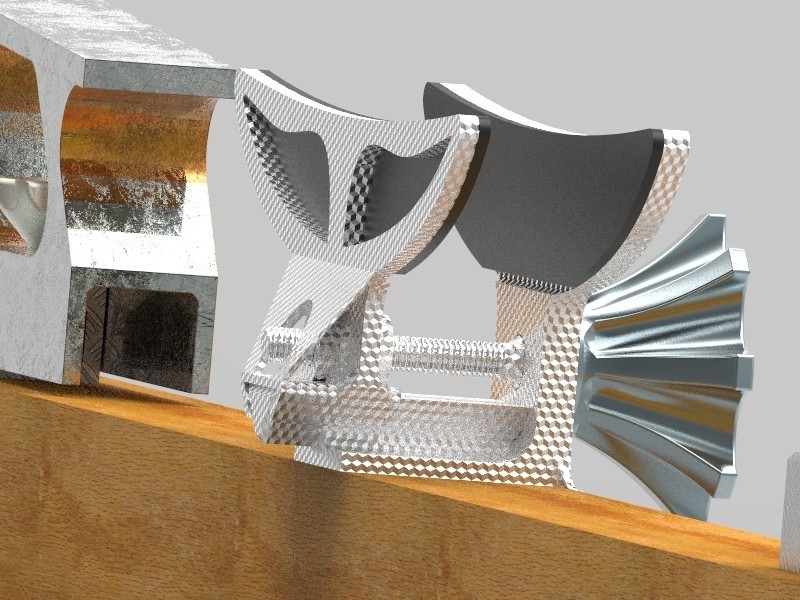

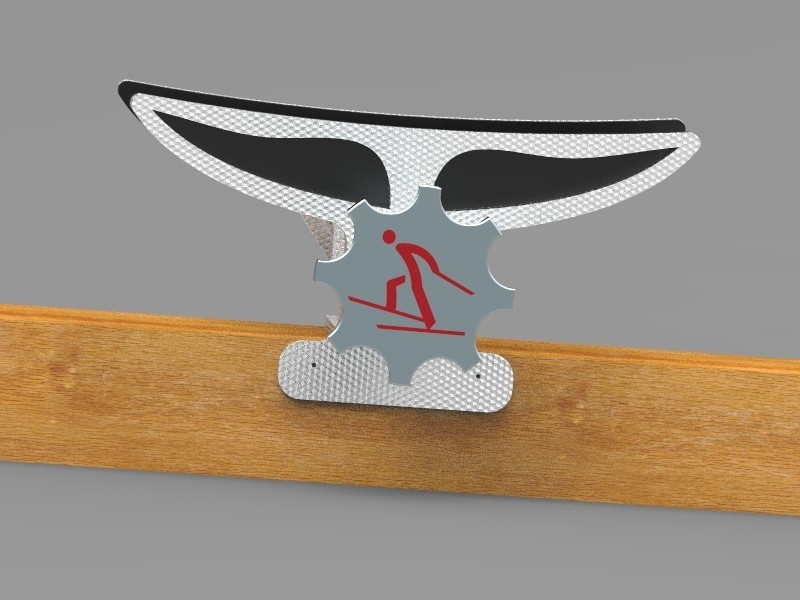

Vice
1x bolt_Vice
1x crank_Vice
1x fixed_ViceJaw
1x moving_ViceJaw

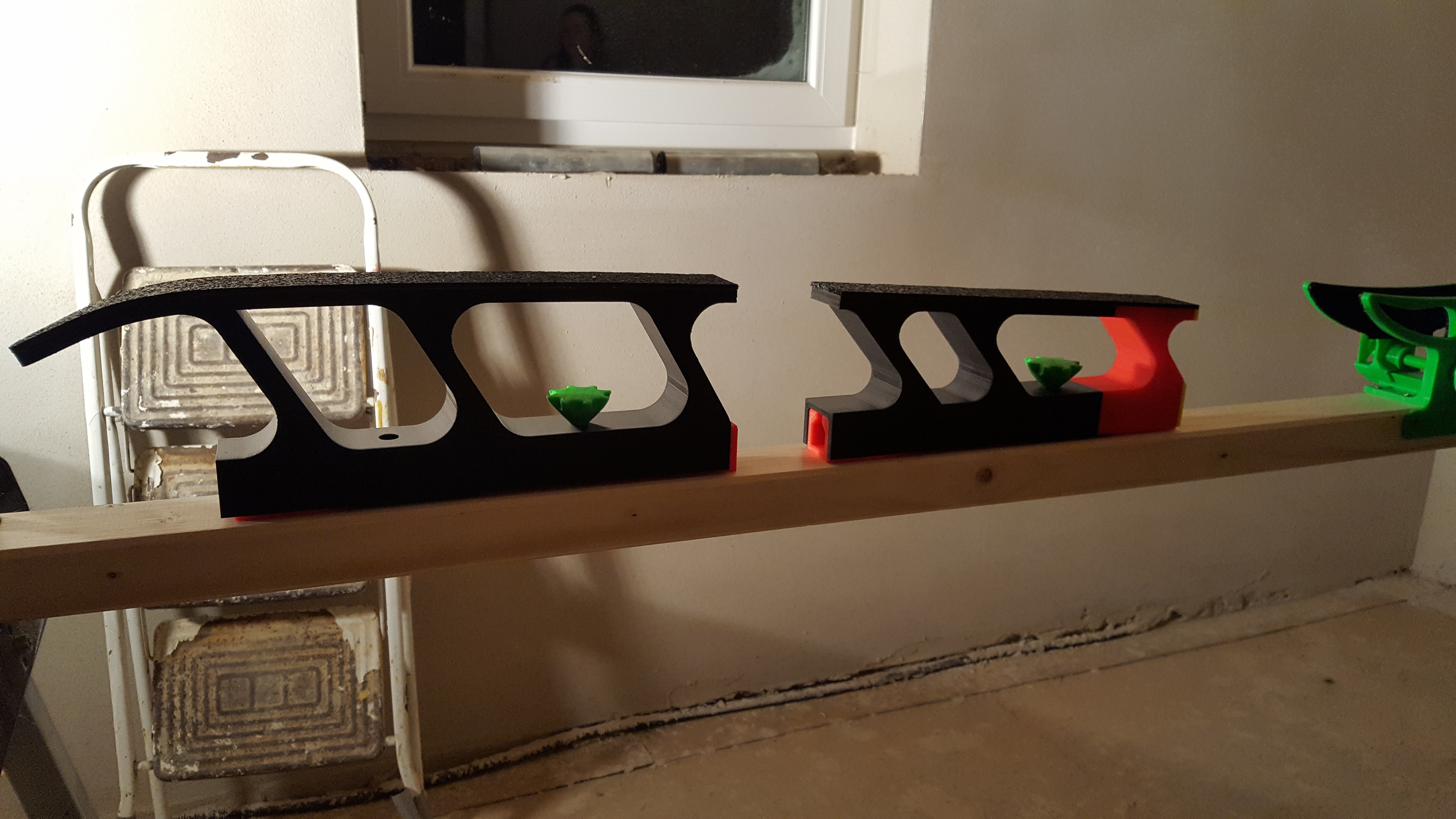

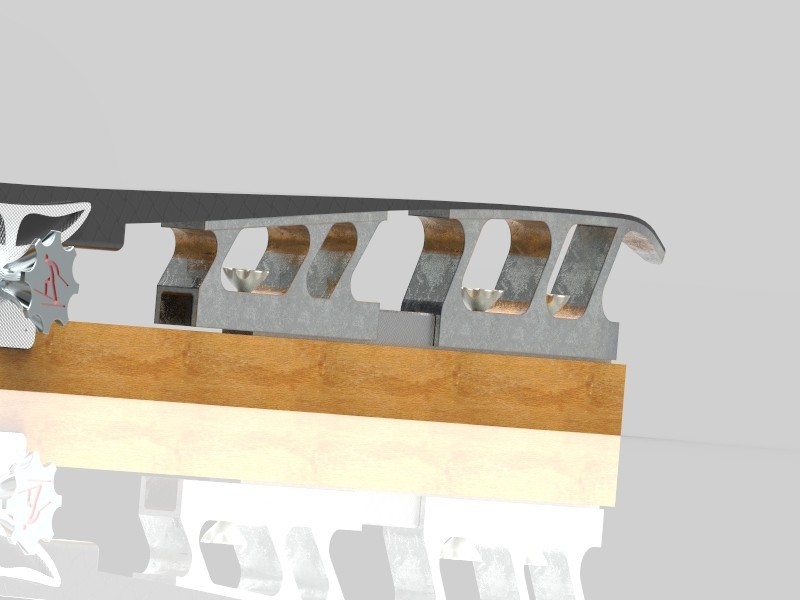

Pillow Blocks
1x pillowBlock_1
1x pillowBlock_2
1x pillowBlock_3

Accessories
5x fixingScrew_M6
3x guide_bar
5x T-Nut_M6

Print took at least about 100h and 1.7kg of filament.

Printed on a Creality-Cr10

I recommend to add a rubber mat to the seating (Pillow Block´s and vice jaw) to ensure a safe hold.

There is also a "sample" folder included. Print the four STL´s in this folder to make sure the M6 and M10 thread will work fine with your printer.
Send me a message if it don´t work on your printer. So i can send you some other threads and modifie the waxing profile till it will fit for you.

3D printing settings

Don´t use support in threads. I recommend to print threads with a layer Height of 0.1mm.

  • 3D file format: ZIP
  • Publication date: 2019/01/14 at 17:20
