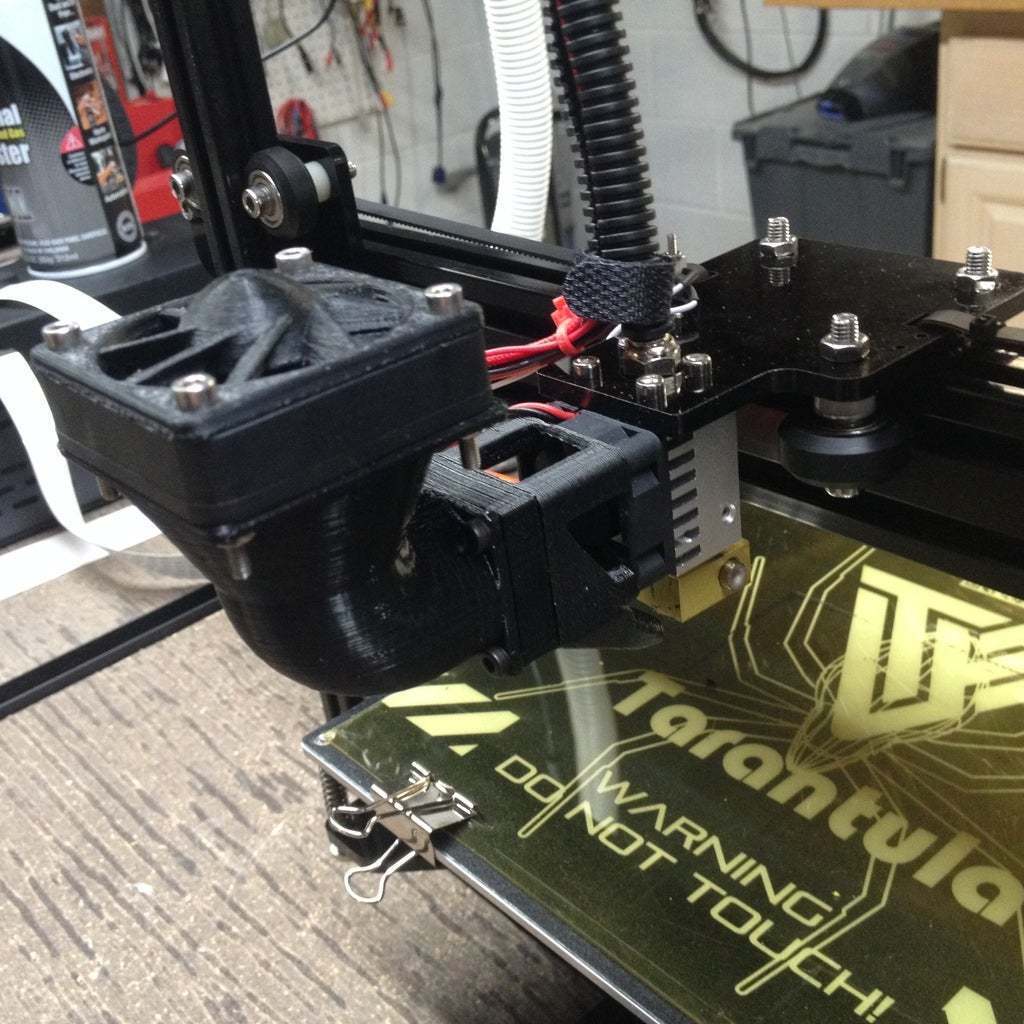

Wanhao & Tevo Tarantula 30mm Fan to 50mm Fan Adapter

?
Creation's quality: 0.0/5 (0 votes)
Evaluation of members on the printability, utility, level of detail, etc.
  • 452 views
  • 12 downloads

3D model description

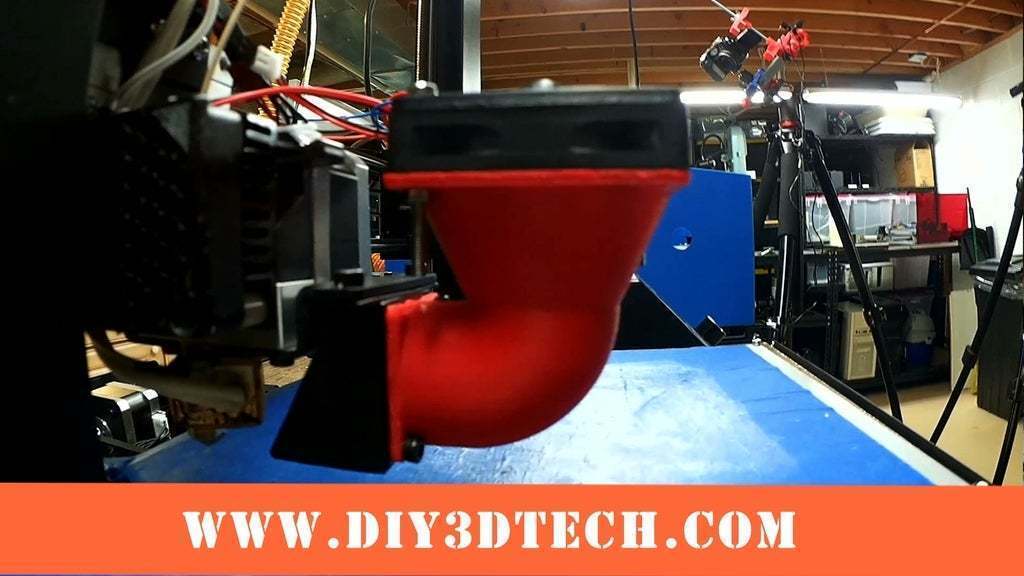

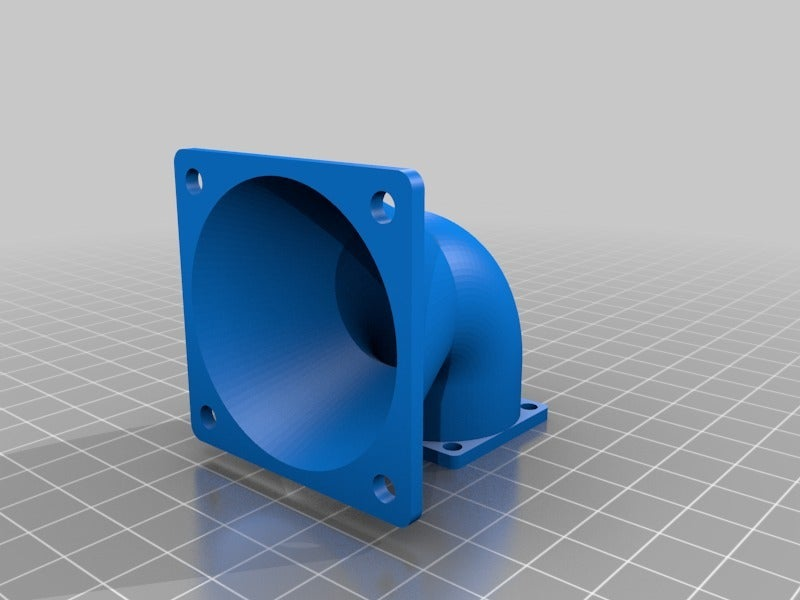

Customized version of http://www.thingiverse.com/thing:735038 Created with Customizer! http://www.thingiverse.com/apps/customizer/run?thing_id=735038 as this is an adapter from the stock Wanhao or Tevo Tarantula 30mm fan to a 50mm fan for the layer cooling blower. For more information and other builds, be use to visit http://www.DIY3DTech.com and subscribe to our YouTube channel which can be found at http://YouTube.DIY3DTech.com and if your looking for unique 3D Printing swag there is also http://swag.DIY3DTech.com so check it out!

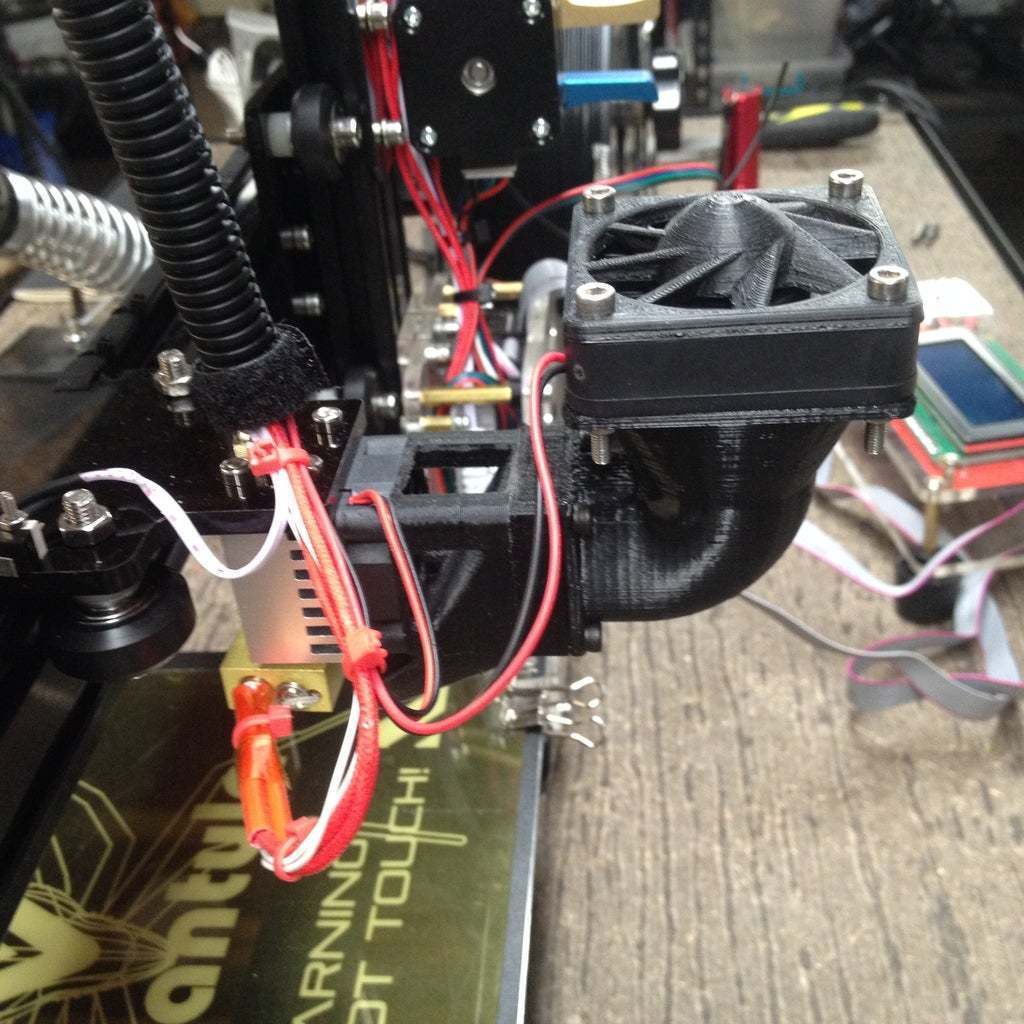

For the Tevo Tarantula, use the http://www.thingiverse.com/thing:1591912 adapter to mount the layer fan to the hotend.

Parts:
SUNON 50 x 50 x 10mm Cooling Fan with 2 pin connector KDE1205PFB2-8
http://amzn.to/2aHJt0m

M3 x 45 Alloy Steel Hex Bolt Socket Head Cap Machine Screw Black 50Pcs
http://amzn.to/2aNgW9R

Hilitchi 210pcs M3 Stainless Steel Hex Socket Head Cap Screws Nuts Assortment Kit with Box (M3)
http://amzn.to/2b27Pmu

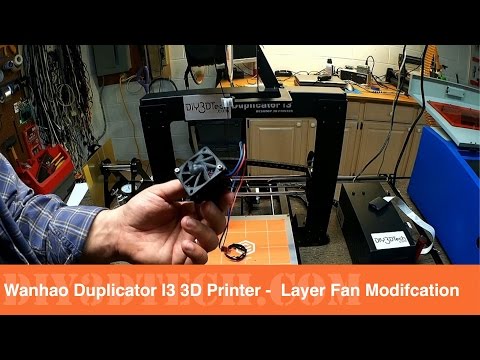

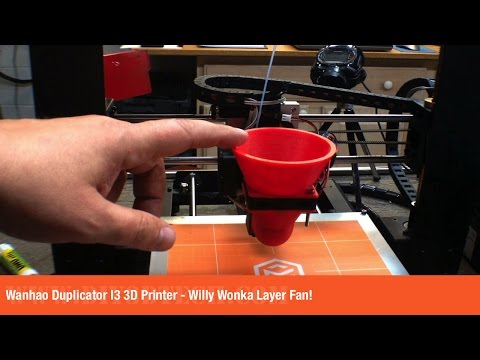

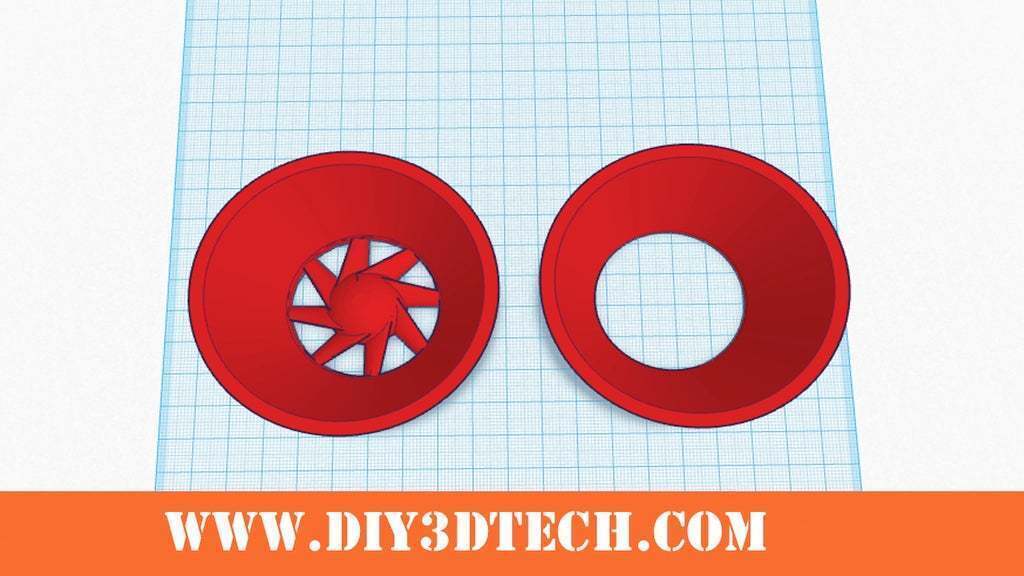

Also check out our video of this build at https://youtu.be/gJhCG8CU3hc as well as https://youtu.be/inMiypJoidA for the velocity stack add on!

For more information on this project, please visit us at http://www.DIY3DTech.com as well as subscribe to our YouTube Channel at http://YouTube.DIY3DTech.com along with a visit to our one of a kind swag shop for yourself a Maker Geek friend at http://Swag.DIY3DTech.com for unique 3D Printing, Laser Cutting and CNC swag!

3D printing settings

Print the adapter with supports and for the Tevo Tarantula use the http://www.thingiverse.com/thing:1591912 adapter to mount the layer fan to the hotend.

Parts:
SUNON 50 x 50 x 10mm Cooling Fan with 2 pin connector KDE1205PFB2-8
http://amzn.to/2aHJt0m

M3 x 45 Alloy Steel Hex Bolt Socket Head Cap Machine Screw Black 50Pcs
http://amzn.to/2aNgW9R

Hilitchi 210pcs M3 Stainless Steel Hex Socket Head Cap Screws Nuts Assortment Kit with Box (M3)
http://amzn.to/2b27Pmu

While not required, you can a cover for the 50mm fan too which attaches with 4 M3 x 15mm bolts and nuts.

  • 3D file format: STL

Tags

Creator

Designs 293
Downloads 1.7k
Followers 23

Focused on small scale and home manufacturing utilizing digital desktop technology such as 3D printing, CNC, and Laser cutting...

License

CC BY SA
