3D model description

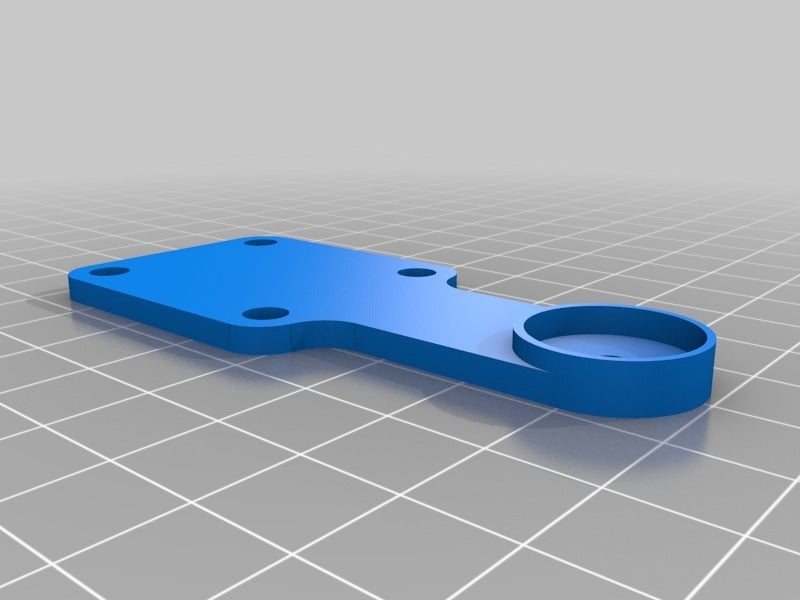

Printed - The Hollow one is a little too thin, I'll re-do the STL thicker - 8mm instead of the current 4mm. Matches well the measurements on the bed of the D9. This clamps under the bed with 4 x M4 Bolts (4mm holes) and

The Arms and Bracket use M3 x 12's for a real snug fit, M3 x 16 gives plenty of thread left over

I made this originally for the camera enclosure from
https://www.thingiverse.com/thing:2864095

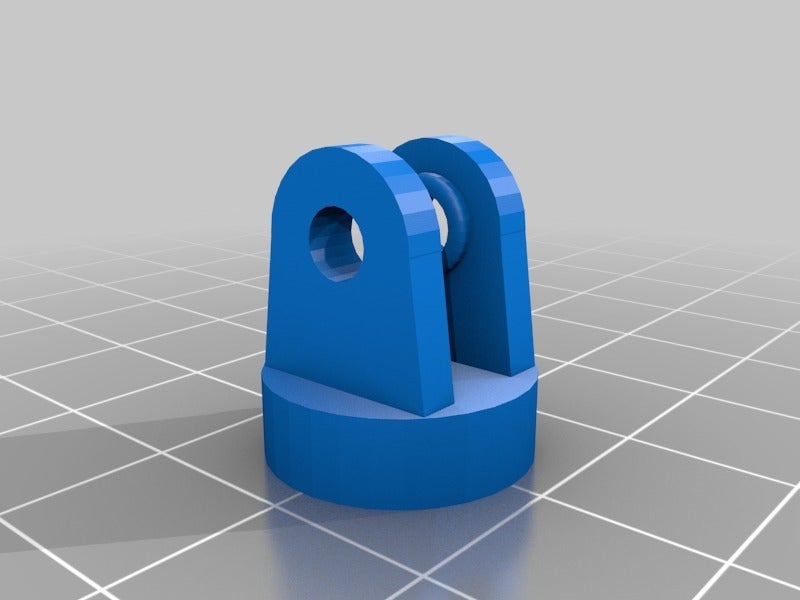

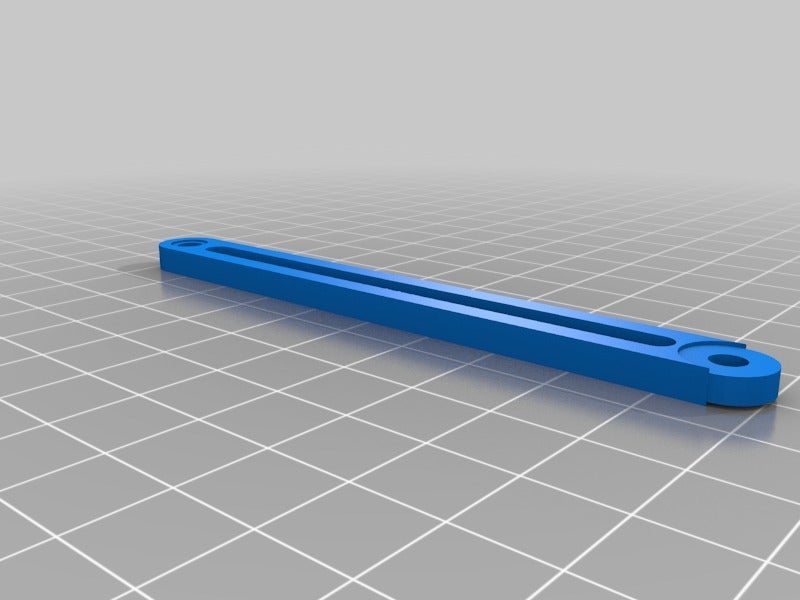

I've included TWO mounting arms - one is 4mm wide both sides, the other has a 3mm width on one side as most camera mounts on thingverse seem to be 3mm...
Message me if you want a different width
