Voltmeter/Ammeter Case - 2

Creation's quality: 5.0/5 (1 vote)
Evaluation of members on the printability, utility, level of detail, etc.

3D model description

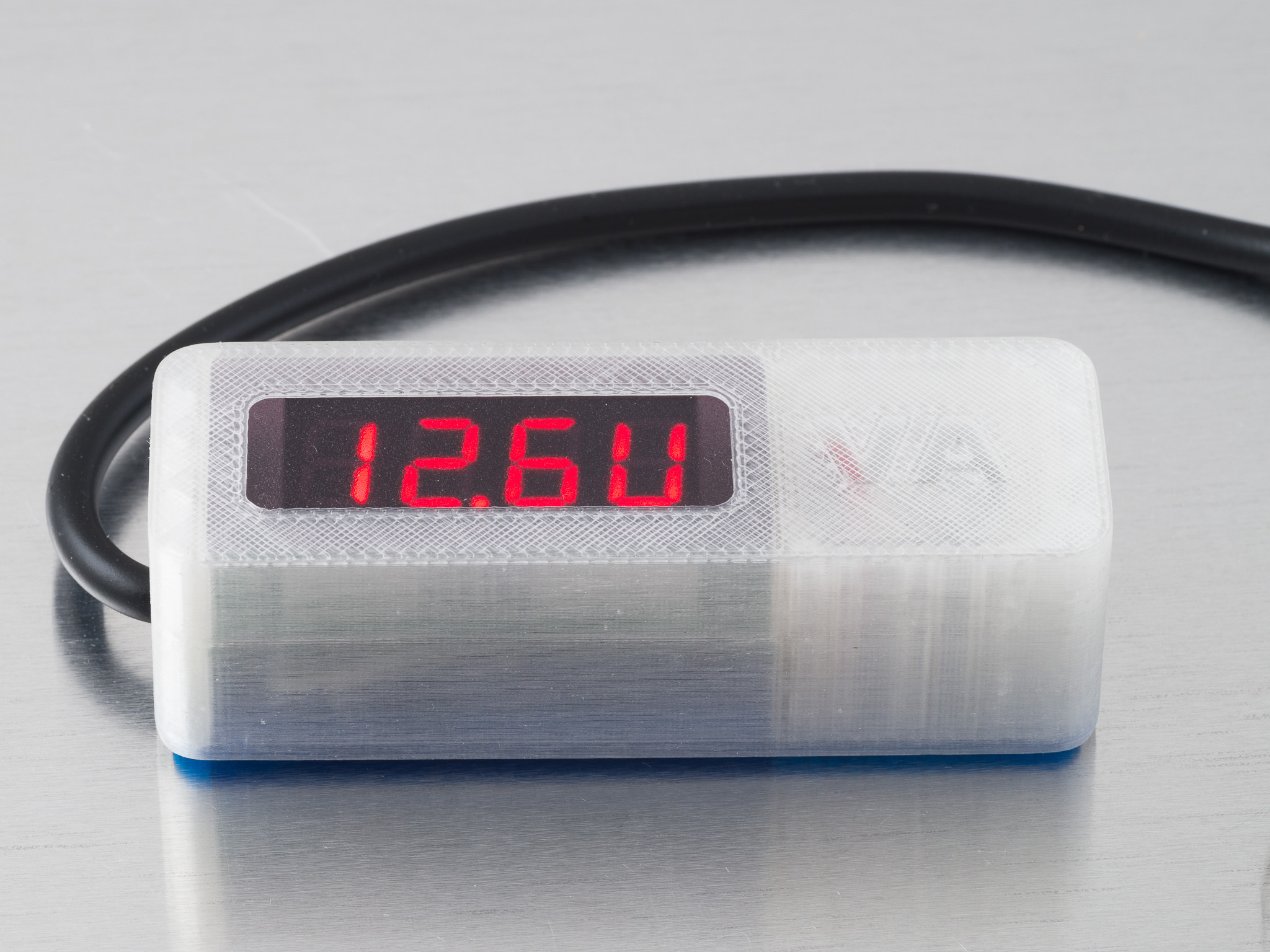

Case for a voltmeter/ammeter circuit case, used for measuring the output of a solar panel or other device. A switch on the back switches the display between voltage and current display. An alternate version using a different circuit can be found at

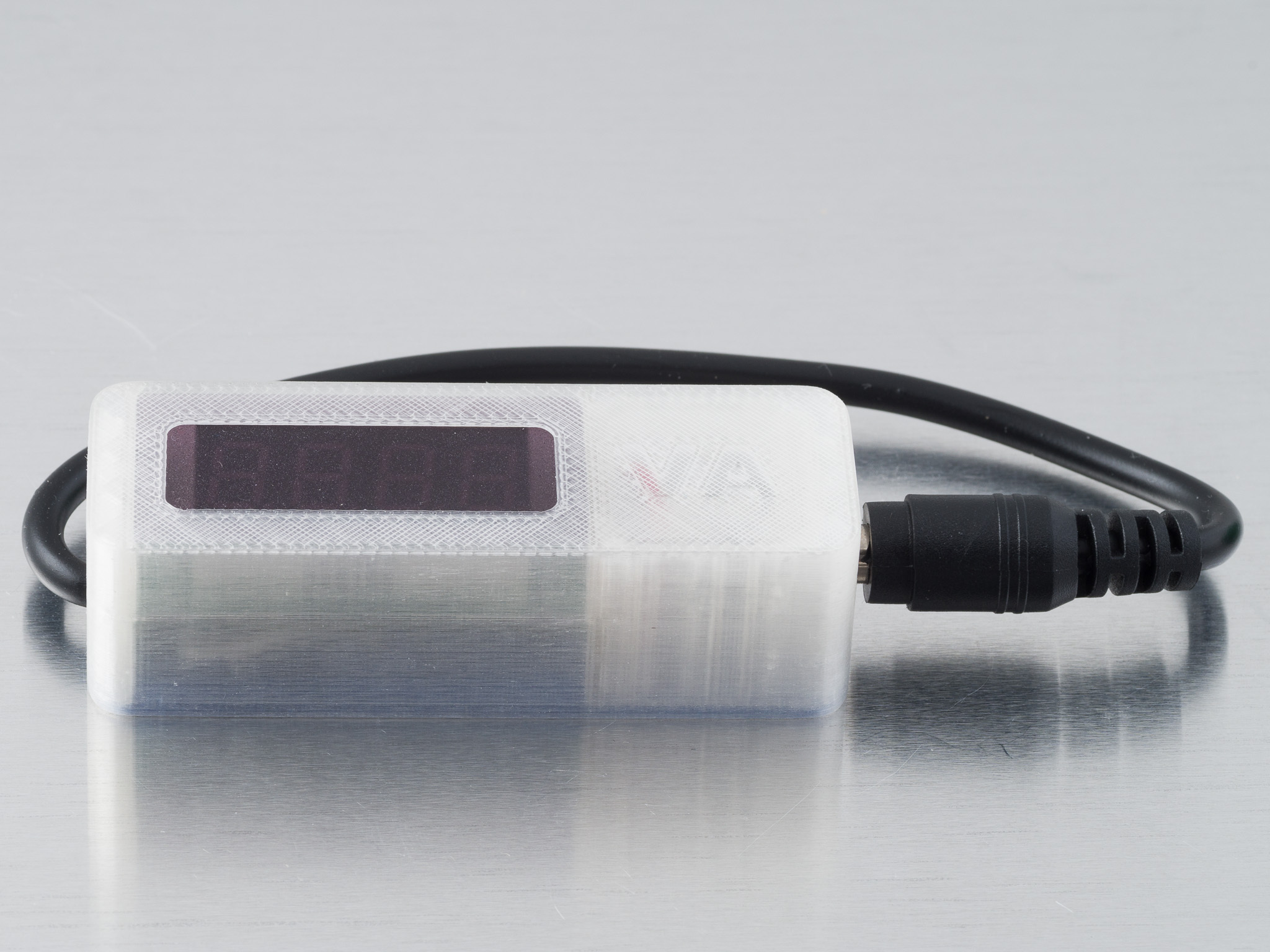

Uses a voltmeter/ammeter circuit and a 5.5mm x 2.1mm or 5.5mm x 2.5mm jack.

Some of the parts used for the meter:

* voltmeter / ammeter circuit

* power jack

* 5.5mm x 2.5mm cable

3D printing settings

  • The circuit will need to be removed from the plastic case it comes in.

  • The power input and output pins will need to be bent to fit in the case.

  • You can use a glue dot to attach the button cover to the button on the circuit board.

  • 3D file format: STL
  • Publication date: 2019/09/20 at 14:25
