Volkswagen van 3D printer tool holder

Advertising
Share
Add to
Make
?
Creation quality: 5.0/5 (1 vote)
Evaluation of members on the printability, utility, level of detail, etc.
  • 1.7k views
  • 12 likes
  • 10 downloads
Licence CULTS - Private Use
Last update 2023-09-25 at 20:10
Publication date 2023-09-24 at 10:23
Design number 1470765
3D design format
STEP and STL Folder details Close
  • a-Body.STL
  • b-windows.STL
  • c-roof.STL
  • custom tools holder.STEP
  • d-drawer1.STL
  • e-drawer2.STL
  • f-front.STL
  • g-back.STL
  • h-wheel axle - 2psc.STL
  • i-wheel - 4pcs.STL
  • j-wheel cup - 4pcs.STL
  • k-wheel lock - 4pcs.STL
  • l-axle hold - 4pcs.STL
  • m-front and back hold - 4pcs.STL
  • n-windows hold - 6pcs.STL
  • o-top mount - 4pcs.STL
  • p-tools hold.STL
  • q-caliper base.STL
  • r-mount base.STL
  • s-nozzle holder.STL
  • t-WV logo.STL
  • xx-2nd alternative for transparent windows.STL
  • xx-2nd alternative for transparent windows.STL

Learn more about the formats
Tsa

Tsa

3D printer file info

3D model description

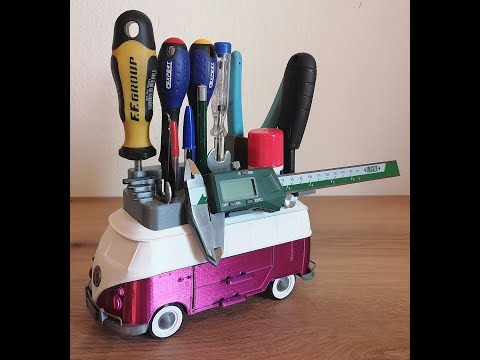

3D-printed Volkswagen van as a tool holder.

A useful toy that can be painted as you like and assembled for more fun. The wheels can be rotated freely and a .step file is included so you can create your own top to hold your favorite 3D printer tools.

Also added a 2nd alternative for transparent windows. Note: too challenging, many supports and drafted geometries between supports. I do not even try to print it :-) Can you print successfully?

Building instructions: https://www.youtube.com/watch?v=UEKfn5L7Vxk&ab_channel=AlexanderWeTrust

The tool base included here can hold the following
5 Allen screwdrivers,
4 Screwdrivers up to PH2x130mm,
3 Pencils or pens,
2 Nozzle wrenches,
1 Caliper,
1 Flush Cutter,
1 3D Printer Spatula 37mm wide,
1 Large Glue Stick up to 39mm in diameter,

The two drawers can hold
9 nozzles,
5 mini SD cards,
2 hotend sets,
1 het sink
or whatever you want.

To mound in alumnium frame you will need:
2 M5x10mm
2 M4x10mm Countersunk head
2 M4 slot nut

Inspired by MRSAM_BHR
https://cults3d.com/en/3d-model/art/volkswagen-bus-color-pencil-holder

Have fun printing
and ask me anything you want

3D printing settings

it is a regular print with supports.
0.2mm layer hight, best with 0.12mm
Nozzle 0.4
Infill max 20%
All parts are pre orientation.
For supports there are details in the video.
