Vertex K8400 - standard fan shroud

Creation's quality: 5.0/5 (1 vote)
Evaluation of members on the printability, utility, level of detail, etc.

3D model description

30-9-2018: Added a "snap-on" model, see below!

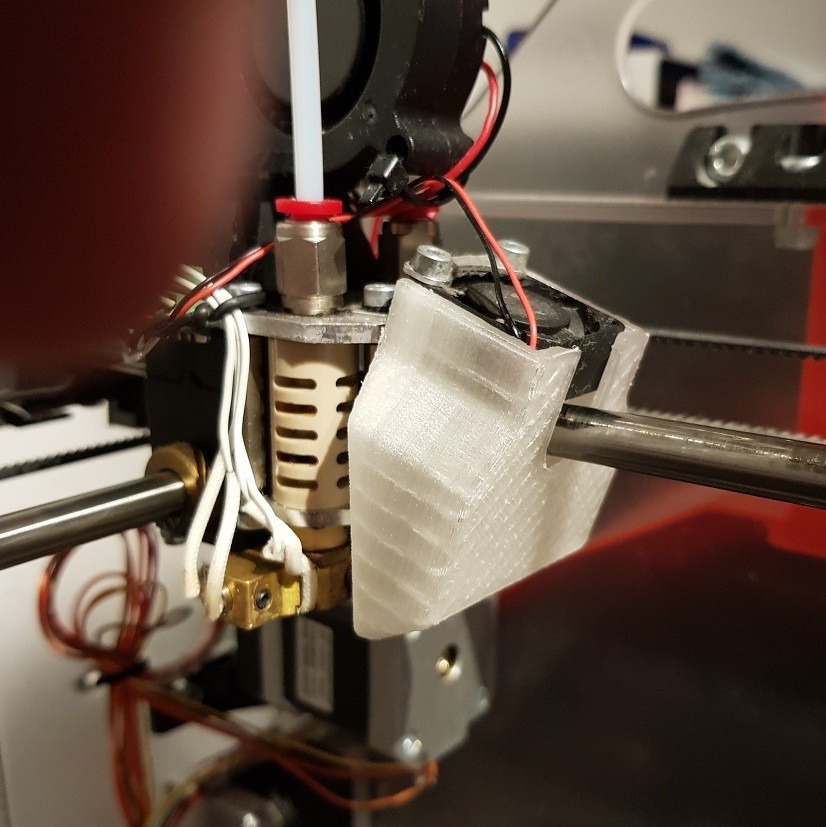

A first version, I think, of a shroud for the standard K8400 front cooling fan, using it's unaltered position.

Most shroud solutions I've found online so far, include a re-positioning of the fan - I'm thinking it might be possible to improve the cooling process, while leaving this fan in it's original position...?

This model is an attempt to capture & channel the flow, that was directed towards lower sections of the print, to the area at & directly below the nozzle(s).

For mounting the shroud on the fan, I used a low-strength glue.

STEP source file included - to allow modifications, should you want to make those.

(Should there be another iteration of this model, I'll probably add it to this entry as an extra file).

Edited on 30-9-2018: Vertex K8400 dual shroud - standard vent - snap-on

Right... Turns out, the shroud is working pretty well in focussing the airflow to the nozzles & the area just below it? Prints seem to have better cooling, but also - when doing a filament change - the nozzle now needs to put in more effort to reach the standard 210°C, causing this procedure to take longer.

So, I figured, I'd better change the model to sort of a snap-on execution - so you can click it onto the standard fan, when needed. (Or remove it, when preferred).

3D printing settings

Printed on the Velleman Vertex K8400:
- Velleman PLA, transparent,
- No rafts, supports not required
- 0,20mm layers, with 20% infill.

3D printer file information

  • 3D design format: STL and ZIP Folder details Close
    • STEP source file - snap-on
    • STEP source
    • Vertex K8400 dual shroud - standard vent - snap-on.stl
    • Vertex K8400 dual shroud - standard vent.stl

    Learn more about the formats

  • Last update: 2018/09/30 at 17:46
  • Publication date: 2018/09/11 at 22:59
