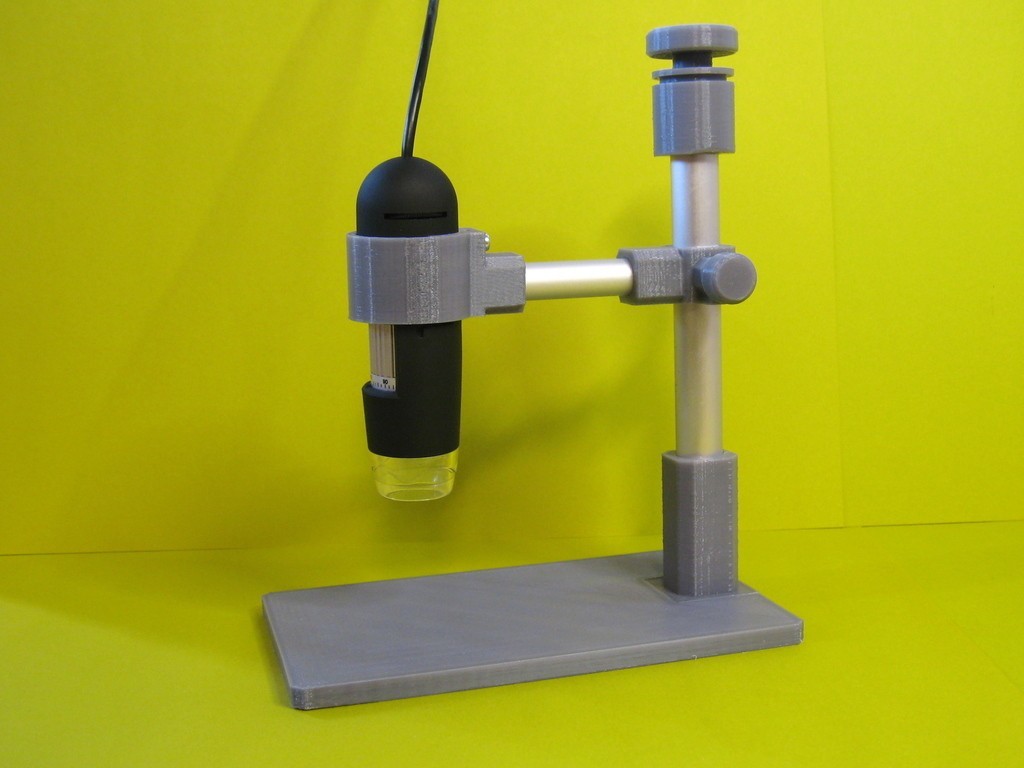

USB Microscope Stand
:still():format(webp)/https://files.cults3d.com/uploaders/13740709/illustration-file/d9388180-051b-4b01-a341-055db4e8ab21/MicroscopeStand1_display_large.jpg)
?
Creation quality:
5.0/5
(1 votevotes)
Evaluation of members on the printability, utility, level of detail, etc.
Your rating:
0/5
- 11.8k views
- 21 likes
- 488 downloads
- 0 comments
- 0 makes
Designer
3D model description
There are countless Microscope-Stands you can buy, more or less usable. But for all 3D-Printer owners it's a breeze to print one. The additional screws, nuts, tubes etc. are mostly available in your Hardware-Store.
The Macro Images come from a Test Cube, Layer height = 0.25mm, Filament = PLA.
3D printing settings

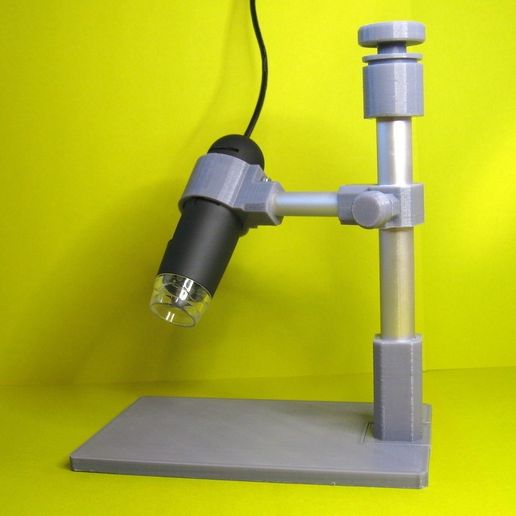

This Stand is optimized for the 5MP USB Microscope from adafruit
http://www.adafruit.com/products/636 but you can easily adapt it for others USB Microscopes.

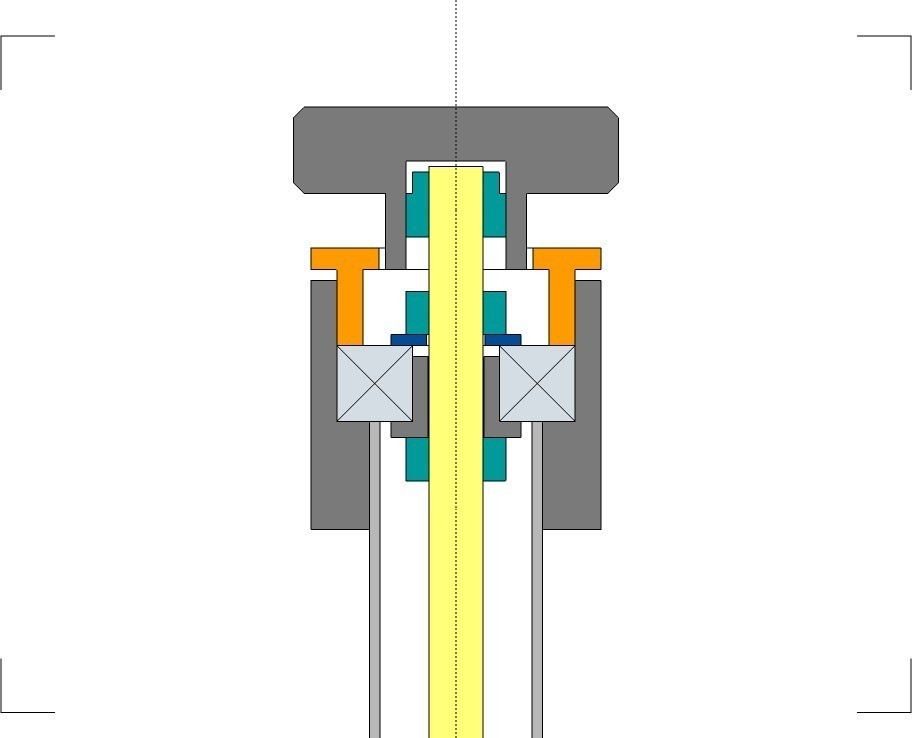

BOM:
1x Alu Tube outside dia 16 mm, inside dia 14 mm x 130 mm long.
1x Alu Tube outside dia 12 mm, inside dia 10 mm x 60 mm long.
1x Alu Tube outside dia 8 mm, inside dia 6 mm x approx. 14 mm long.
1x Threaded Rod M5 x 170 mm long.
1x Bearing 608ZZ or similar: inside dia 8 mm, outside dia 22 mm.
3x M5 Nut.
1x 5mm Washer
1x M5 Hex Nut Nylon Locking.
1x M4 Bolt x 14 mm.
1x M4 Nut.
1x M3 Screw x 8 mm.
1x M3 Nut.
3D printer file information
- Design number: 37600
-

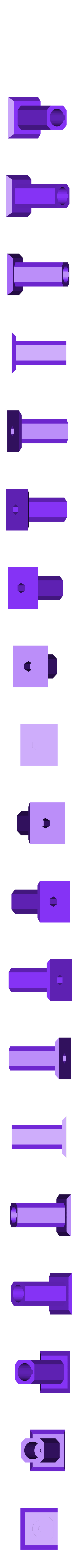

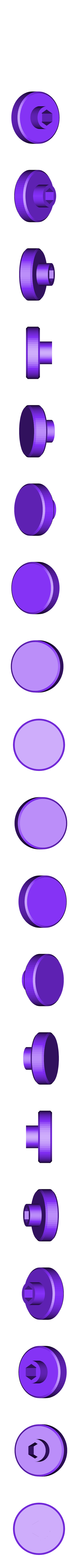

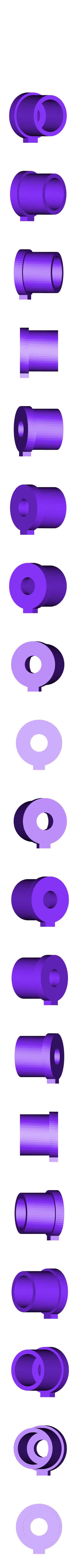

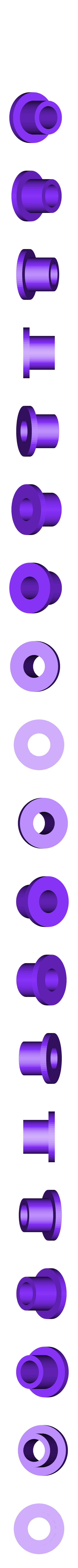

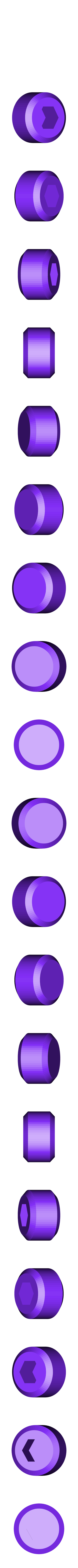

3D design format: STL Folder details Close

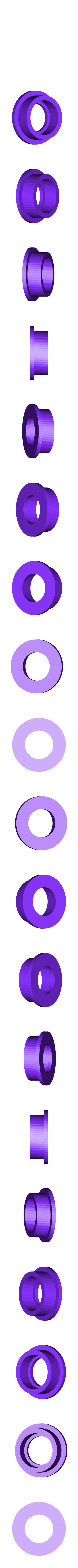

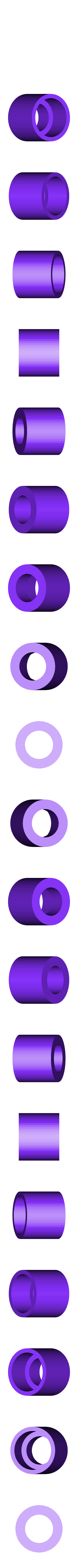

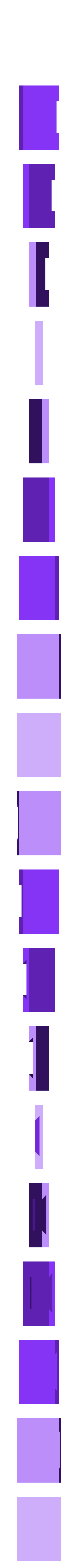

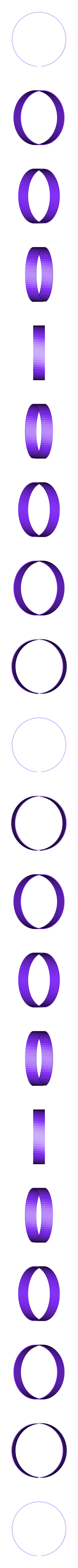

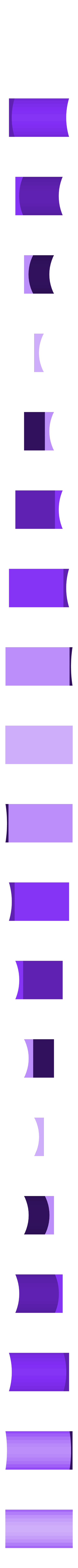

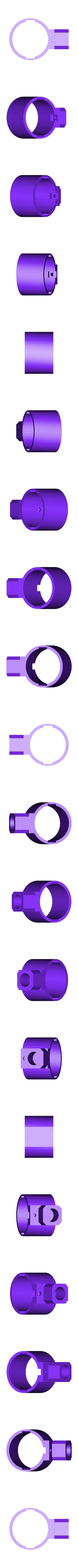

- MSBearingAdapter.stl
- MSBearingBushing.stl
- MSBearingCover.stl
- MSClampRing.stl
- MSHolder.stl
- MSPlate.stl
- MSPlateTest.stl
- MSScrewKnob.stl
- MSScrewSmallKnob.stl
- MSTubeCap.stl
- MSTubeClamp.stl
- MSTubeConnector.stl
- MSTubeHolder.stl
-
Publication date:
2018-11-16 at 11:26
?
Published to Thingiverse on: 2013-03-29 at 13:57
License
CC BY-SA - Attribution - Share alike
