Universal piezo bed leveling + HCE adapter

Creation's quality: 0.0/5 (0 votes)
Evaluation of members on the printability, utility, level of detail, etc.
  • 1 like
  • 1 download

3D model description

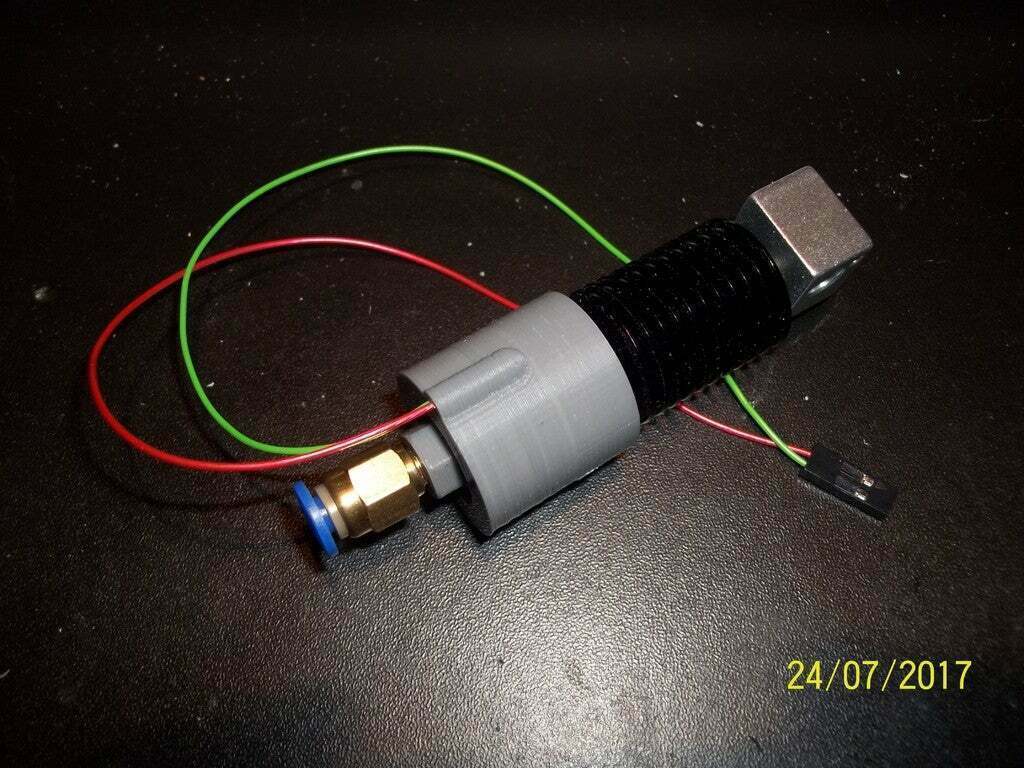

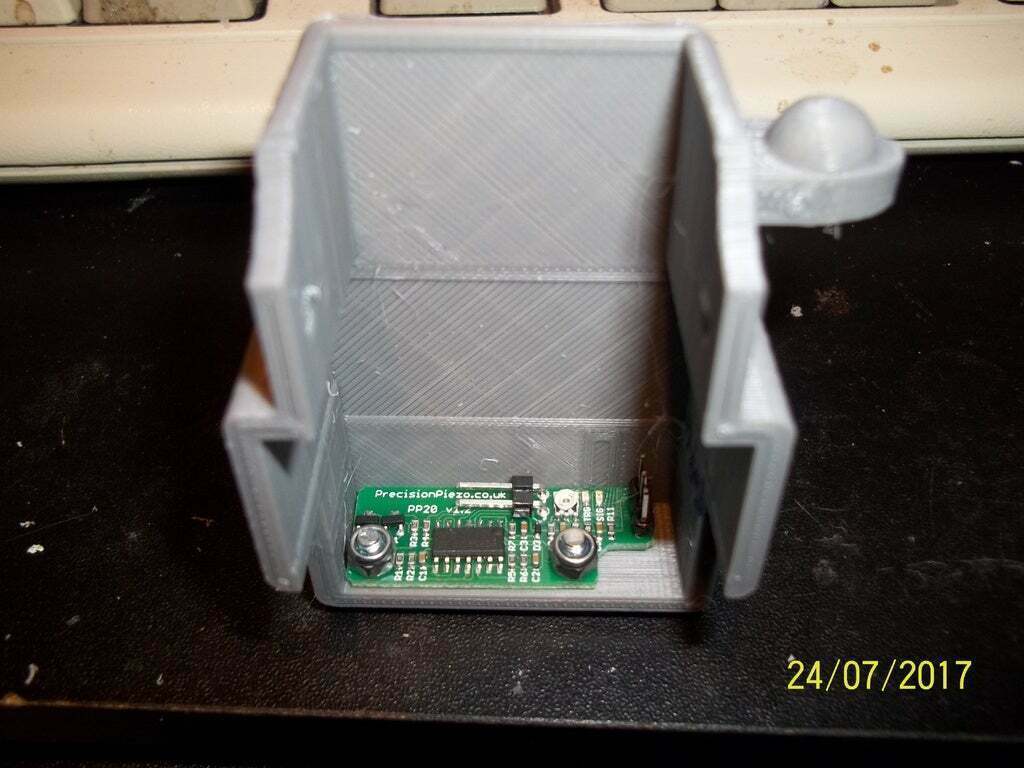

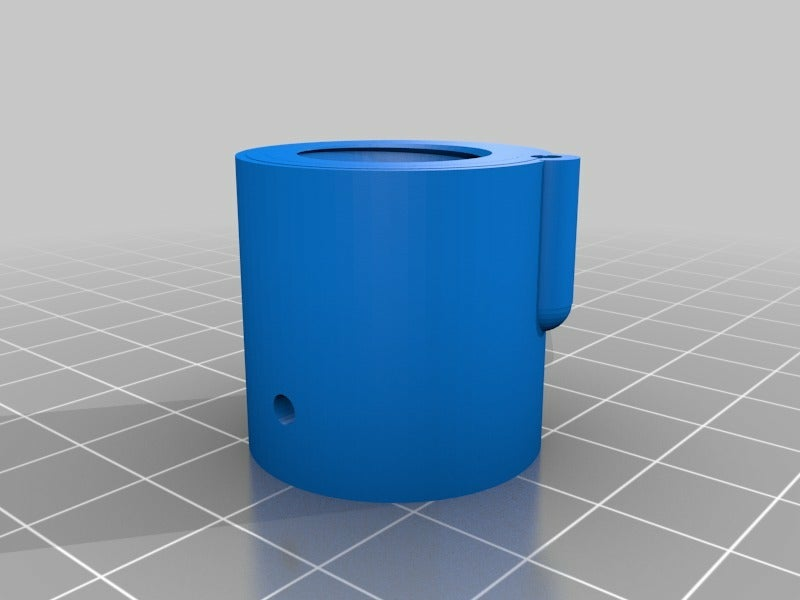

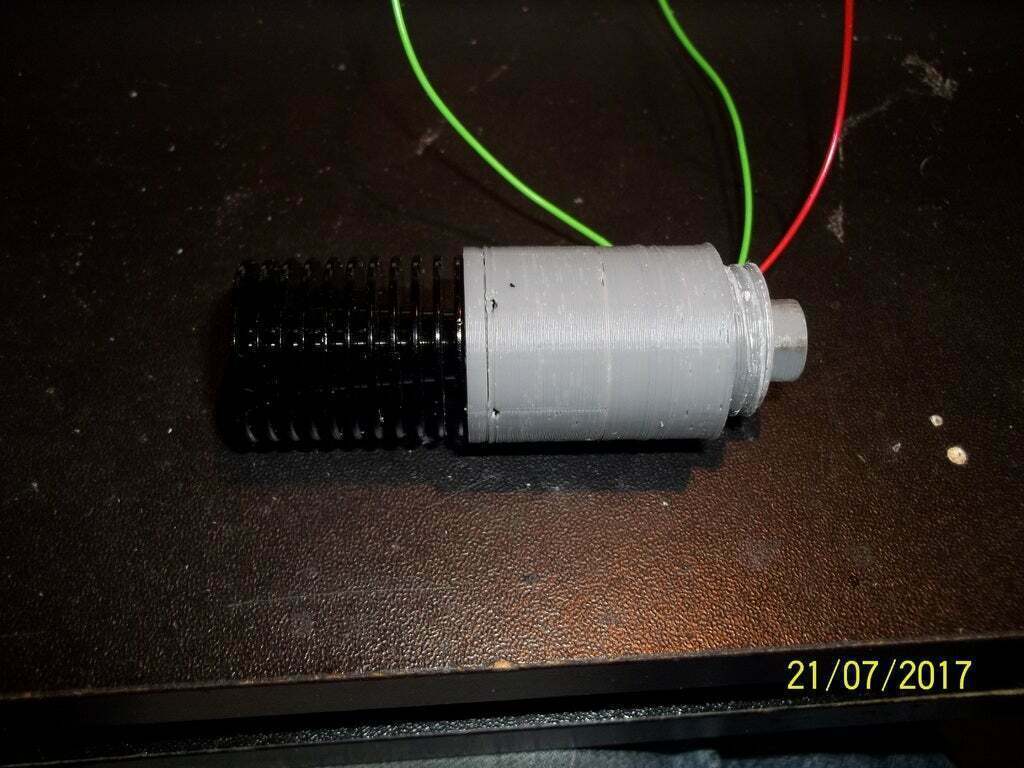

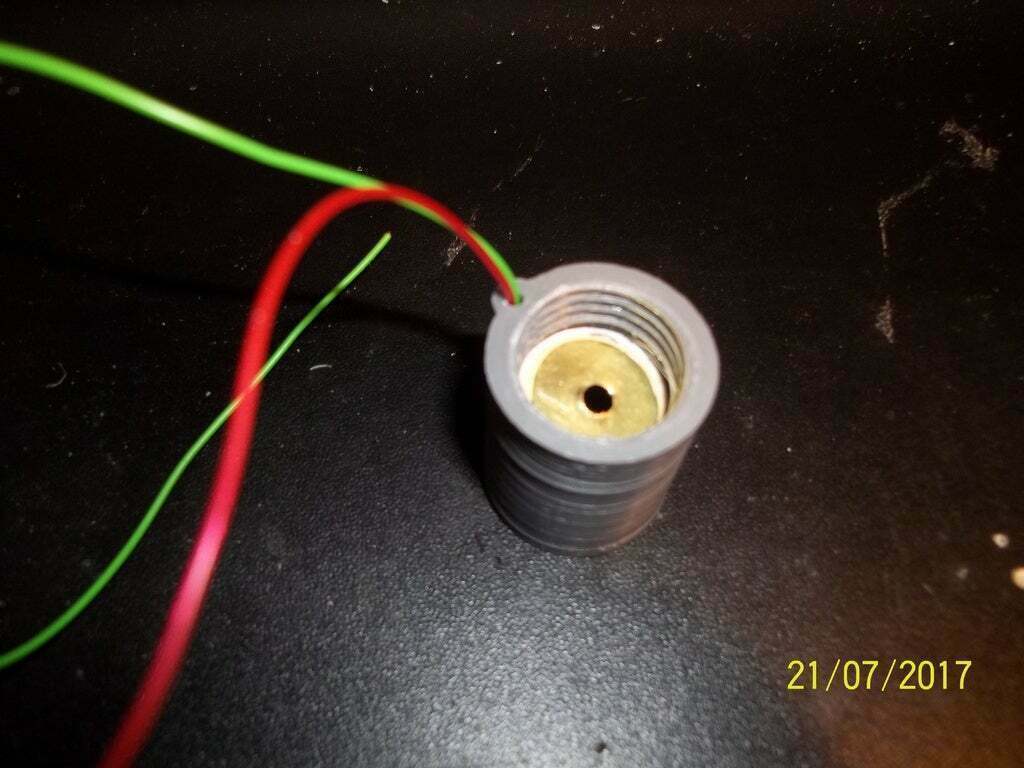

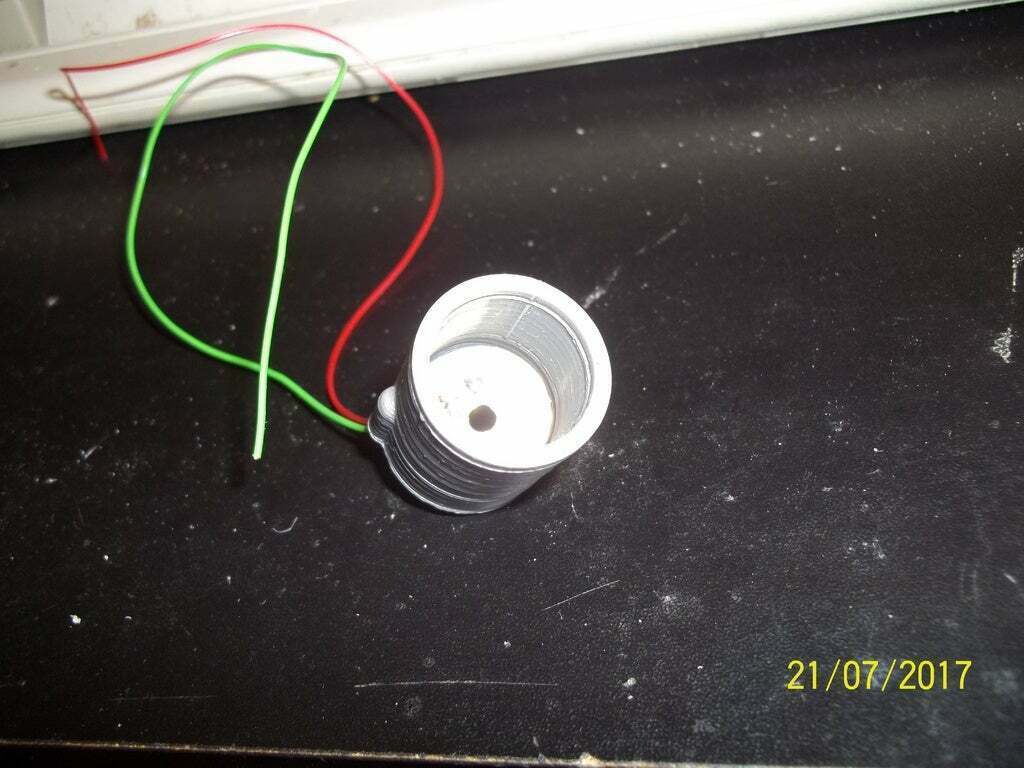

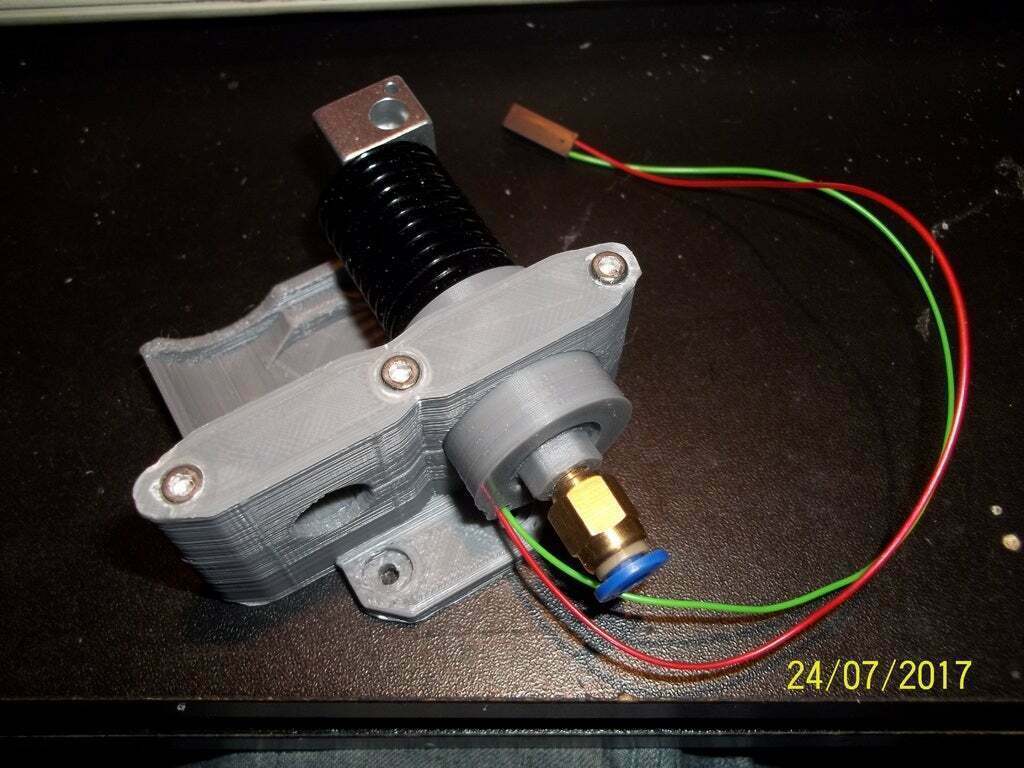

After built my new HCE linear rails I decided to add the auto-leveling feature to it. Sniffing around I found several piezo based stuff, but all with a too big foot print for my X carriage; so I designed a more compact one on my own.
It can be used with short and long distance, with or w/o bowden; practically with every printer on the market.

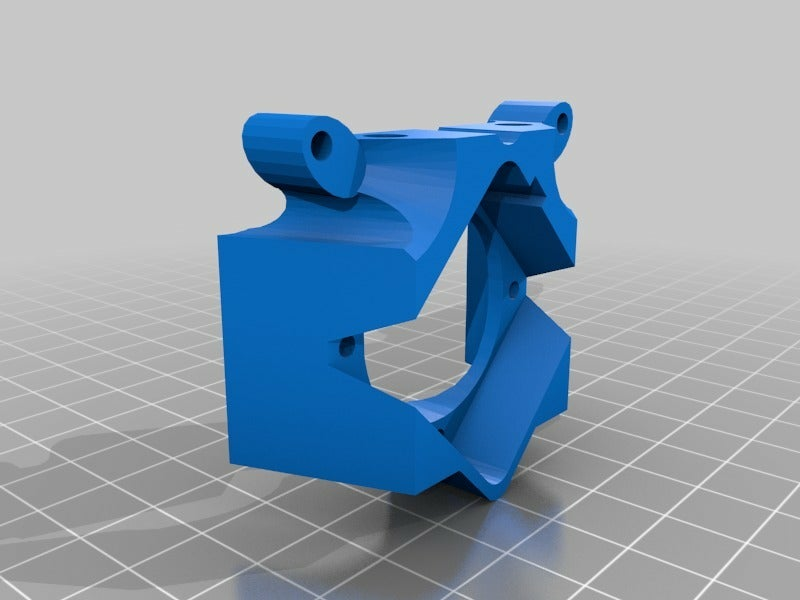

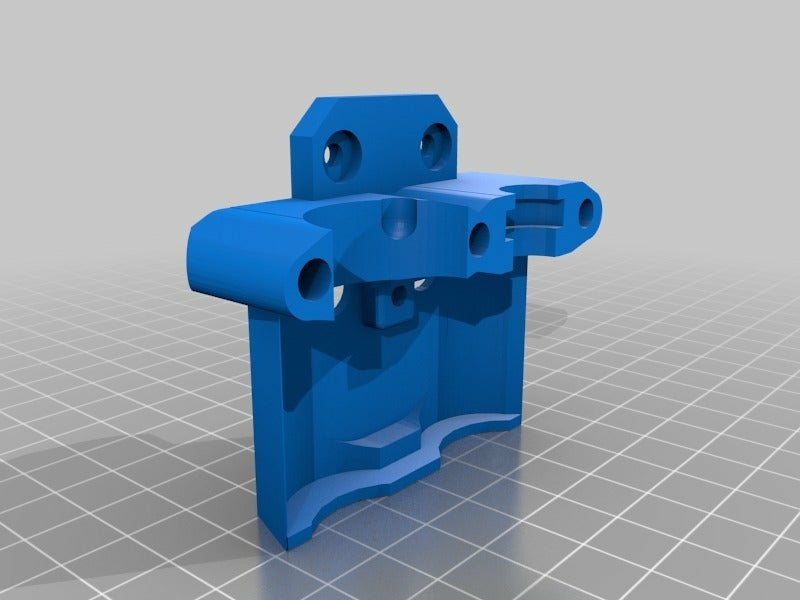

I added the modified items for the HCE to accomodate this sensor (prefixed with 'HCE_').
I hope you'll like it.

See it in action

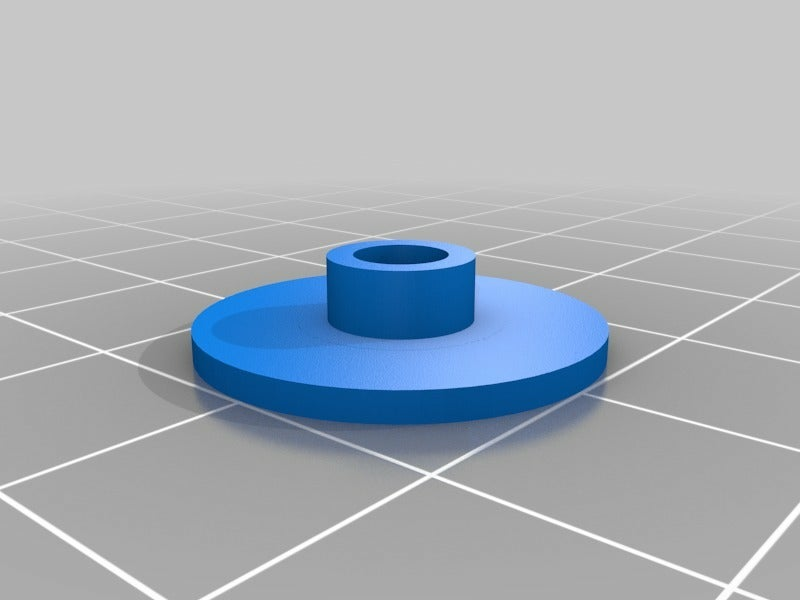

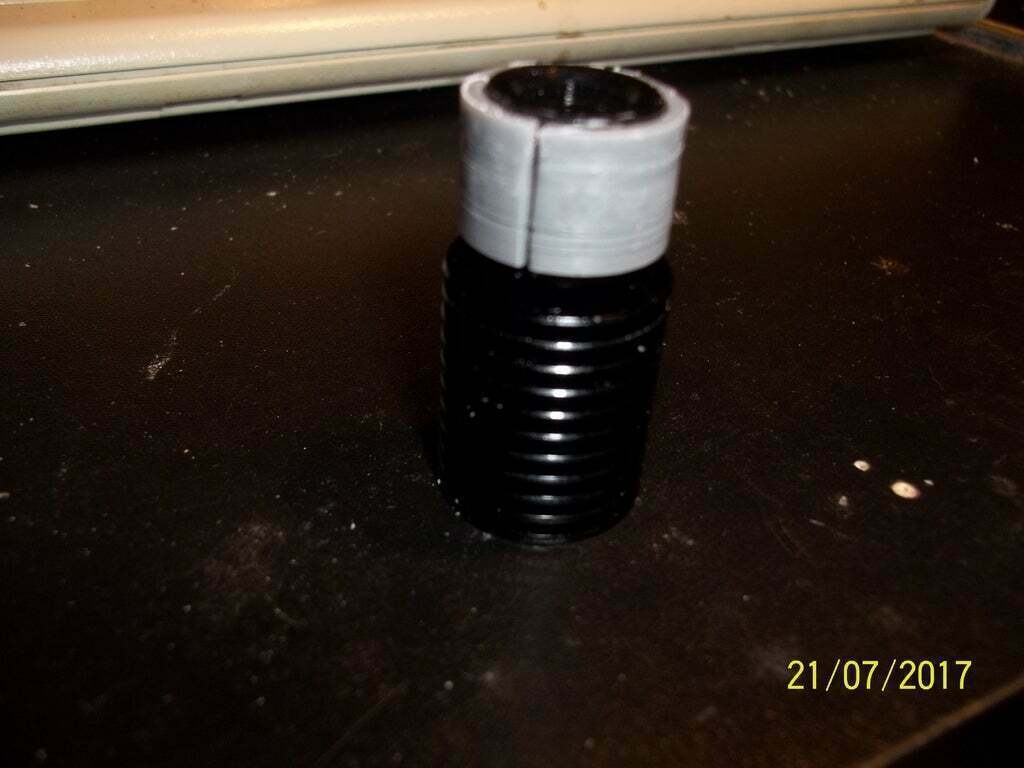

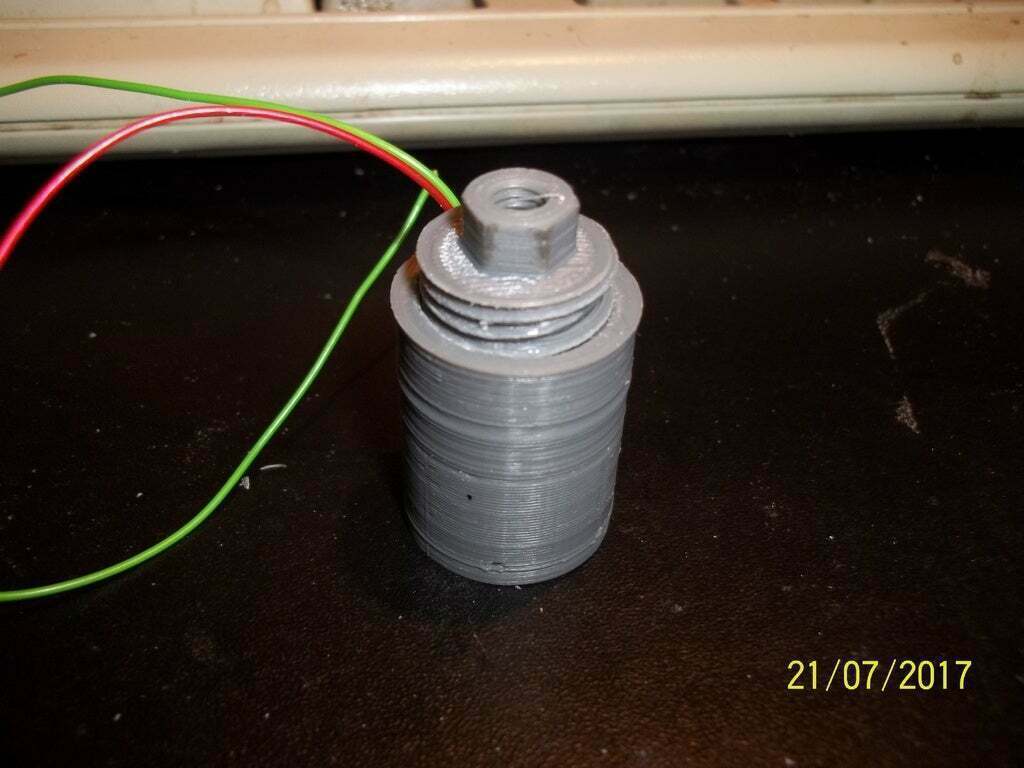

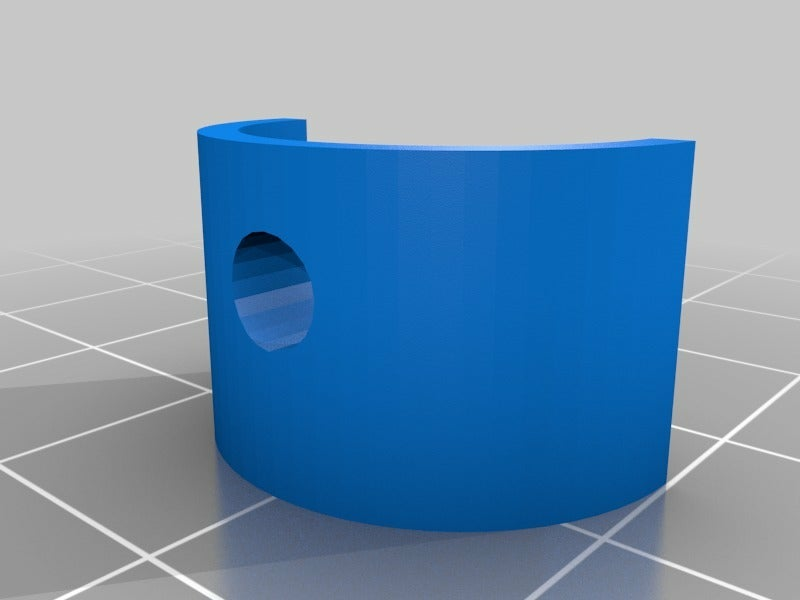

- Uploaded new Body and Piezo_hammer, to achieve better performance

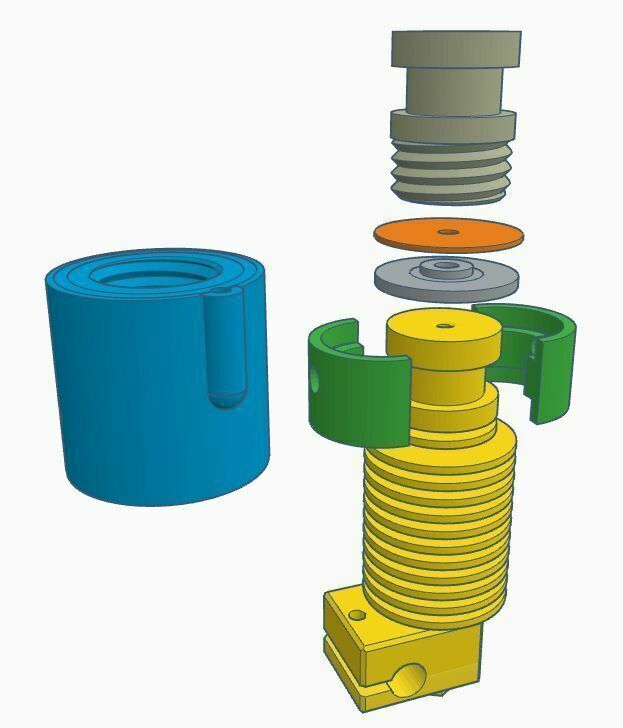

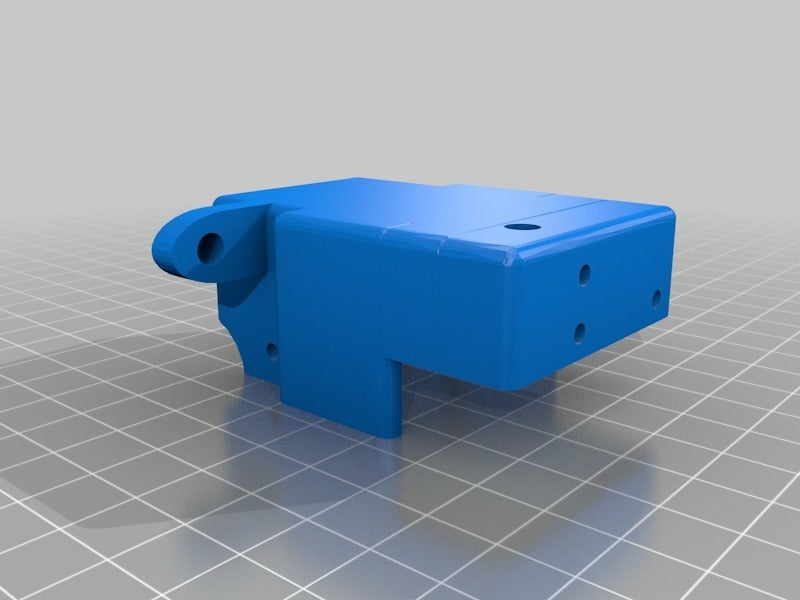

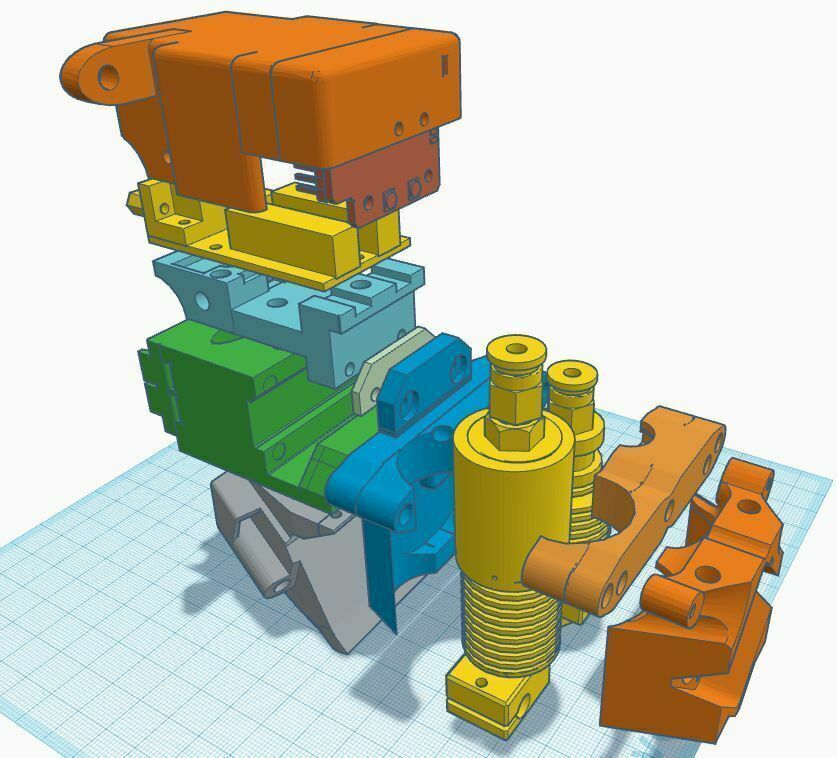

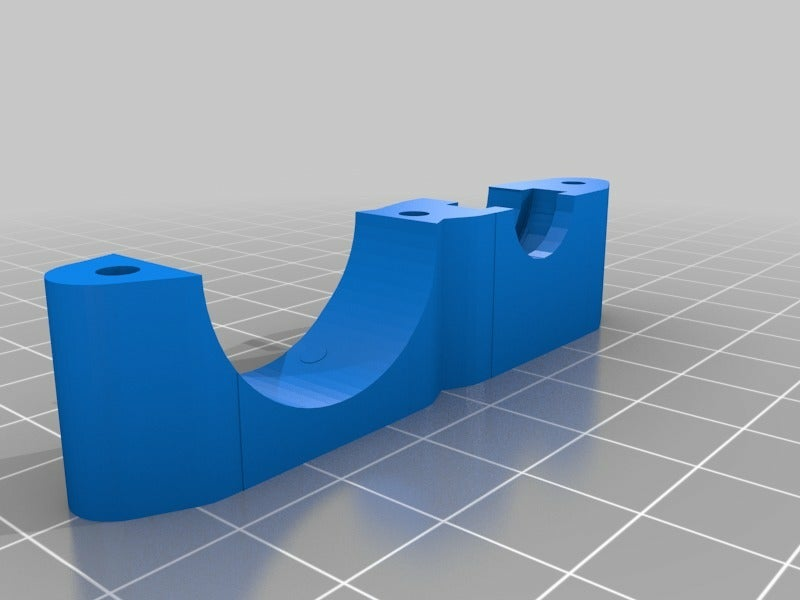

- Uploaded new HCE_extruder_base. See Assembly below for further explications

  • 3D file format: STL
  • Publication date: 2020/12/16 at 01:16
