Two Trees Sapphire S E3d threaded v6 dual-cool 5015

Creation's quality: 5.0/5 (1 vote)
Evaluation of members on the printability, utility, level of detail, etc.

3D model description

(updated a new cooler option v2 with a bigger openings )

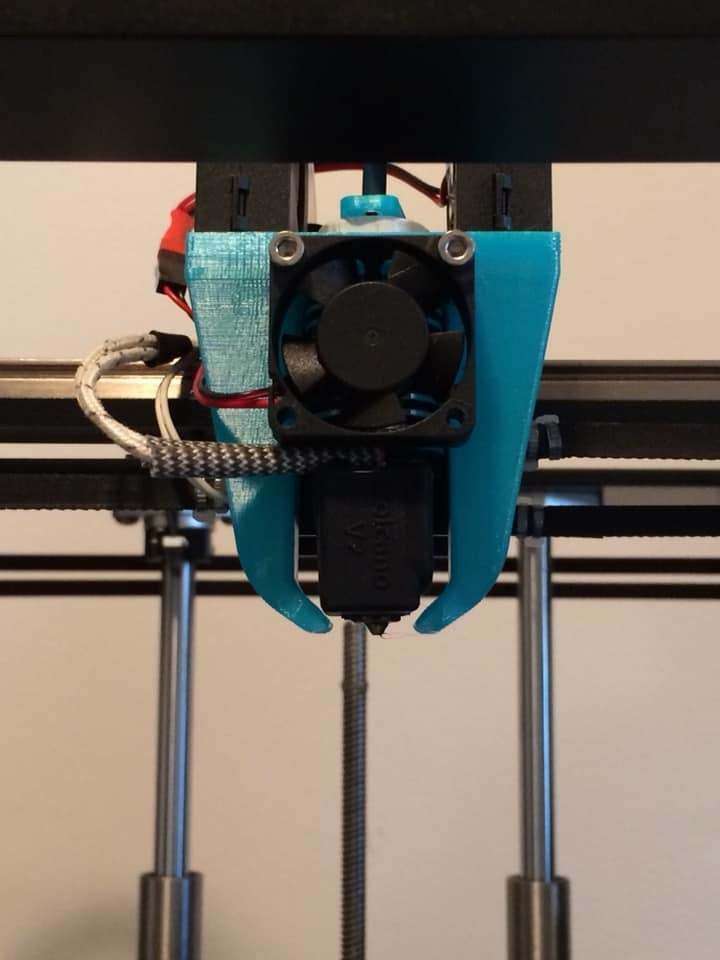

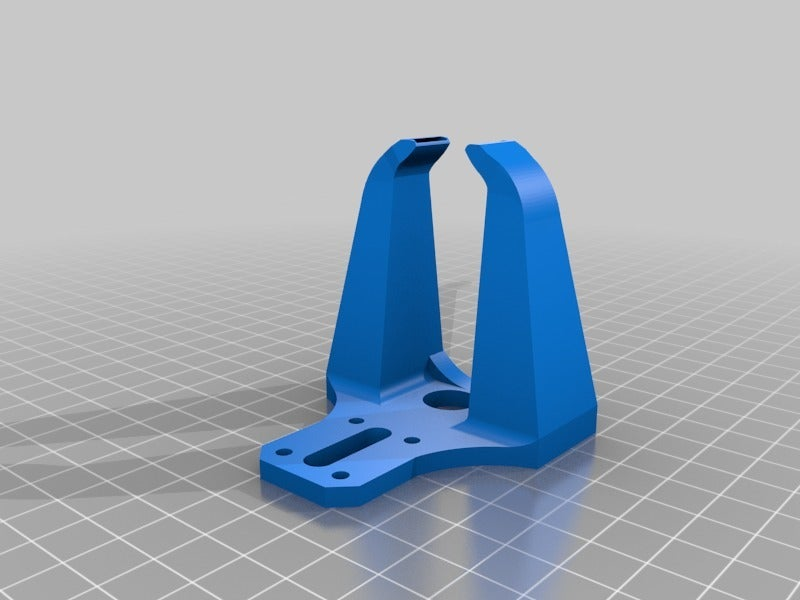

this is a 3 in 1 mount and cooler. designed for a E3D threaded v6 equipped with a volcano block v2 to give you better print quality and more z height (i got 48mm max extra in z) also gives you a better balanced hot end that is unbelievably lighter than stock metal shroud setup.
The dual 5015 blowers delivers the best in cooling.
Giving you superior quality 3D prints with great overhangs.
also has a mount for the extruder wire sleeve and clips to add a 4mm od ptfe tube spine to the wire sleeve to help keep the wires inline.

with 1 downfall (due to the odd placement of the X/Y drive rods) . you will loose 12mm in your y volume. so you will have to adjust your build volume to 188 for Y axis in your machine config and your slicer.

2x 8mm M3 screws (front screws for cooler body)
2x16mm M3 screws (rear screws for cooler body and fan brace back )
4x20mm M3 screws ( to mount the dual 5015 blowers )
2x12mm M3 screws (for the 30mm cold end fan)

3D printer file information

  • 3D design format: STL Folder details Close

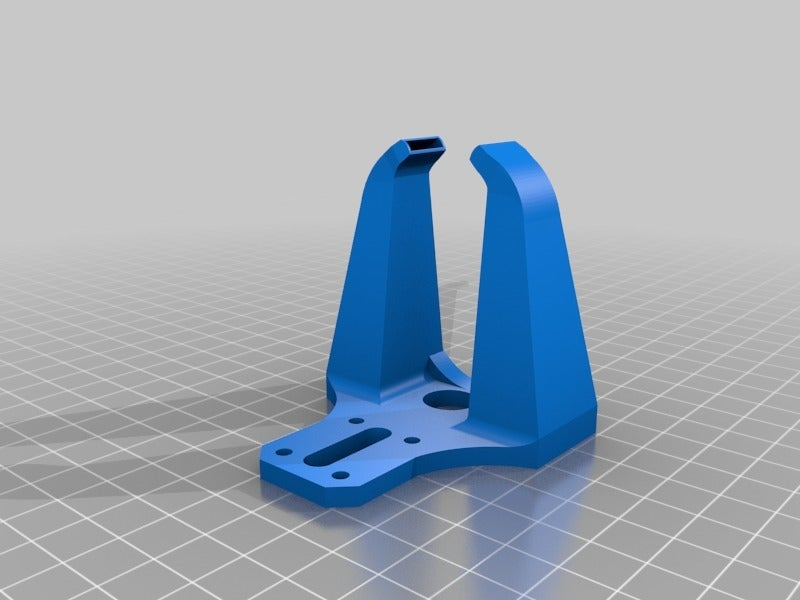

    • cooler_body.stl
    • cooler_body_v2.stl
    • extruder_cable_spine_clip.stl

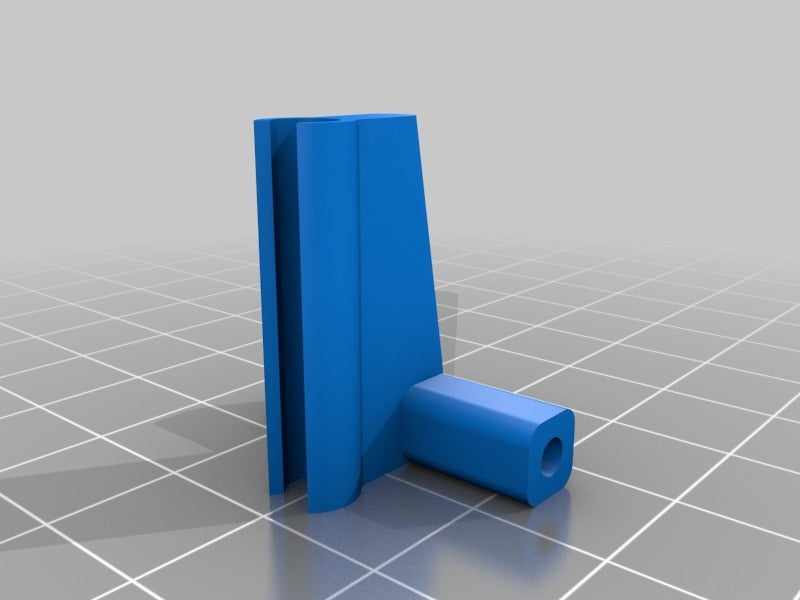

    • fan_brace_back.stl

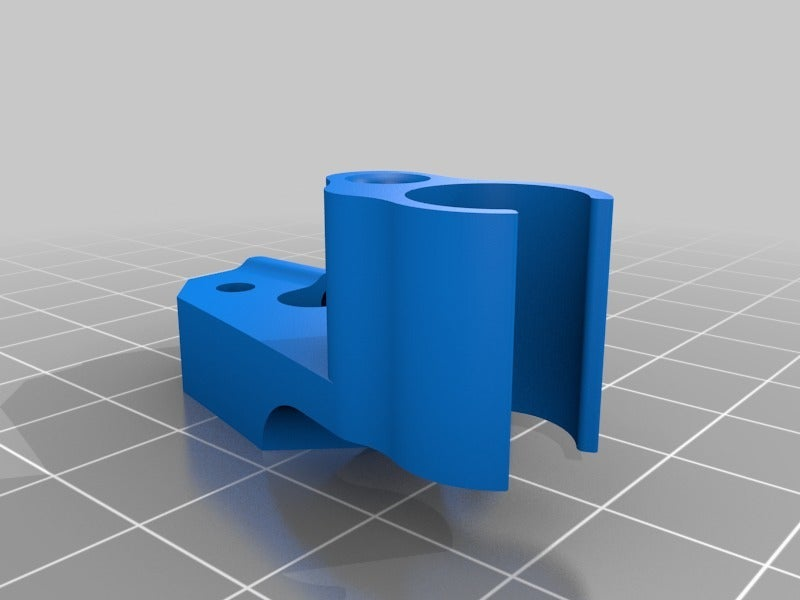

    • fan_brace_front.stl
    • fan_brace_front_no_tube.stl

    Learn more about the formats

  • Publication date: 2020/06/22 at 11:35
