Turboprop Engine Modified Parts (No.3)

?
Creation's quality: 5.0/5 (2 votes)
Evaluation of members on the printability, utility, level of detail, etc.
  • 2.4k views
  • 13 likes
  • 187 downloads

3D model description

I am a designer of the following "Turboprop Engine".
https://cults3d.com/en/3d-model/tool/turboprop-engine

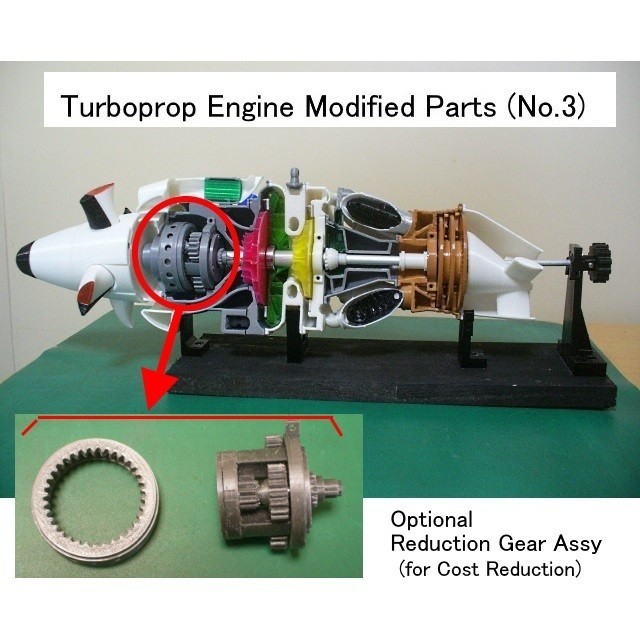

I re-designed the New Reduction Gear Assy for cost reduction of the metal ball bearings.
This modification is fully interchangeable to original Assy.
Bearing quanty is reduced to 1 from 8.
Modified parts with reason are shown in photo with related original parts.
- STL files (6 files modified): See photo.
- φ3 x 26 AL Tube (3ea) are used as gearshaft.
- Assembly Sequence and Points with "NOTE": See photo.
- 3D printing settings: For Gears, 100% in-fill is recommended.

Still this is not the model to print and assemble easily, I hope your perseverance too.
Thank you for your interest.

3D printing settings

See above

  • 3D file format: STL
  • Publication date: 2018/02/13 at 05:47
