Turboprop Engine Modified Parts

Mod01-1.jpg Free STL file Turboprop Engine Modified Parts・3D printable object to download
Mod01-2.jpg Free STL file Turboprop Engine Modified Parts・3D printable object to download
Mod01-3.jpg Free STL file Turboprop Engine Modified Parts・3D printable object to download
Exhaust-Align01.stl Free STL file Turboprop Engine Modified Parts・3D printable object to download
Front-Support01.stl Free STL file Turboprop Engine Modified Parts・3D printable object to download
Impeller-HP101.stl Free STL file Turboprop Engine Modified Parts・3D printable object to download
Impeller-LP101.stl Free STL file Turboprop Engine Modified Parts・3D printable object to download
Red-Prop-Shaft201.stl Free STL file Turboprop Engine Modified Parts・3D printable object to download
Turb-Rotor-Base01.stl Free STL file Turboprop Engine Modified Parts・3D printable object to download
Turbine-Case101b.stl Free STL file Turboprop Engine Modified Parts・3D printable object to download
Share
Add to
Make
?
Creation quality: 5.0/5 (1 vote)
Evaluation of members on the printability, utility, level of detail, etc.

Designer

konchan77

konchan77

3D model description

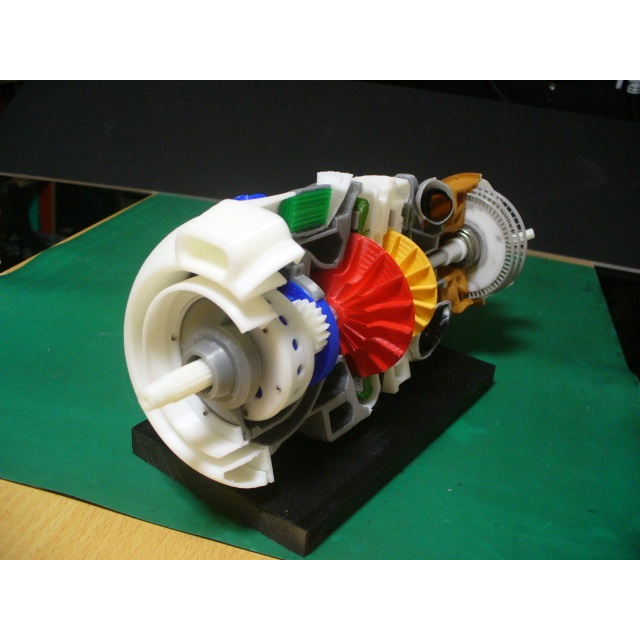

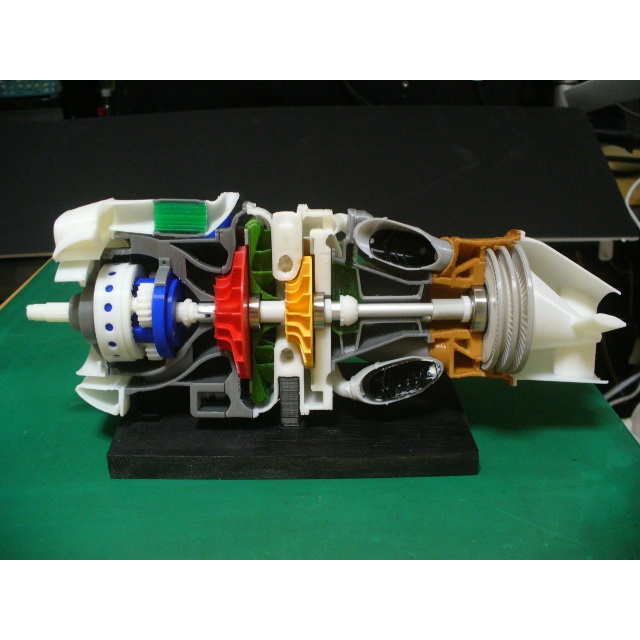

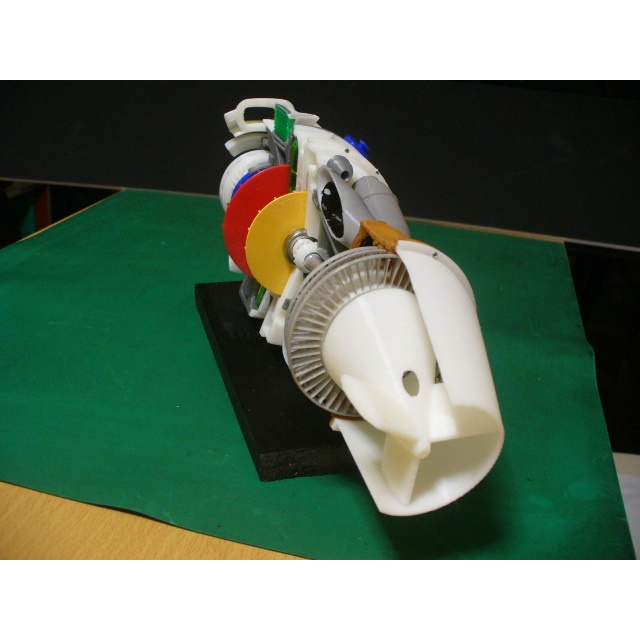

I made the 2nd Engine to review my uploaded files and data.
I found the bad BRG No. as follows;
686ZZ(6 x 13 x 5) to WBC6-12ZZ(6 x 12 x 4) --- Already corrected the original descreption.
Sorry!

Some difficulties are found to rotate the Rotor, then optional parts are uploaded this time.

Impeller-HP101: Increased Inlet portion clearance
Impeller-LP101: Increased Inlet portion clearance
Red-Prop-Shaft201: Reduced Axitial Interference
Turbine- Case101b: Increased HP Rotor Clearance
And Convenience for assembly, the following tools are also uploaded too.

Exhaust-Align01: Use when assembling Exhaust Duct
Front-Support01: Use when Engine to vertical position
Turb-Rotor-Base01: Use when assembling Turbine Rotor to Shaft
This is not the model to print and assemble easily, I hope your perseverance.
Thank you for your interest.
