TS100 Soldering Iron Holder Station

Download free STL file TS100 Soldering Iron Holder Station • 3D printing design, MightyNozzleDownload free STL file TS100 Soldering Iron Holder Station • 3D printing design, MightyNozzleDownload free STL file TS100 Soldering Iron Holder Station • 3D printing design, MightyNozzleDownload free STL file TS100 Soldering Iron Holder Station • 3D printing design, MightyNozzleDownload free STL file TS100 Soldering Iron Holder Station • 3D printing design, MightyNozzleDownload free STL file TS100 Soldering Iron Holder Station • 3D printing design, MightyNozzleDownload free STL file TS100 Soldering Iron Holder Station • 3D printing design, MightyNozzle

Did you 3D print this model?

3D model description

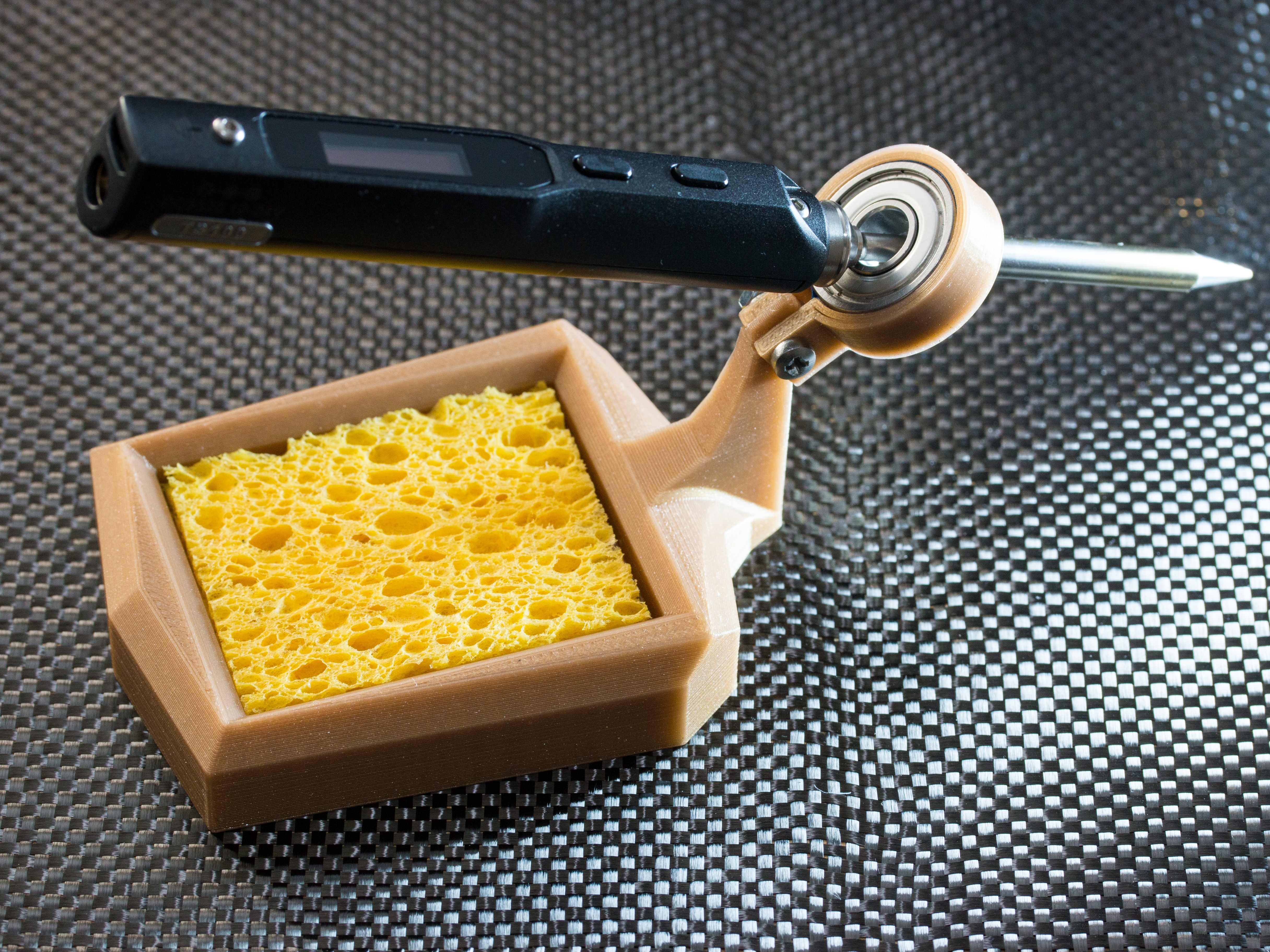

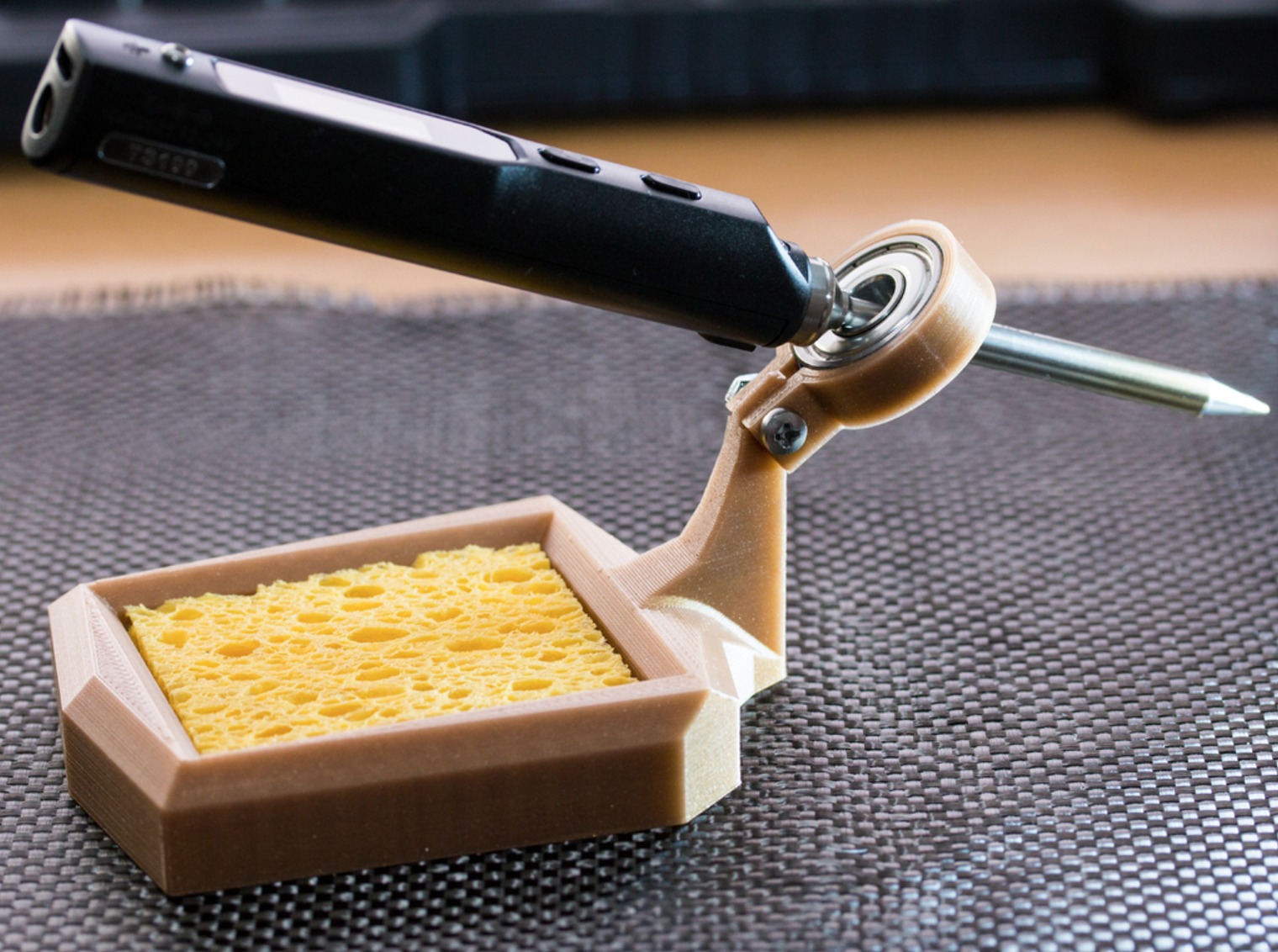

I want a more heat resistant holder for my TS100 soldering iron and had the idea, to do it with a 608ZZ ball bearing.

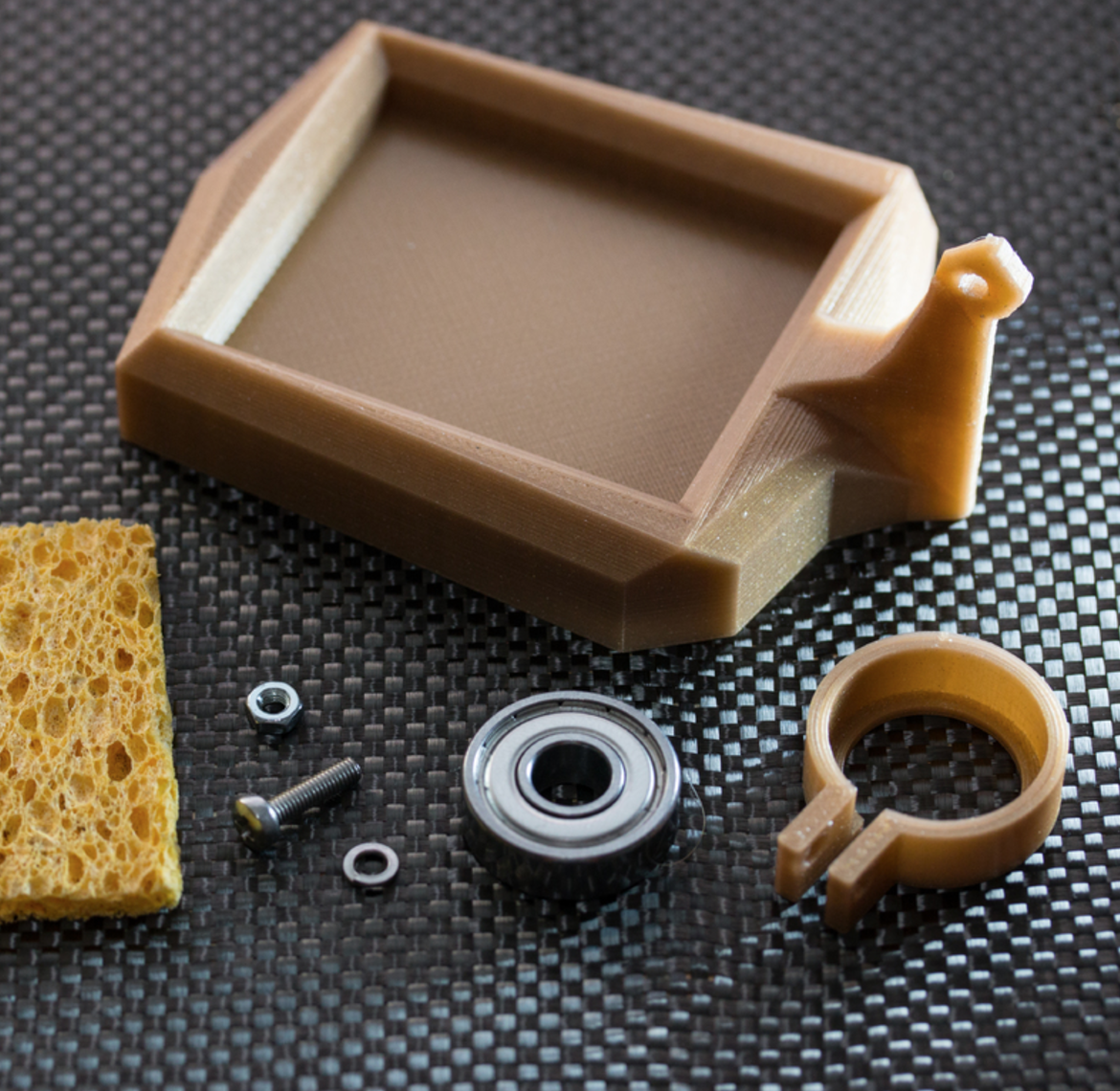

You need these items:

How to support me?
Do you like my things and do you want to support me? You can use these links if you want to buy something. This helps me doing more things. Thanks!

Banggood: https://goo.gl/ZXgx3A
Gearbest: https://goo.gl/FfE59f
Aliexpress: https://goo.gl/bQLi15

3D printing settings

Rafts:
Doesn't Matter

Supports:
Doesn't Matter

Resolution:
1/2 of nozzle diameter. E.g. 0.2mm layer height with 0.4mm nozzle

Infill:
30%+

Notes:
No support is needed for this thing.

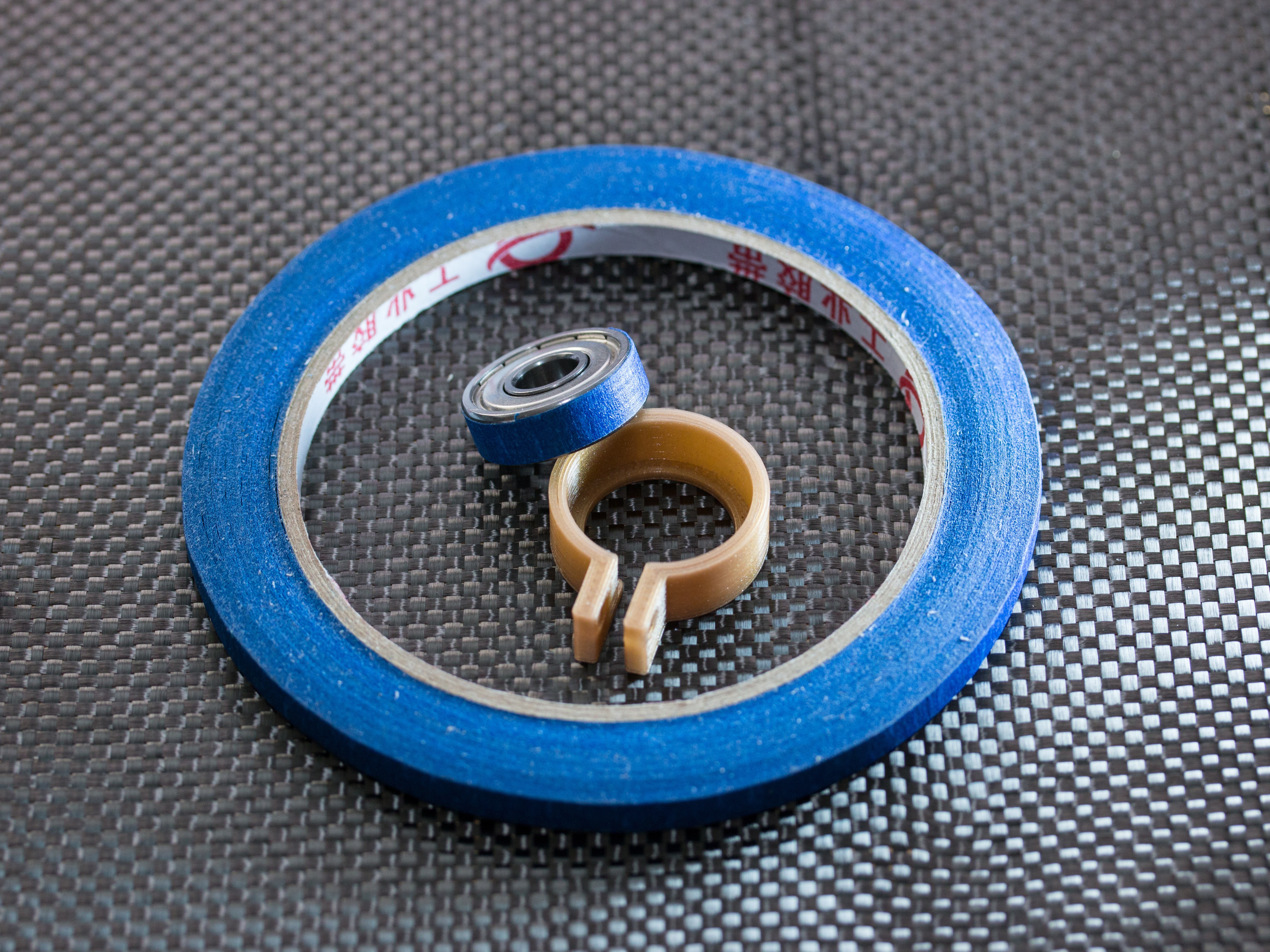

Step 1: Wrap one or two layers of masking tape around the ball bearing. This is for heat isolation and is also needed to tight fit the bearing into the shell.

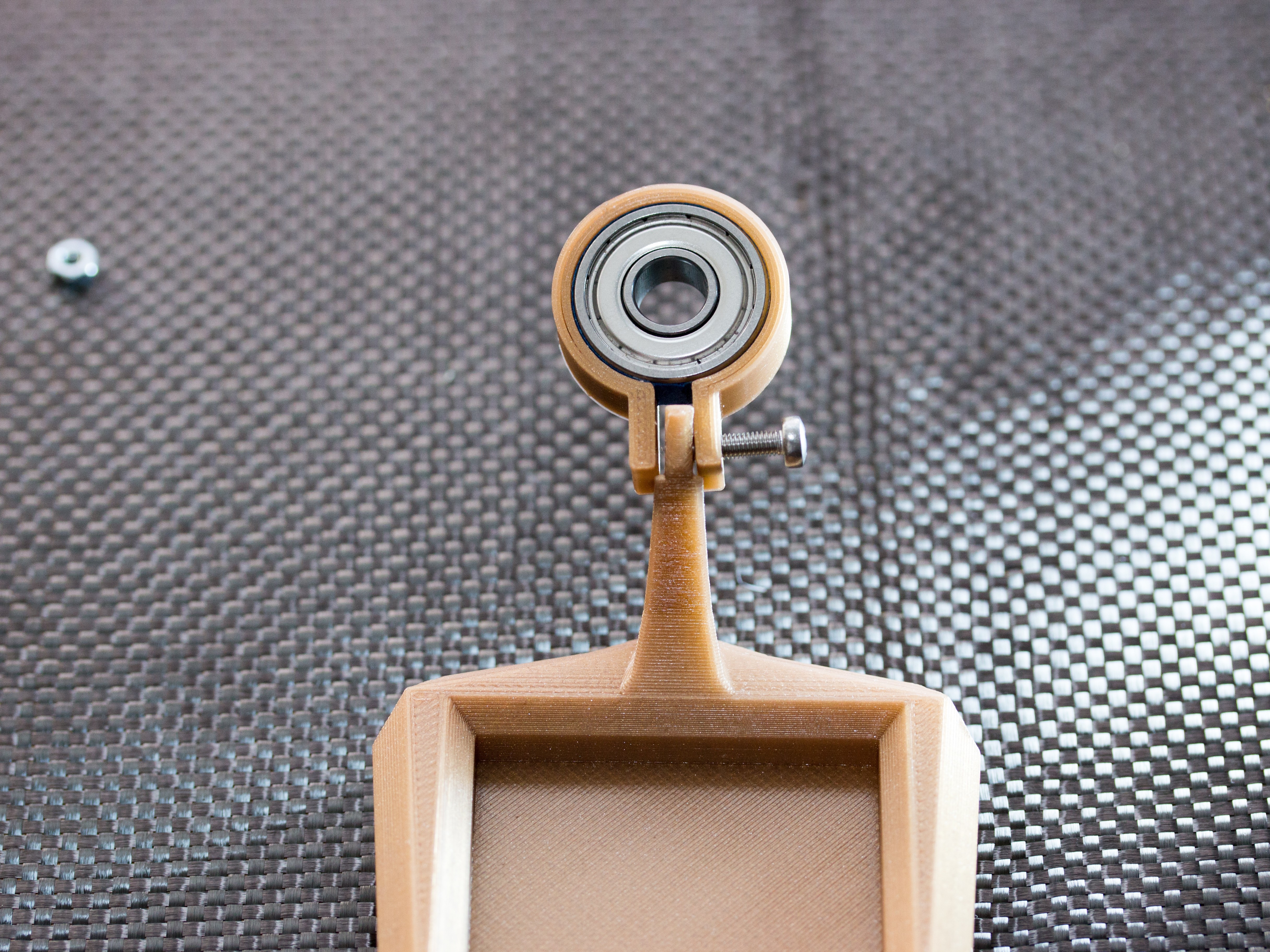

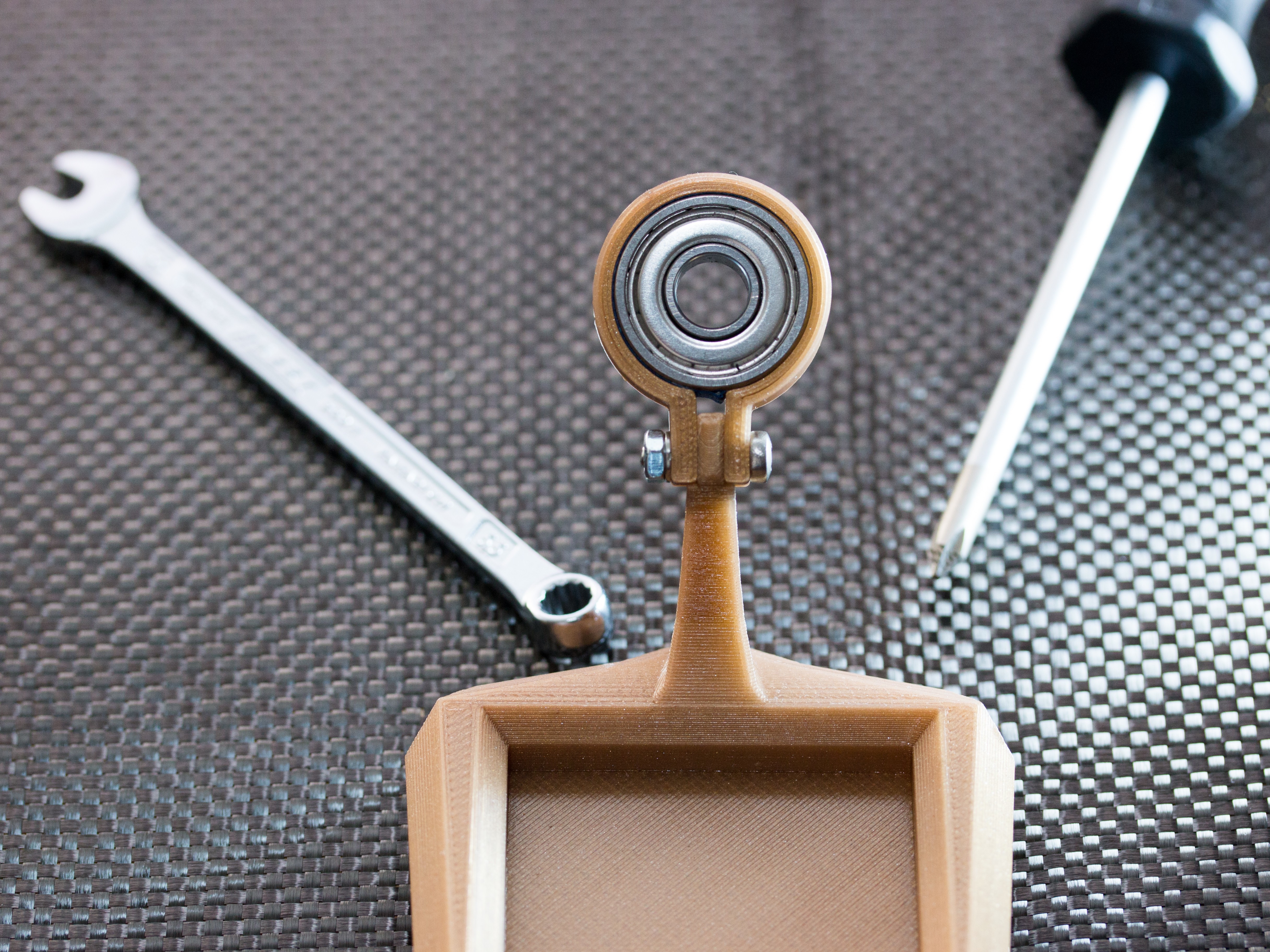

Step 2: Put the ball bearing into to holder and put the bearing holder on the top of the soldering station base. After that, put the screw through the holes.

Step 3: Put the washer and nut on the other side and tight it with a wrench and a screwdriver. The angle between the holder and the station is fixed.

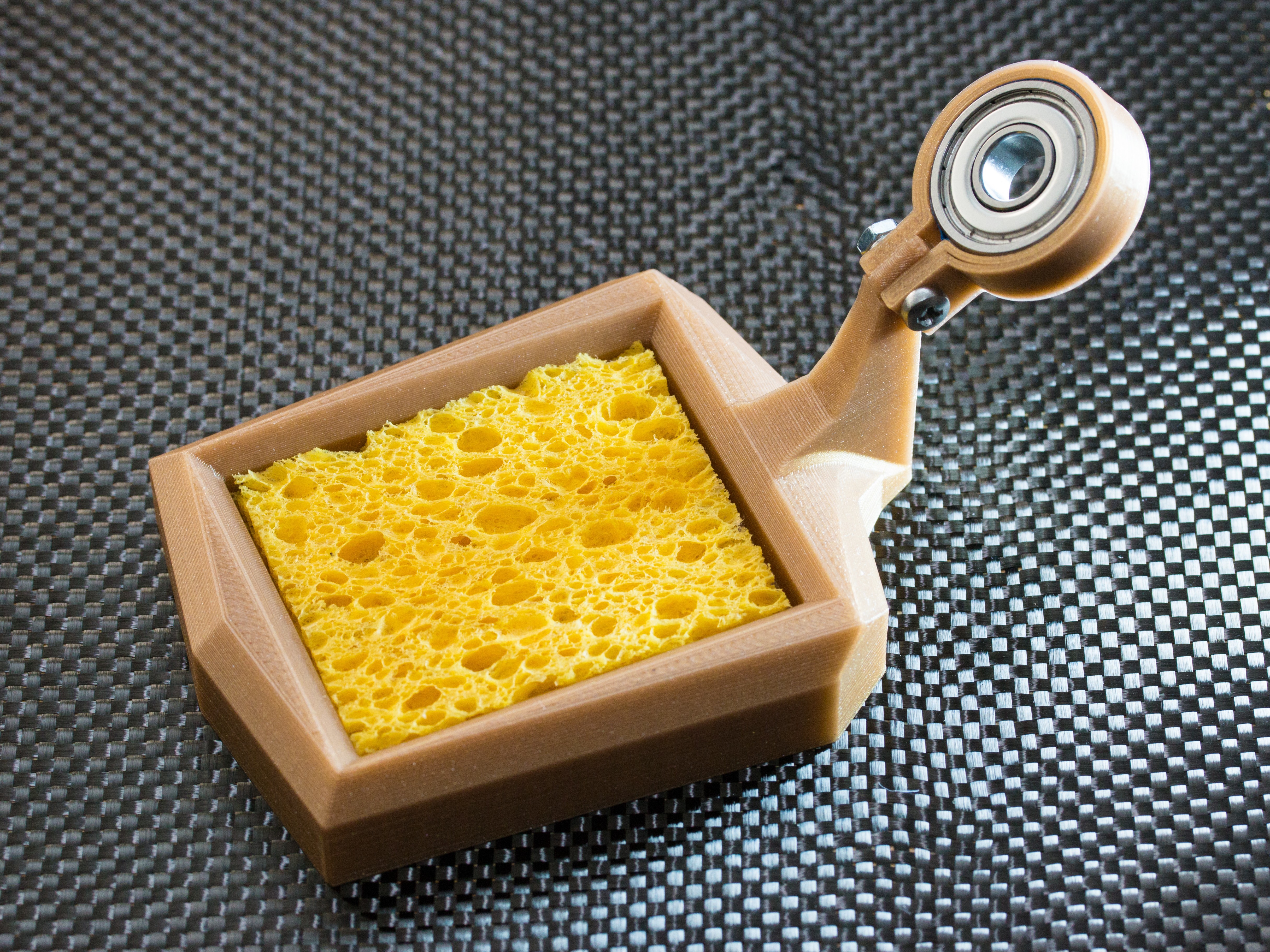

Step 4: Moistening the soldering sponge and put it in the shell.

  • 3D file format: STL

Tags

Creator

Designs 136
Downloads 26328
Followers

I like to create things to save money and time. Wherever possible, I try to use aspects of ecological design. As a full-time software developer and pragmatic solution designer my focus is on the creation of customizable things.

License

CC BY NC
