Tronxy X5S Z axis and bushing reinforcement for LM8UU

?
Creation's quality: 5.0/5 (1 vote)
Evaluation of members on the printability, utility, level of detail, etc.
  • 1k views
  • 1 like
  • 29 downloads

3D model description

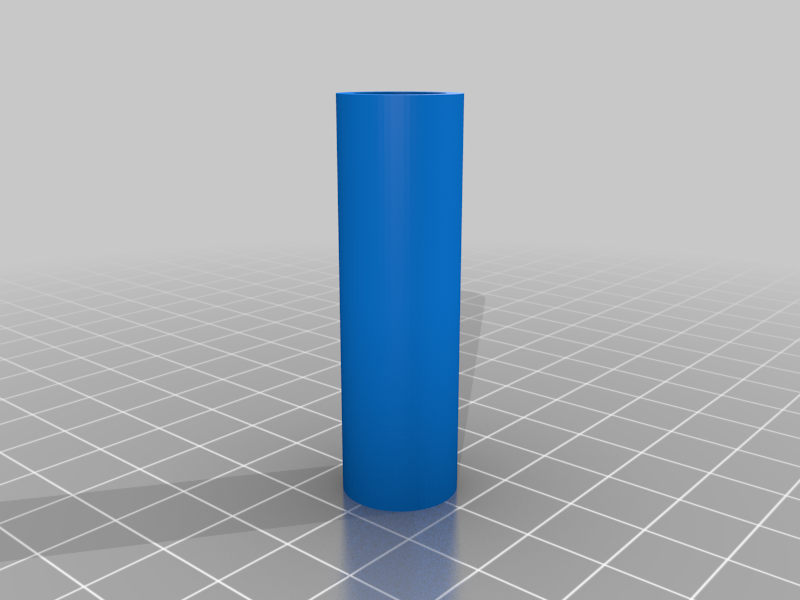

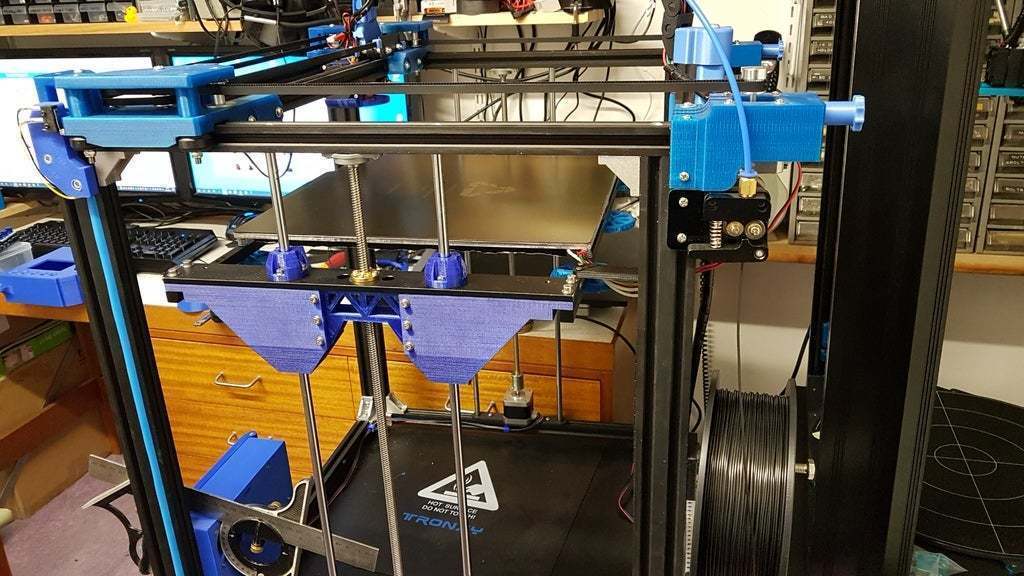

I've made very few changes to the original as the design is really good. The only addition is a distance tube to enable the LM8UU bearings to be utilised and a few options for the bearing tubes, dependent on printer tolerances as it's important to get a good tight fit to eliminate any slop. I originally posted this as a Make on Connolly's design page but have been requested to supply the STL for the distance pieces and bearing tubes a few times so figured this would be the best way.
I've not included the lowering blocks or the Z leadscrew coupling as these can be obtained from the original author if desired.
You will need to print the following for a complete set:

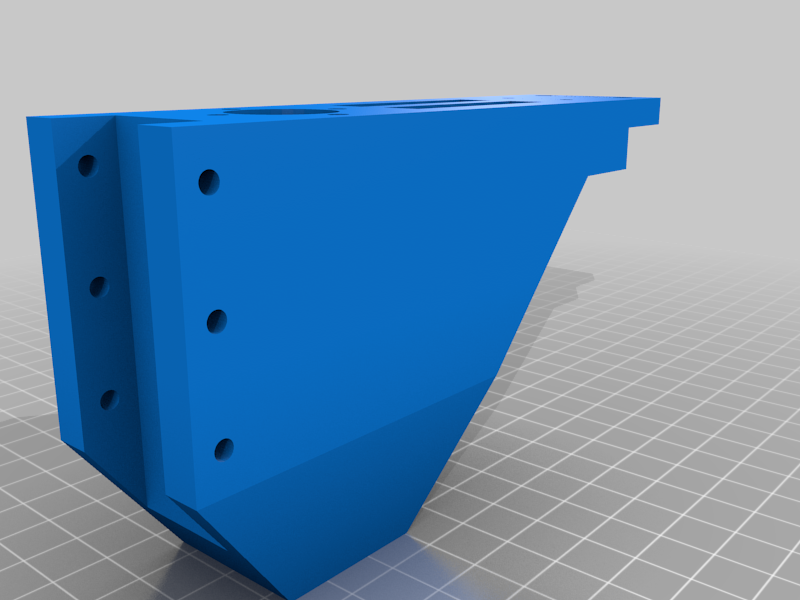

4x "X5S-Zaxel-01" (These are the big reinforcing blocks)

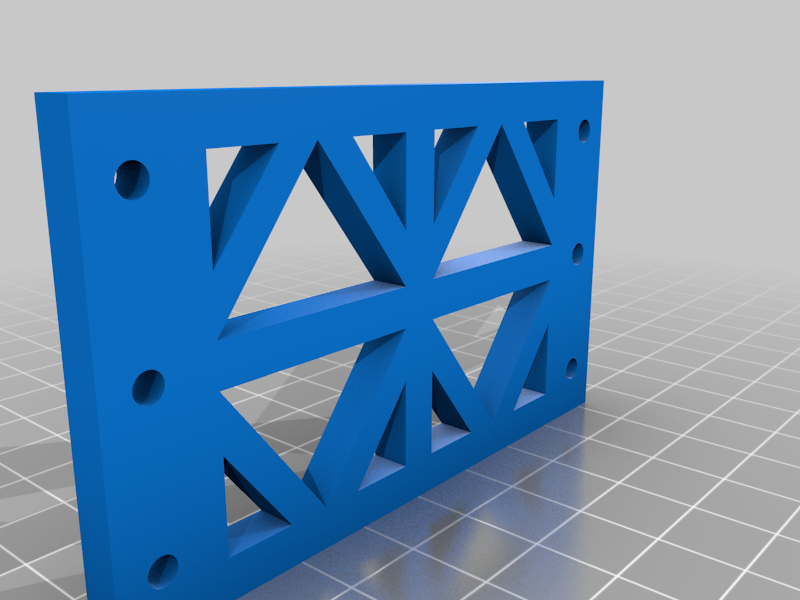

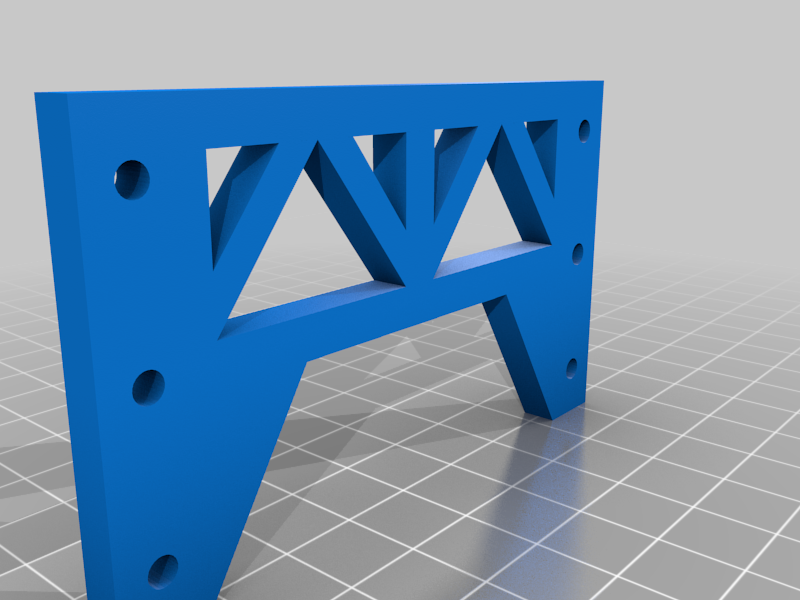

4x "X5S bracket_link-V2" (The linking plates that go either side of the leadscrews)
4x "Bearingtube-01 Nats 15xx" (Choose correct size for your printers tolerances)
4x "Bearing_Block-01" (These are not strictly necessary if you ensure a good driving fit)

  • 3D file format: STL
