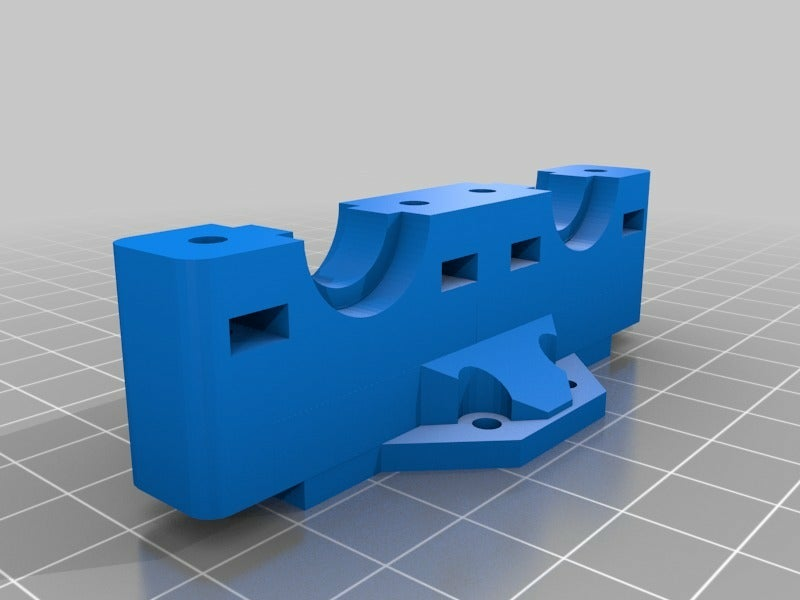

Tronxy X3 dual E3D V6 mount

?
Creation's quality: 0.0/5 (0 votes)
Evaluation of members on the printability, utility, level of detail, etc.
  • 152 views

3D model description

DISCONTINUED: I have no plans anymore to use this part. This kind of extruder mounts make it impossible to print ABS with it. The air of the cooling fans is redirected by this mount to the bed. No problem for PLA, but ABS curls. I am currently working on a remix of P3Steel / I3 - E3d V6 Dual hot end mount with channelled cold end cooling flow that will circumvent this problem.

UPDATE: 16. August 2017: small cosmetic changes

UPDATE: 16. August 2017: reshaped it a little bit to get easy access to the outer screw holes for future updates.

This is a quick & dirty remix of the great extruder mount created by falvarez.

This is work in progress, I didn't print it. There might be problems with the x endstop.

I have provided the OpenSCAD file, so you can make it better. Just download the stl file from falvarez and change the path to it in the scad file.

  • 3D file format: SCAD and STL
  • Publication date: 2021/01/01 at 06:30

License

CC BY
