TriAxis cable/hose/pipe chain guide

?
Creation's quality: 0.0/5 (0 votes)
Evaluation of members on the printability, utility, level of detail, etc.
  • 1.2k views
  • 4 likes
  • 1 download

3D model description

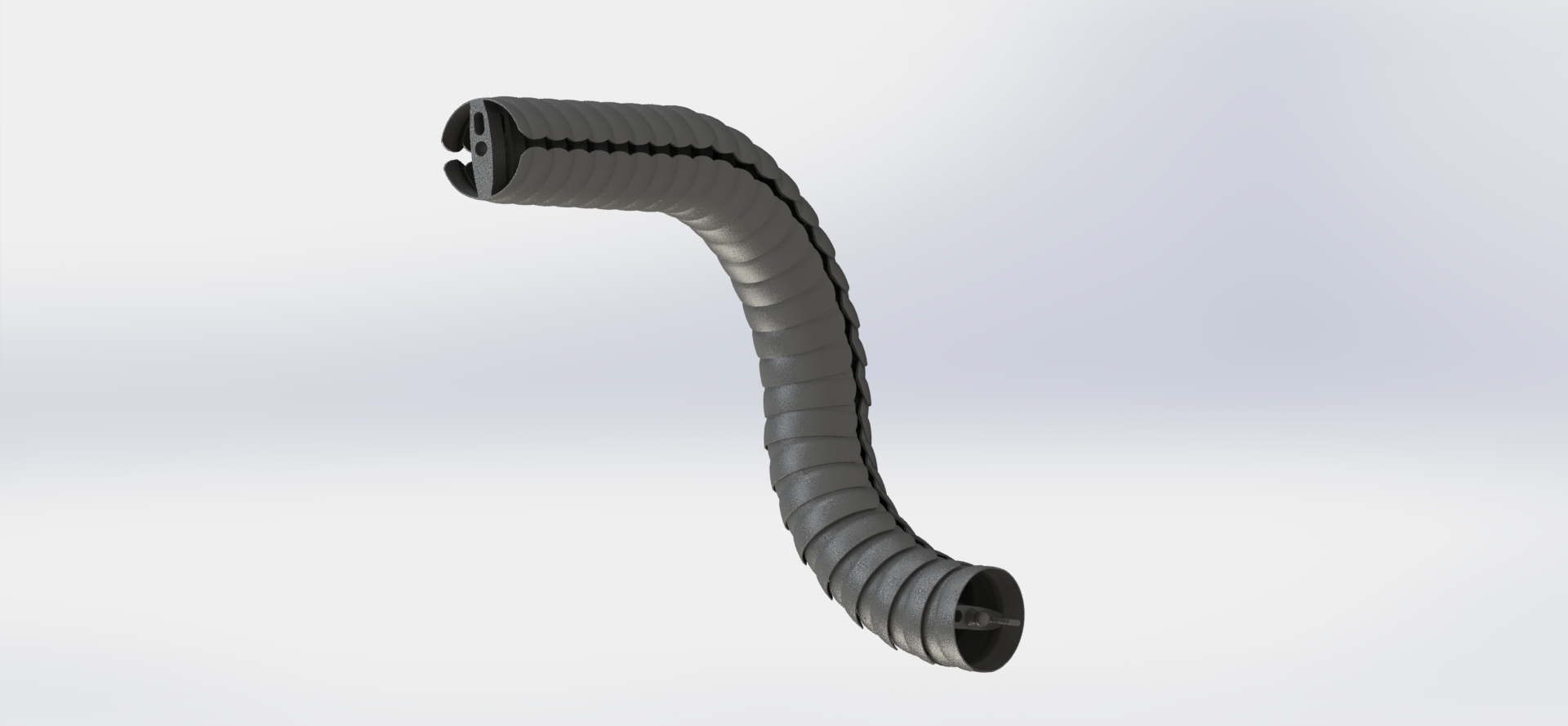

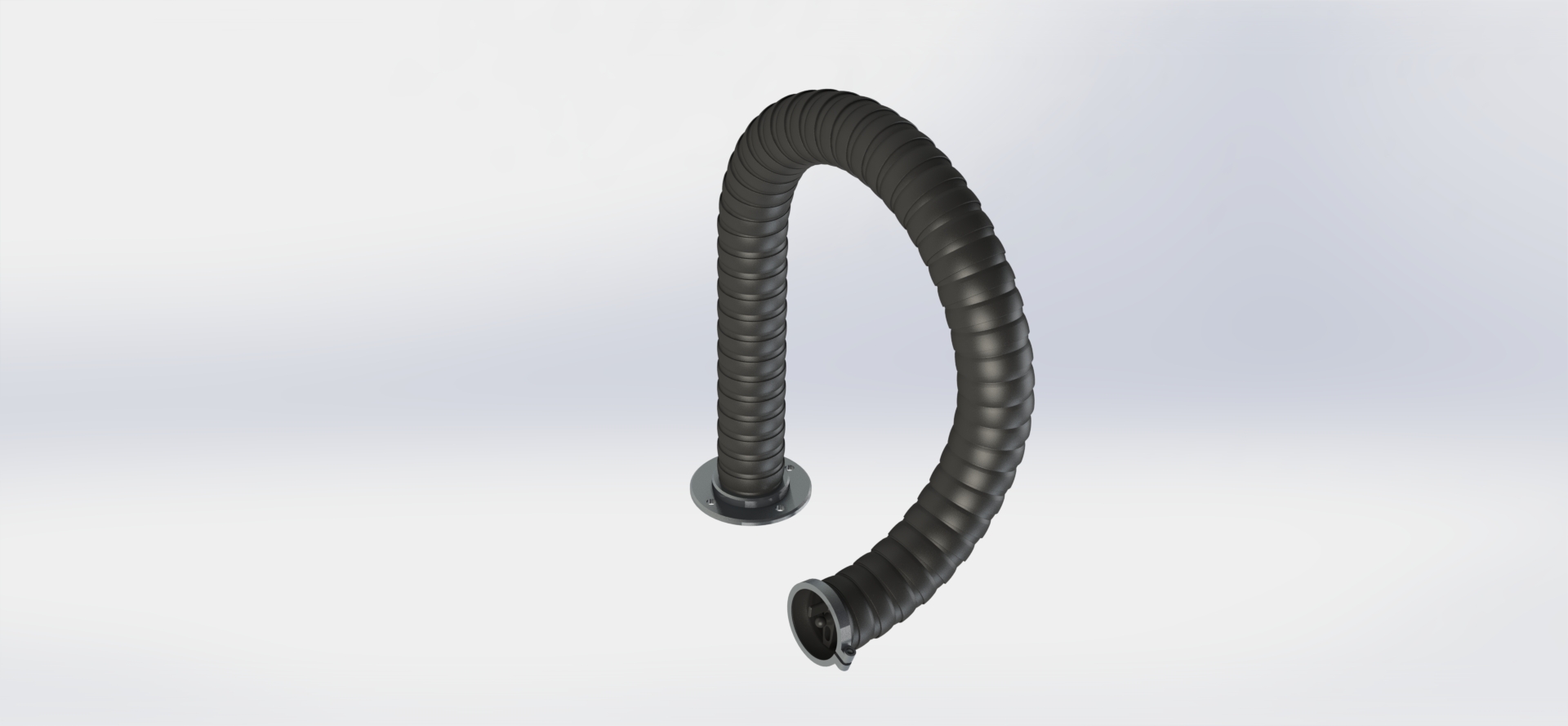

Tri-Axis system for safe and secured cable and hose rooting
Multi-axis movement - High flexibility for complex applications even on the 6th axis.
Small bend radius and pitch - for space-saving installation.
Easy to lengthen and shorten - one 3D printed component, requiring little effort to assemble. No additional elements necessary for retraction
Protect your cables and hoses from the environment.
Four types of assembly:
- Complete freedom of movement(free chain link)
- XY rotation locked(chain link with locking pin). Lock the movement in order to avoid cable and hose twisting.
- Open link for installation on existing lines without dissasembly with rotation movement unlocked
- Open link for installation on existing lines without dissasembly with rotation movement locked

3D printing settings

Supports:No
Resolution:0.20
Infill:10
Filament: PLA, ABS, PETG
Speed:100 mm/s

  • 3D file format: STL
