Track Saw Rail Storage End Caps

?
Creation's quality: 5.0/5 (1 vote)
Evaluation of members on the printability, utility, level of detail, etc.
  • 👁 1.3k views
  • 3 likes
  • 31 downloads

3D model description

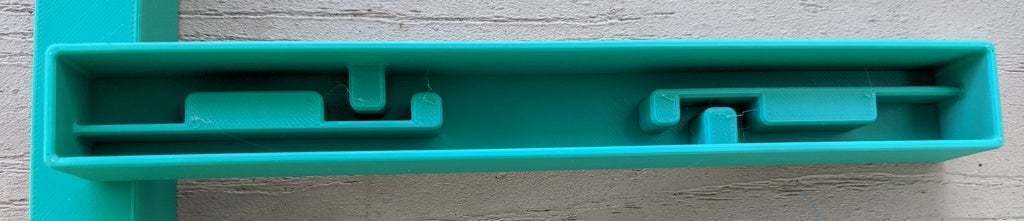

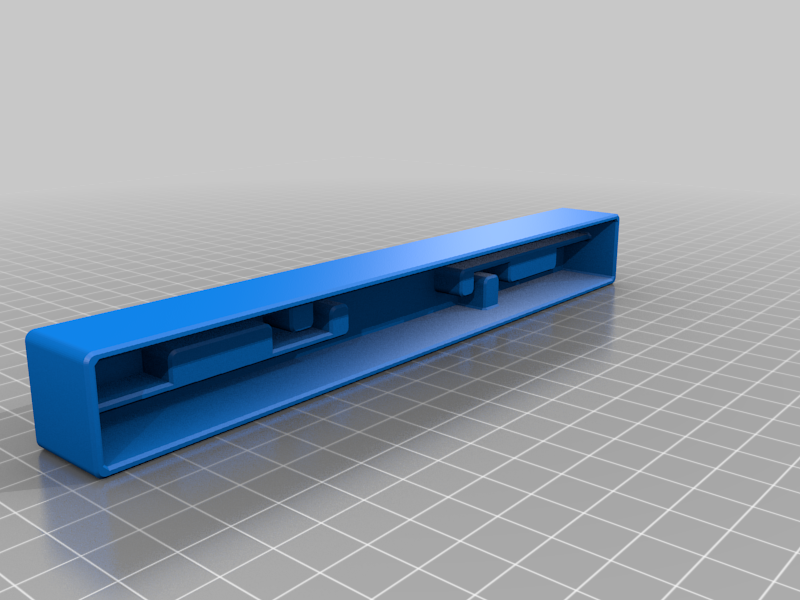

These are end caps that hold two track saw rails of the same length with the tops facing each other so you can store them more safely. The critical mating ends are protected from damage while still allowing the hanging hole to be used. They will also provide protection and hold them together in a storage bag. While I made them for Triton rails they should work for Makita and Festool as they all have the same profile. Because they separate the two rails using the rail locating features, the two ends are not the same but mirror images so you will need to print a Top and Bottom. I added a brim so that the corners wouldn't peel off the print bed and cause distortion that would prevent them from fitting on the rails.

I added the simplified model of a track piece used to generate the end caps that allow the hanging of the tracks on their built-in holes.

3D printer file information

  • 3D design format: 3MF, GCODE, PDF, and STL Folder details Close
    • Bottom.STL
    • PLA_Rail_Ends_6h23m.gcode
    • Rail_Ends.3mf
    • Top.STL
    • track saw.pdf

    Learn more about the formats

  • Last update: 2021/01/05 at 20:32
  • Publication date: 2020/08/21 at 19:29

License

CC BY NC SA
