Top of the Pole - Dipole Antenna Centre Insulator
:strip_icc():blur(15):format(webp)/https://files.cults3d.com/uploaders/16525079/illustration-file/7c5237b5-10b4-460e-8829-b2364a9ed269/mini-dipole-002.jpg)
/https://preview3d-images.cults3d.com/variants/y11az1ygfbz6coyg6wwe1lglcz45/e6f465d663e652081b0305790b3317b756a0ba5018b737a0c42feea83b9122a2)
/https://preview3d-images.cults3d.com/variants/g72m15jyaxumelxfrtr6hqmw47td/e6f465d663e652081b0305790b3317b756a0ba5018b737a0c42feea83b9122a2)
/https://preview3d-images.cults3d.com/variants/2pfto5vo66sdahxdk55gewgr6y8i/e6f465d663e652081b0305790b3317b756a0ba5018b737a0c42feea83b9122a2)
/https://files.cults3d.com/uploaders/16525079/illustration-file/7c5237b5-10b4-460e-8829-b2364a9ed269/mini-dipole-002.jpg)
/https://files.cults3d.com/uploaders/16525079/illustration-file/5f6355c4-6ed2-48e1-9e69-404e19cb6c80/top_of_the_dipole_-_dipole_centre_bnc.png)
/https://files.cults3d.com/uploaders/16525079/illustration-file/c64ba09d-9777-448b-8cdf-4a5335978240/top_of_the_pole_-_dipole_centre_2.png)
/https://files.cults3d.com/uploaders/16525079/illustration-file/3a283f06-2df3-4be6-b3b9-d4d70720afed/top-of-the-pole-dipole-centre.png)
/https://files.cults3d.com/uploaders/16525079/illustration-file/7fb62fa9-7b1e-44c1-8477-2d46068938f0/mini-dipole-003.jpg)
/https://files.cults3d.com/uploaders/16525079/illustration-file/05622258-0d73-409f-a22d-651b1d2dd4cb/mini-dipole-001.jpg)
/https://files.cults3d.com/uploaders/16525079/illustration-file/90c62500-960c-4ebd-a42f-f0c75551066e/top_of_the_pole_-_dipole_centre_bnc.jpg)
?
Creation's quality:
4.0/5
(1 votevotes)
Evaluation of members on the printability, utility, level of detail, etc.
Your rating:
0/5
- 1.1k views
- 0 likes
- 19 downloads
3D model description

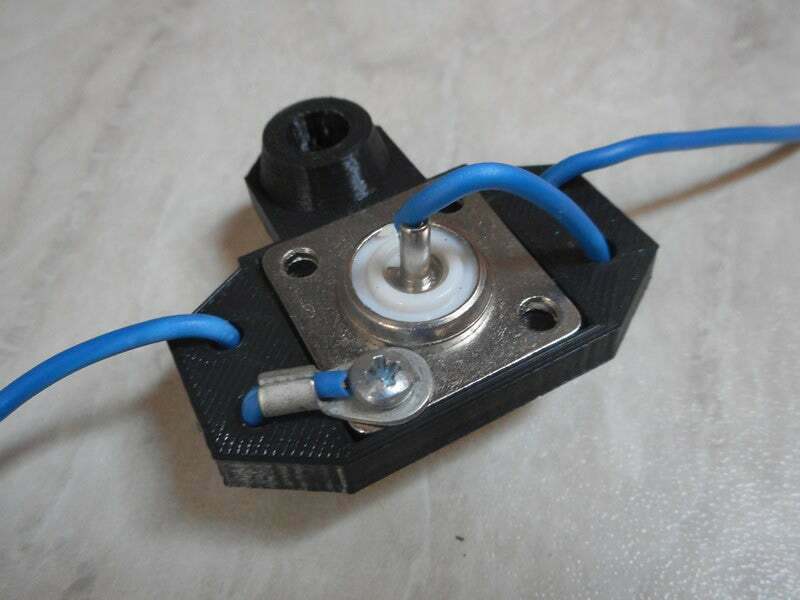

Ham Radio Dipole Antenna Centre Insulator for Portable operations. Size for PL259 (female panel).

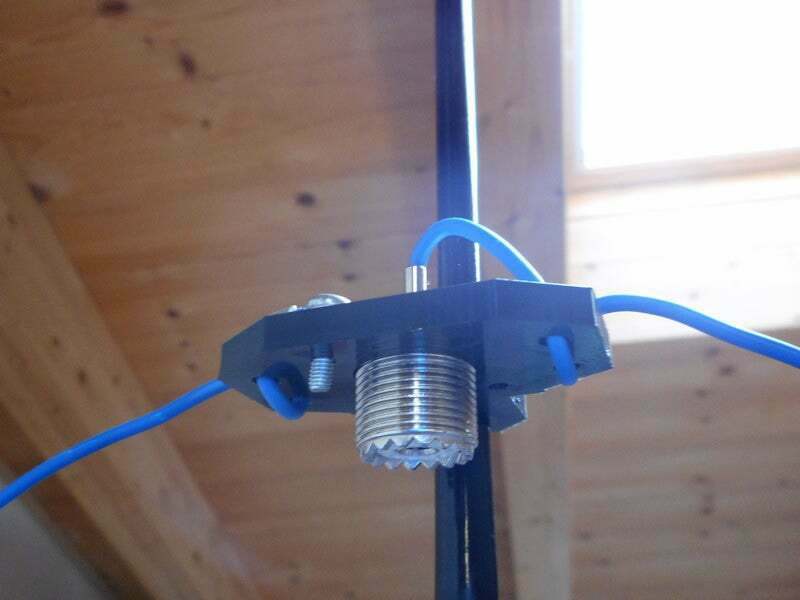

It fits the top section of your grp mast or fishing pole, It's lightweight!
Take care about the weight of the arms of the antenna, because they could bend the pole.
* UPDATE

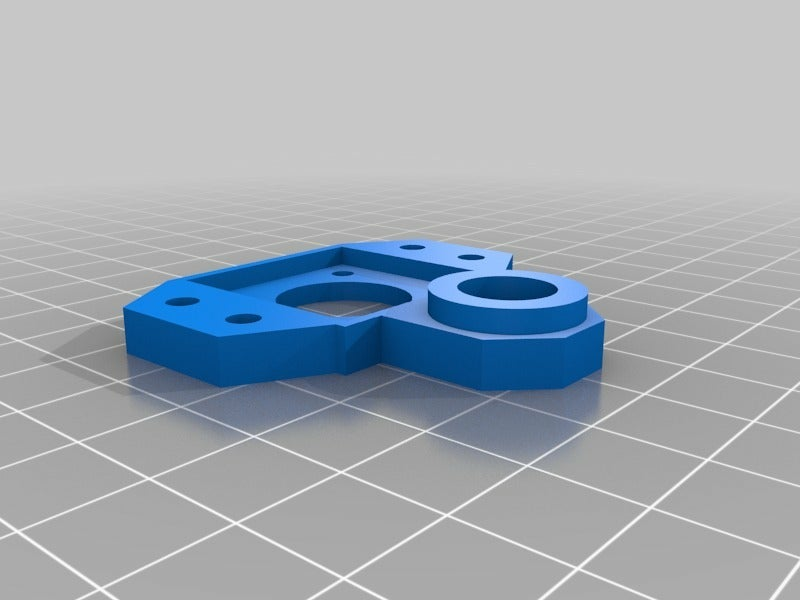

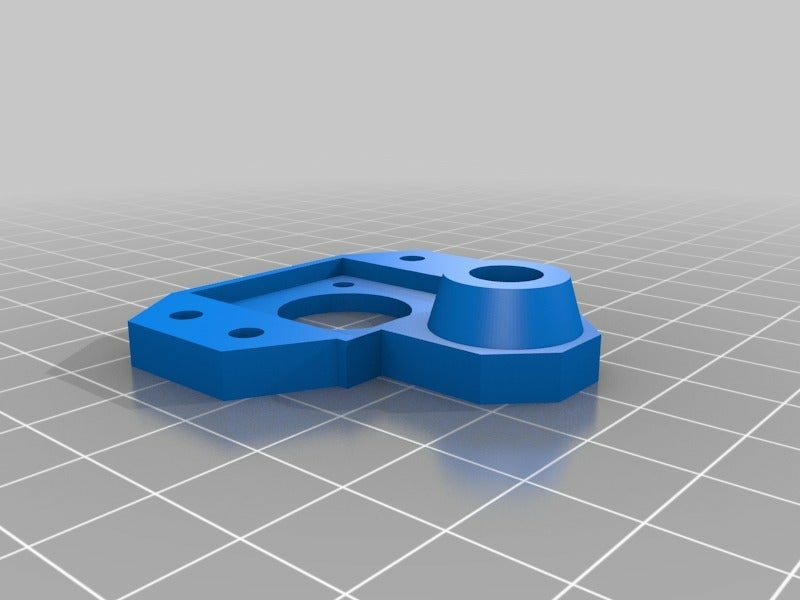

Added a new version, choose between hole 7mm diam. and 10 mm diam.
* UPDATE

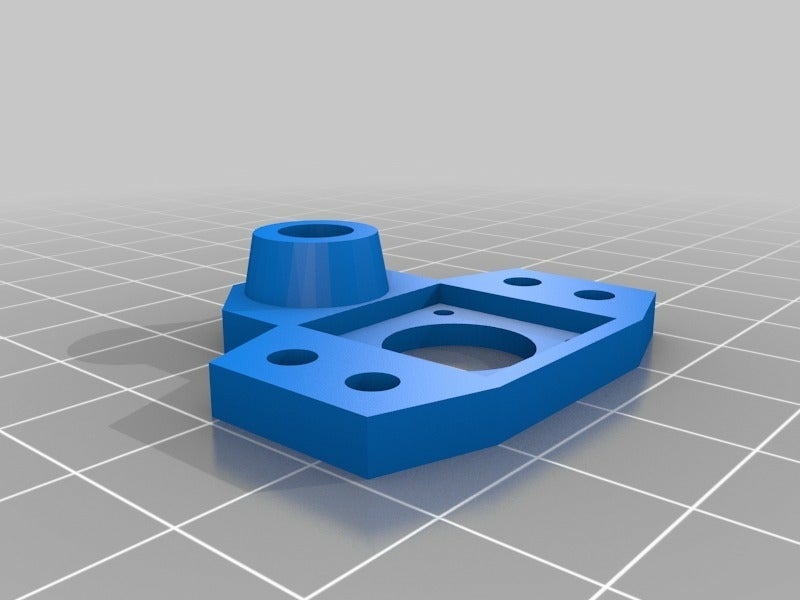

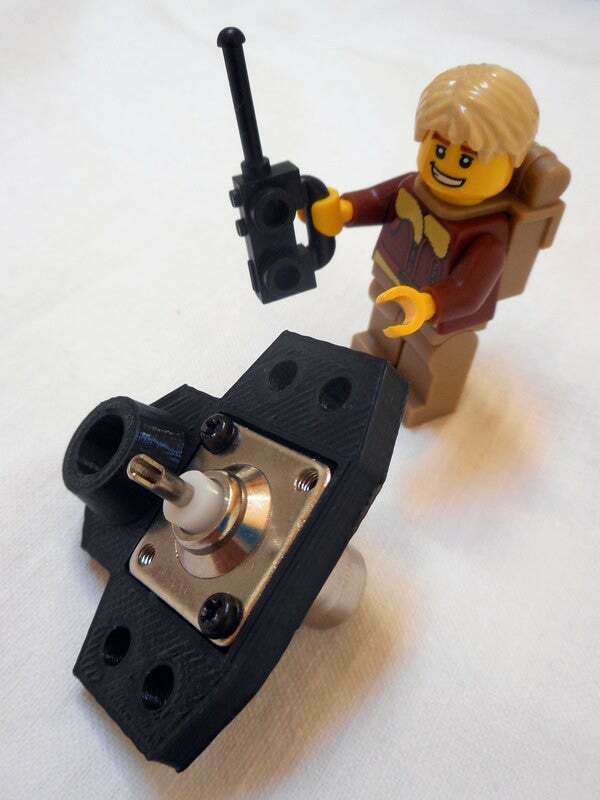

Added bnc version. Check the holes for your bnc because they may change in diameter.
3D printing settings
Printed in PLA with 12%-15% infill, 0.15 mm thickness, 2 or 3 walls and slow speed.
