Titan + bltouch mount compatible with greg's carriage
:strip_icc():blur(15):format(webp)/https://files.cults3d.com/uploaders/13094697/illustration-file/4574f028-ef8a-427d-ad4e-0f126f344848/0a832335f2d54974b624f554d453753c_preview_featured.jpg)
/https://files.cults3d.com/uploaders/13094697/illustration-file/4574f028-ef8a-427d-ad4e-0f126f344848/0a832335f2d54974b624f554d453753c_preview_featured.jpg)
/https://files.cults3d.com/uploaders/13094697/illustration-file/41469cb4-a90b-44c6-92f1-24cf2d998d43/9c05bbf784391107fdfcb6a3c9cfca5d_preview_featured.jpg)
/https://files.cults3d.com/uploaders/13094697/illustration-file/ae06d691-ed6f-4477-a302-f6d6e05ad80e/14a960239f8aa7d5d958303a5d1b8bfe_preview_featured.jpg)
/https://files.cults3d.com/uploaders/13094697/illustration-file/f2c391d0-1d10-448f-b172-13063cdff7c0/65af3c3349b3b69816e3d2d36156959c_preview_featured.jpg)
/https://files.cults3d.com/uploaders/13094697/illustration-file/7c9eed26-6531-4b6d-add0-fa698fa86bf8/70ceda2c55ab9b0dc32e537c10bc18e4_preview_featured.jpg)
/https://files.cults3d.com/uploaders/13094697/illustration-file/a7436de1-5b6f-496d-a72b-7f0c9f41443d/7602eec53343396dc36d395c51e75522_preview_featured.jpg)
/https://files.cults3d.com/uploaders/13094697/illustration-file/66517283-9c1f-49d5-b52e-b08ec546dbe9/19169d3bbfa2aed0b8e6e191e604c508_preview_featured.jpg)
/https://files.cults3d.com/uploaders/13094697/illustration-file/dc6eca48-4e40-49a0-b64a-9ab54cfb71d0/2098875a82022c58939942fcdf0dd411_preview_featured.jpg)
/https://files.cults3d.com/uploaders/13094697/illustration-file/68597240-343e-4c8d-abc6-62f73a39edc9/7004347f9f6e1d8670749c994bceffd1_preview_featured.jpg)
/https://files.cults3d.com/uploaders/13094697/illustration-file/7a073c31-abba-4d56-beb0-5c955bb06f49/a0034a6ebf7985163a2e9c402fc8dcb5_preview_featured.jpg)
/https://files.cults3d.com/uploaders/13094697/illustration-file/62c18641-412a-457c-98ca-1fe515d270a3/b2ac8357de38f4e0b3fb11273dba11b0_preview_featured.jpg)
/https://files.cults3d.com/uploaders/13094697/illustration-file/bfaa3249-d211-4e89-9cca-39d56ef9cc94/b5e61214d118e46faa4f6a6b68260b40_preview_featured.jpg)
/https://files.cults3d.com/uploaders/13094697/illustration-file/1ecda751-89bb-421f-aea0-2c97b883867e/bdcdbe59caa3fcdad69d12f1938d23cd_preview_featured.jpg)
/https://files.cults3d.com/uploaders/13094697/illustration-file/7be81dbd-35da-40aa-941e-ff291d489117/c617c715cedd86288bf4a9f79a993904_preview_featured.jpg)
/https://files.cults3d.com/uploaders/13094697/illustration-file/00ae0772-c59a-407e-be40-6d764b812f29/c755fa659fc5ad708665b172c54355bb_preview_featured.jpg)
/https://files.cults3d.com/uploaders/13094697/illustration-file/87bb80bd-a554-4cca-9e53-edfc7005998c/d8069adaf8a4312ddb8845e360d134df_preview_featured.jpg)
/https://files.cults3d.com/uploaders/13094697/illustration-file/7c20069e-9261-477e-a59c-8994eb060b24/f47524335f090d6504649d4f29cda28d_preview_featured.jpg)
/https://files.cults3d.com/uploaders/13094697/illustration-file/d9e57255-682b-46dc-8b83-27416566fee9/ff9e34a5a12e61f00befd04c52bcd314_preview_featured.jpg)
?
Creation quality:
3.8/5
(2 votevotes)
Evaluation of members on the printability, utility, level of detail, etc.
Your rating:
0/5
- 2.8k views
- 5 likes
- 136 downloads
3D model description

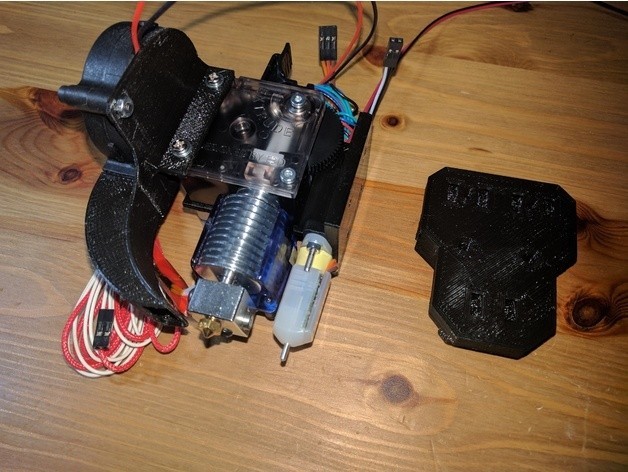

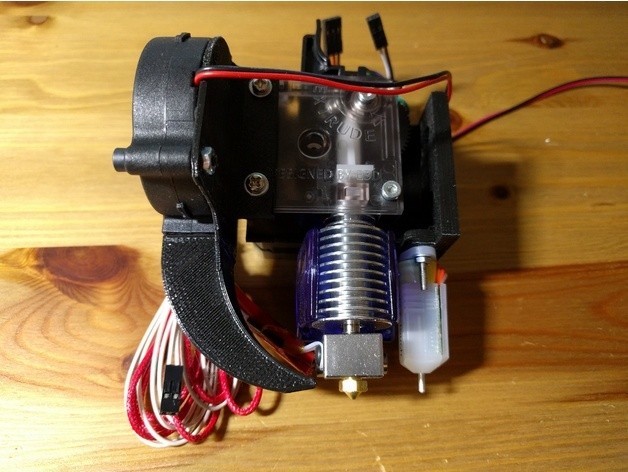

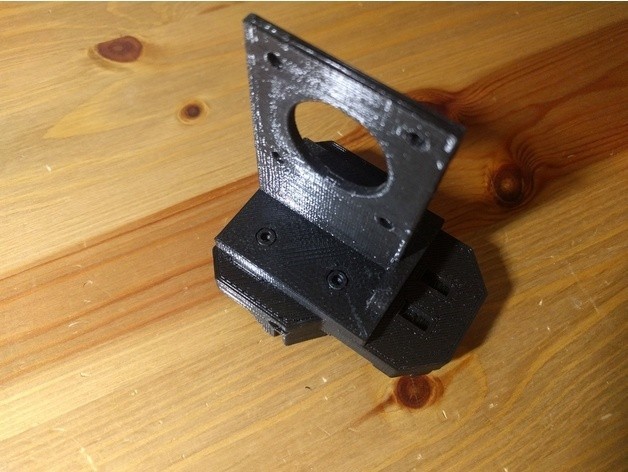

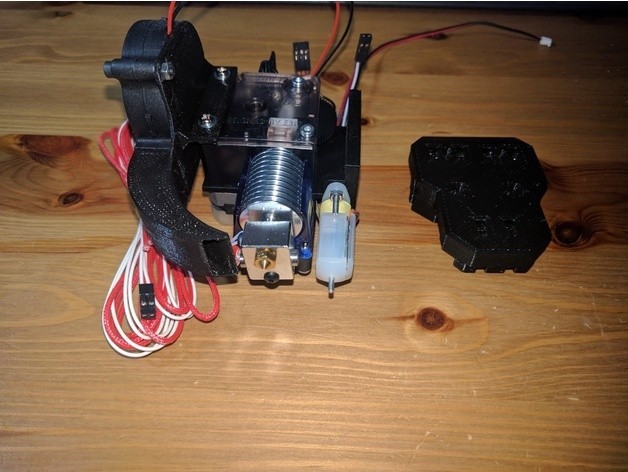

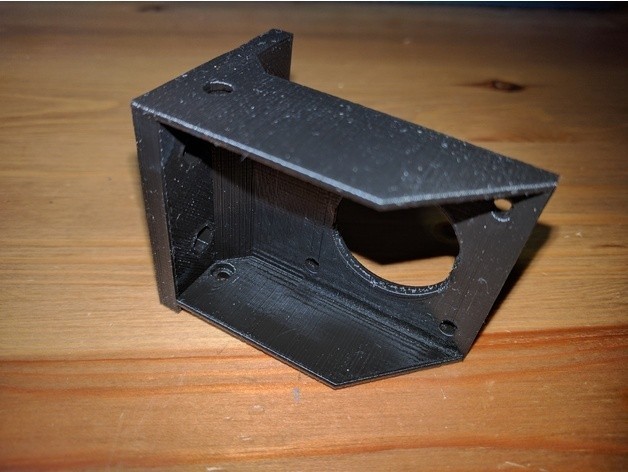

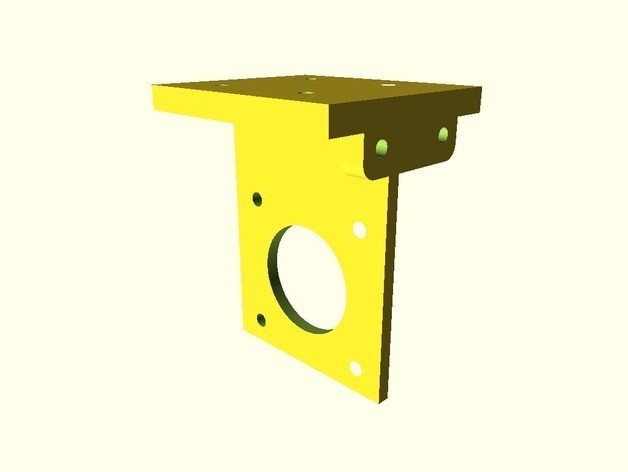

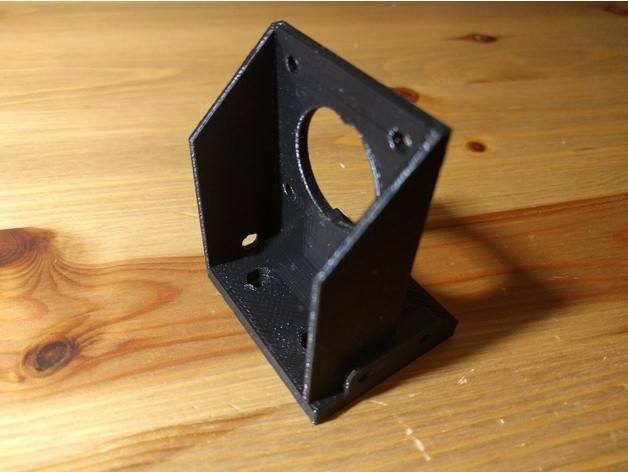

Direct titan + bltouch support compatible with greg's wade extruder support holes and prusa i3 carriage.

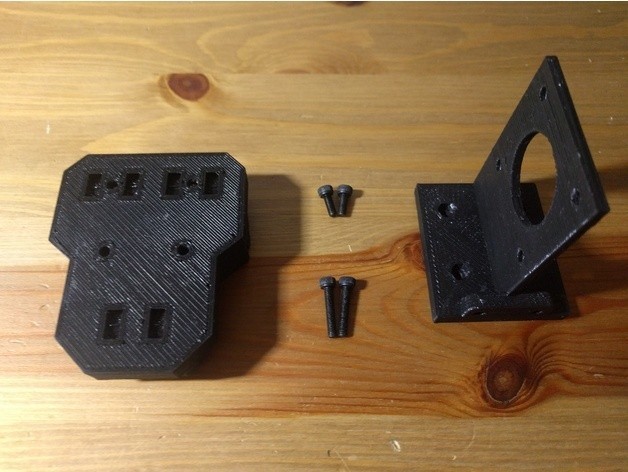

I have included two new screws in x-carriage in order to enforce robustness subjection.

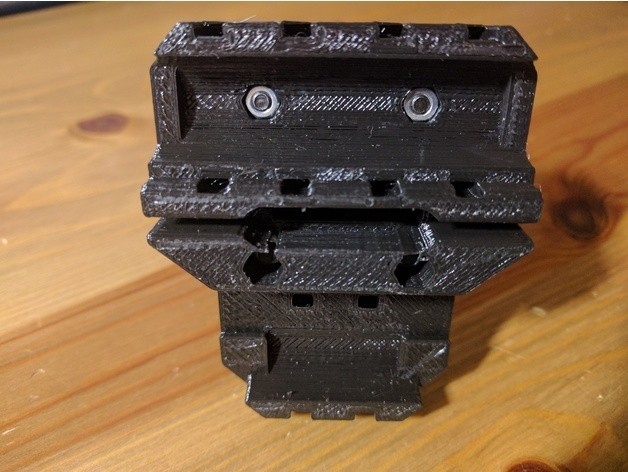

x-carriage is based on my previous Prusa carriage modification http://www.thingiverse.com/thing:1446976, check out the belt tensioner.

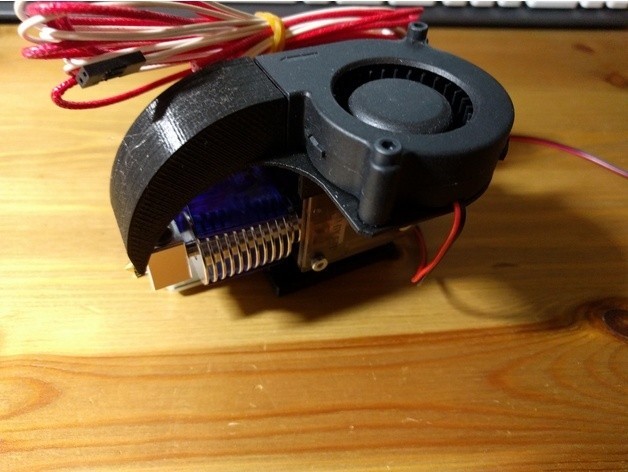

Included you can find a layer fan from isograph user http://www.thingiverse.com/thing:1571526 and http://www.thingiverse.com/thing:1310161
I put it here to no need to look for the one in the picture, please give them a like.

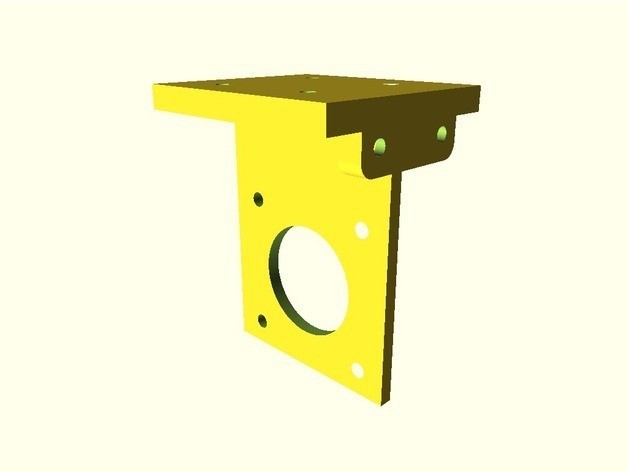

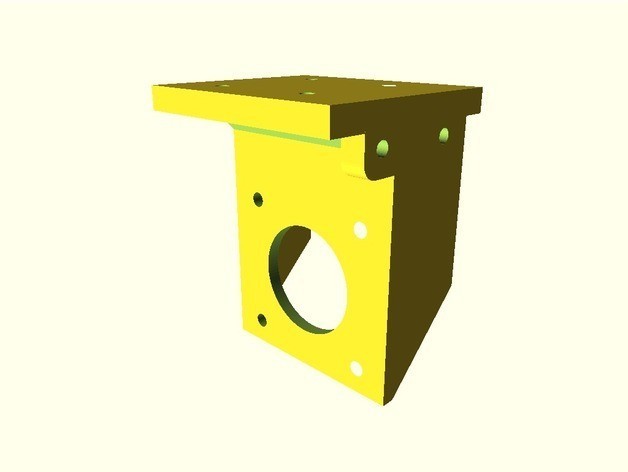

Introduced V8 with hardened supports to prevent vibrations and ghosting.

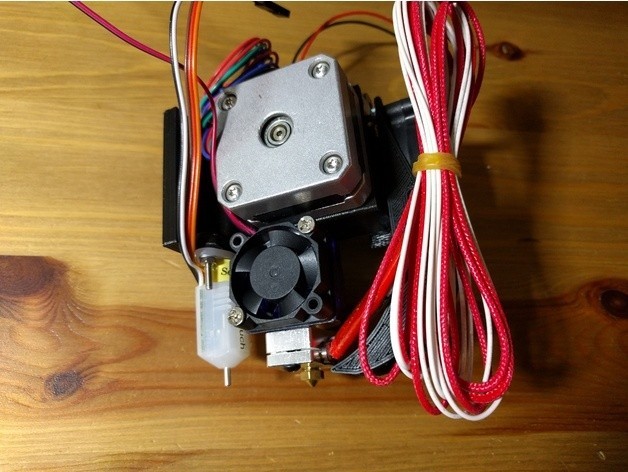

Do not put extruder fan like in the pictures it will melt with the extruder block. :-)
Hope it results useful for others.
3D printer file information
-
3D design format: STL and ZIP Folder details Close
- Archive.zip
- titan-support-v6.stl
- titan-support-v7.stl
- titan-support-v8.stl
- titan-support.stl
- titan_front_fan.stl
- x-carriage_titan_gregs.stl
