Titan Aero Mount for Anet A8

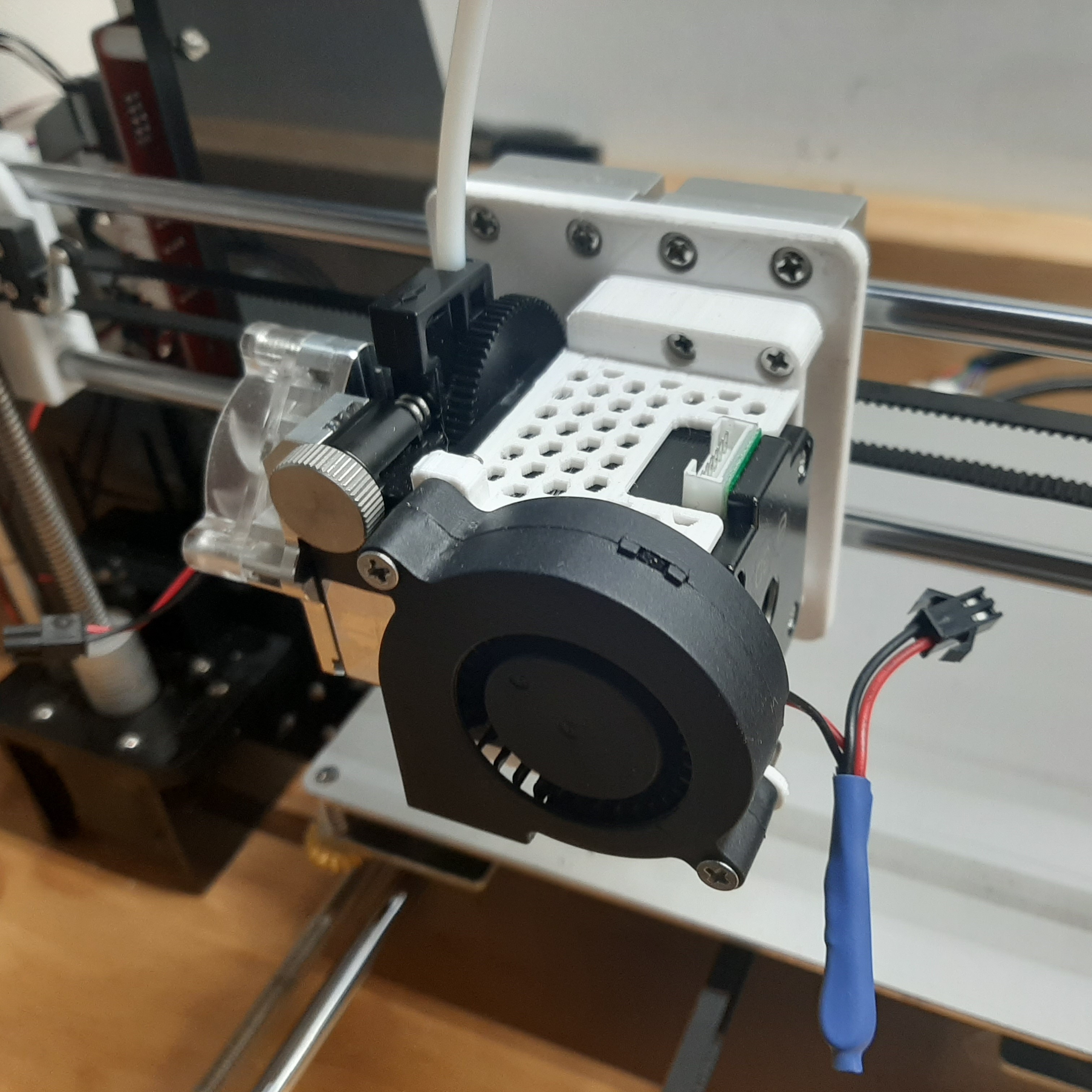

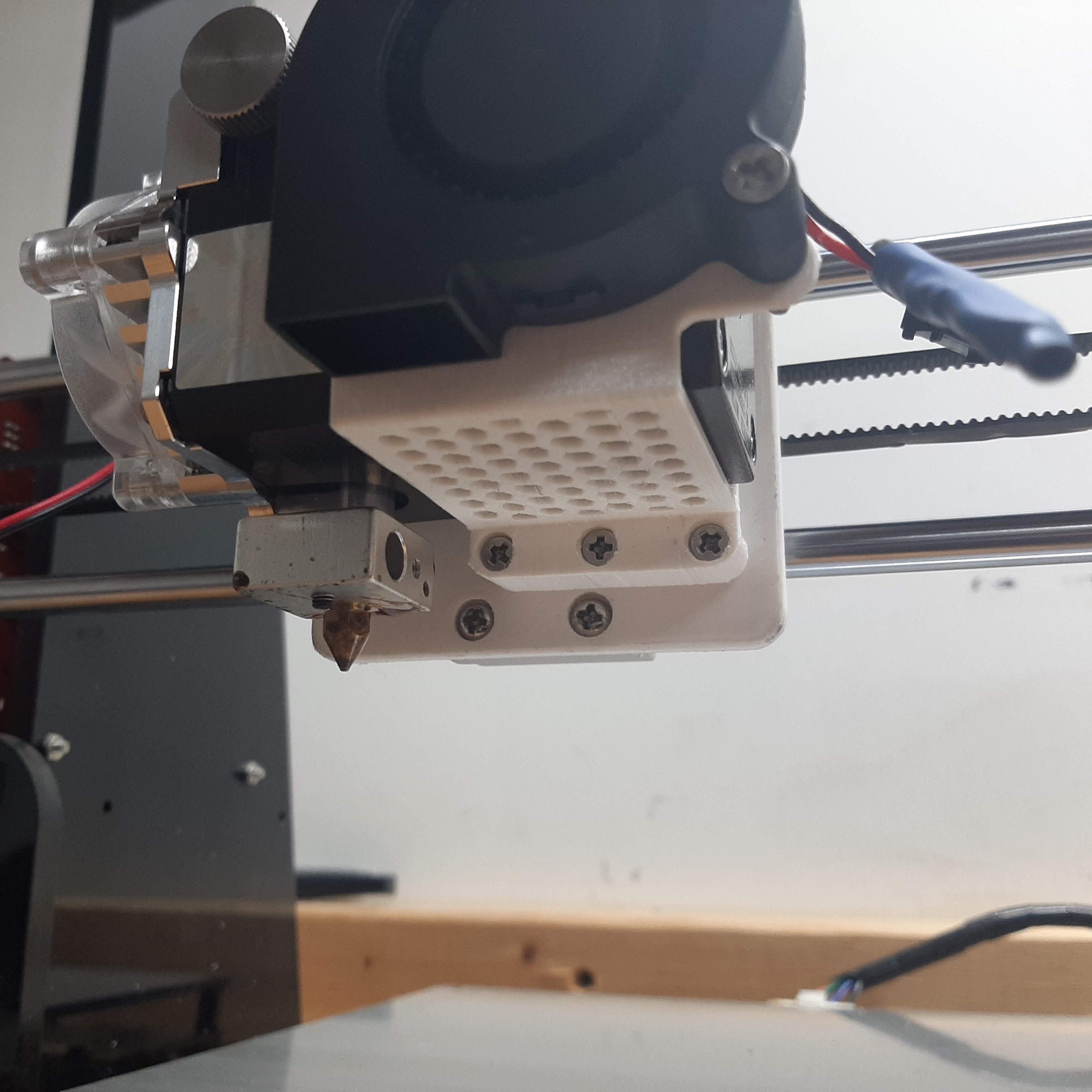

This is my custom mount designed for the Titan Aero (Mirrored version).

I wanted a design which allowed easy mounting/dismounting of the extruder, and the ability to accept other custom add-ons, which is why I made this.

I highly advise printing in the orientations shown, as these will maximize the strength of the parts.

You will need some hardware:
12x M3 nuts
5x M3x20mm machine screws
6x M3x25mm machine screws

I got mine here: https://www.amazon.ca/gp/product/B072V4JVBG/ref=ppx_yo_dt_b_search_asin_title?ie=UTF8&th=1

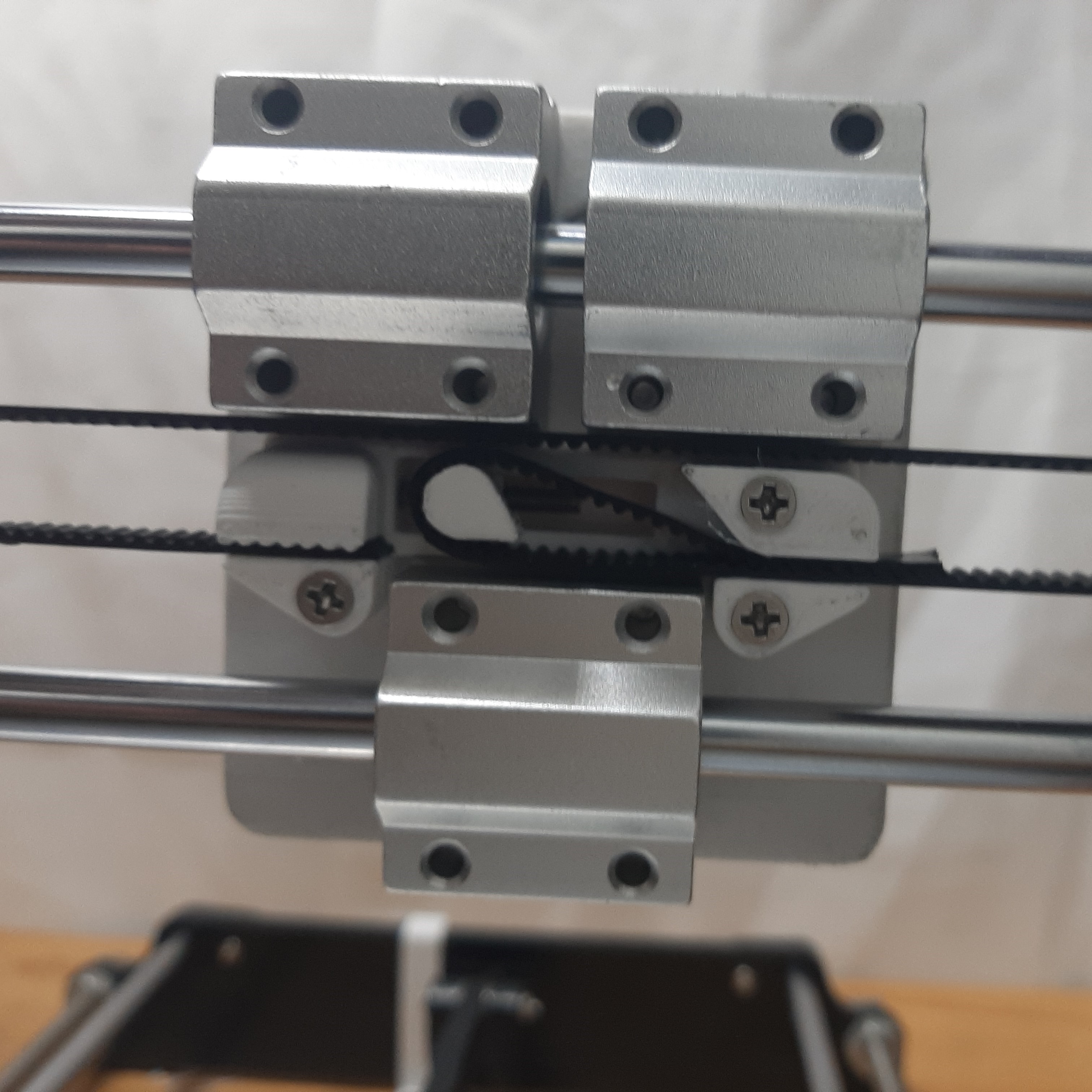

Lastly, you will need a belt tensioner. I used this one: https://www.thingiverse.com/thing:2425783

If you enjoy my creations, please consider buying me a coffee (https://buymeacoffee.com/SirRumblethump). Thanks so much!

I printed the Plate with the following settings:
Material: White PETG
Layer Height: 0.2mm
Infill: 15% (I used gyroid)
Perimeters: 4
Supports: Yes - touching build plate only (For the nut cavities)

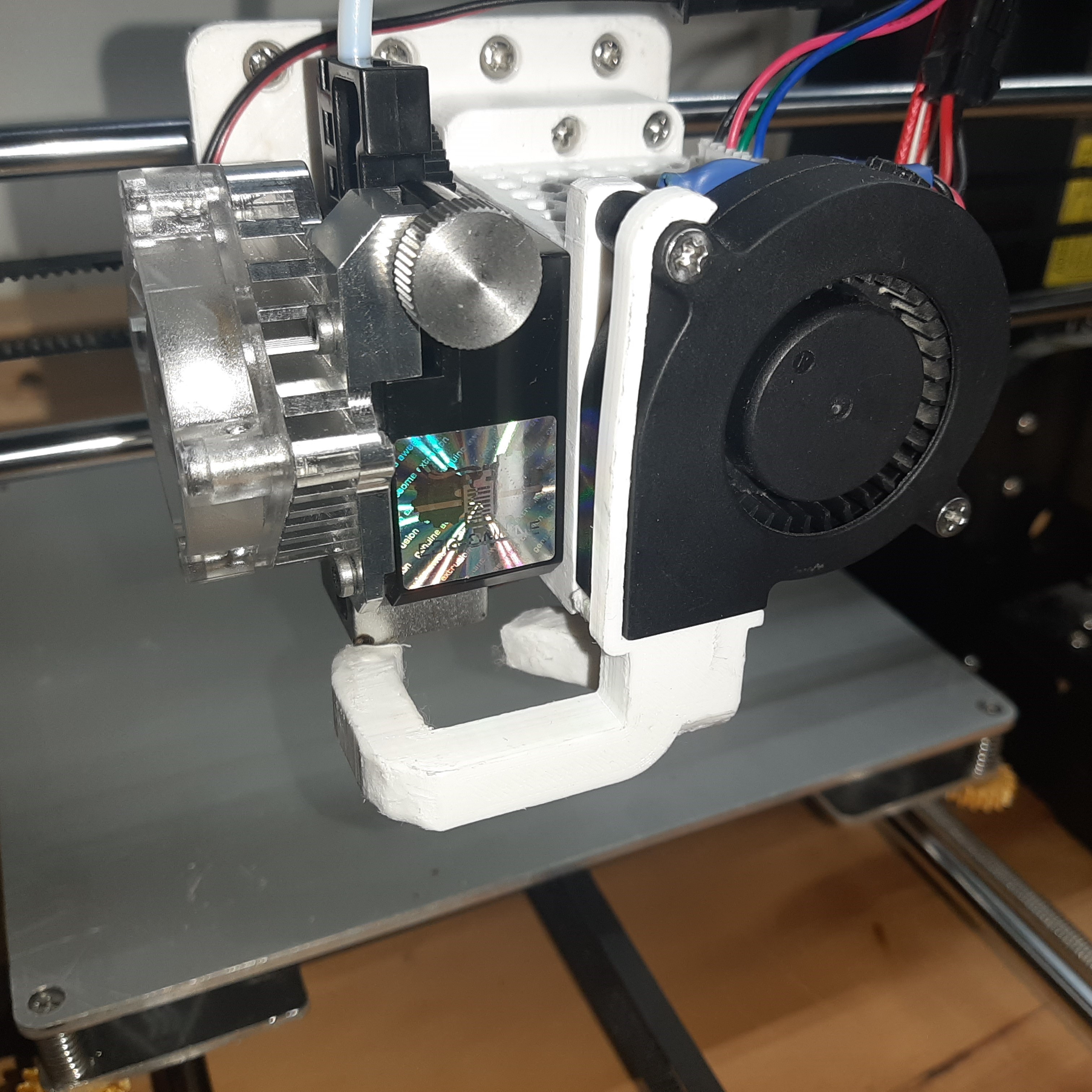

The Motormount and Fanduct were printed with the following settings:
Material: White PETG
Layer Height: 0.2mm
Infill: 0%
Perimeters: 4
Supports: No
