Thread gauge 2

?
Creation quality: 5.0/5 (1 vote)
Evaluation of members on the printability, utility, level of detail, etc.

3D model description

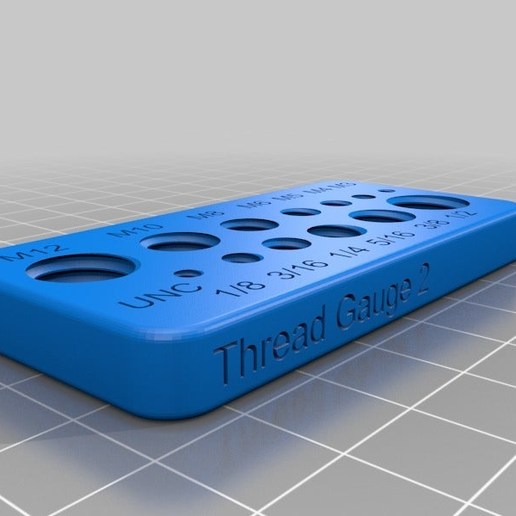

An improvement over its predecessor, this gauge has both metric and imperial (UNC) threaded test holes.

The metric sizes are: M12, M10, M8, M6, M5, M4 and M3.
UNC sizes are: ⅛ 3/16, ¼, 5/16, ⅜ and ½

See the video here: https://www.youtube.com/watch?v=ORJ6Jjoqezc

This model is best printed at a low layer height such as 0.1 or 0.15mm.

3D printer file information

  • 3D design format: STL Folder details Close
    • Thread_gauge_2.stl

    Learn more about the formats

  • 3D model size: X 73 × Y 36 × Z 8 mm
  • Publication date: 2020-02-05 at 02:49
    ?
    Published to Thingiverse on: 2019-02-10 at 07:49

License

CC BY NC ND
