Tensioner for graphic cards

?
Creation's quality: 5.0/5 (1 vote)
Evaluation of members on the printability, utility, level of detail, etc.
  • 2.2k views
  • 8 likes
  • 105 downloads

3D model description

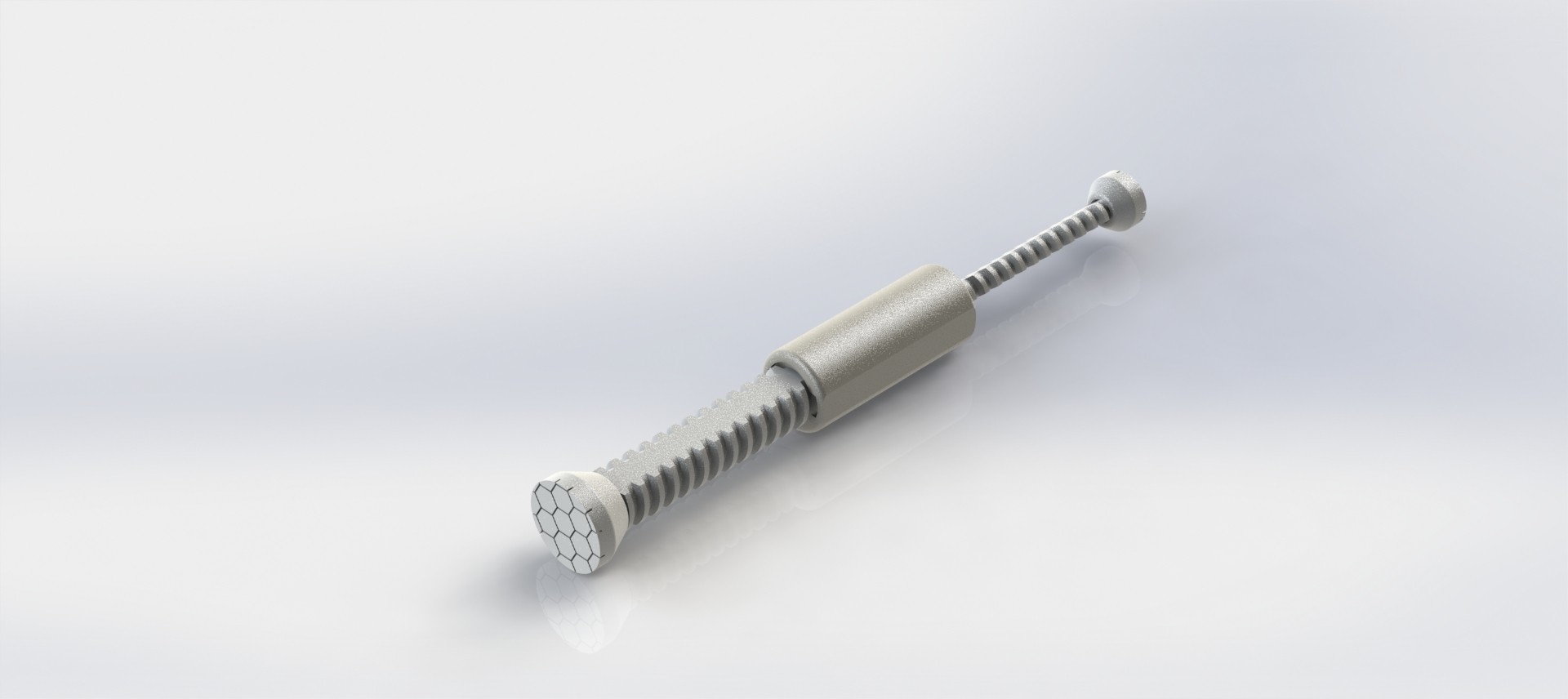

Support to avoid sprains of the pci express of long and heavy graphic cards.

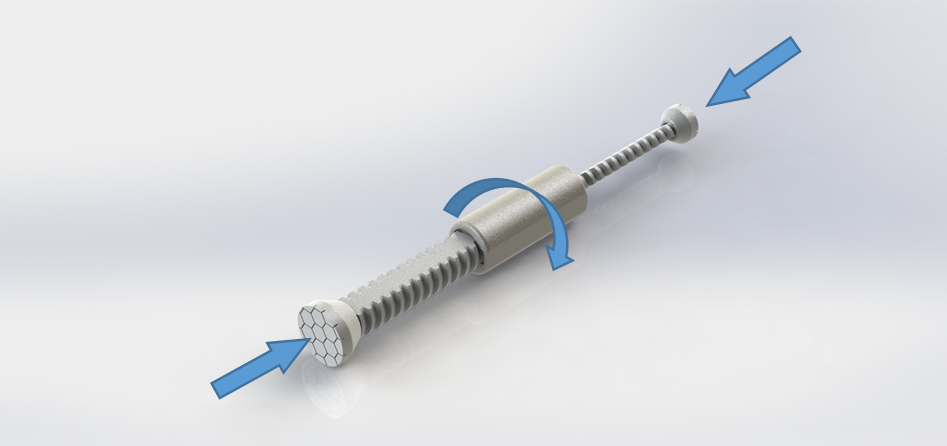

Placed at the cantilever end to reduce connection stresses

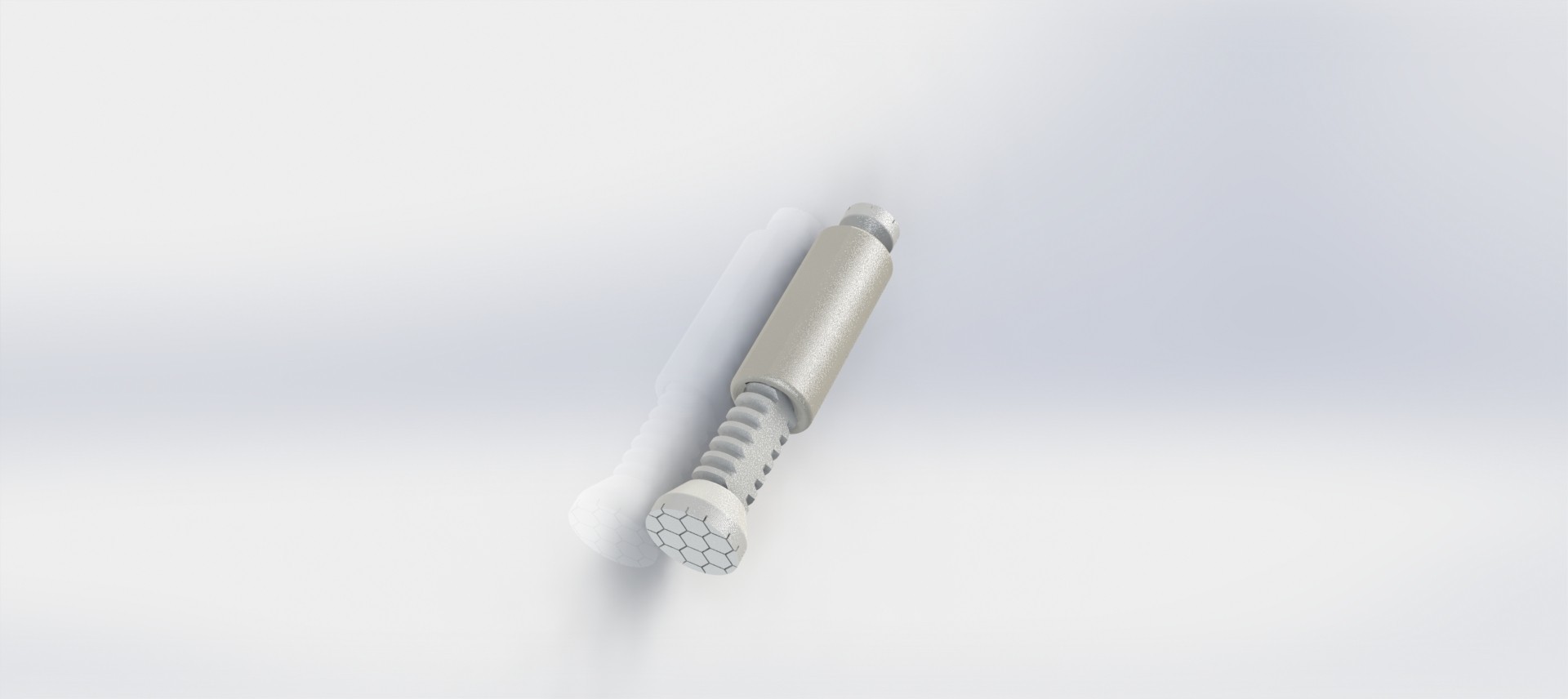

Maximum-minimum length 7-13 cm

Horizontal expansion should be used for smooth threading as it is of exact value between threads.

3D printing settings

Ultimaker Cure 3.6

Central - Horizontal expansion: 0

Axis 10 and 8 expansion: -0.14

Legs expansion: 0.11

Layer 0.05 (not necessary so much

  • 3D file format: STL
  • Publication date: 2018/12/30 at 23:41
