Temperature, humidity, lux meter with LAN

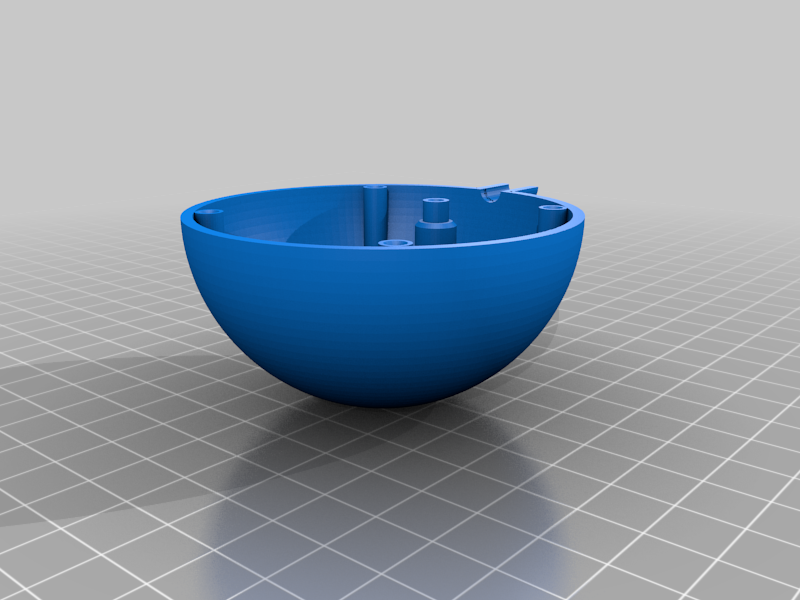

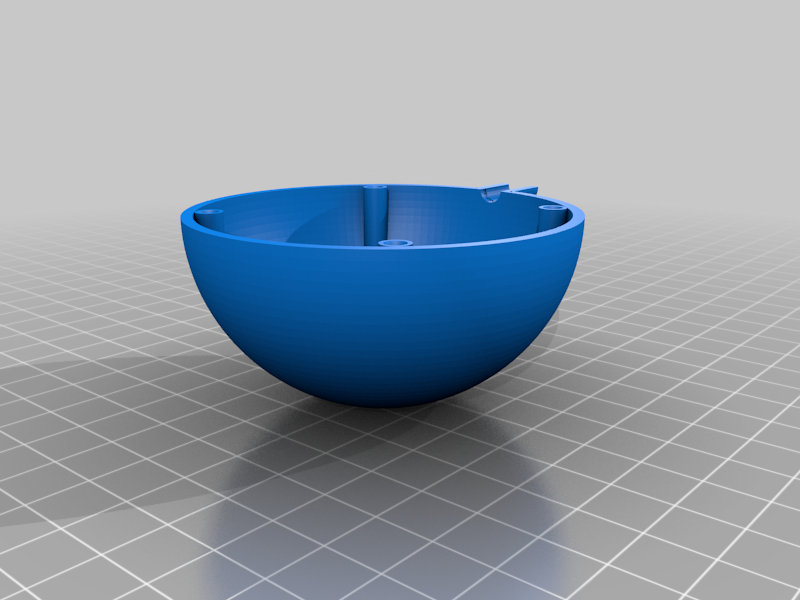

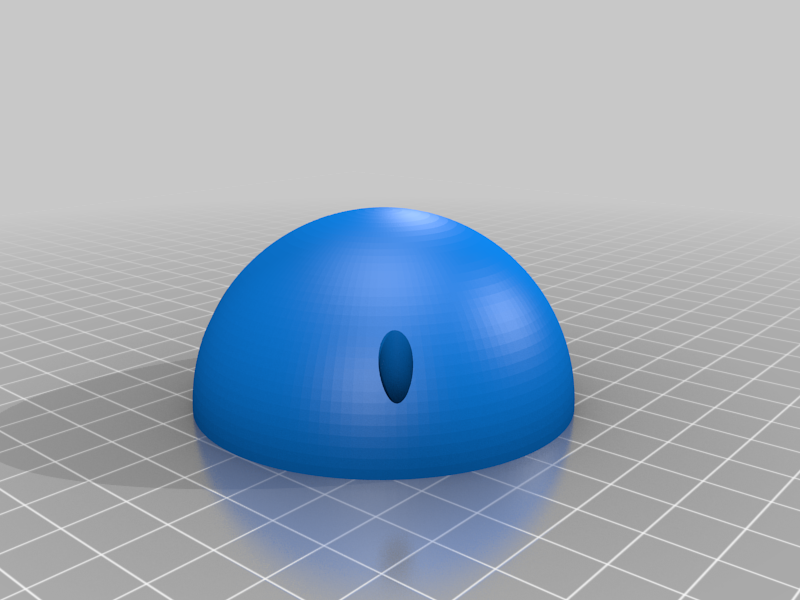

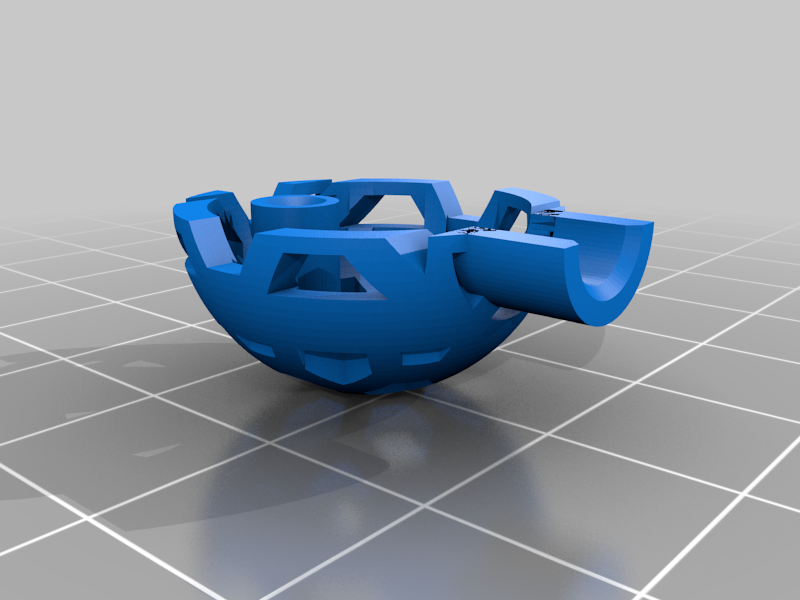

IMG_5637.jpg Download free STL file Temperature, humidity, lux meter with LAN • 3D print model, marigu IMG_5635.jpg Download free STL file Temperature, humidity, lux meter with LAN • 3D print model, marigu IMG_5636.jpg Download free STL file Temperature, humidity, lux meter with LAN • 3D print model, marigu IMG_5634.jpg Download free STL file Temperature, humidity, lux meter with LAN • 3D print model, marigu IMG_5294.jpg Download free STL file Temperature, humidity, lux meter with LAN • 3D print model, marigu IMG_5291.jpg Download free STL file Temperature, humidity, lux meter with LAN • 3D print model, marigu IMG_5295.jpg Download free STL file Temperature, humidity, lux meter with LAN • 3D print model, marigu IMG_5301.jpg Download free STL file Temperature, humidity, lux meter with LAN • 3D print model, marigu IMG_5238.jpg Download free STL file Temperature, humidity, lux meter with LAN • 3D print model, marigu temp_meter_case_v2_5.png Download free STL file Temperature, humidity, lux meter with LAN • 3D print model, marigu sensor_sphere_holder_v2.png Download free STL file Temperature, humidity, lux meter with LAN • 3D print model, marigu temp_meter_case_lid_v2_5.png Download free STL file Temperature, humidity, lux meter with LAN • 3D print model, marigu sensor_sphere_bottom.png Download free STL file Temperature, humidity, lux meter with LAN • 3D print model, marigu sensor_sphere_top.png Download free STL file Temperature, humidity, lux meter with LAN • 3D print model, marigu sensor_sphere_bottom_v2_2.png Download free STL file Temperature, humidity, lux meter with LAN • 3D print model, marigu sensor_sphere_bottom_v2.png Download free STL file Temperature, humidity, lux meter with LAN • 3D print model, marigu sensor_sphere_top_v2.png Download free STL file Temperature, humidity, lux meter with LAN • 3D print model, marigu sensor_sphere_top_v2_3.png Download free STL file Temperature, humidity, lux meter with LAN • 3D print model, marigu sensor_sphere_bottom_v2_3.png Download free STL file Temperature, humidity, lux meter with LAN • 3D print model, marigu
temp_meter_case_lid_v2_5.stl Download free STL file Temperature, humidity, lux meter with LAN • 3D print model, marigu sensor_sphere_holder_v2.stl Download free STL file Temperature, humidity, lux meter with LAN • 3D print model, marigu temp_meter_case_v2_5.stl Download free STL file Temperature, humidity, lux meter with LAN • 3D print model, marigu sensor_sphere_top_v2_3.stl Download free STL file Temperature, humidity, lux meter with LAN • 3D print model, marigu sensor_sphere_bottom_v2_3.stl Download free STL file Temperature, humidity, lux meter with LAN • 3D print model, marigu sensor_sphere_top.stl Download free STL file Temperature, humidity, lux meter with LAN • 3D print model, marigu sensor_sphere_top_v2.stl Download free STL file Temperature, humidity, lux meter with LAN • 3D print model, marigu sensor_sphere_bottom.stl Download free STL file Temperature, humidity, lux meter with LAN • 3D print model, marigu sensor_sphere_bottom_v2_2.stl Download free STL file Temperature, humidity, lux meter with LAN • 3D print model, marigu sensor_sphere_bottom_v2.stl Download free STL file Temperature, humidity, lux meter with LAN • 3D print model, marigu
Make
?
Creation's quality: 0.0/5 (0 votes)
Evaluation of members on the printability, utility, level of detail, etc.
  • 263 views
  • 2 downloads

3D model description

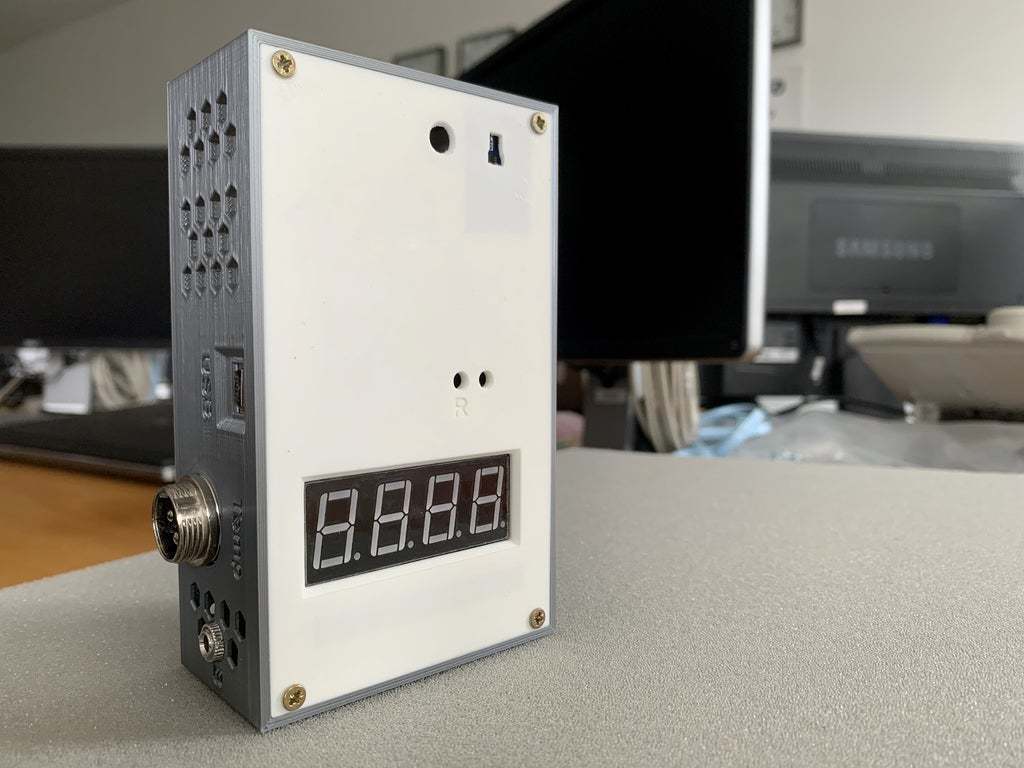

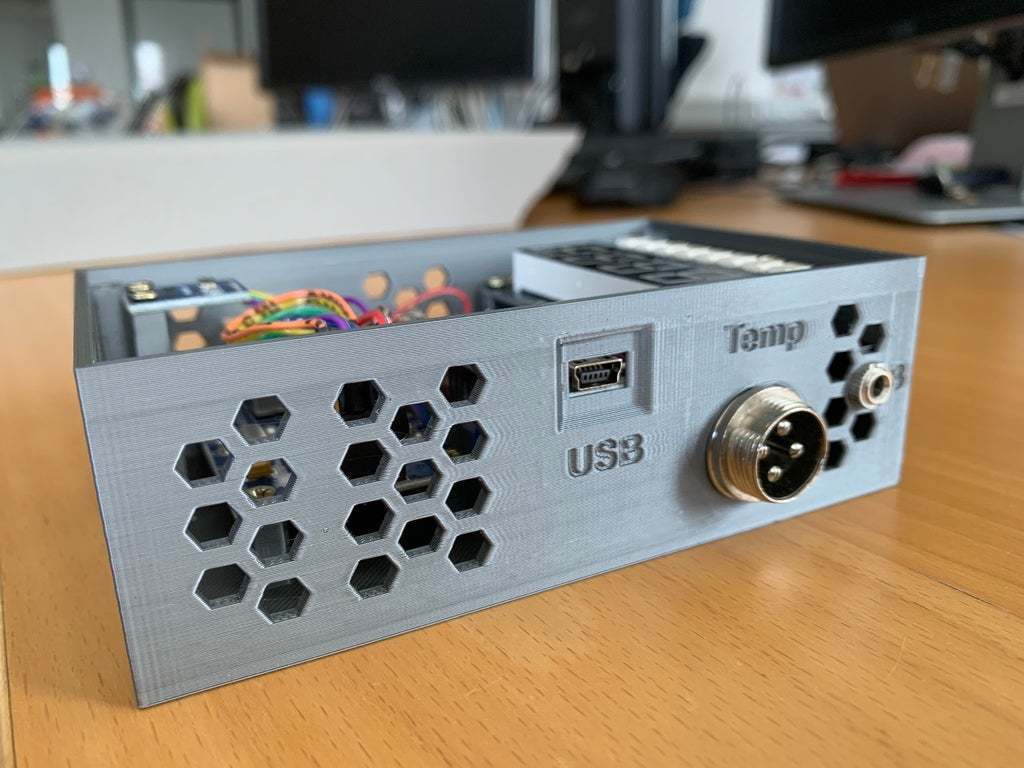

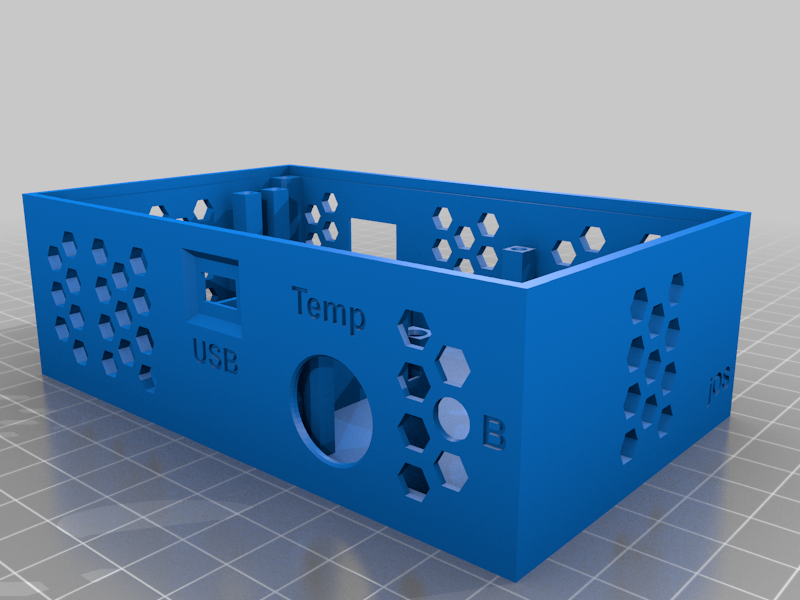

Case for some sensor for measuring temperature, humidity and light intensity.
Temperature is displayed on 7-Segment display and there is some WS2812b(Neopixels) as well(like progress bar, status notification, etc.).

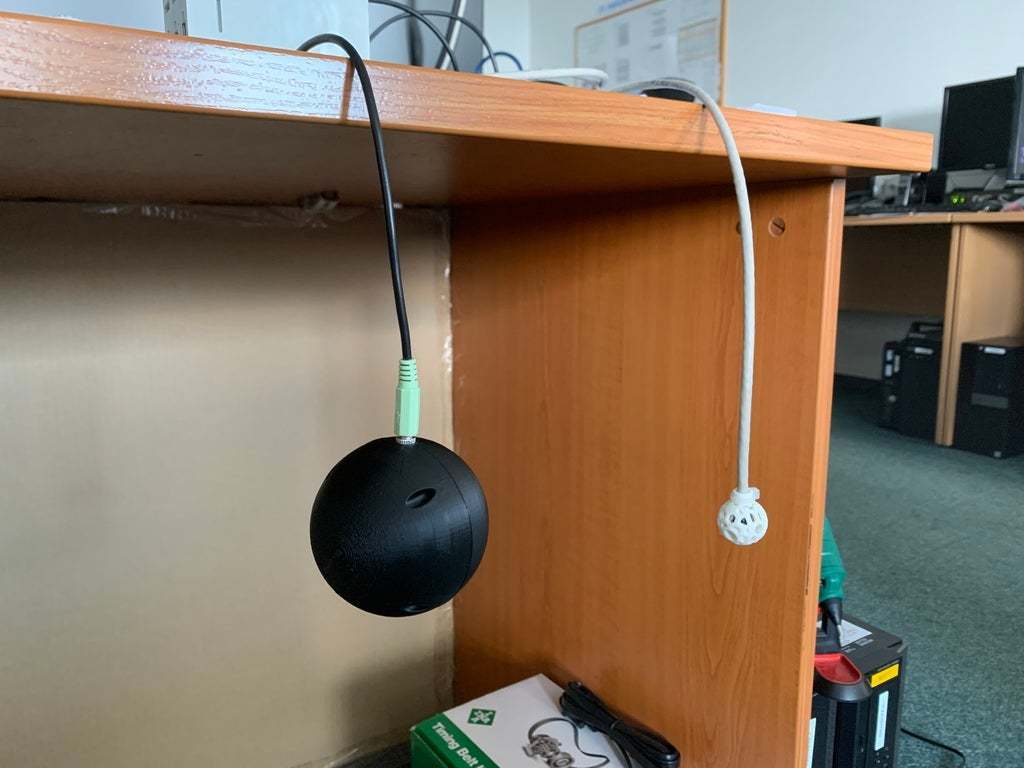

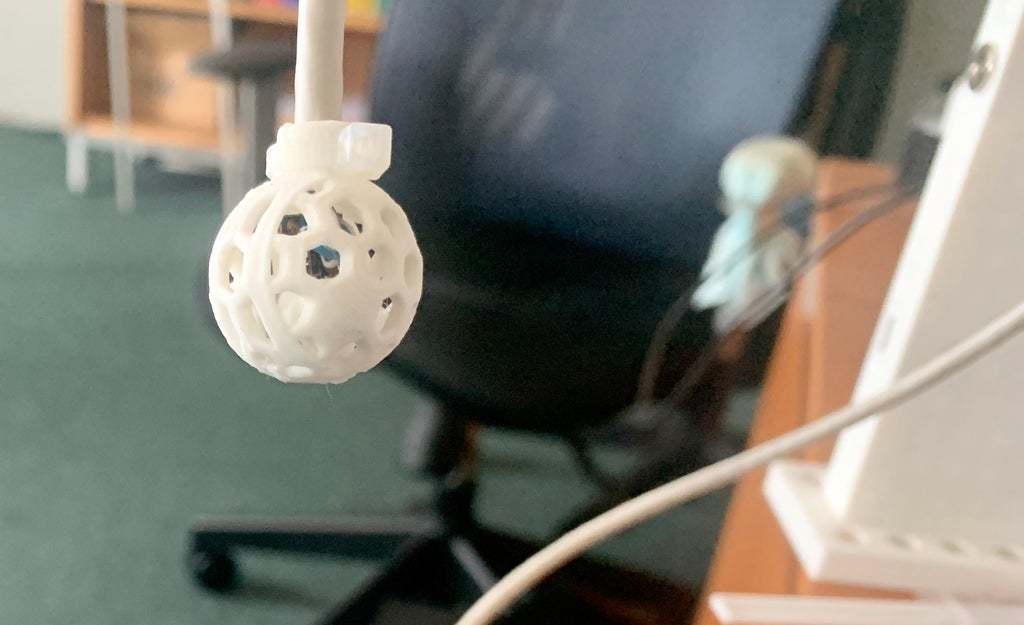

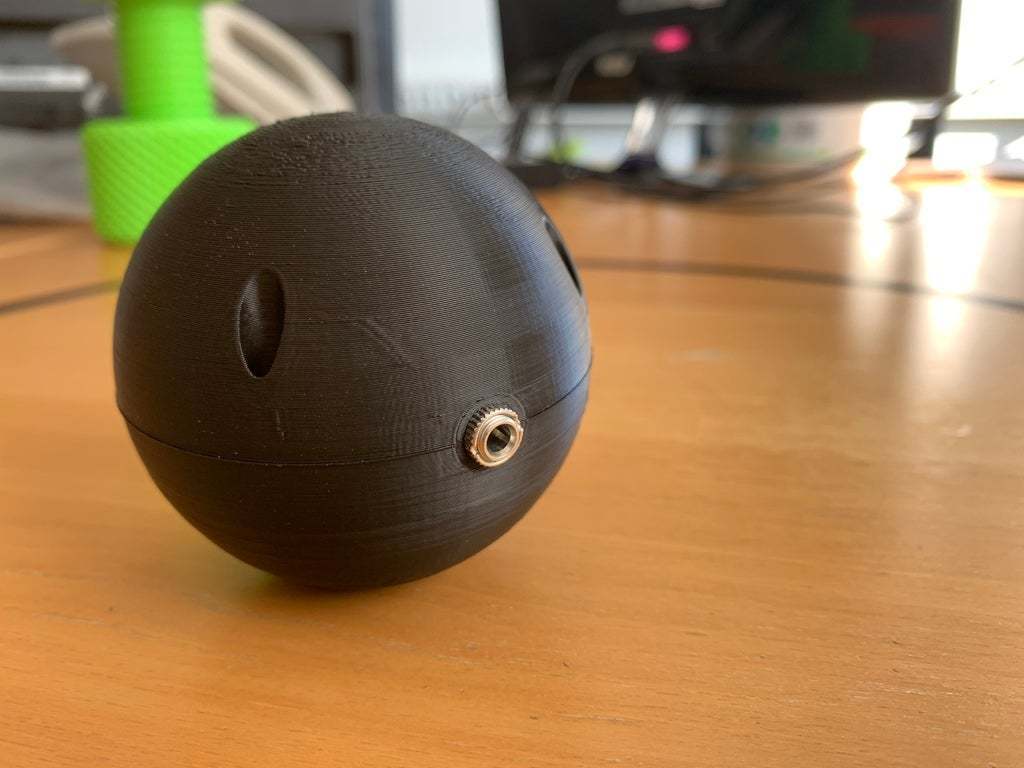

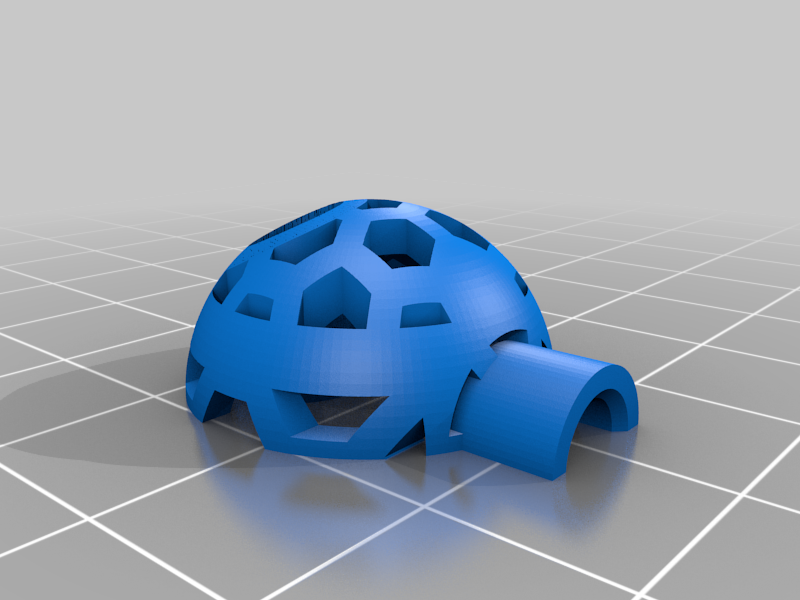

There is two different temperature sensors, one is used to measure radiation part of temperature - ball thermometer, sensor is closed in black ball.

There is also ENC28J60 LAN module so all data are available via TCP sockets(and then stored to DB:)

All is driven by Maple Mini MCU(STM32).

It is powered by 12V/3A PSU, directly connected to Maple Minis Vin pin and all other sensors/pixels/LAN has own small step down converter to 3.3V(because of current draw of all devices, especially LAN module).

Used modules:
Maple Mini(STM32)
HTU21D
DS18B20
TM1637
WS2812B
ENC28J60

Prusa i3, MK3
0.2
20 infill
PLA
no supports

  • 3D file format: F3D and STL
  • Publication date: 2020/07/16 at 15:30
