Tact switch z probe servo arm

?
Creation's quality: 0.0/5 (0 votes)
Evaluation of members on the printability, utility, level of detail, etc.
  • 👁 114 views

3D model description

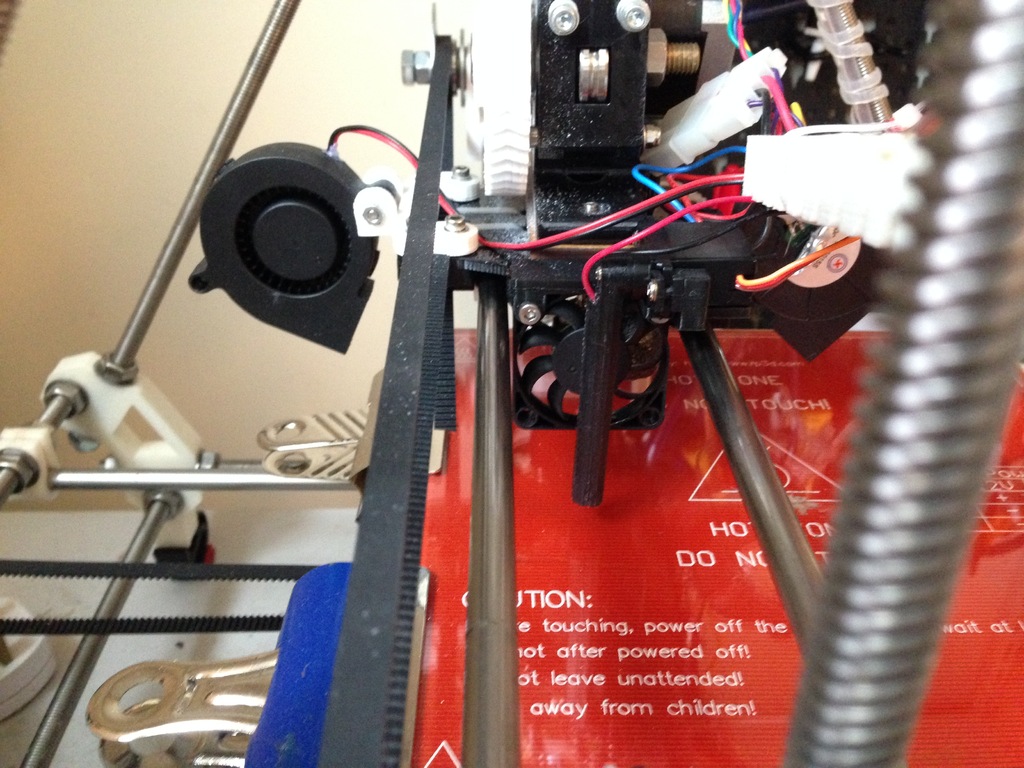

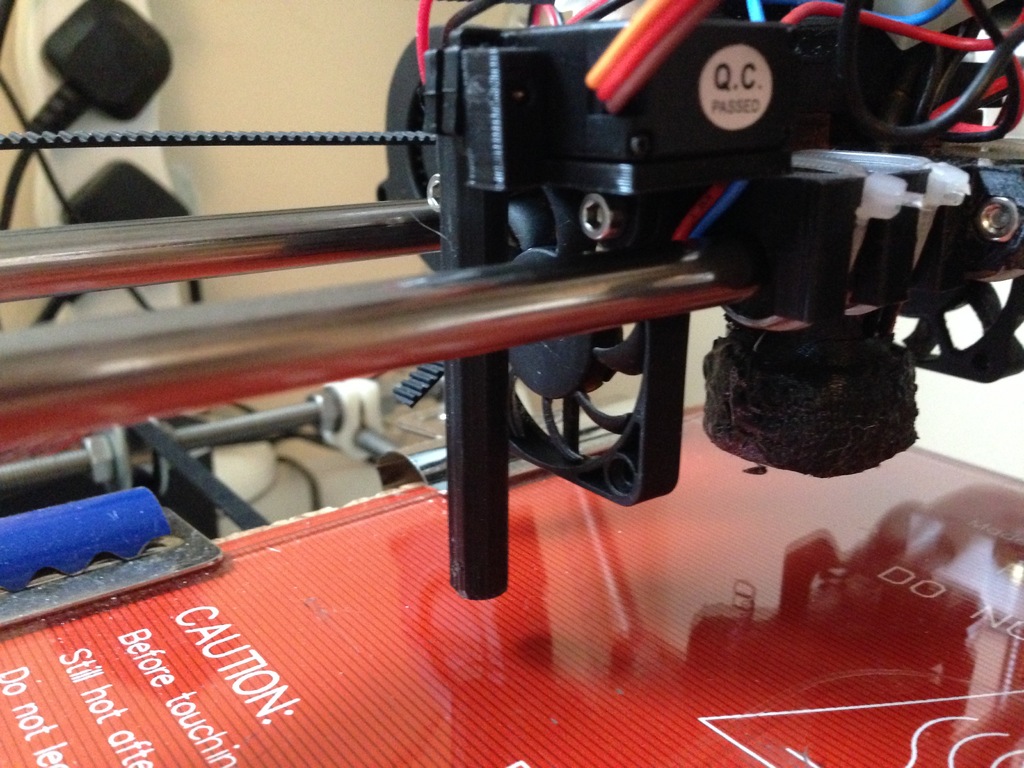

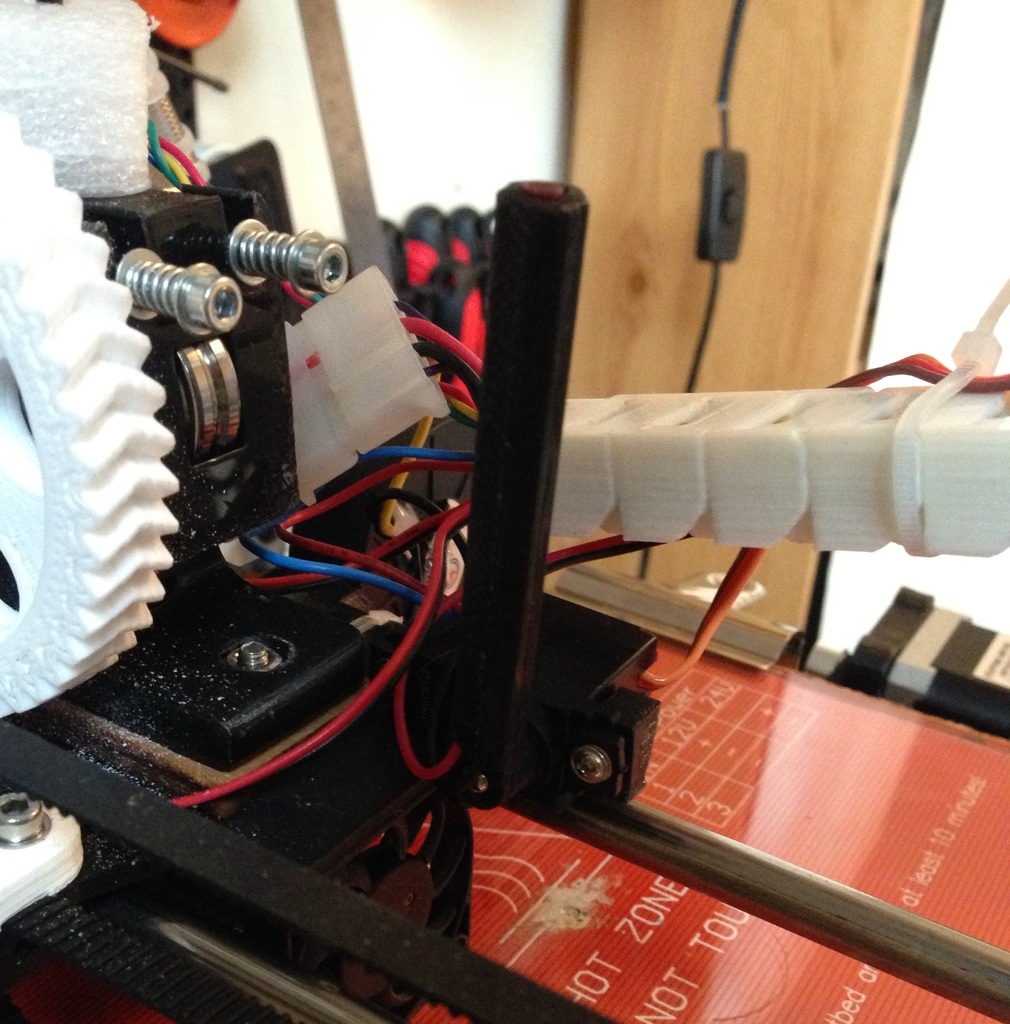

Z probe using a tact switch rather than a micro switch.

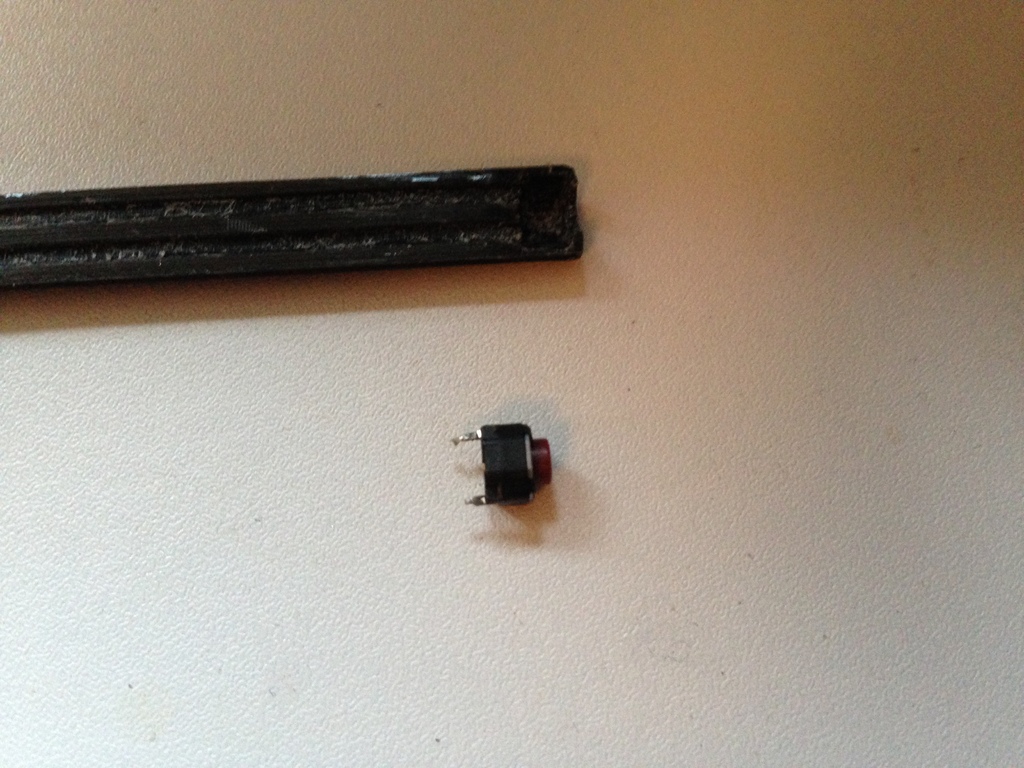

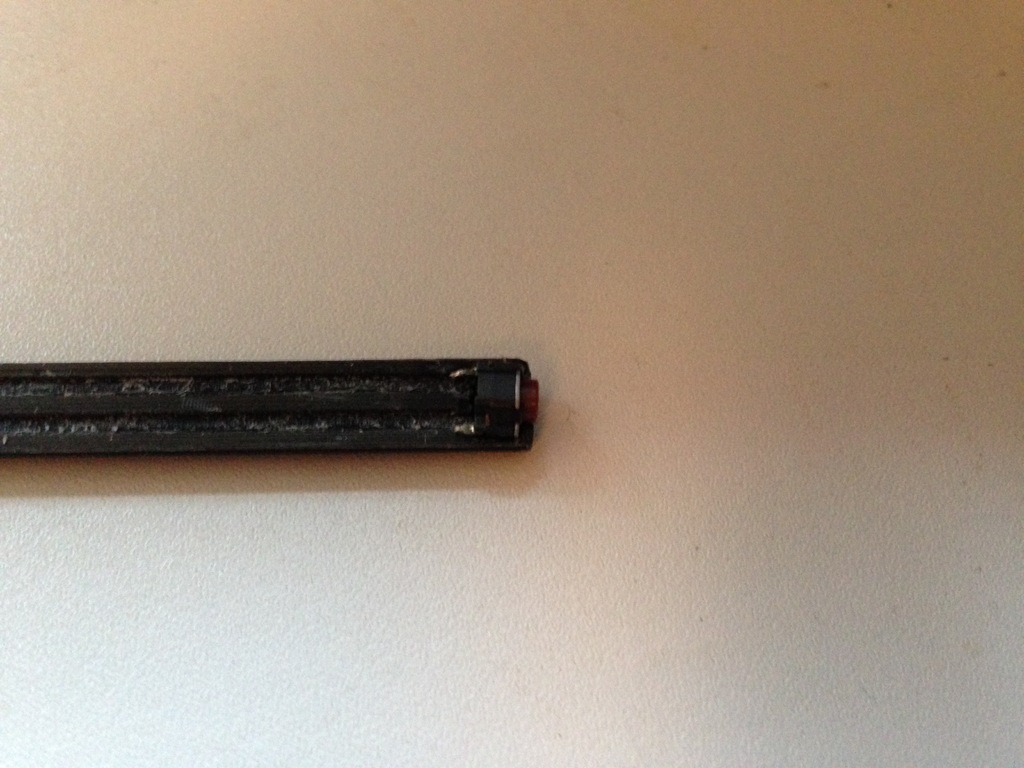

Insert the 2 pin tact switch and wires then glue the two halves together.

This required quite a bit of fettling to get it all to fit but I wanted it as slim as possible.

It is designed to fit a corona DS929HV servo (20 splines).

https://youtu.be/k0LWsGR6-ic


3D printing settings

-

3D printer file information

  • 3D design format: STL Folder details Close

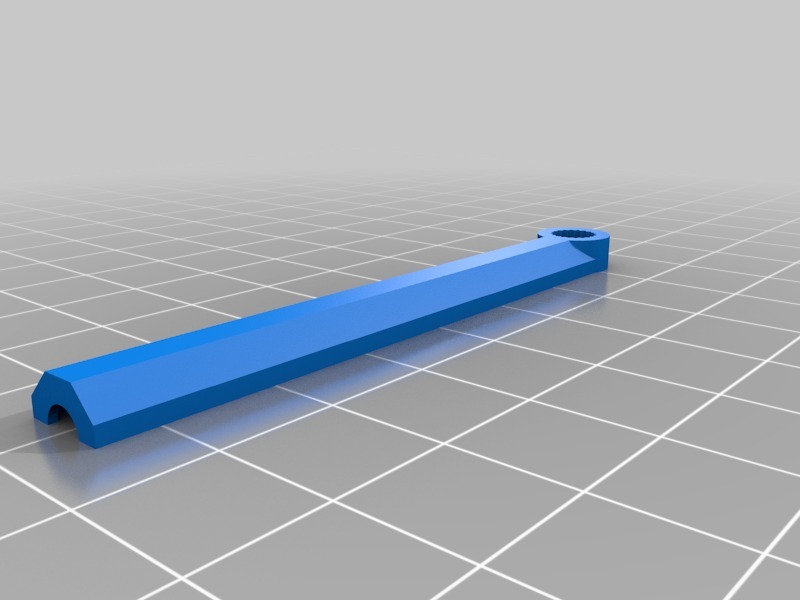

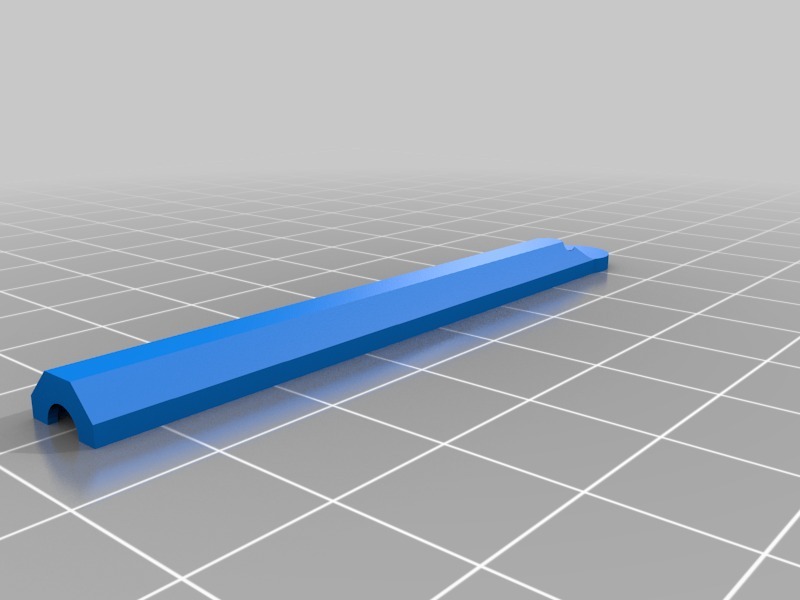

    • servo_arm_bottom.stl
