Swiveling Camera mount for Pi3-2014

?
Creation's quality: 5.0/5 (1 vote)
Evaluation of members on the printability, utility, level of detail, etc.
  • 560 views
  • 1 like
  • 12 downloads

3D model description

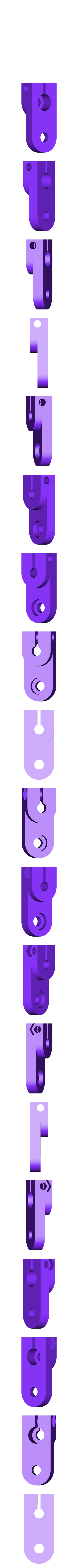

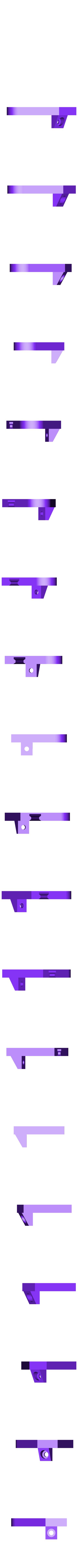

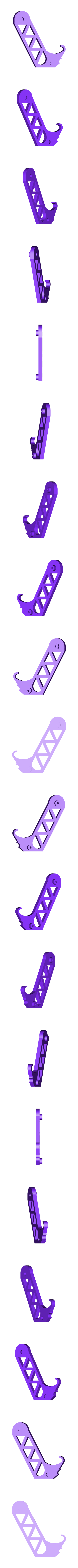

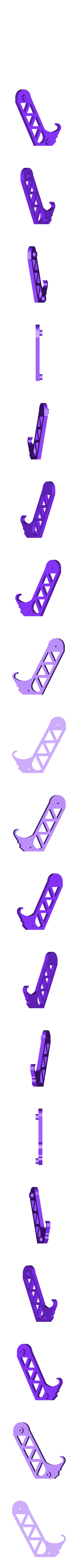

A front swiveling camera mount for Prusa i3

01-04-2015 UPDATED THE SUPPORT with the revision 2 and added the M6 Lever, refer to the picture for the lever installation

Assembly video

http://youtu.be/FqYquOGgjXg

3D printing settings

Print all the parts at 0,3mm layer and 3 perimeter minimum

2 M3x20mm DIN912

1 M3 x10 mm DIN912

1 M6x16 mm DIN912

1 M6x10 (for camera thread)

2 M4x40 mm ISO4014

2 M4 Nuts ISO4032

  • 3D file format: STL
  • Publication date: 2019/07/17 at 11:52

License

CC BY NC
