Support for Filo3D wire crown

20151128_135622_Carr_.jpg STL file Support for Filo3D wire crown・3D printable model to download
20151128_135641_Carr_.jpg STL file Support for Filo3D wire crown・3D printable model to download
20151127_234712_Carr_.jpg STL file Support for Filo3D wire crown・3D printable model to download
D_rouleur_Filo3D.jpg STL file Support for Filo3D wire crown・3D printable model to download

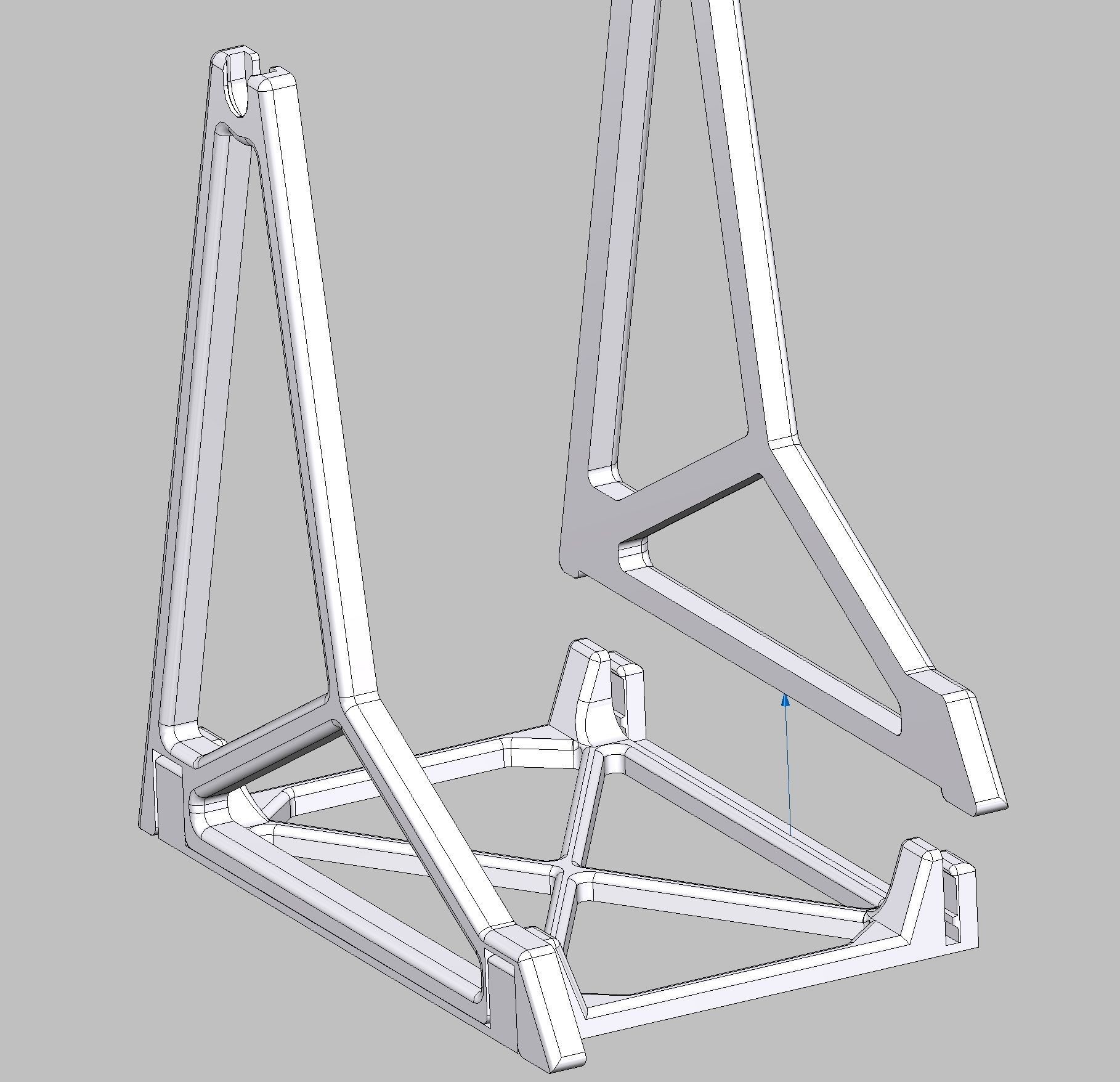

D_rouleur_Pied.jpg STL file Support for Filo3D wire crown・3D printable model to download
D_rouleur_Vue01.jpg STL file Support for Filo3D wire crown・3D printable model to download
Agrafe.stl STL file Support for Filo3D wire crown・3D printable model to download
Axe.stl STL file Support for Filo3D wire crown・3D printable model to download
Base.stl STL file Support for Filo3D wire crown・3D printable model to download
Bras.stl STL file Support for Filo3D wire crown・3D printable model to download
Disque_Mobile.stl STL file Support for Filo3D wire crown・3D printable model to download
Disque_Multi-axes.stl STL file Support for Filo3D wire crown・3D printable model to download
Fourche.stl STL file Support for Filo3D wire crown・3D printable model to download
Montant_D.stl STL file Support for Filo3D wire crown・3D printable model to download
Montant_G.stl STL file Support for Filo3D wire crown・3D printable model to download
Pivot.stl STL file Support for Filo3D wire crown・3D printable model to download
Share
Add to
Make
?
Creation quality: 5.0/5 (1 vote)
Evaluation of members on the printability, utility, level of detail, etc.

Designer

emajo

emajo

3D model description

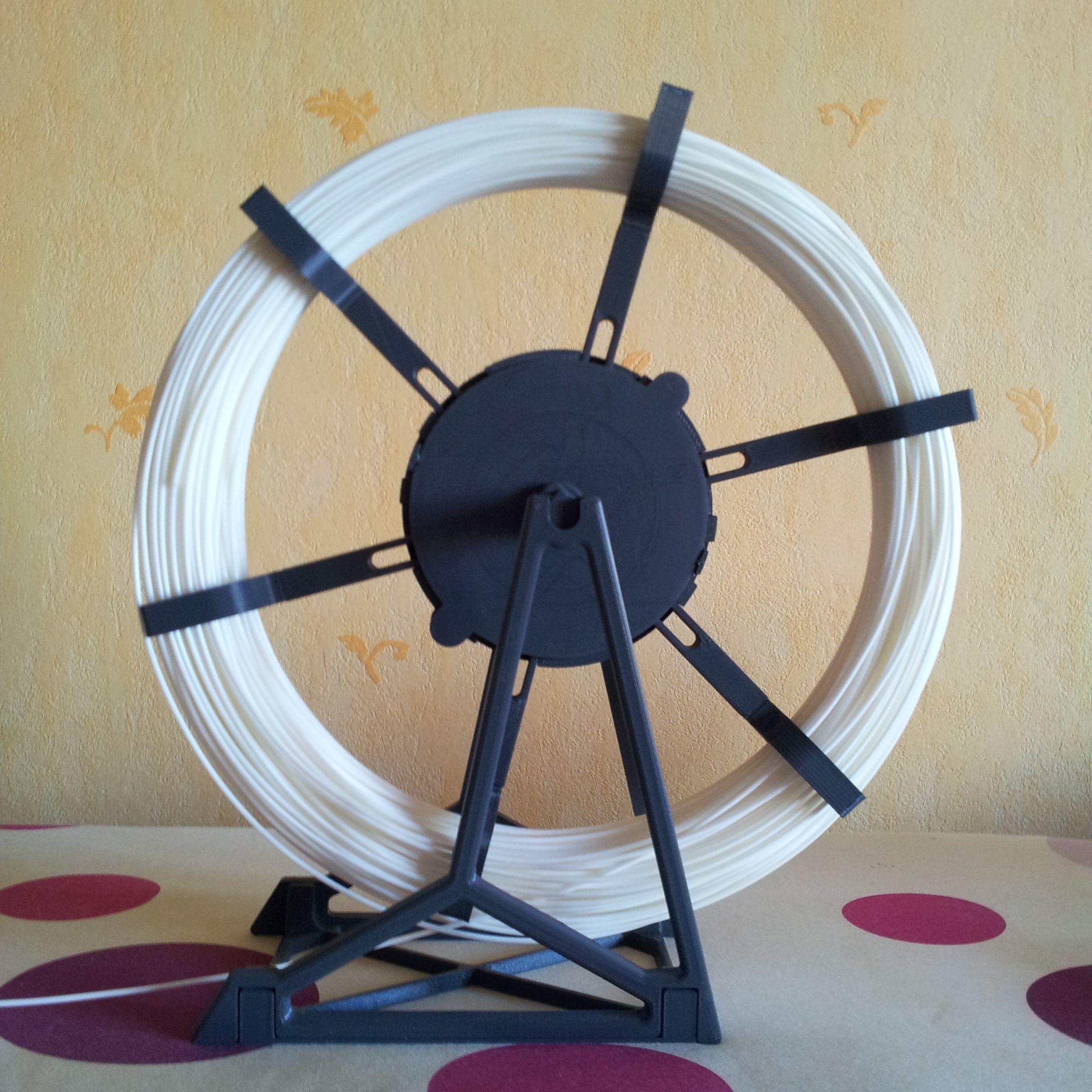

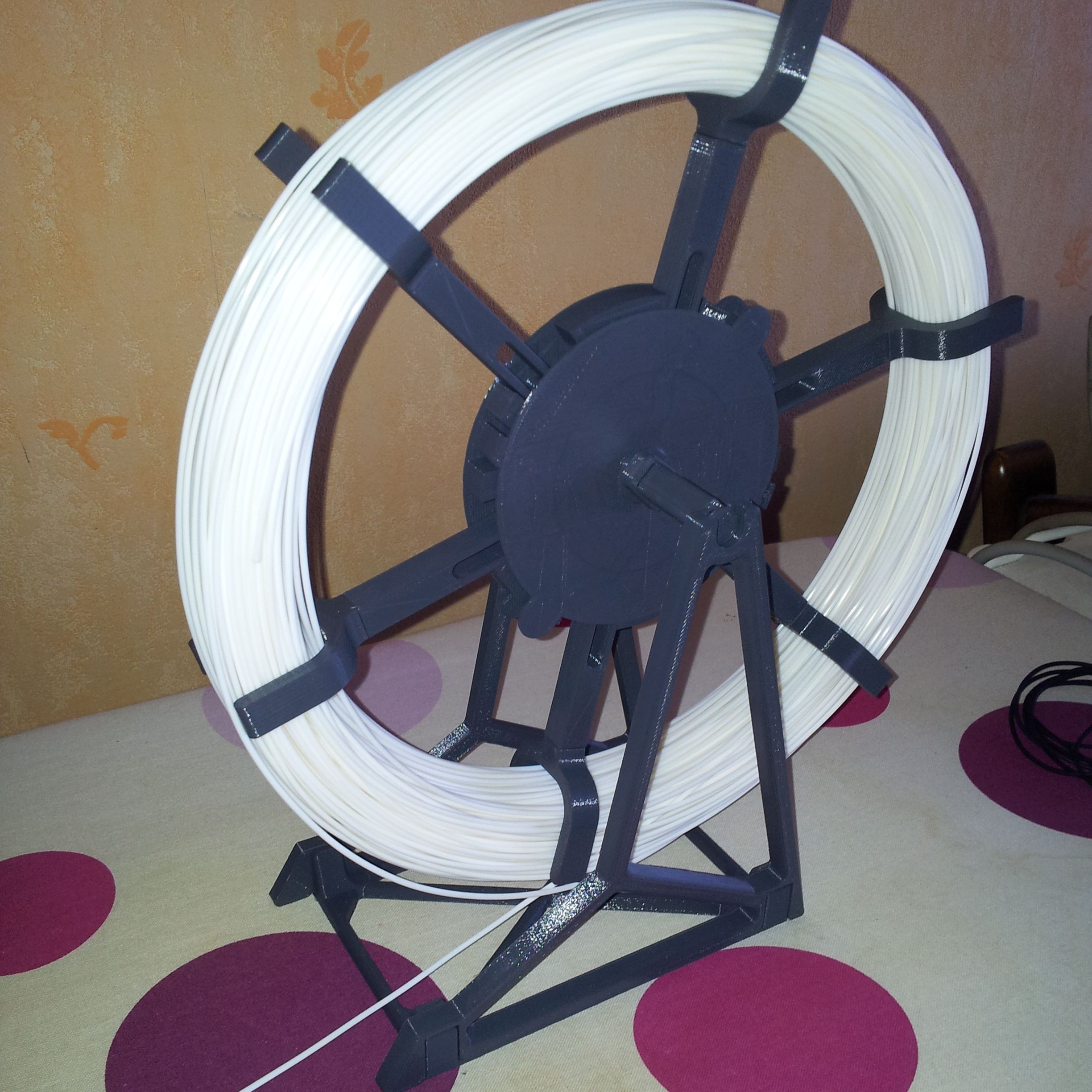

This is a fast medium of use I developed specifically for wire strands Filo3D (sold Dagoma) in order to proceed in this thread without any problems.

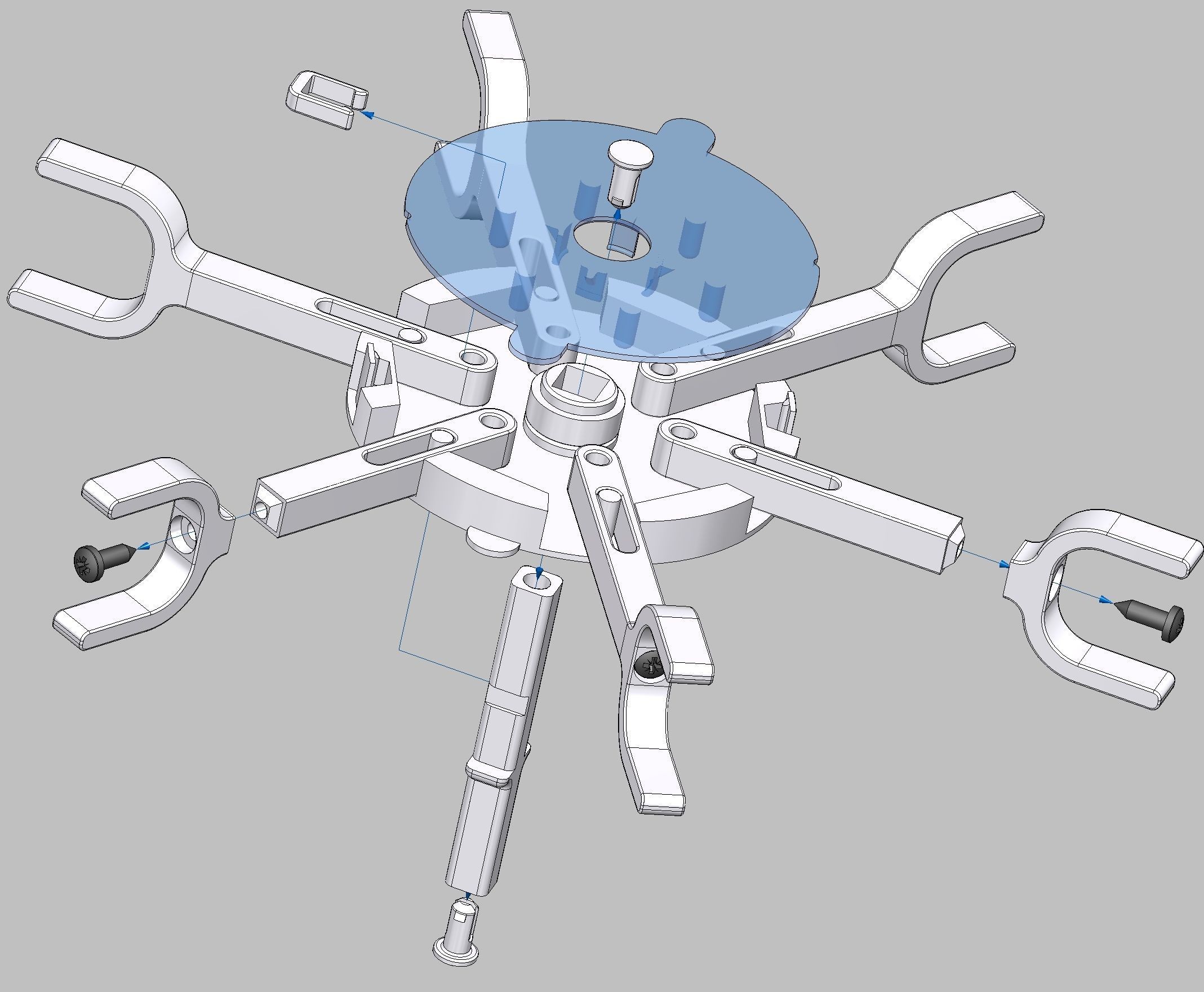

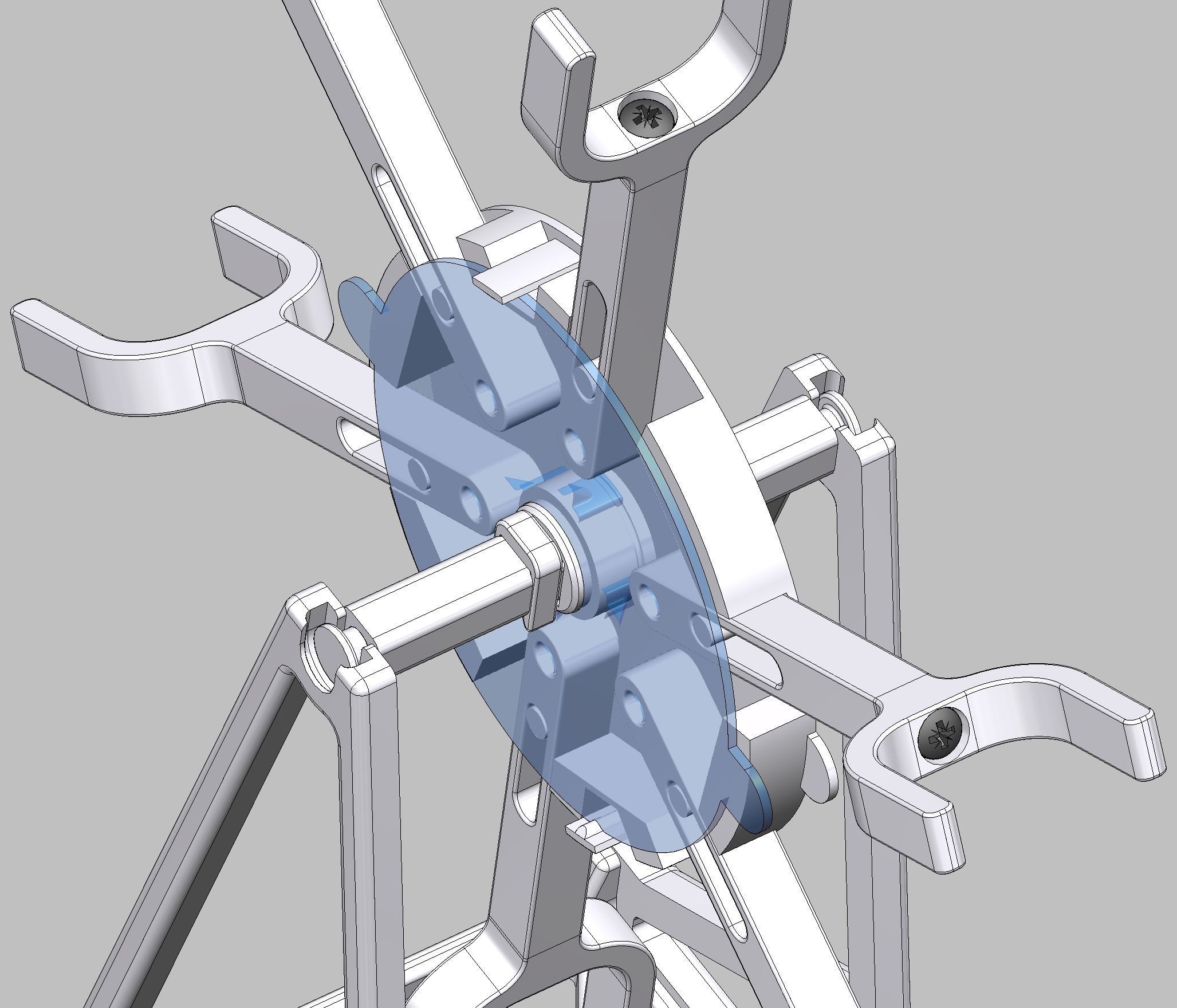

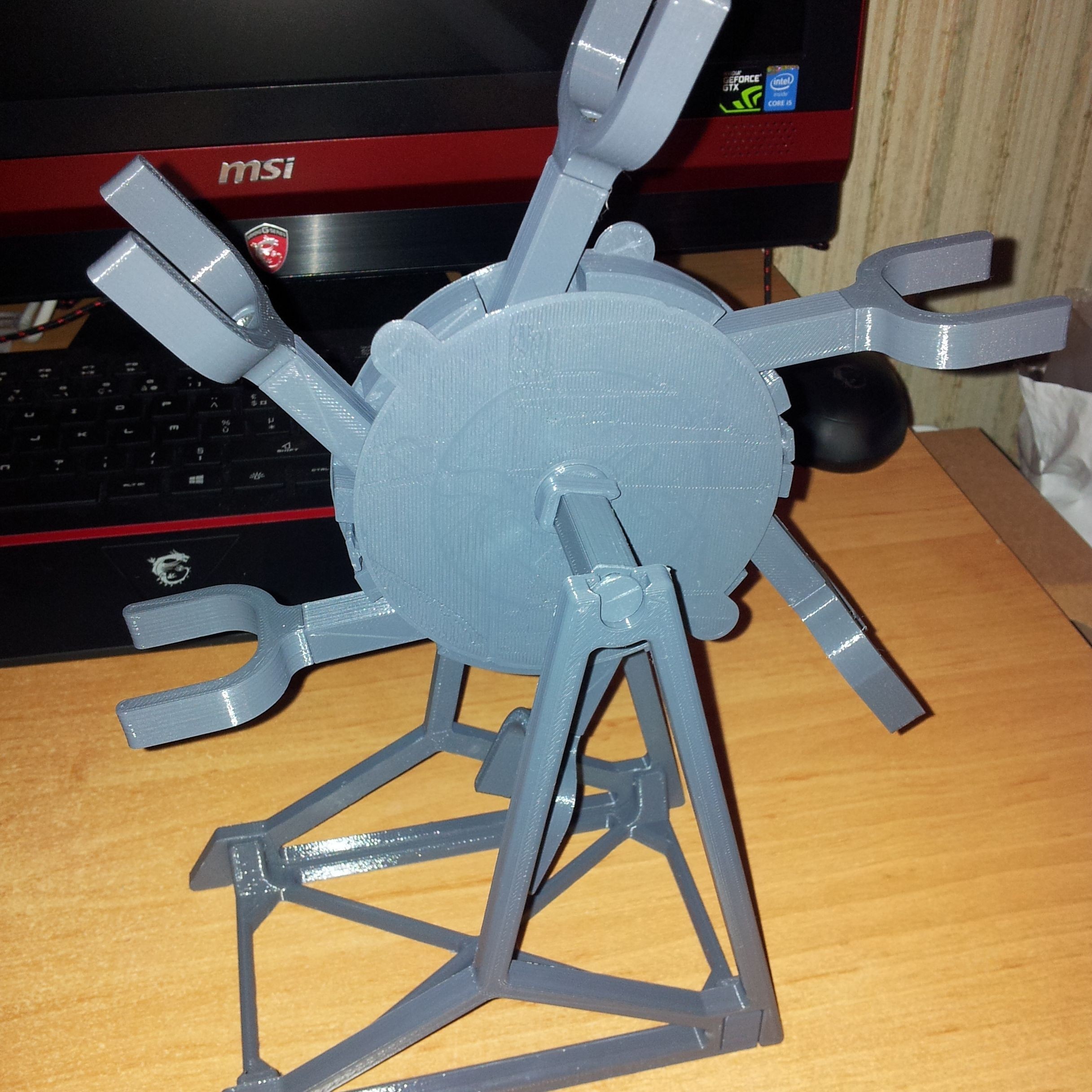

By applying a rotation in the central cylinder mechanism, the 6 arms diverge and come keep the coil of wire.
Assembling all locked except 4.2x16 6 screws (or 4.2x13) like "sheet metal screws" Phillips to fix the forks.

3D printing settings

The prints were made with filling 33% grip on extensive plateau.
Attention to ensure the correct voltage for your belts well cylindrical axes.
Although deburring before assembly.
Quantities of parts to print:
Clip: x1 / Focus: x1 / Base: x1 / Arm: x6 / Disk Mobile: x1 / Disc Multi-axes: x1 / Fork: x6 / D Amount: x1 / G Amount: x1 / Pivot: x2

3D printer file information

  • Design number: 4515
  • 3D design format: STL Folder details Close
    • Agrafe.stl
    • Axe.stl
    • Base.stl
    • Bras.stl
    • Disque_Mobile.stl
    • Disque_Multi-axes.stl
    • Fourche.stl
    • Montant_D.stl
    • Montant_G.stl
    • Pivot.stl

    Learn more about the formats

  • Last update: 2016-05-09 at 15:43
  • Publication date: 2015-12-19 at 19:58
