Smartphone Support Magnetic Bike

3D model description

The magnetic smartphone holder can carry his smartphone on the handlebars of his bike!

Video: https://youtu.be/oFYW642AZW8

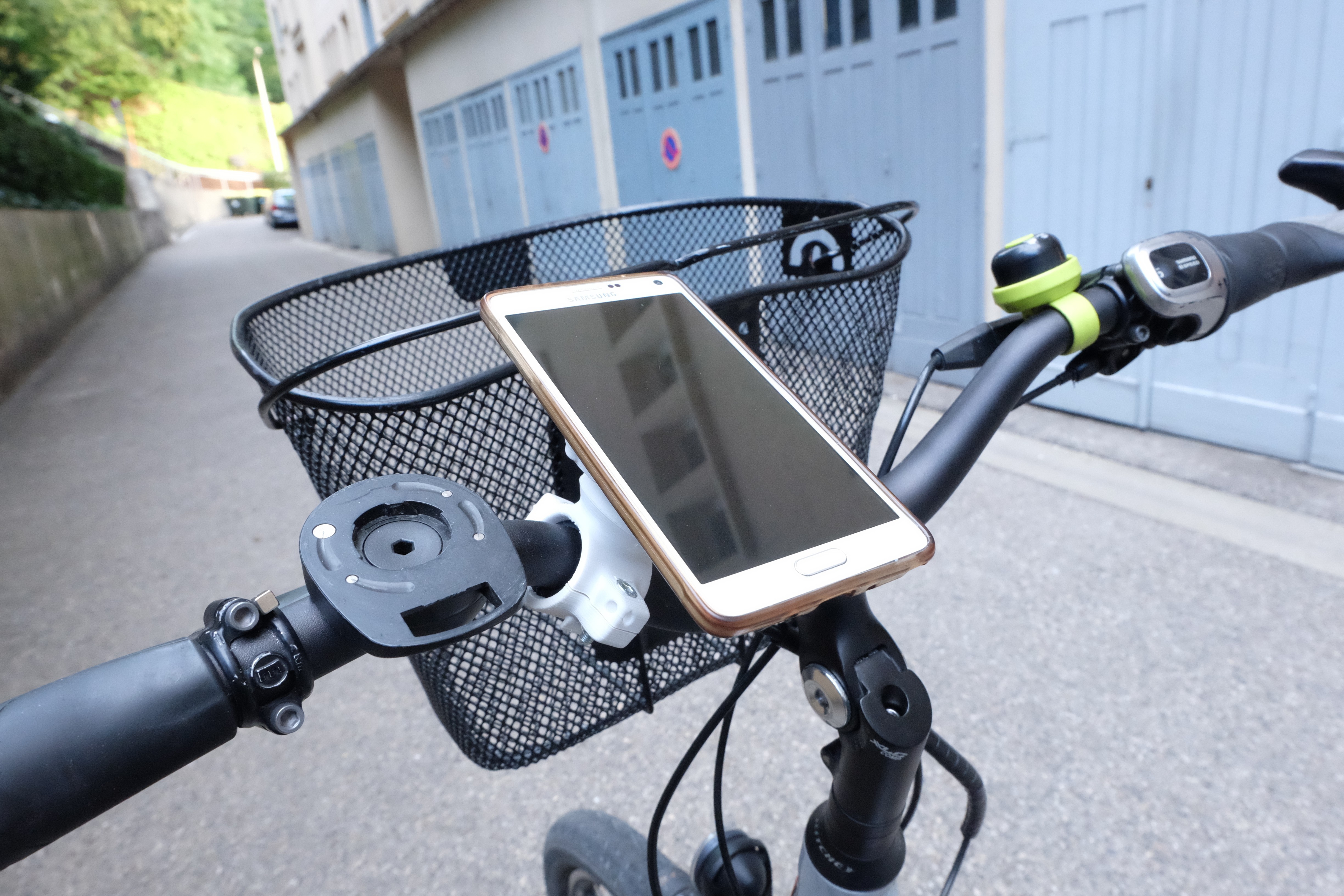

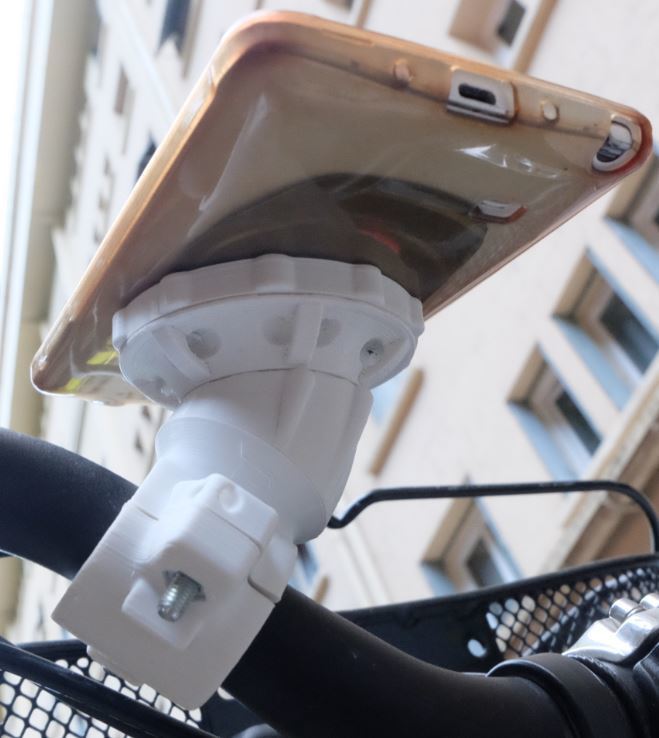

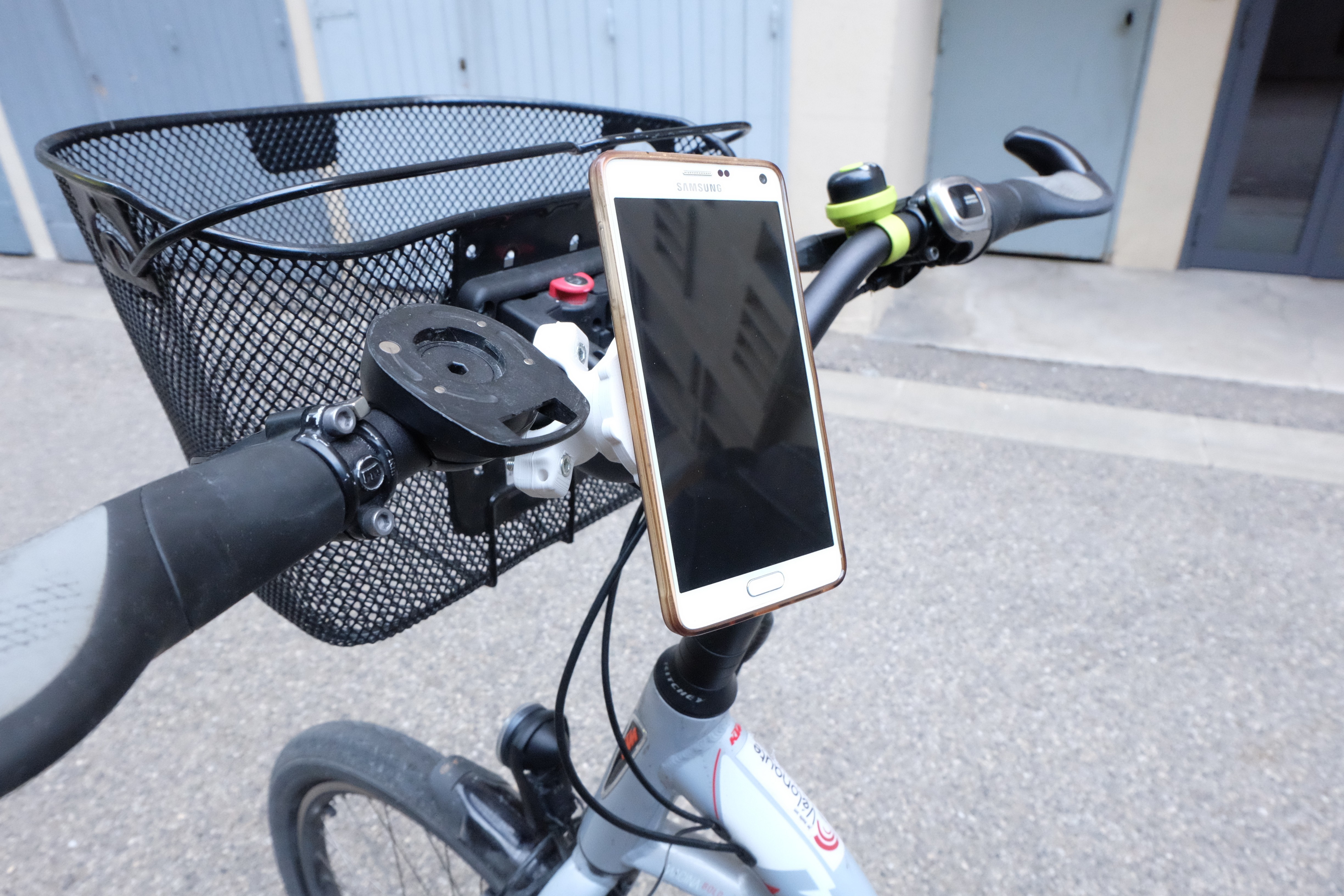

Once installed on the bike, and the magnets inserted in the upper case, simply insert a metal plate (a tin can lid works well) under the support of your smartphone and place your phone on the support.

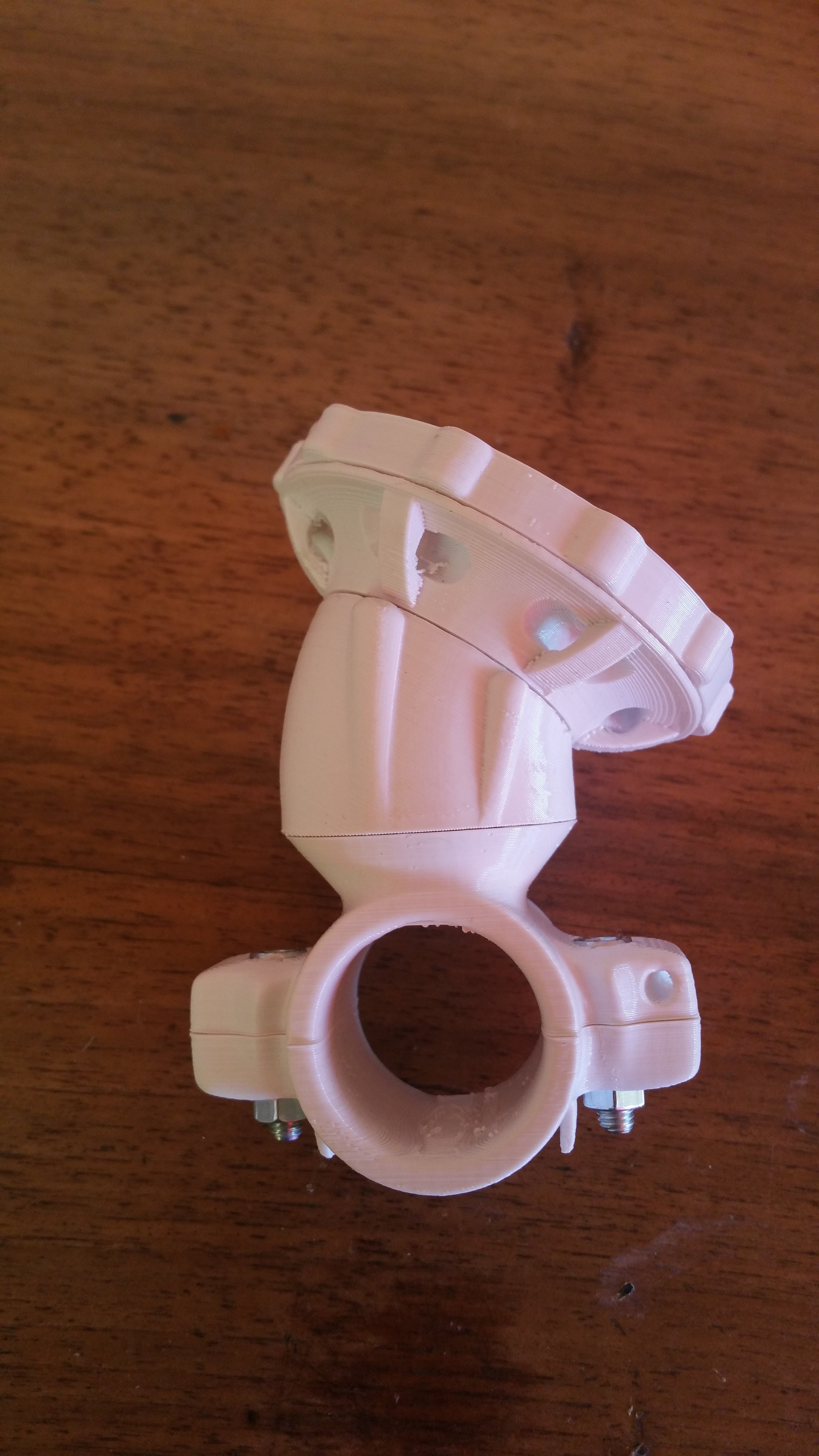

If the handlebars of your bike is not right, you can use the curved adapter (part 3)
This allows choosing the location of the screwing of this piece, to bring its upper portion a slope of 35% as 4 different inclinations. The curvature of the handlebar is corrected.

The support is a mixture of 3D printing, recovery and recycling.

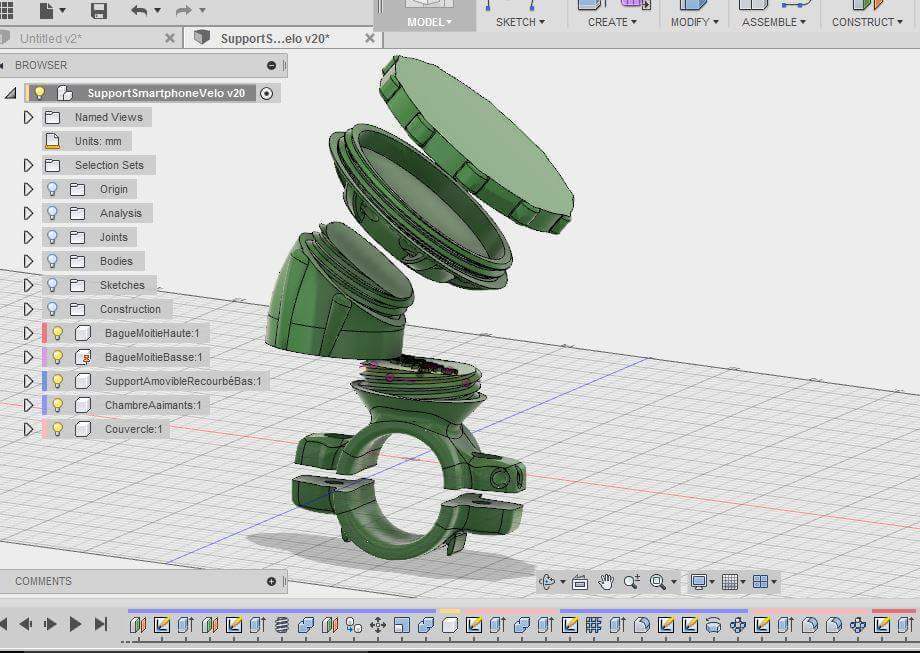

The support consists of 5 parts:
1 and 2: Clamping ring on the handlebars in 2 parts
3: curved adapter (optional part, necessary if horizontal handlebar)
4: magnets House
5: Cover

Ou0itls necessary:
- A Torx screwdriver 9 to disassemble the hard drives and recover the magnets (http://urlz.fr/403X)
- A clip to facilitate removal of the magnets
- An allen 6 4 mm Allen key (http://urlz.fr/4044)

Recovery / Recycling:
- 4-6 magnets salvaged from old 2 or 3 hard drives out -d'usage (http://urlz.fr/403W). Your friends will surely have a drawer or a used PC. Here is a video that explains the dismantling magnets of a hard disk (http://urlz.fr/4040).
- 2 screw length 20mm, with no male 5mm hexagonal screw and clamping nut 4 mm (http://urlz.fr/4043) for allen key 6 sides 4 mm (http://urlz.fr/40nU )
- 2 hex nuts not 5mm screws (http://urlz.fr/4045)
1 rubber band (or old inner tube) is used to fill the possible gap between the handlebar and the clamp
- 1 Hull Smartphone rubber or other (example: http://urlz.fr/40nW)
- 1 cover large tin can it will be cut to the dimensions of the hull of your smartphone

3D printing settings

The printer accuracy level should be 100 microns, which corresponds to the standard 3D printers of the moment. Printing untested in 200 or 400 microns

Parts 1 and 2 and 5: Clamping ring handlebar and cover
These 3 rooms can be printed without support
The filling ratio of the print can be set to 30%
These three parts are to be printed like this: http://urlz.fr/42wX

Parts 3 and 4: Room curved magnets and Support
These two parts are to be printed with stand
The filling ratio of the print can be set to 30%
Both parts must be printed like this: http://urlz.fr/42wY

This part 3 is optional. If your handlebar is horizontal, not print

  • 3D model format: STL
