3D model description

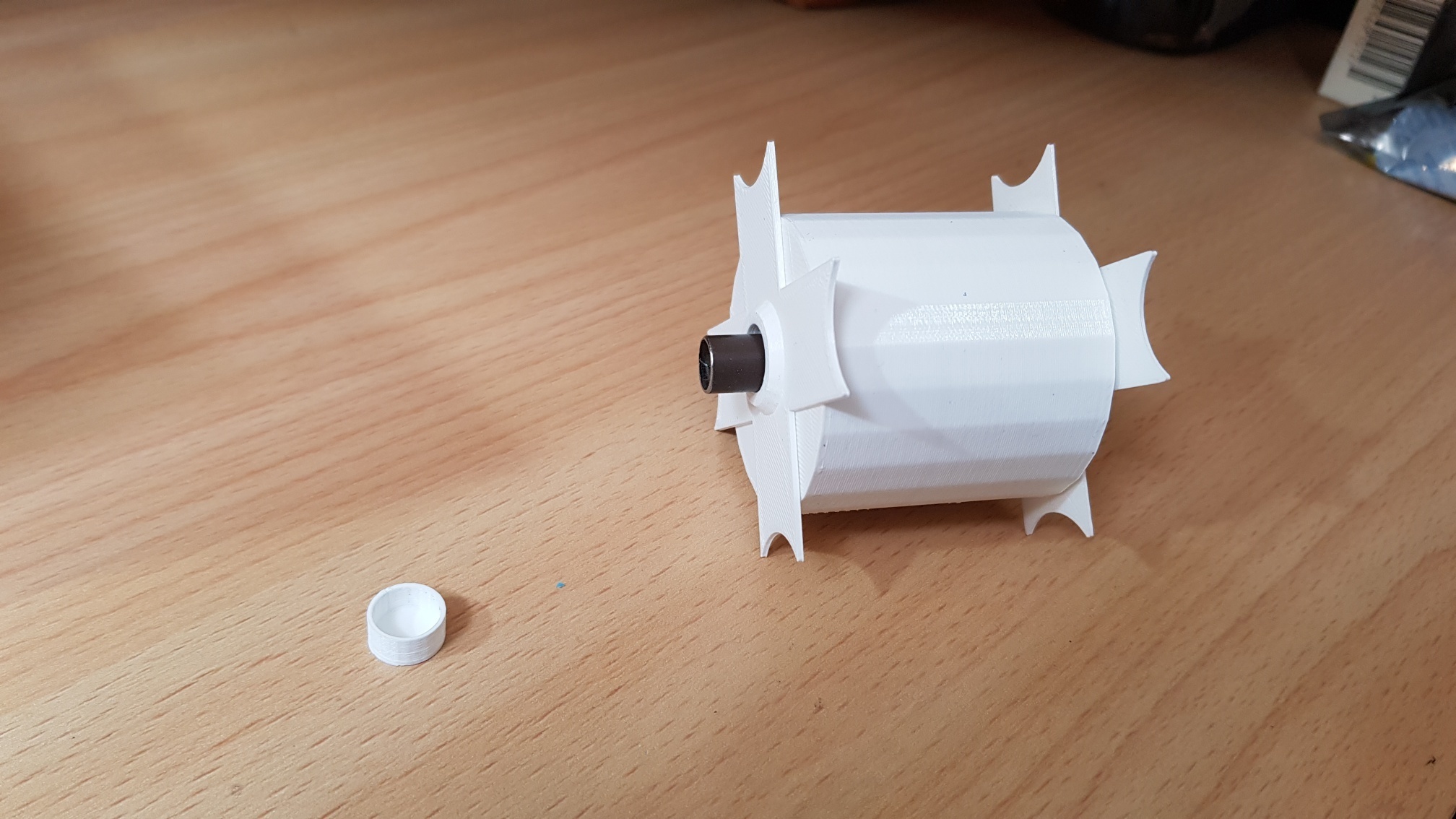

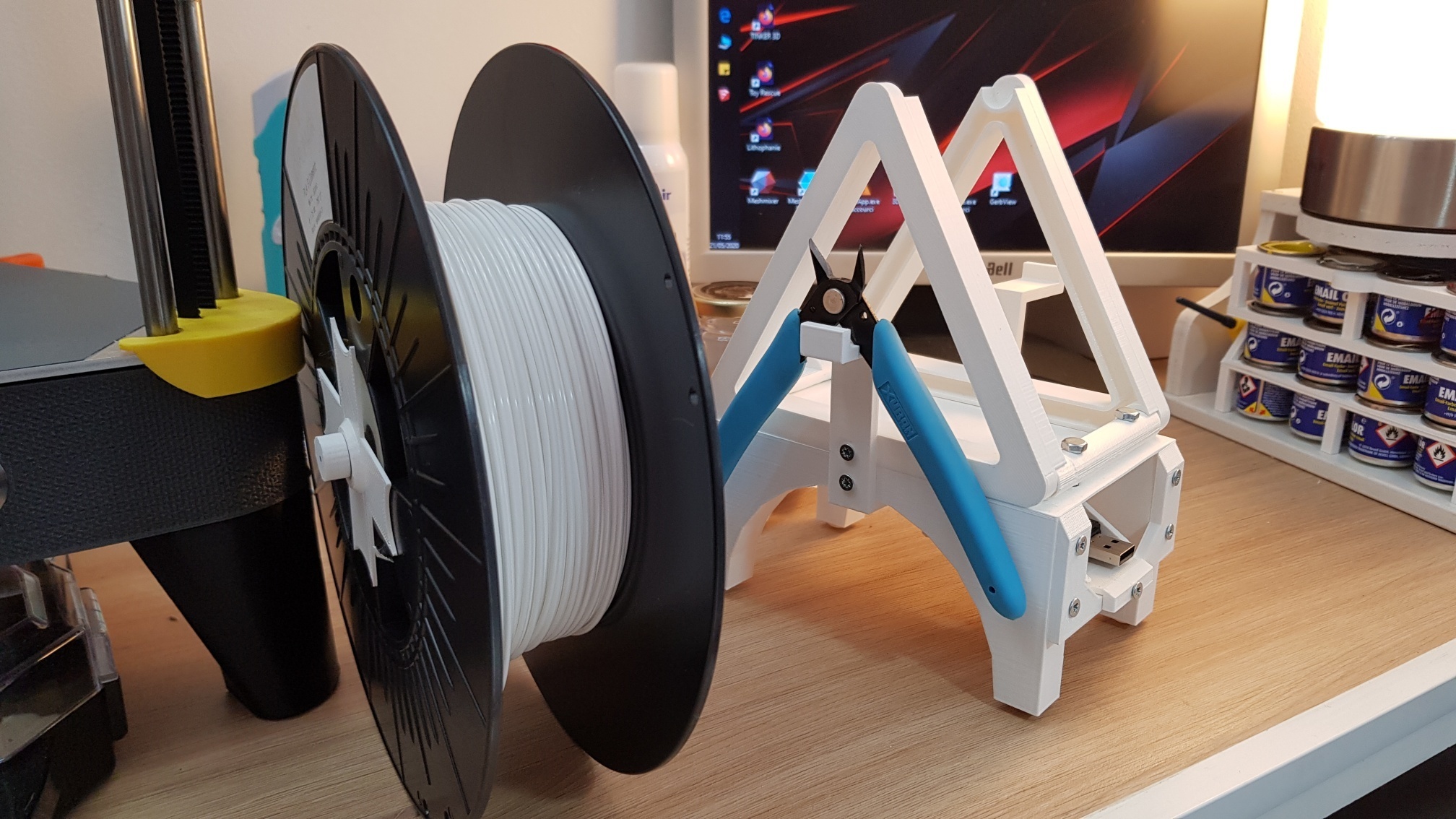

Reel holder composed of 16 elements (fits in 250g and 750g Chromatic and 750g PolyMaker) .

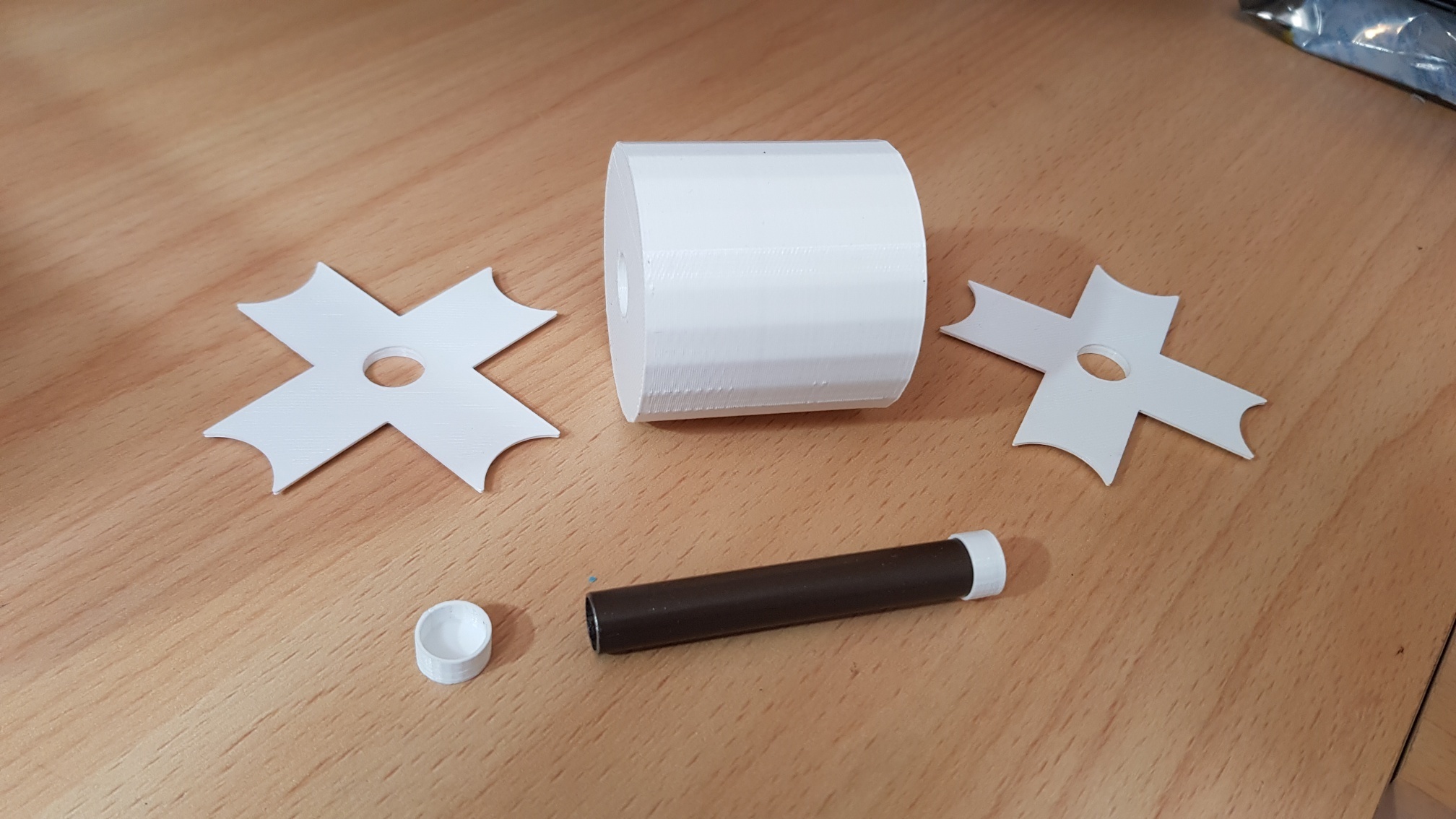

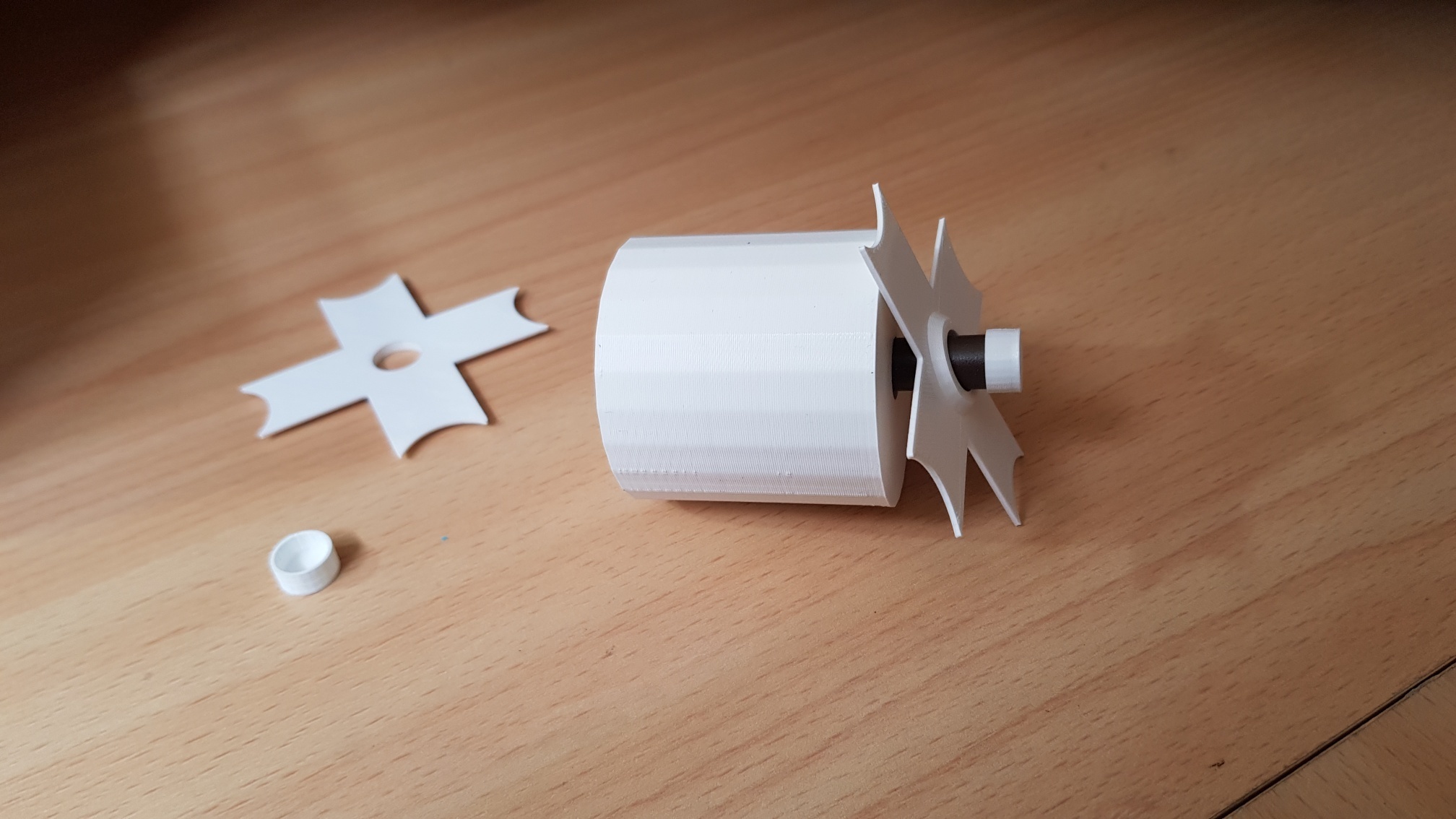

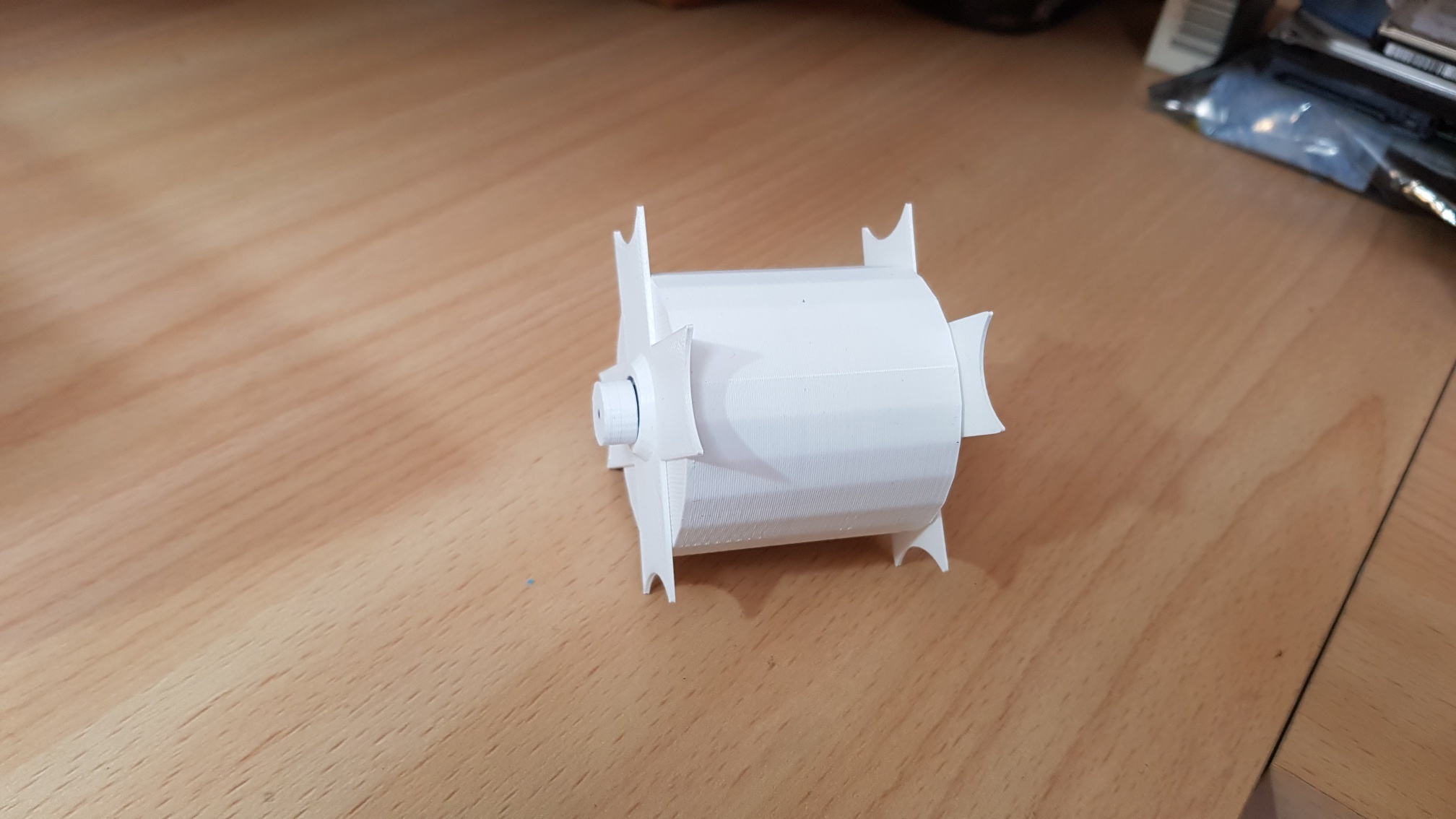

Several STLs are to be printed in 2 times (outer cross, reel centering, axis end cap, foot reinforcement, reel support triangle).

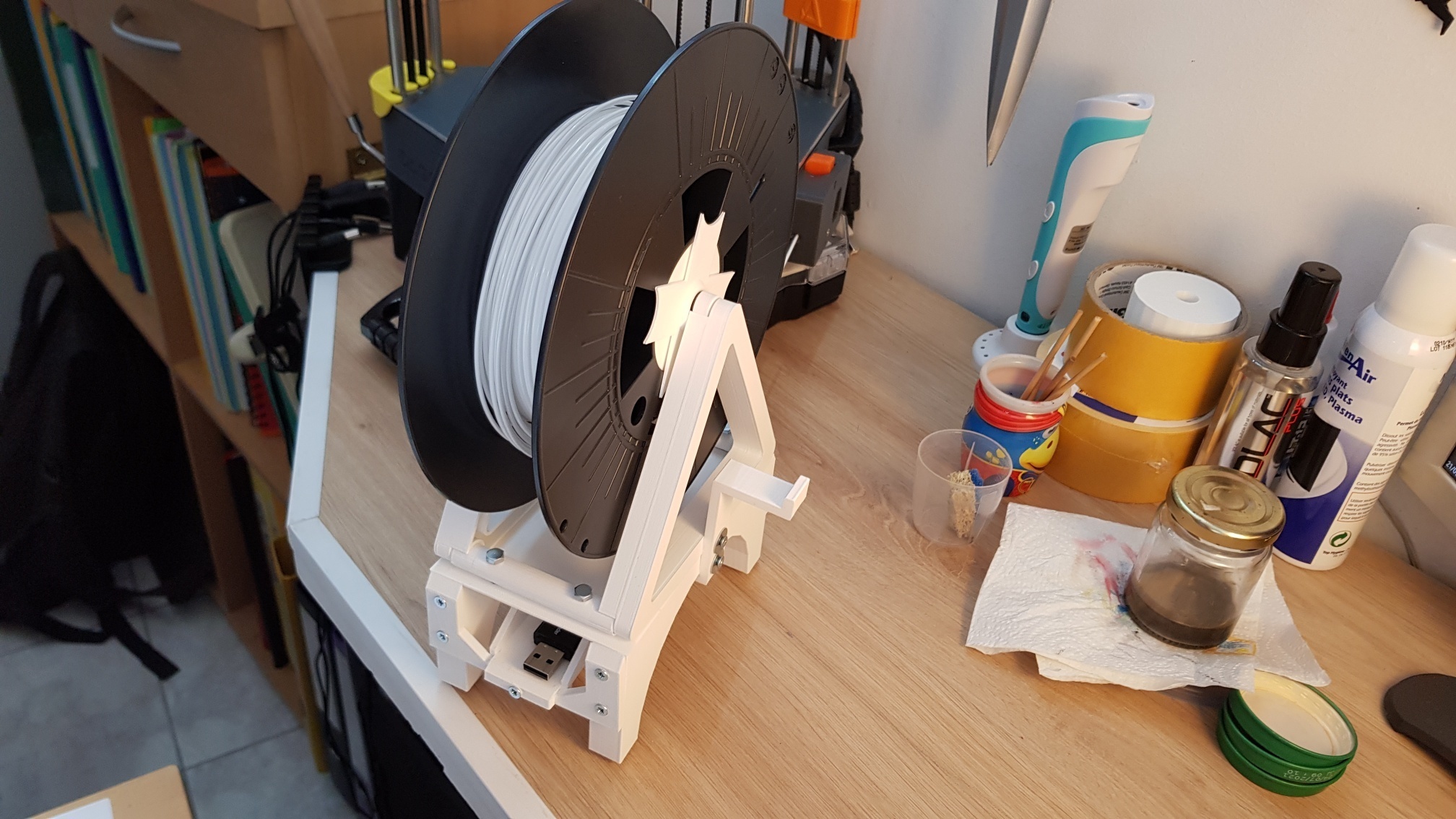

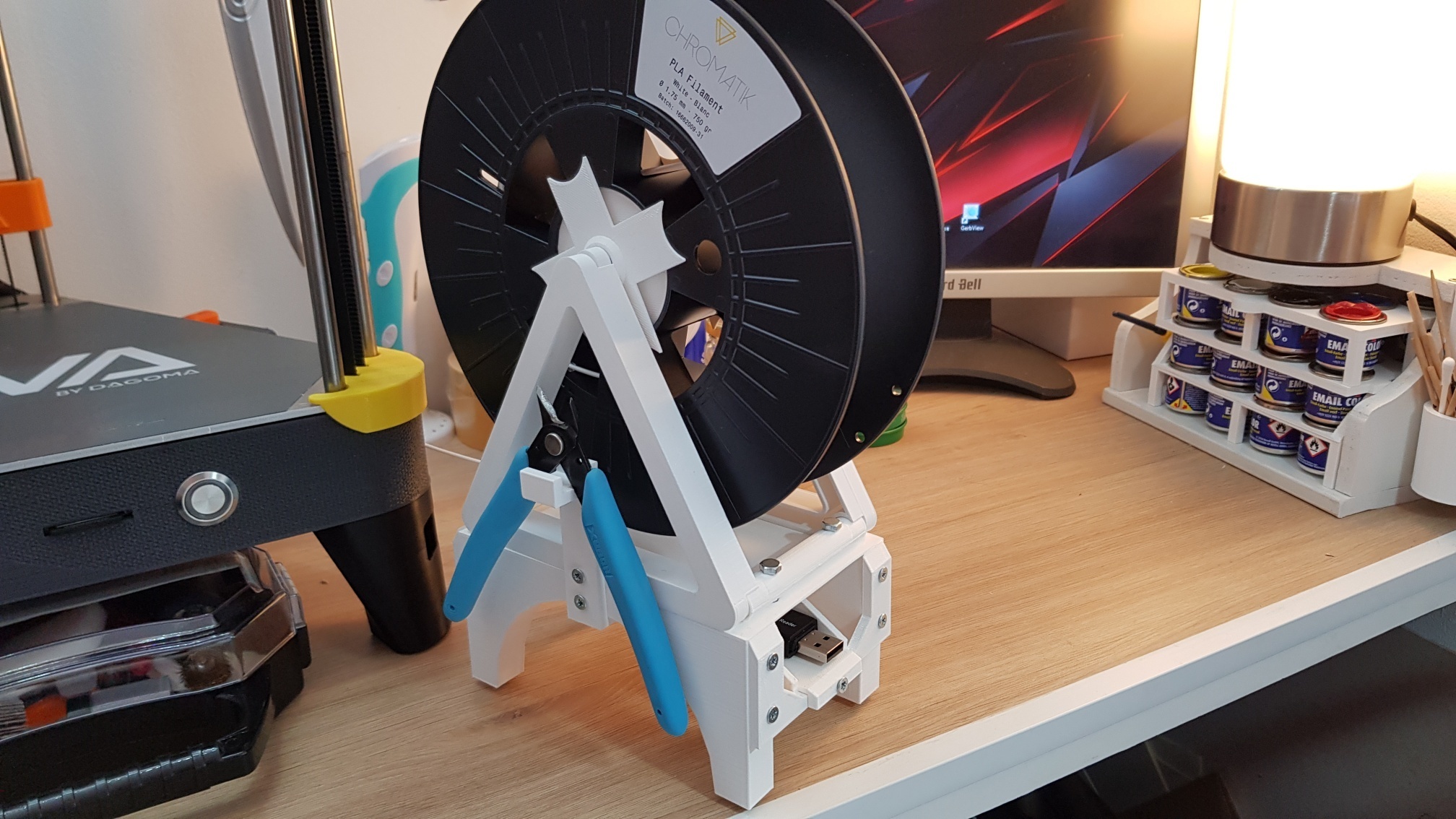

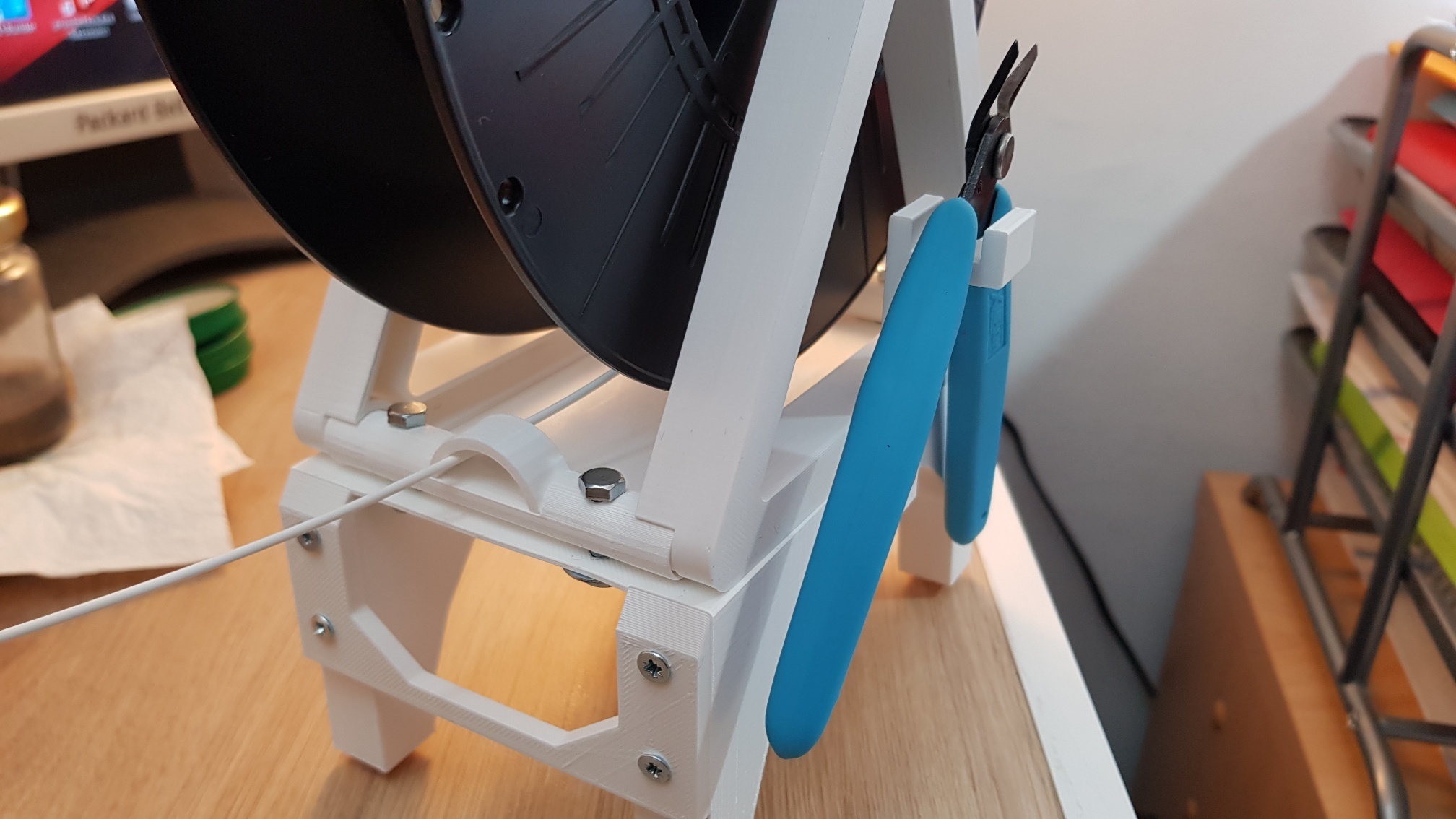

I modeled my support so that the filament is in front of the extruder on my DAGOMA Neva Magis (I have feet under my printer, which raises the extruder!). In addition, I made a system with a removable central axle to allow a quick reel change.

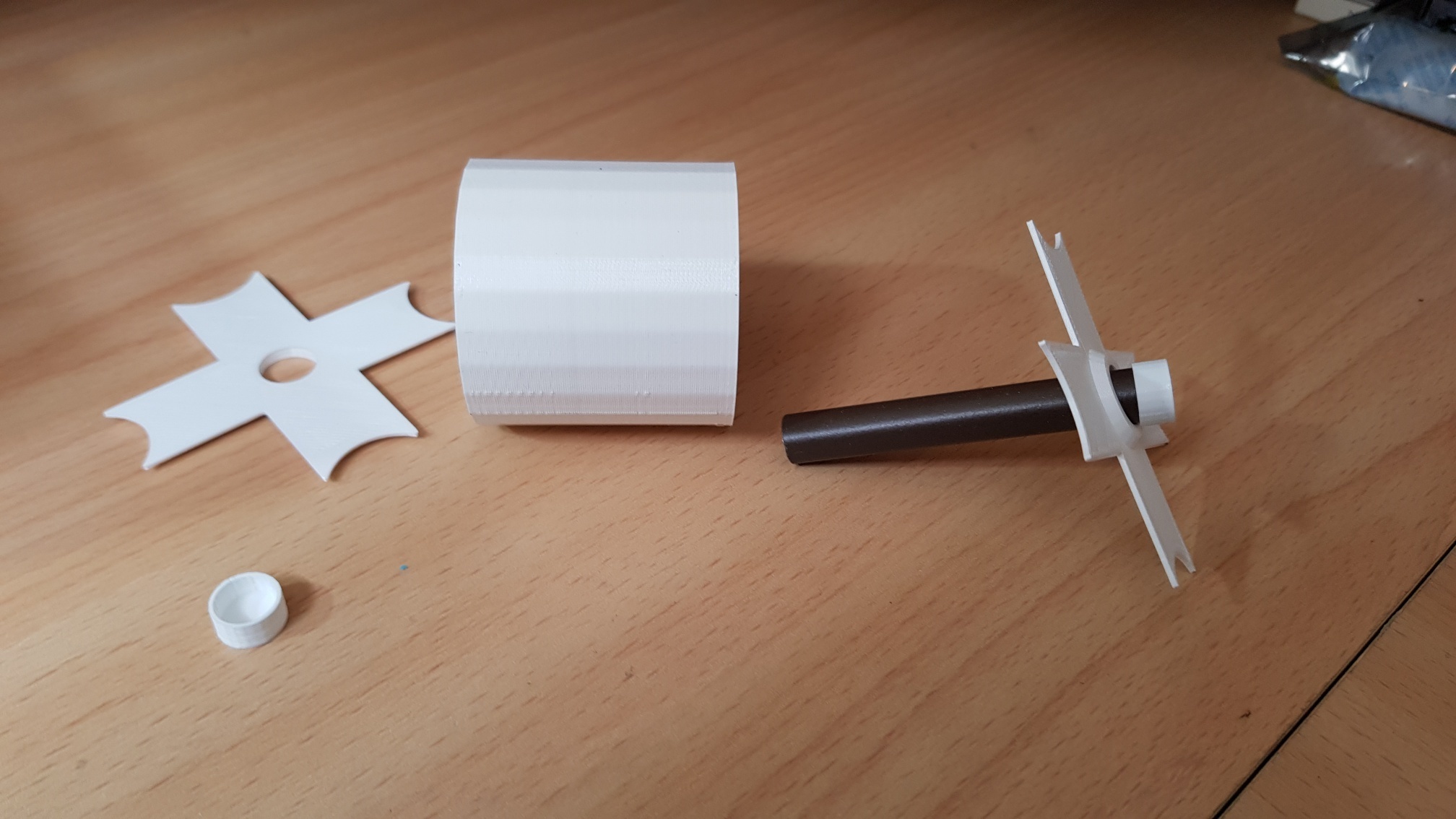

Depending on the coils, it is sufficient to change the central axis (2 are supplied in STL). If you want to put other coils than the one indicated above, I let you model the axis to their dimensions.

Maximum width of coil passage: 5.5cm

Plan:

  • 1 copper tube (plumbing) with a diameter of 1cm and a length of 7cm (for the central axis)

  • 13 countersunk steel screws Diam 3 mm x L.12 mm

  • 4 bolts Diam 4mm x L.14mm (and the corresponding nuts), not mandatory if you put the 2 clamps supports ... But solidify all the same the whole ! If you don't put the clamps supports, the holes will have to be made ...

3D printing settings

Printing in 0.2mm is sufficient

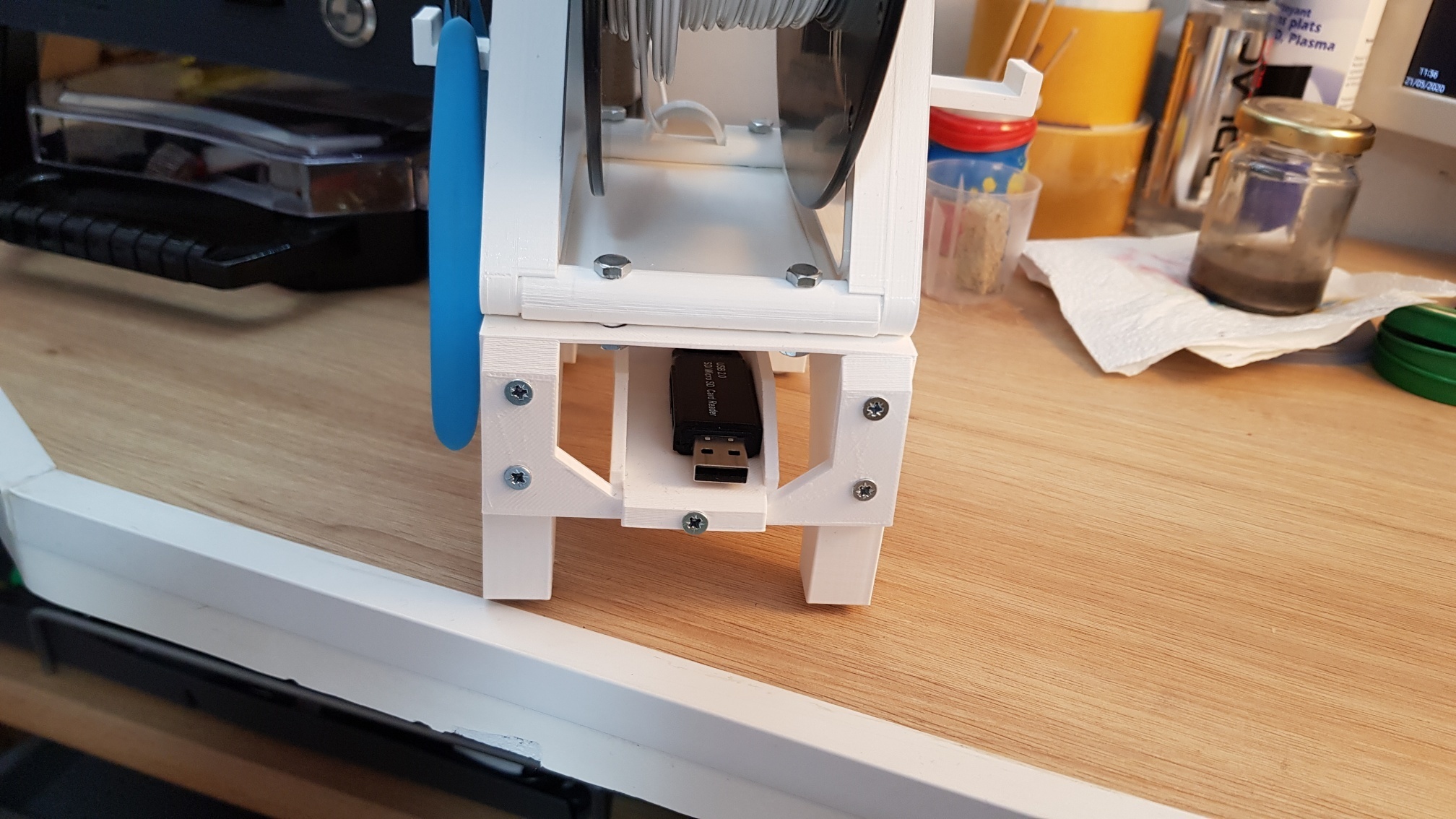

No print media, EXCEPT for the part "USB key storage".

17% filling for greater strength of the various components ...

Mounted dimensions: 15 x 16 x 21 (not counting the coil!)
