Support Coil 2

?
Creation's quality: 5.0/5 (1 vote)
Evaluation of members on the printability, utility, level of detail, etc.
  • 684 views
  • 2 likes
  • 25 downloads

3D model description

Reel holder composed of 9 elements specially designed for 1 Kg reels (PassionPla), adaptable for 250g and 750g Chromatic and 750g PolyMaker) .

Several STL are to be printed in 2 times (outer cross coil centering, axis end, clamping ring coil centering 1Kg).

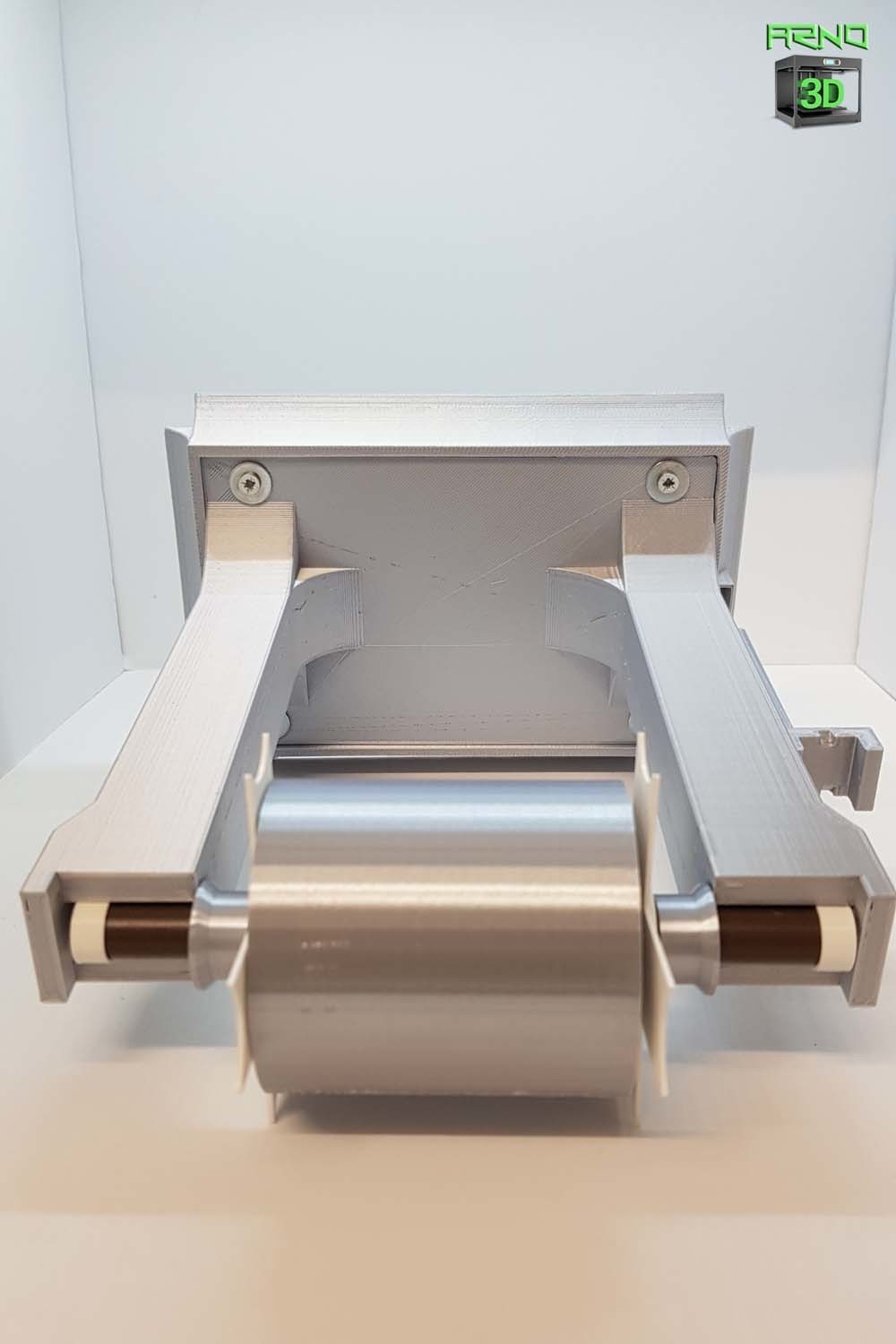

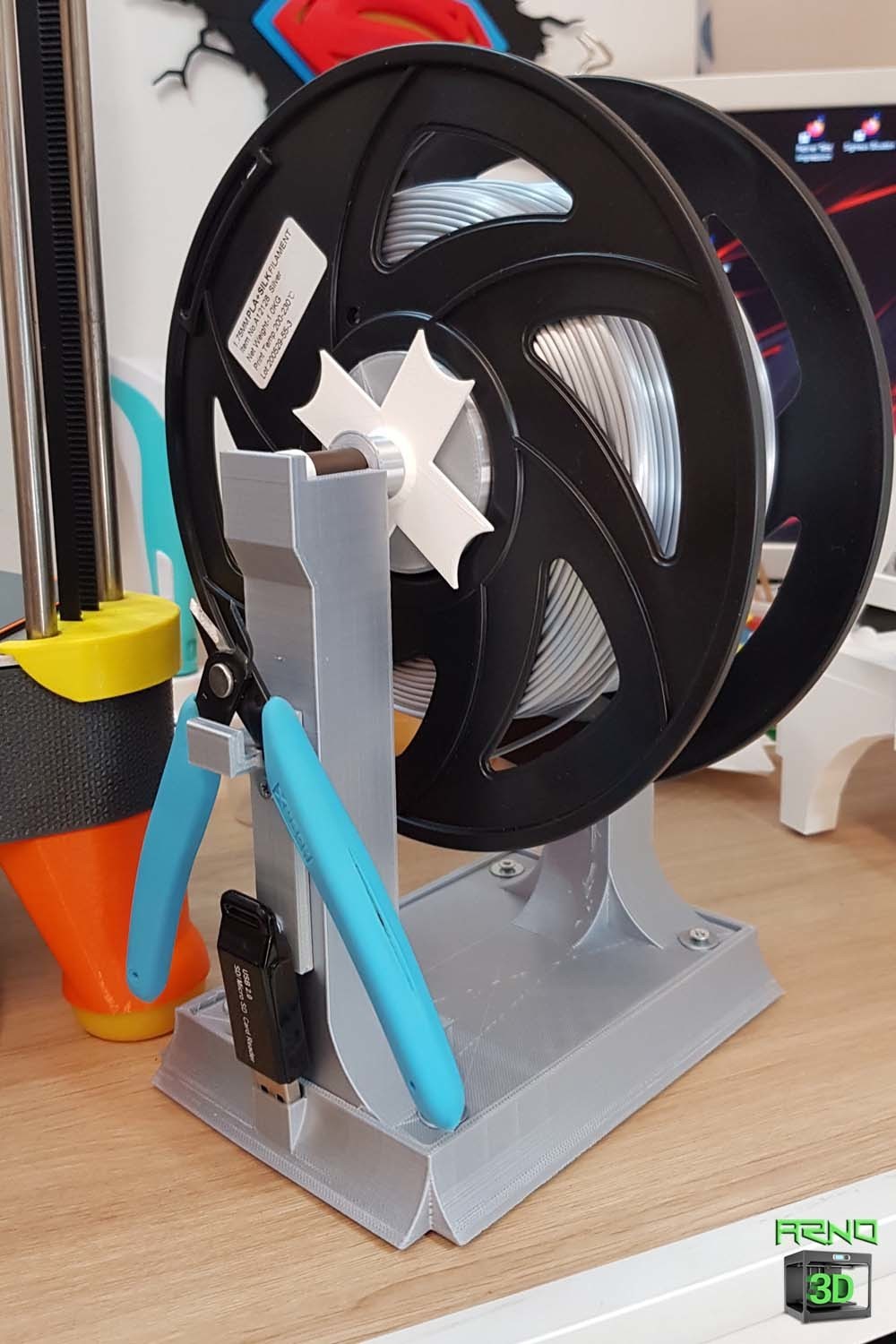

I modeled my support so that the filament is in front of the extruder on my DAGOMA Neva Magis (I have feet under my printer, which raises the extruder!). In addition, I made a system with a removable central axle to allow a quick reel change.

According to the coils, you just have to change the central axis, the one supplied in stl is for the 1Kg PassionPla coils (2 others are available in STL with my other coil support: https://cults3d.com/en/3d-model/tool/support-bobine-arno86). If you want to put other coils than the one indicated above, I let you model the axis to their dimensions.

Maximum width of the reel passage: 9 cm

Plan:

  • 1 copper tube (plumbing) with a diameter of 1cm and a length of 13.5 cm (for the central axis)

  • 2 countersunk steel screws Diam 3 mm x L.12 mm for cutter holder

3D printing settings

Printing in 0.2mm is sufficient

No printing support...

20% filling for greater strength of the various components ...

Mounted dimensions: 167mm x 117mm x 174mm (not counting the coil!)

  • 3D file format: STL
  • Last update: 2020/08/31 at 13:27
  • Publication date: 2020/08/28 at 18:44

Tags

Creator

Designs 5
Downloads 161
Followers 1

License

CC BY ND
