Super Simple and Quick Test Pattern

?
Creation quality: 5.0/5 (1 vote)
Evaluation of members on the printability, utility, level of detail, etc.

Designer

3D model description

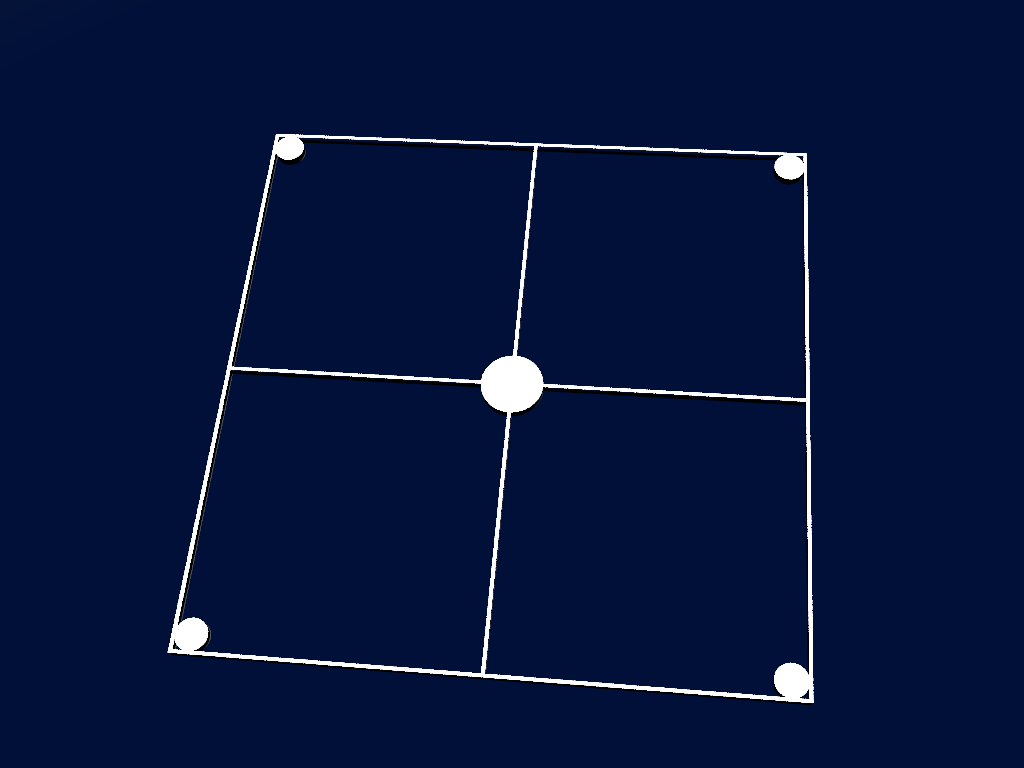

I needed a super simple, super quick test pattern to test the z-offset on my BLTouch so I whipped this up in FreeCAD. All it is is a 150mm square bisected horizontally and vertically with one solid circle in each corner and one solid circle in the middle. The lines are all 0.8mm wide (2 perimeters with a standard 0.4mm nozzle); the corner circles are all 8mm in diameter; and the center circle is 16mm in diameter. Cura defaults to a 0.3mm layer height for the first layer, so that is the height of this pattern.

Printing at 0.2mm (essentially 0.3mm since it's only the first layer) with a print speed of 40mm.sec, this print only takes four minutes - not including the warm up time or time spent running a leveling profile.

3D printer file information

  • Design number: 79908
  • 3D design format: STL Folder details Close
    • testPattern.stl

    Learn more about the formats

  • Publication date: 2019-10-14 at 11:11
    ?
    Published to Thingiverse on: 2019-10-14 at 05:14

License

CC BY-NC-SA - Attribution - Non commercial - Share alike
