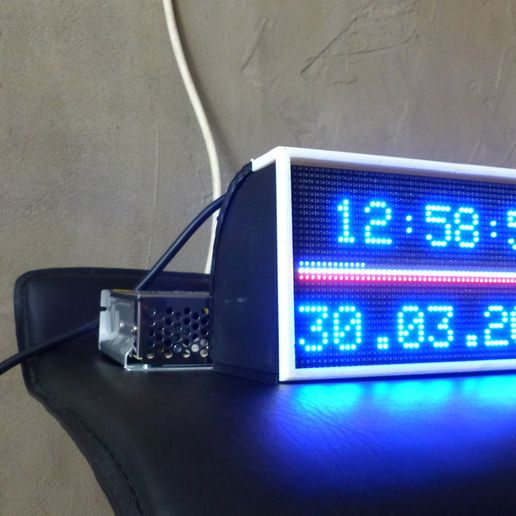

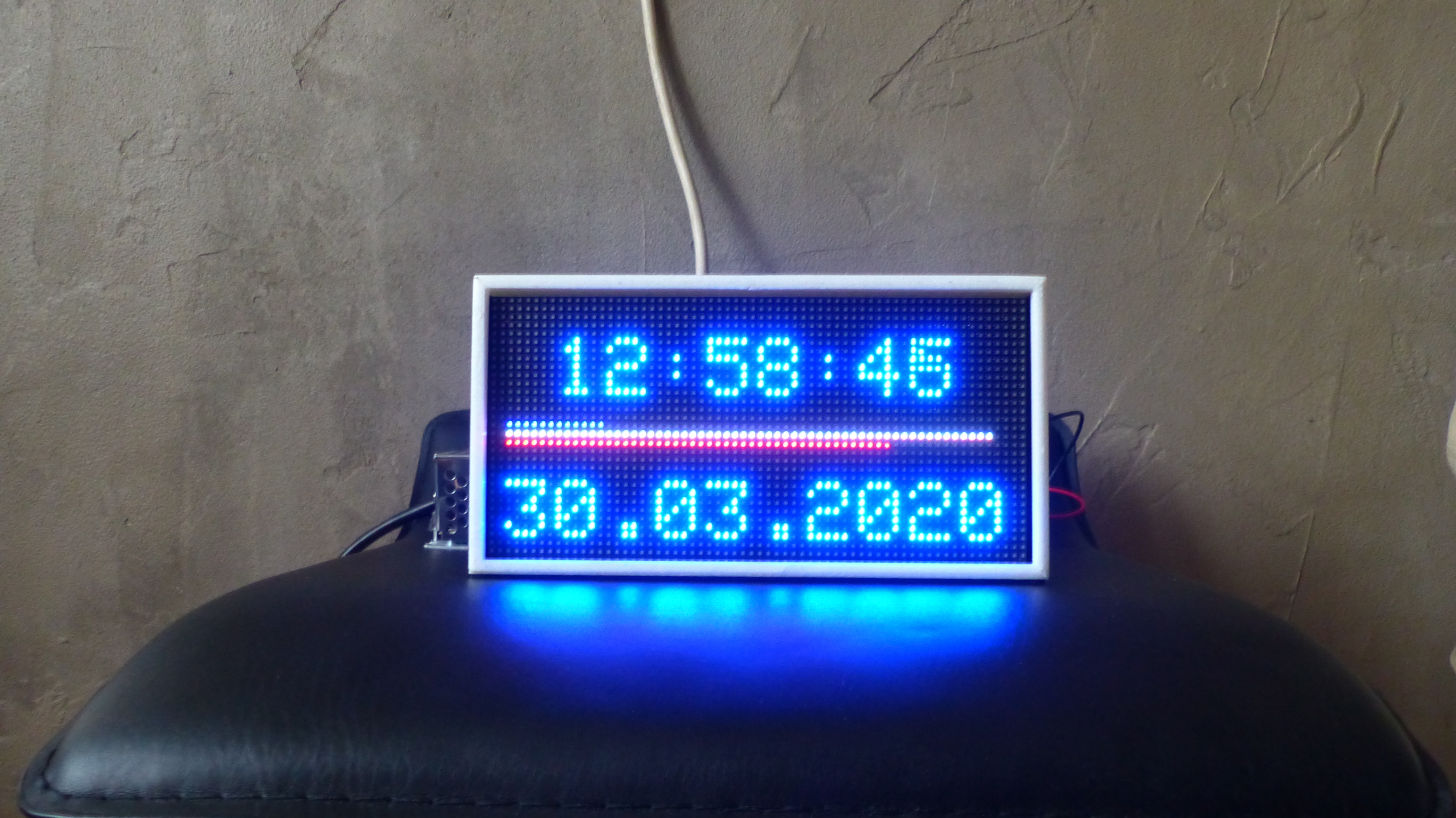

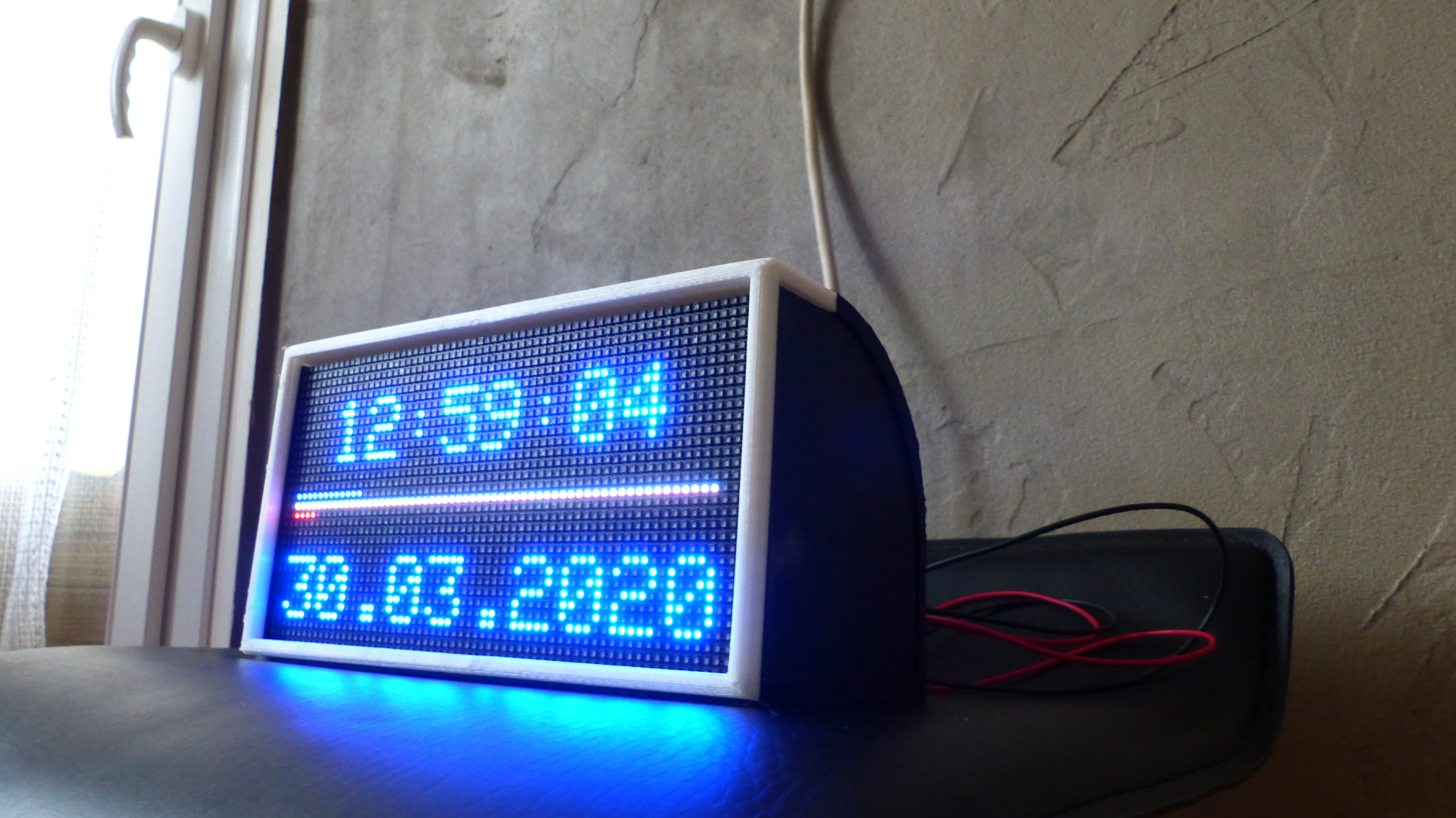

Case for Matrix 64 x 32 and Arduino Mega

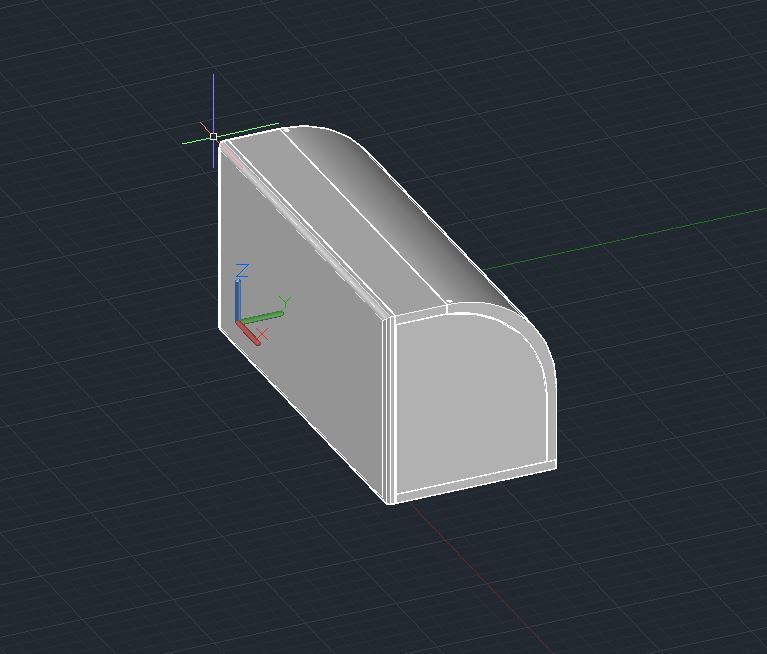

3D model description

Stand for single matrix 64x32 P3 with screw fixing (9 screws).

There are also 4 slots to attach an Arduino Mega card.

There are 5mm thick for strength.

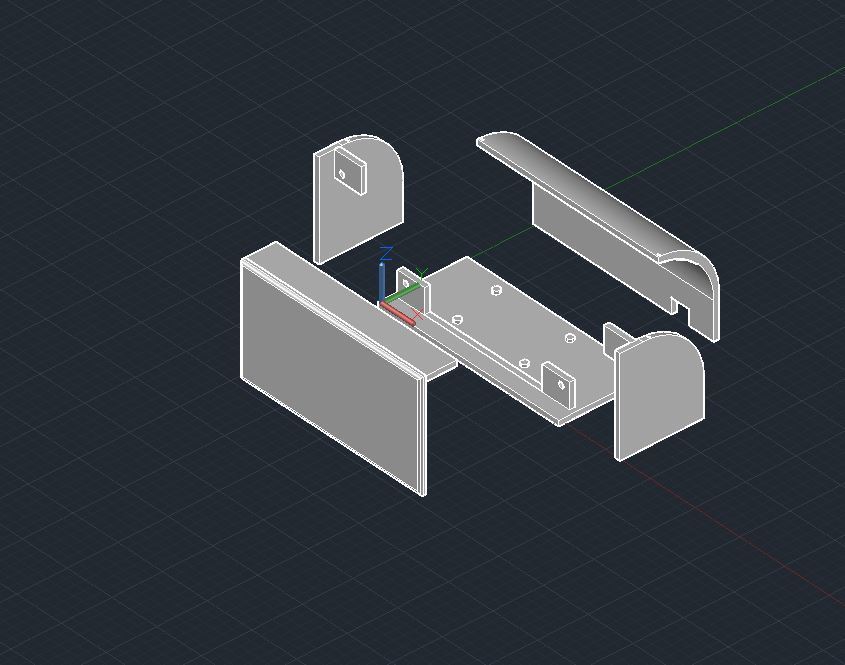

The assembly is done by screwing, first screwing the base to the matrix (2 screws), then the sides (1 screw per side), then the part close to the Leds (1 screw) and finally the cover via the two small holes on the top (2 screws).

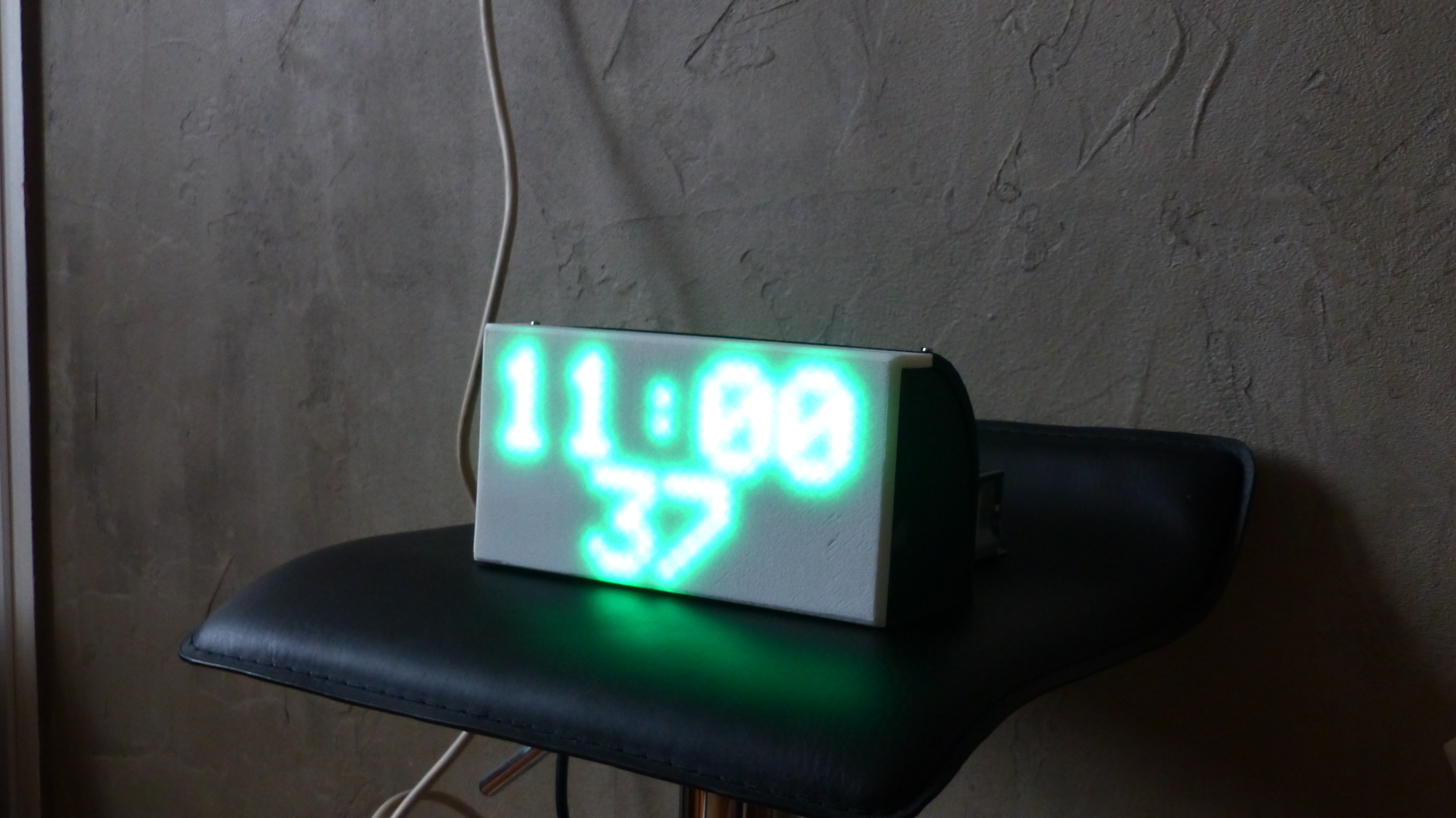

Use white to diffuse the light from the LEDs.

Feel free to share, to love my creations and especially to share your makes of them, it helps a lot.

https://www.instructables.com/id/Black-and-White-3D-Enclosure-Matrix-Clock/

3D printing settings

PLA +

250°C Nozzle

70°C Bed

0.3 mm Layer

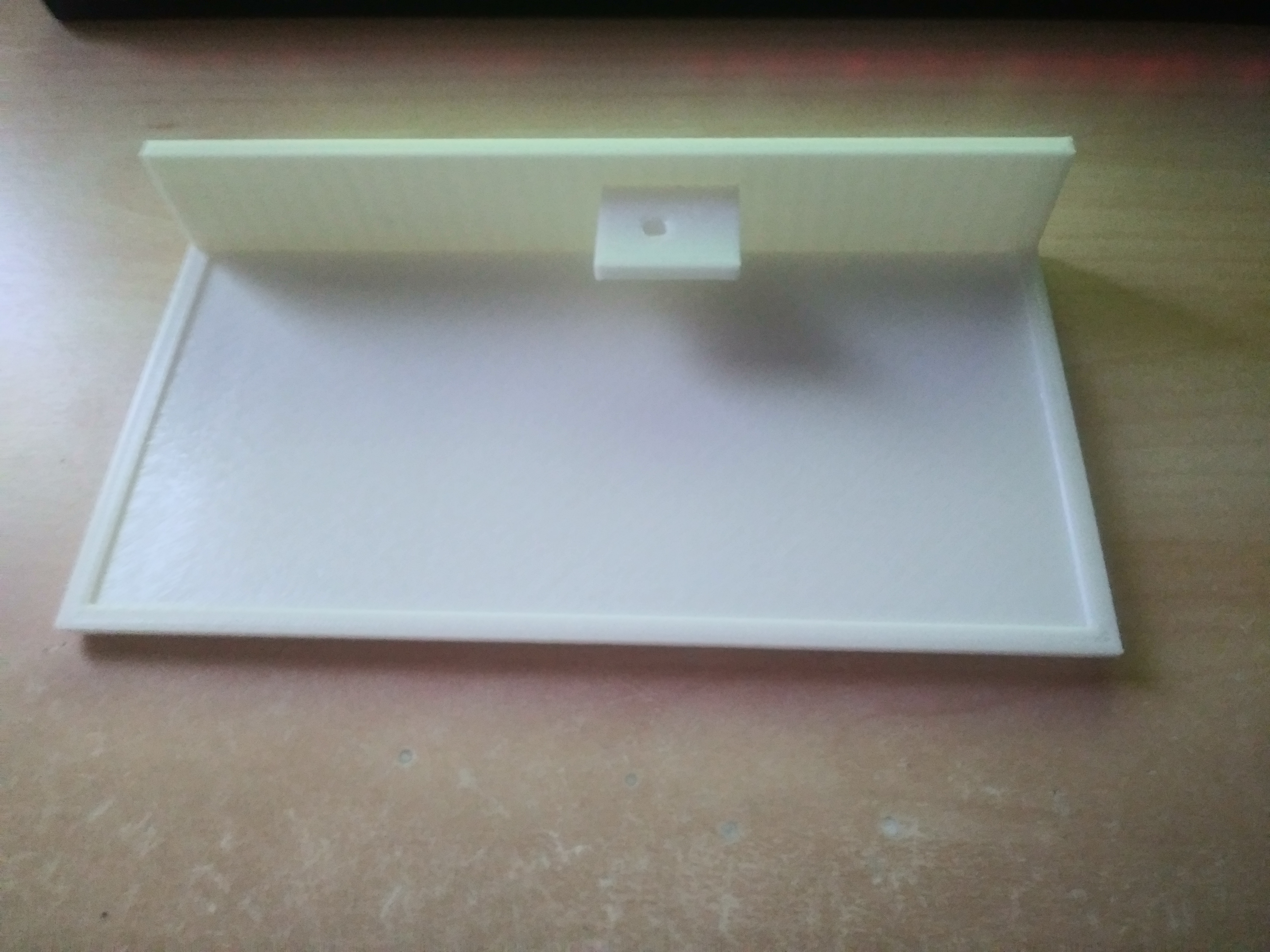

4h15 for the base.

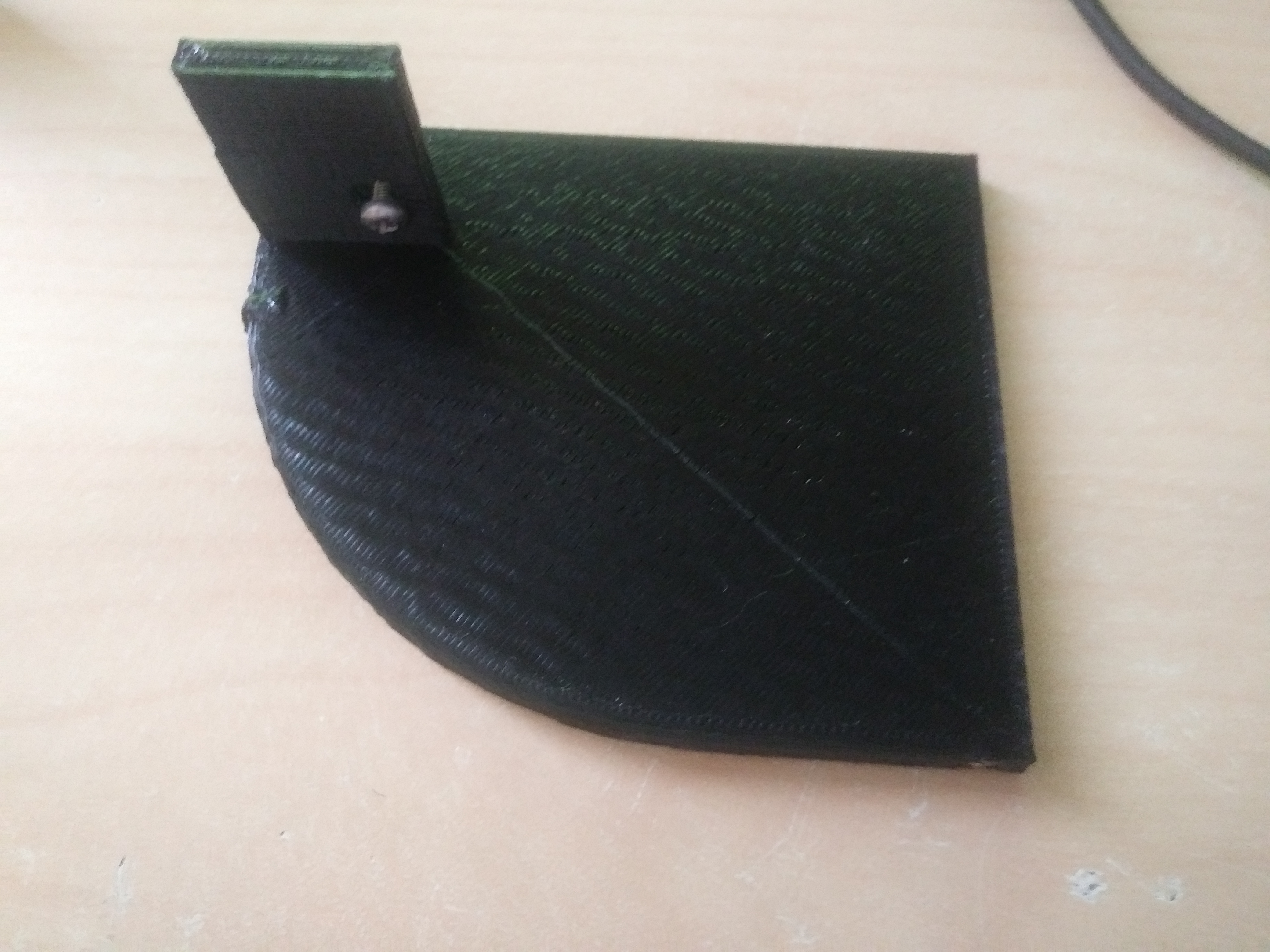

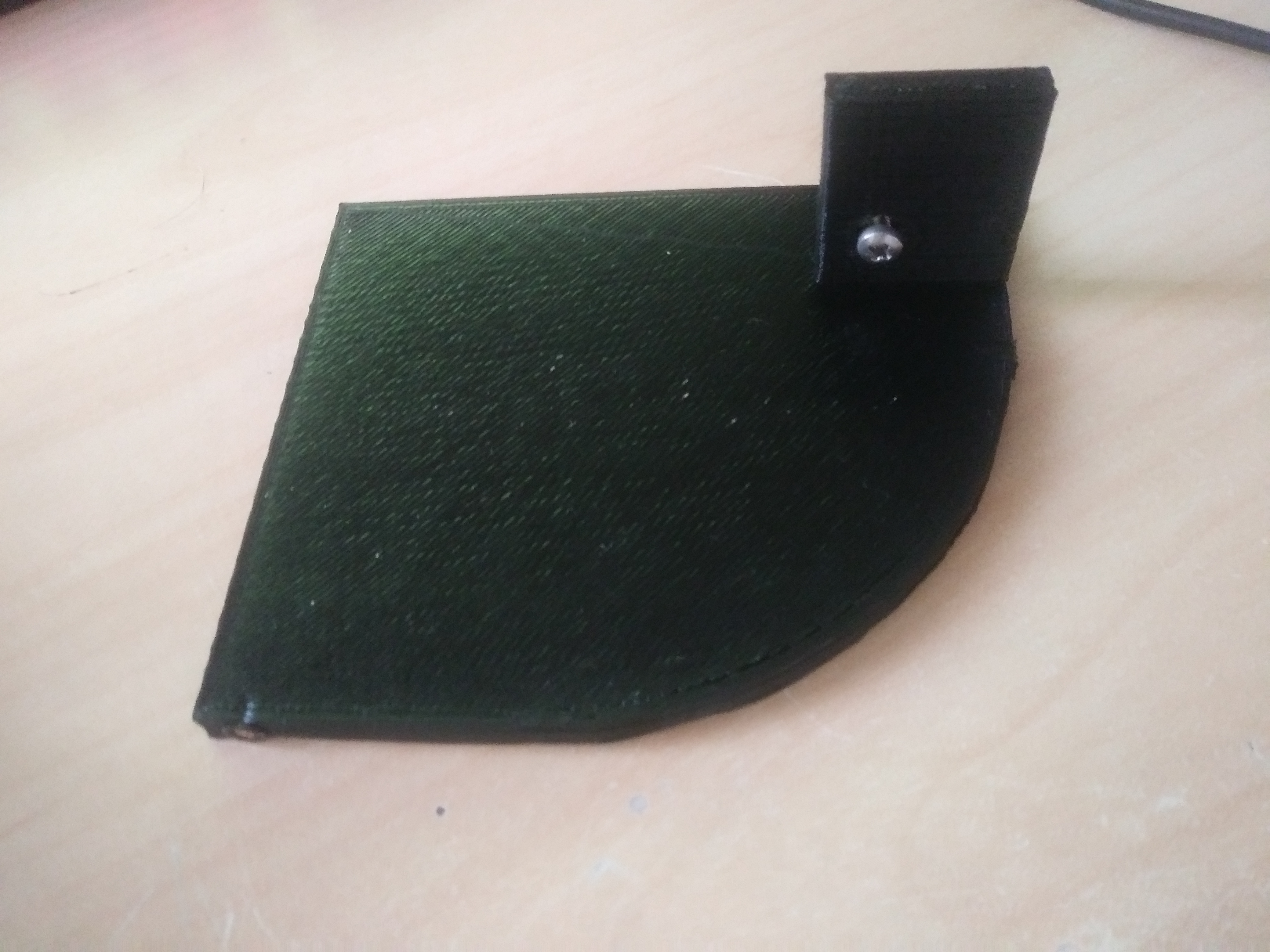

An hour and 25 minutes per side.

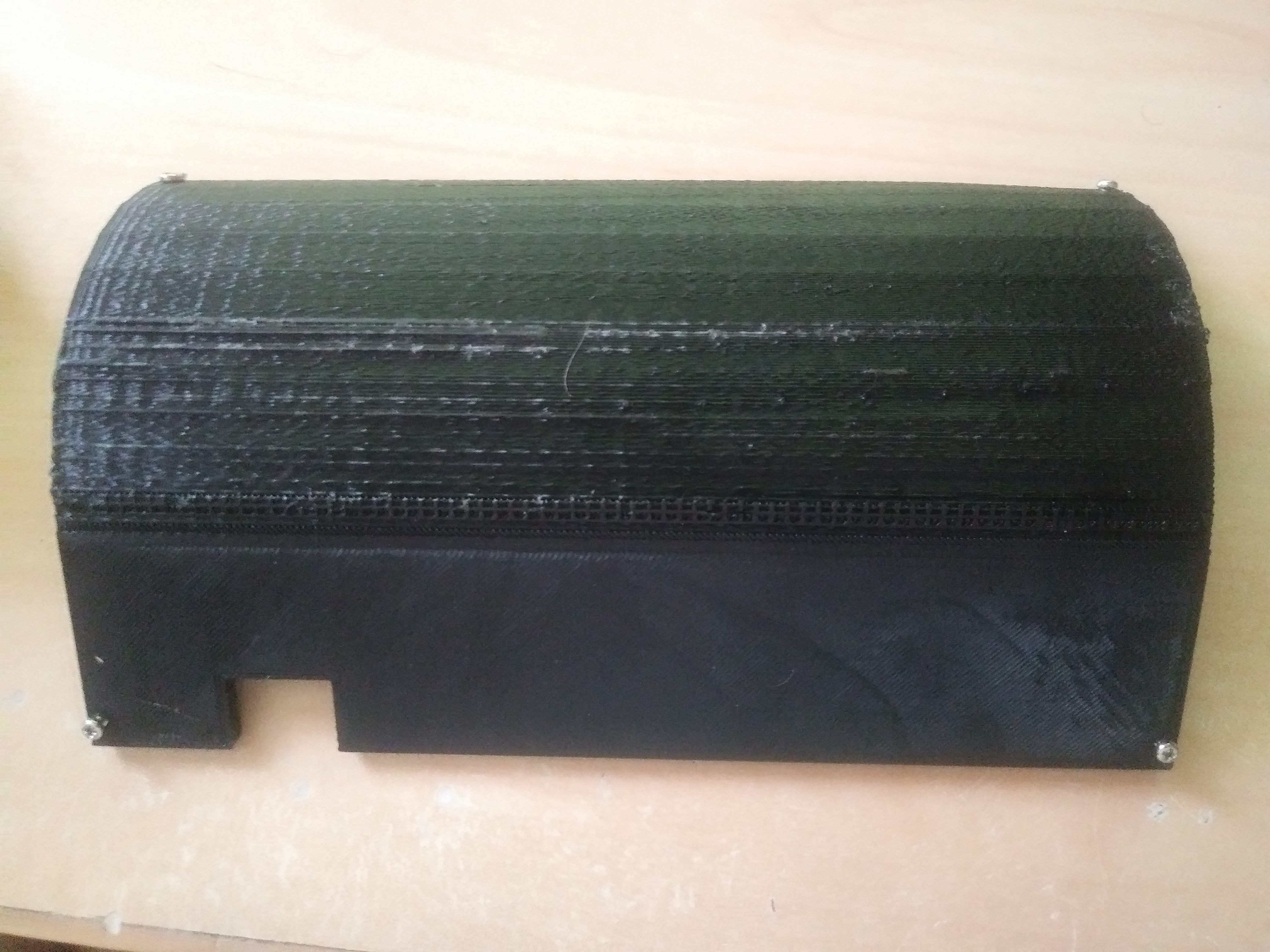

5:15 for the hood.

4:50 for the screen.

  • 3D file format: STL
