Spool holder for 2020 Extrusions (Deltas)

?
Creation's quality: 5.0/5 (1 vote)
Evaluation of members on the printability, utility, level of detail, etc.
  • 1.1k views
  • 2 likes
  • 67 downloads

3D model description

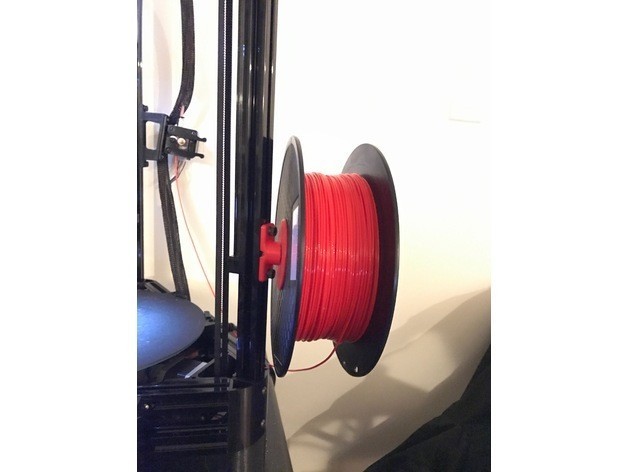

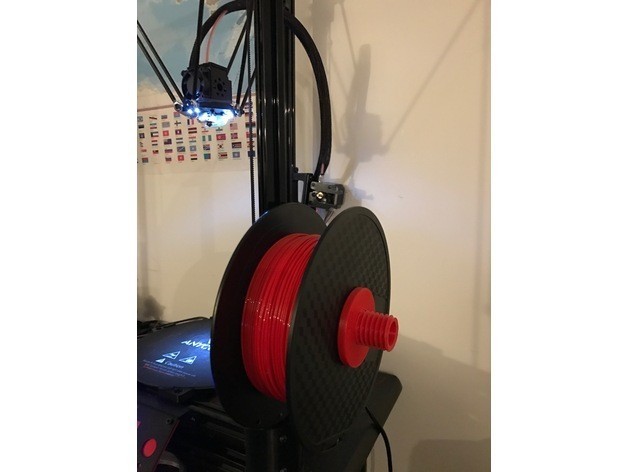

Spool holder for 2020 extrusion Delta. Will work for any 2020 frame but the spool holder comes off at a 30 degree angle to counter that of the delta frame.
*Note the M3 nut is very difficult to get on to the bolt given it is all the way inside the spool holder arm. I used a little superglue on the end of a sharpie (cap on) got it start then used a flat blade screw driver to tighten it up. I would have designed it better but was in a rush to get a spool holder for my build :) .
If you want the CAD files to make adjustments I will post them.

Need:
2x F623zz bearings
1x 35+mm M3
1x M3 nut
loctite is advised so it doesn't loosen (or a nylock)

3D printing settings

Printer:

Anycubic Plus Delta

Rafts:

Doesn't Matter

Supports:

No

Resolution:

150 microns

Infill:

5%

  • 3D file format: STL and ZIP
  • Publication date: 2018/06/11 at 16:45

Tags

Creator

Designs 20
Downloads 1.3k
Sales US$516
Followers 19

License

CC BY
