SOVOL SV01 SKR V1.4 Mount Adapter - SKR V1.3, 1.4, MKS Gen L

?
Creation's quality: 5.0/5 (2 votes)
Evaluation of members on the printability, utility, level of detail, etc.
  • 2.9k views
  • 5 likes
  • 107 downloads

3D model description

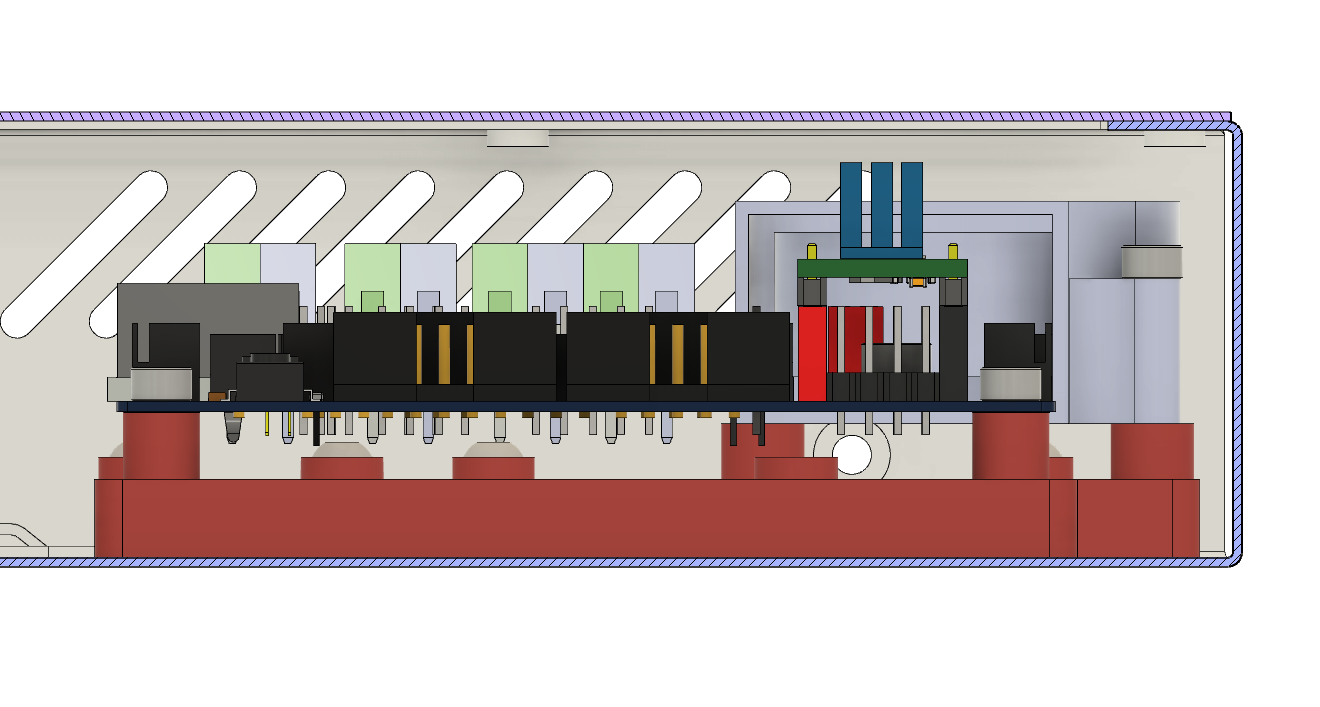

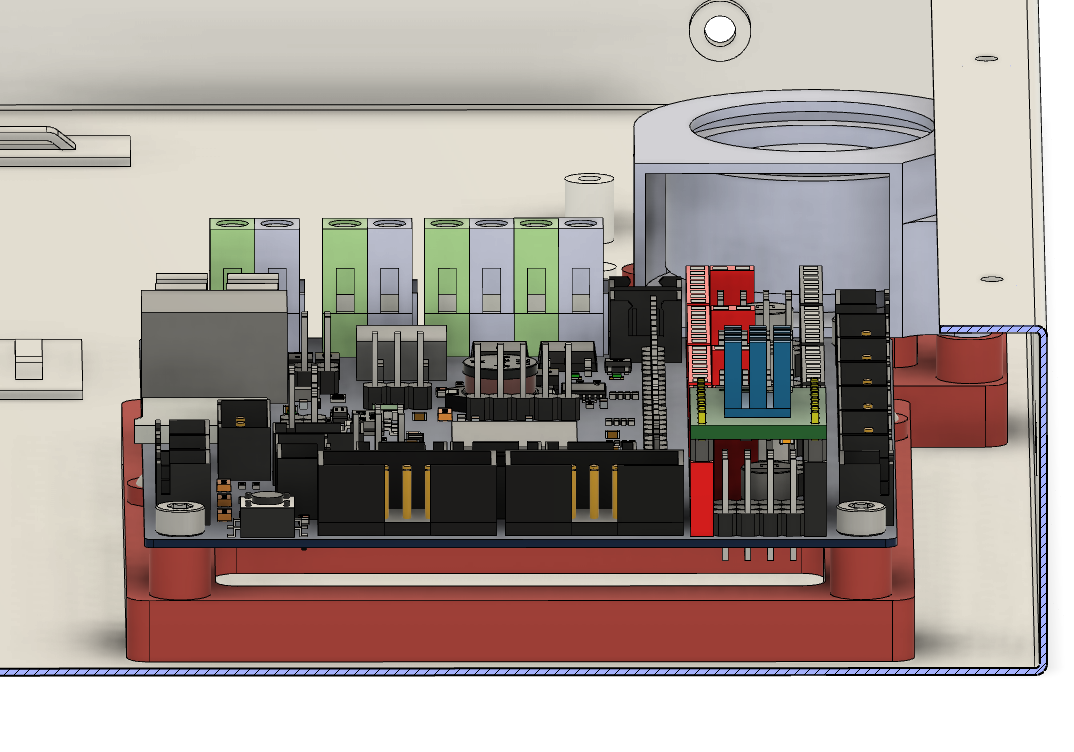

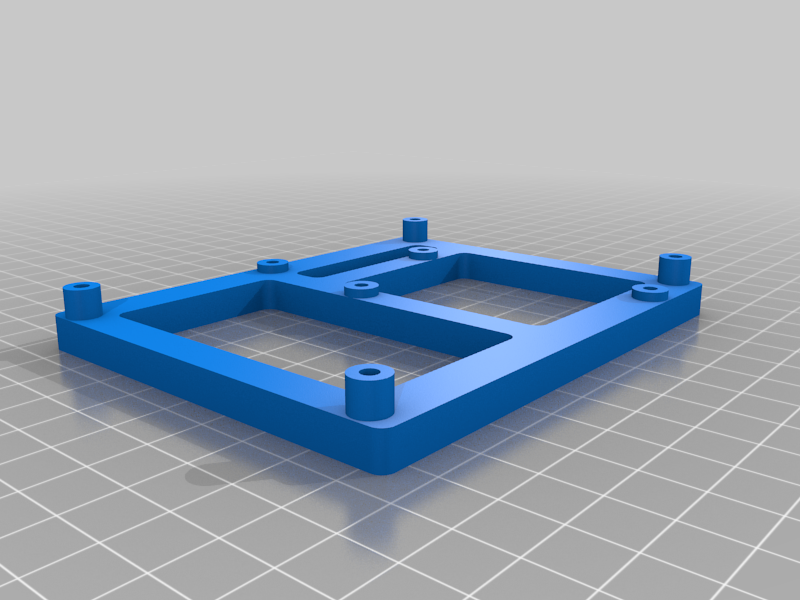

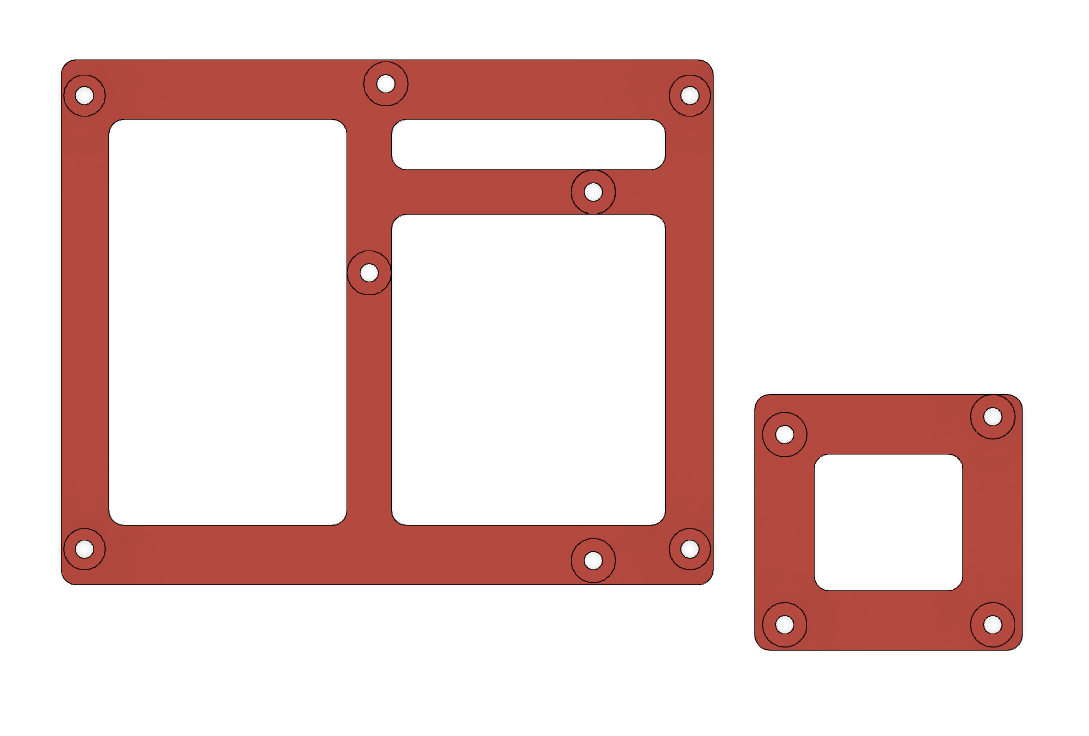

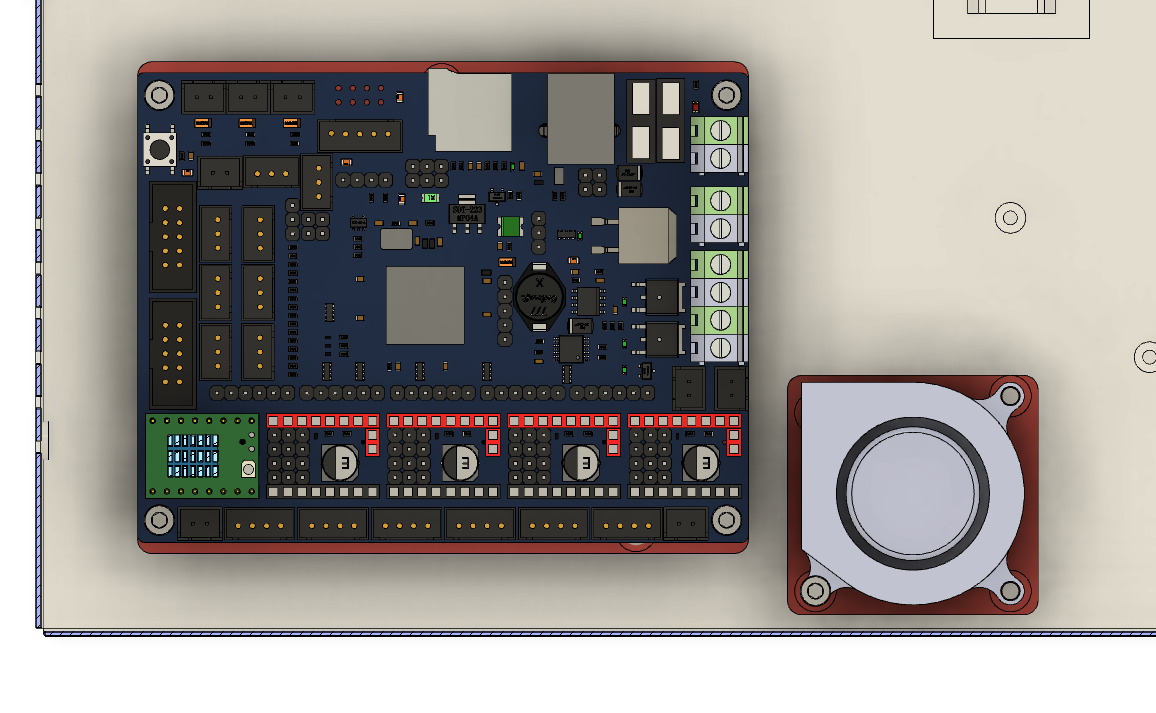

Simple and easy to use adapter for the SOVOL SV01 printer to mount the Bigtreetech SKR V1.4 control board. This also includes the SKR V1.4 Turbo, SKR V1.3, and MKS Gen L boards as they all mount the same. This mount allows you to install these boards without having to permanently modify your factory case. Mounts with M3 bolts and Nyloc nuts.

Note: install Nyloc nuts into the bottom of the mounts before attaching mounts into the control box.

Warning: Depending on what steppers drivers and heatsink are used they may extend past the bottom of the case. I am working on a printable spacer as well as my TMC2209 heatsinks are rather tall

  • 3D file format: STL
  • Publication date: 2020/03/16 at 19:28

Tags

Creator

License

CC BY NC
