Sonic Pad Side/Wall/Shelf Mount

20230629_205234.jpg Sonic Pad Side/Wall/Shelf Mount
Side-Mount-1.jpg Sonic Pad Side/Wall/Shelf Mount
Side-Mount-2.jpg Sonic Pad Side/Wall/Shelf Mount
Side-Mount-3.jpg Sonic Pad Side/Wall/Shelf Mount
Min-Snap-Sizzle.gif Sonic Pad Side/Wall/Shelf Mount
Screenshot_20231108_135520_Chrome.jpg Sonic Pad Side/Wall/Shelf Mount
Advertising
Share
Add to
Make
?
Creation quality: 5.0/5 (3 votes)
Evaluation of members on the printability, utility, level of detail, etc.
  • 8.9k views
  • 31 likes
  • 156 downloads
  • 1 collection
  • 3 makes
Licence CULTS - Private Use
Last update 2023-09-18 at 18:35
Publication date 2023-06-29 at 22:03
Design number 1298134
3D design format
ZIP Folder details Close
  • Sonic Pad - Side - Wall and Shelf Mount - Rogue Designs.zip
    • Files/Clip_Leg L.stl
    • Files/Clip_Leg R.stl
    • Files/Tilt L.stl
    • Files/Tilt R.stl
    • Files/Pressfit Dowel.stl
    • Files/Gimbal Stem w Support.stl
    • Files/NEW Gimbal Clamp Bottom.stl
    • Files/Gimbal Clamp A.stl
    • Files/Gimbal Stem.stl
    • Files/Gimbal Clamp Top.stl
    • Files/Base Side 40x40.stl
    • Files/Base Side Shelving B.stl
    • Files/Base Side Wall-Shelving A.stl
    • ReadMe - Images/Readme First.txt

Learn more about the formats
Rogue_Designs

Rogue_Designs

3D printer file info

3D model description

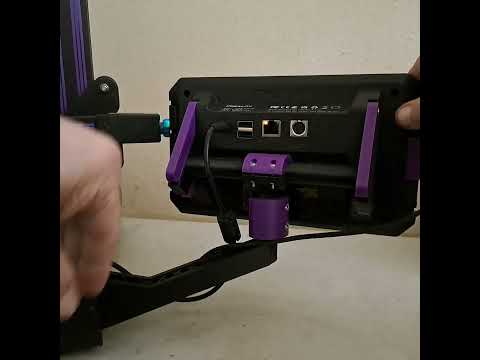

Sonic Pad Side Mount w Swivel & Tilt

-Swivel and Tilt to your desired viewing angle
-Adjustable limited slip gimbal.
-Mount on left or right side.
-Clearance for USB and Flash Drive.
-Pad can be removed and set on desk.
-Strong to protect your valuable Pad.
-Tube cores reinforced with Tri patten.
-Fits any printer with 40x40 V-Slot
-Now Mounts to Wall or Utility Shelving.
-Demonstration Video
https://youtube.com/shorts/aPnGH97aHOM?feature=share4

-Rogue Paul 🖖

a Like👍& 5 ⭐️'s -It Helps-

Also Pictured...

Sonic Pad USB Loose Fix
https://cults3d.com/en/3d-model/tool/sonic-pad-usb-loose-fix

Have you seen Minimus Snap & Snap Z?
https://cults3d.com/en/design-collections/Rogue_Designs/minimus-hub

3D printing settings

Nozzle: .4mm
Layer: .2mm
Walls: 3
Infill 30%
Except 55% Base and Press-Fit Pin

If Pressfit Pin too tight reprint with -.05 Horizontal Expansion.

4x M3x12
4x M3x16 & nuts
2x M4x8
https://a.co/d/cJbdVC6

2x M4 T-nuts
https://a.co/d/iCT0OTL
