3D model description

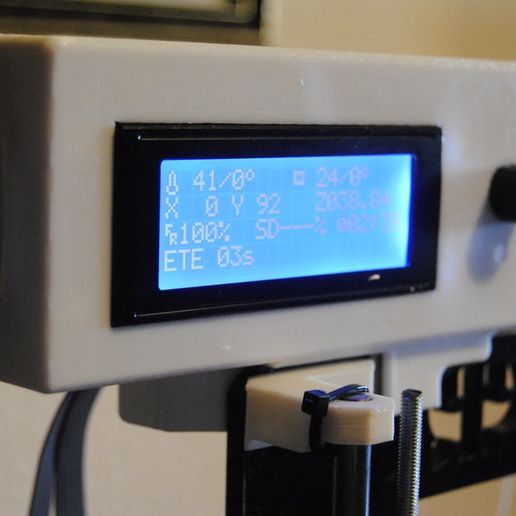

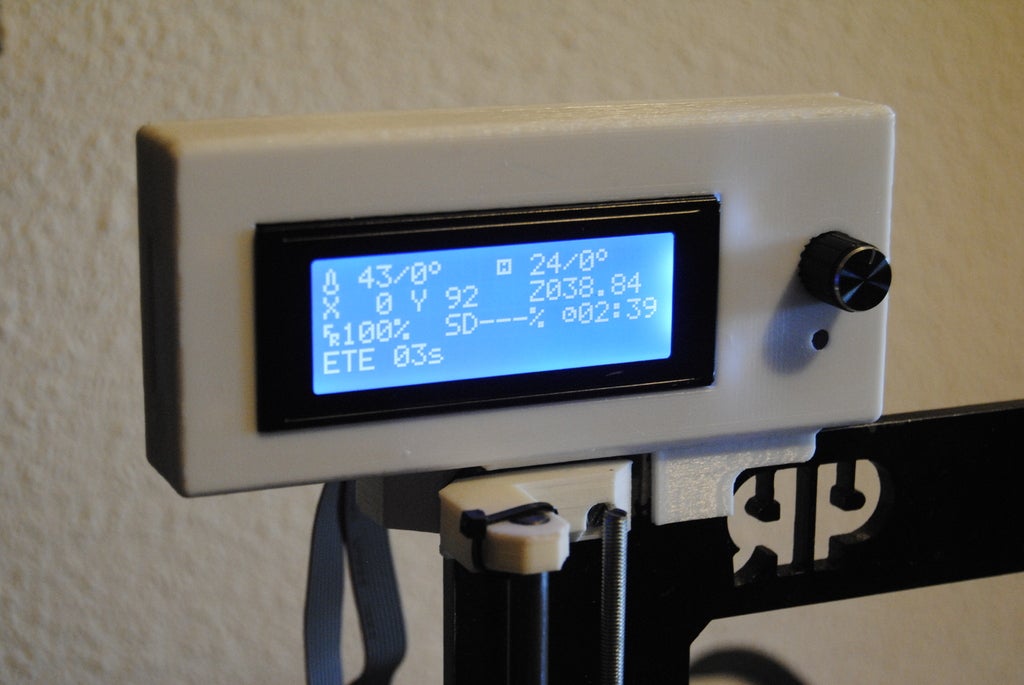

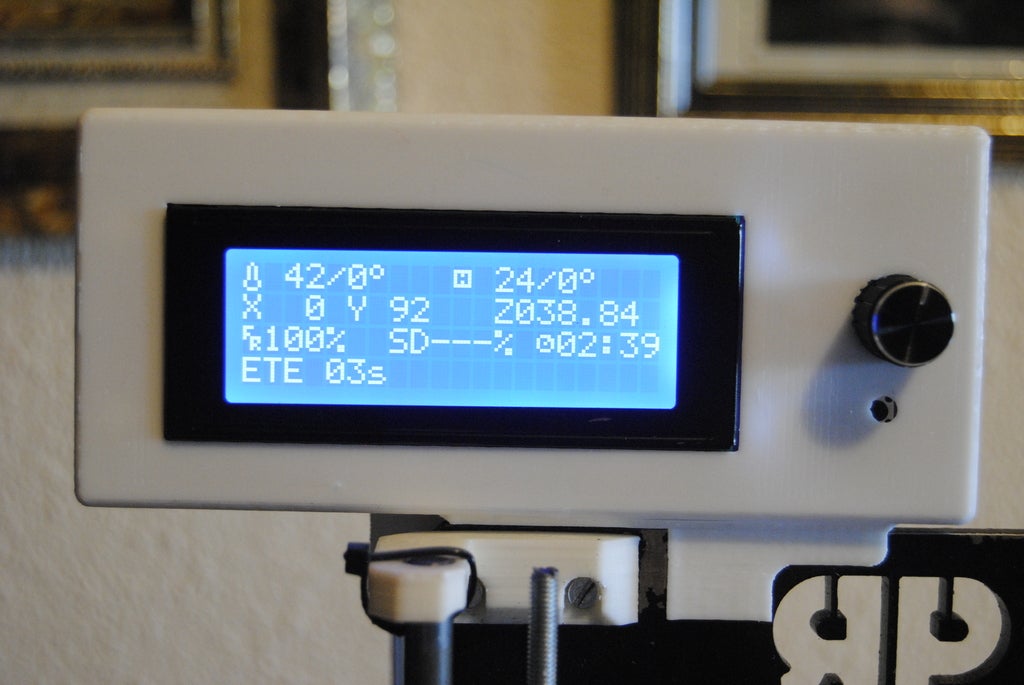

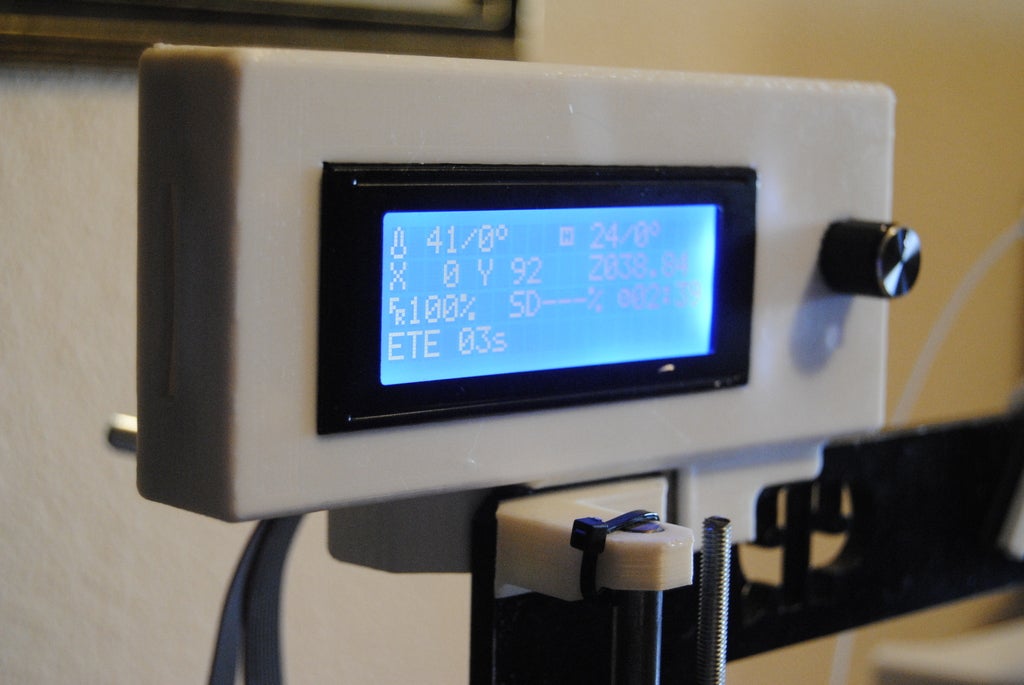

This is a universal LCD support. No support material needed.

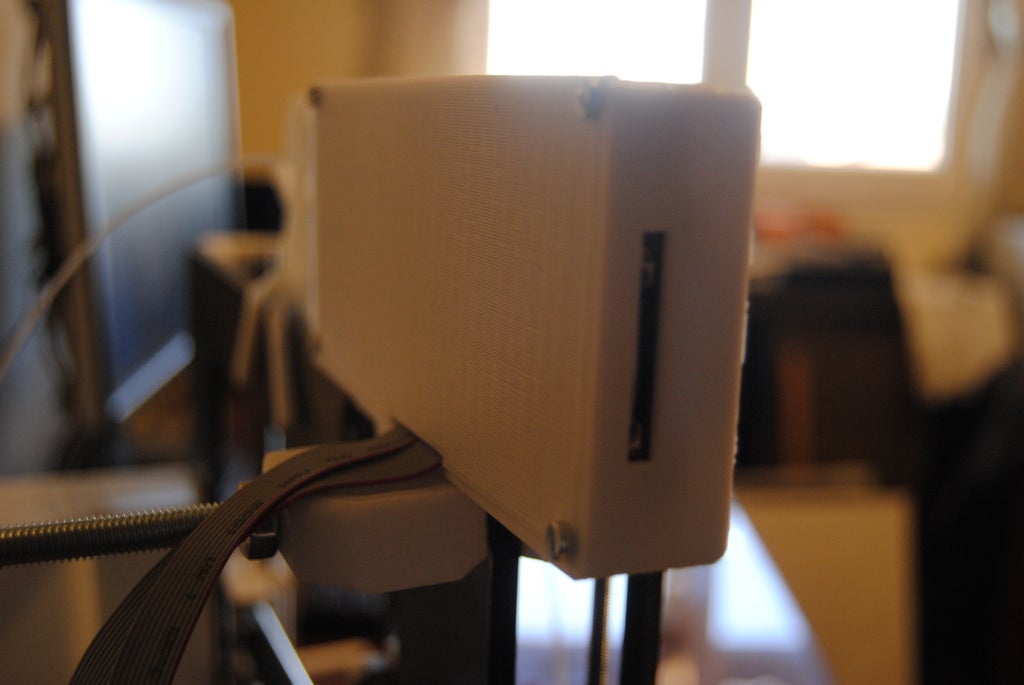

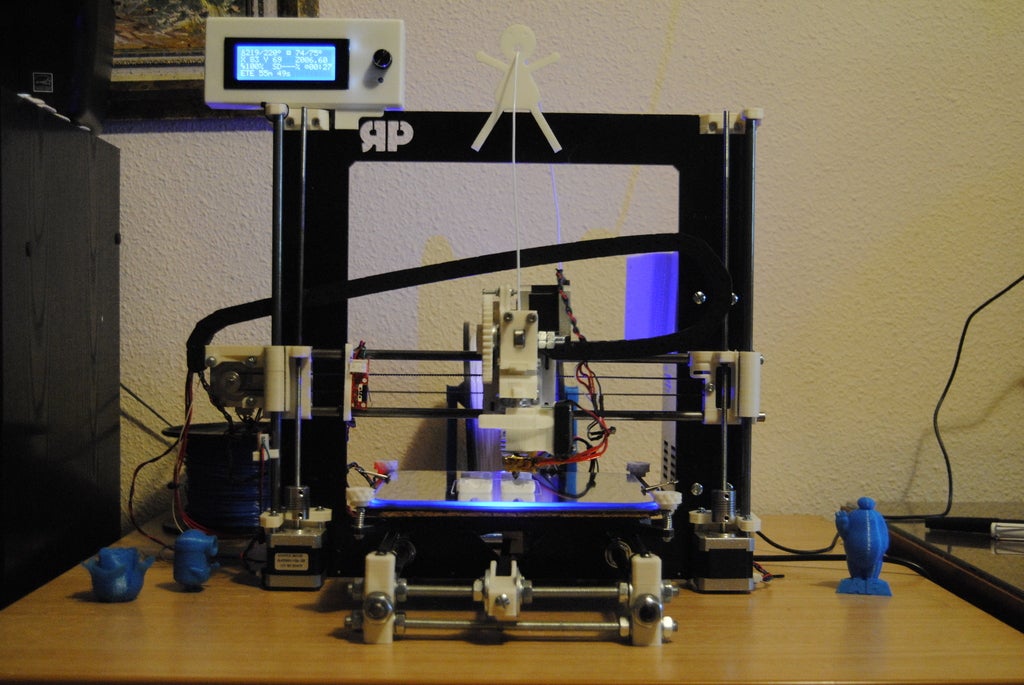

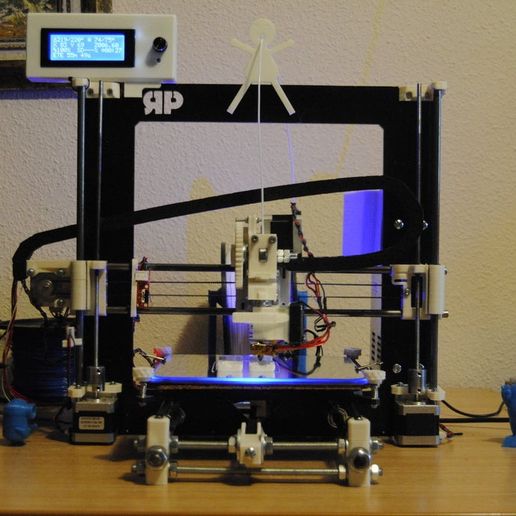

I´ve also included an adapter to fit prusa mendel i3 frame.

If you print it, a picture would be nice ;-)


3D printing settings

Updated with final pieces. Much better now :-)

Just print, no need to use additional support material.

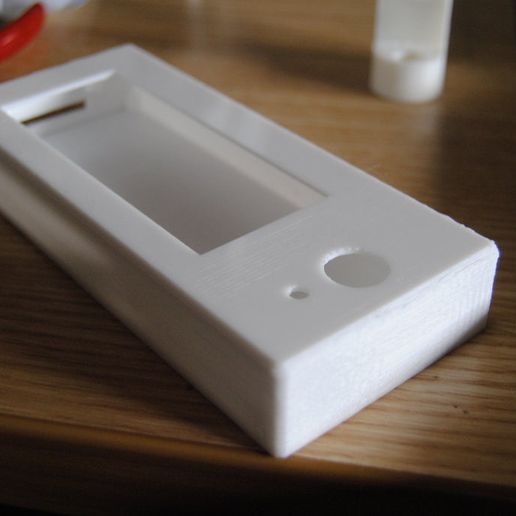

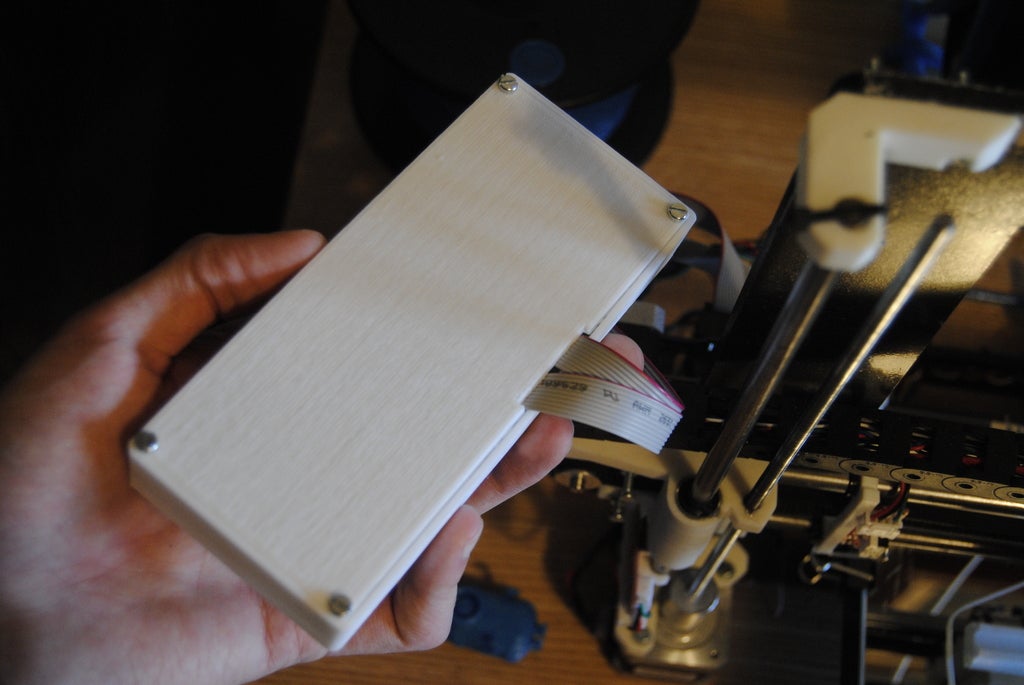

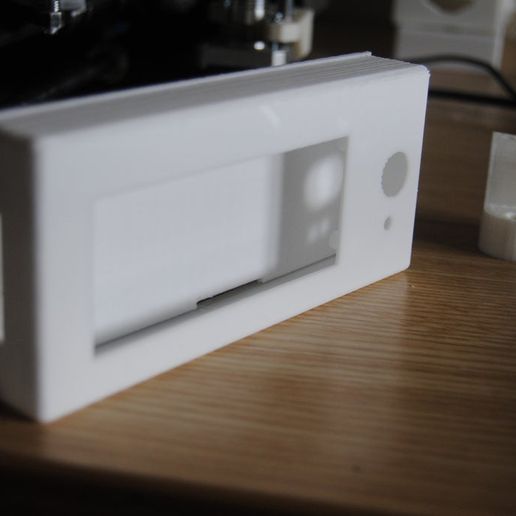

The lcd case and the support piece must be glued. This way you can adjust the position of the lcd on the frame. I printed it with 0.4 nozzle, 0.25 layer height and the result is awesome.

2015-02-07 Original Design.

2015-02-17 All pieces modified.

2015-02-18 All pieces modified. Thiner case.

Any suggestion or petition is welcome anyway.

3D printer file information

  • 3D design format: STL Folder details Close
    • LCD_back.stl
    • LCD_complete_pack.stl
    • LCD_front.stl
    • Lcd_mount.stl
  • Publication date: 2019/07/10 at 17:12

License

CC BY SA
