Smaller Leveling Knob

?
Creation's quality: 5.0/5 (1 vote)
Evaluation of members on the printability, utility, level of detail, etc.
  • 👁 499 views
  • 21 downloads

3D model description

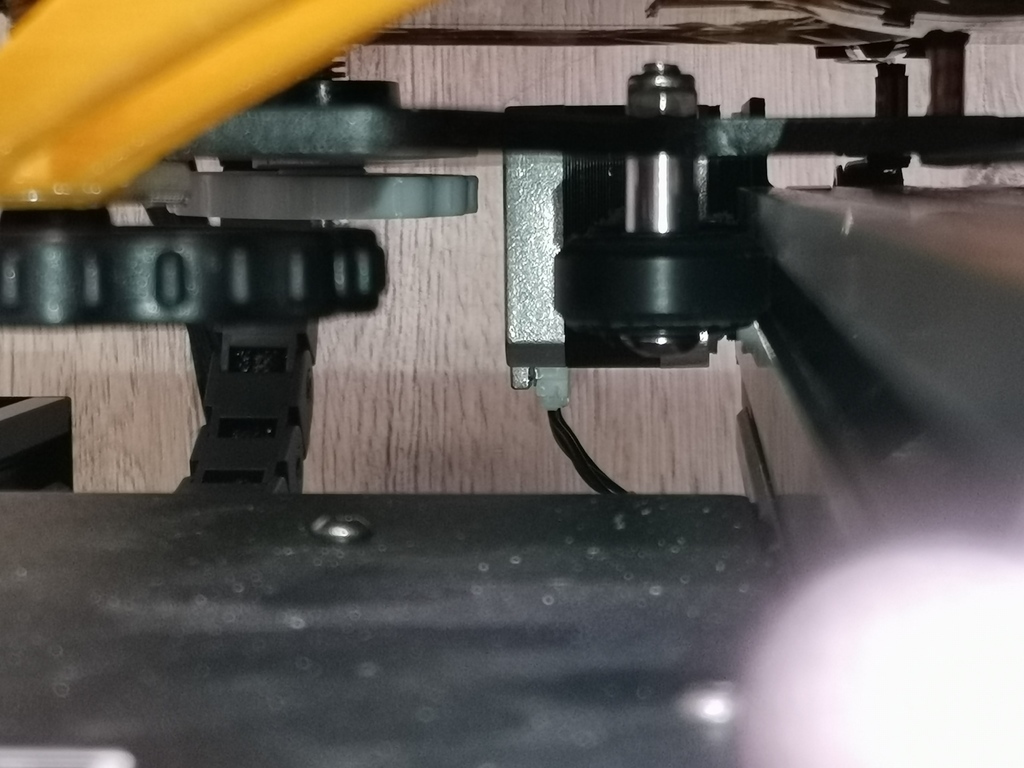

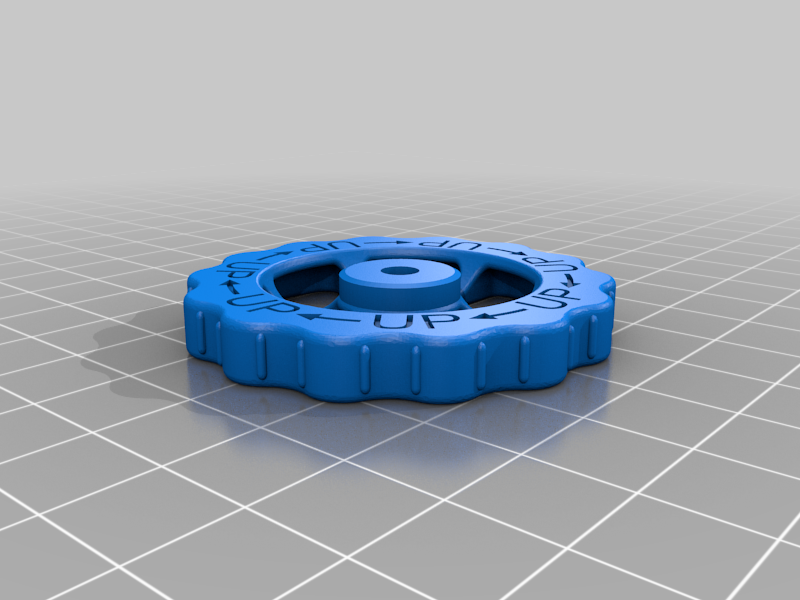

After upgrade with vibration dampening on my Ender 3 Pro, I noticed that rear left knob is touching the Y axis stepper motor. The solution I have is to make new (only one) leveling knob with a place for M4 nut, as my bed have M4 bolts (some of them have M3 bolts as I know, so please check before printing) So I make a knob with a little less than 50mm circumstance instead original 60mm knob. I guess 0,2 resolution will be godd to.

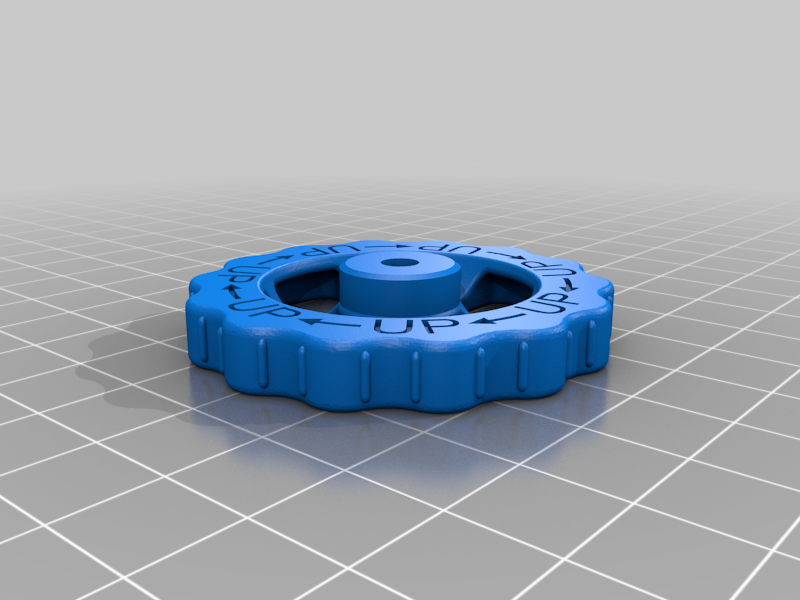

Update: aded another knob version 2, higher, with more distance from the bed mount, but this one have closed hole for the nut. It's intended to stop printing at 4,1mm height and put M4 nut inside before resume printing.


3D printing settings

-

3D printer file information

  • 3D design format: STL Folder details Close
    • leveling_knob.stl
    • leveling_knob_2.stl

    Learn more about the formats

  • Publication date: 2021/10/31 at 01:08

License

CC BY

Tags
