Slide Switch using 20mm Microswitch

Creation's quality: 5.0/5 (1 vote)
Evaluation of members on the printability, utility, level of detail, etc.

3D model description

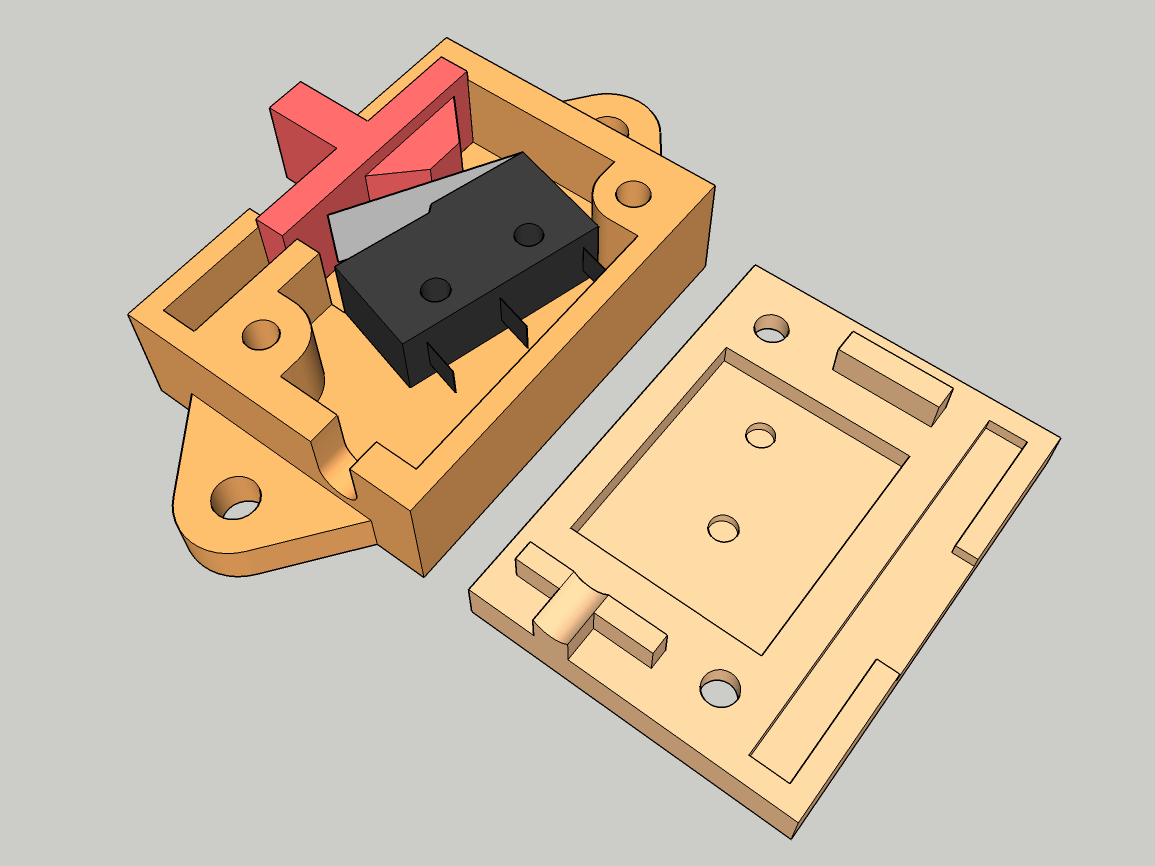

This converts a small microswitch into a slide switch. It's designed to suit a 20mm wide microswitch (20mm x 10mm x 7mm / 0.78" x 0.4" x 0.3") with 2.5mm diameter mounting holes.

The overall size of the printed switch body is 40mm x 30mm x 15mm, and it has two 4mm mounting holes, which would be suitable to mount directly to 2020 extrusion. The top can be secured with M3 screws and nuts, and there's also a 4mm hole in one side for cable access.

  • 3D file format: SKP and STL
  • Publication date: 2020/01/29 at 22:19
