3D model description

Board 210x250mm

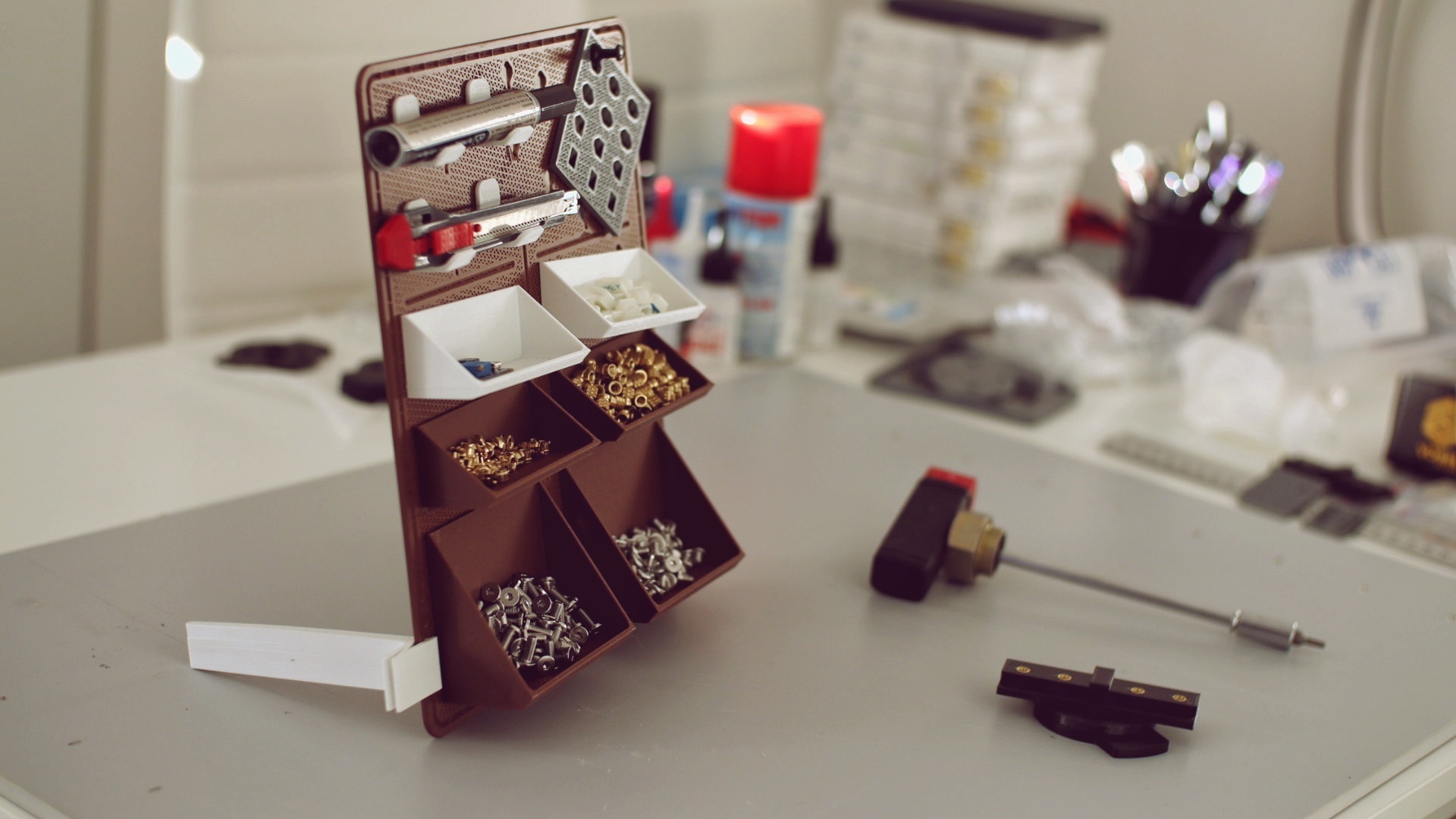

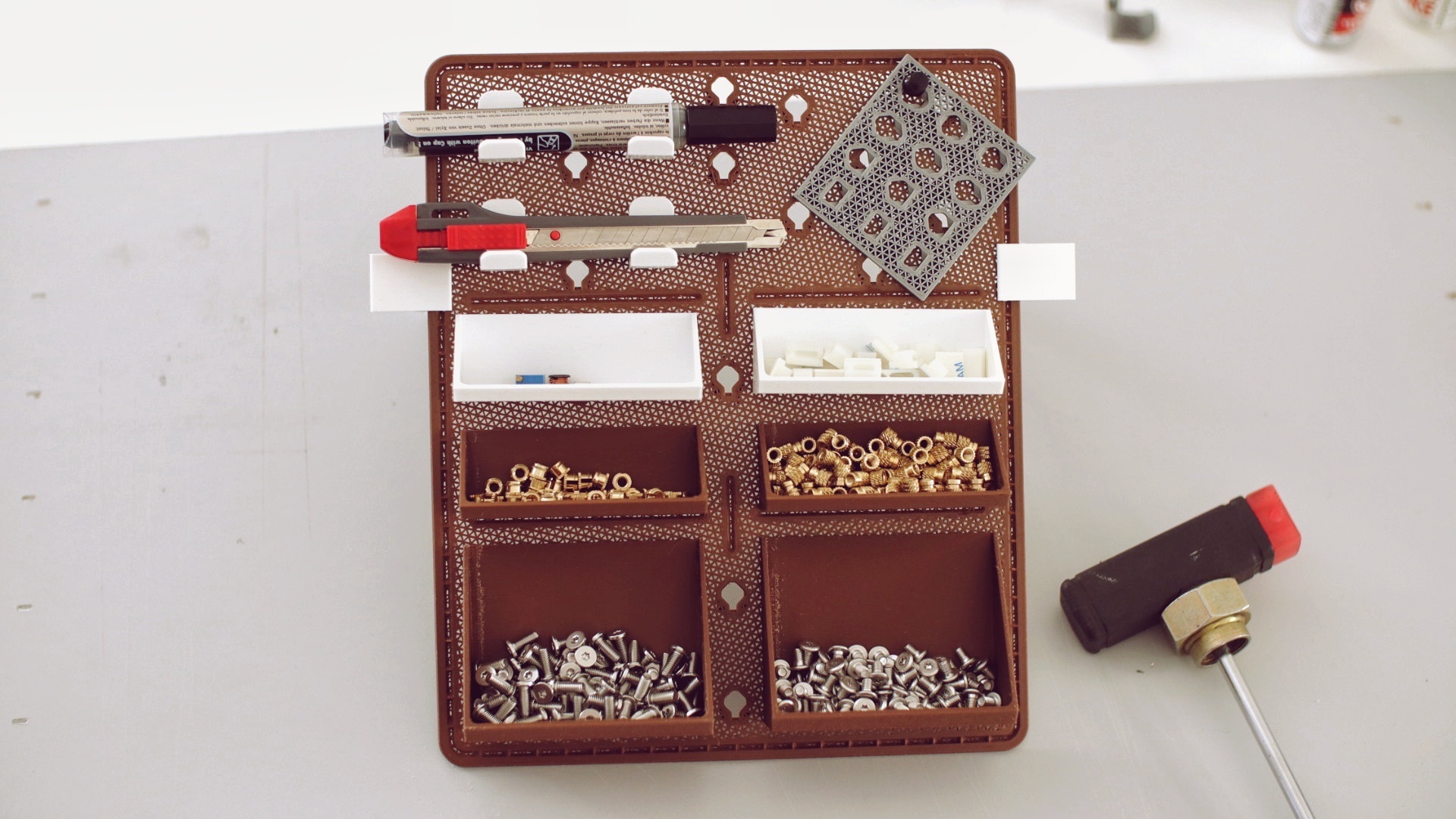

Designed as a modular bulletin organizer for a home office, creators, even for kids play as a bulletin board. The Board area fits 6 sticker papers or additional shuffle boxes and hooks.

Function:

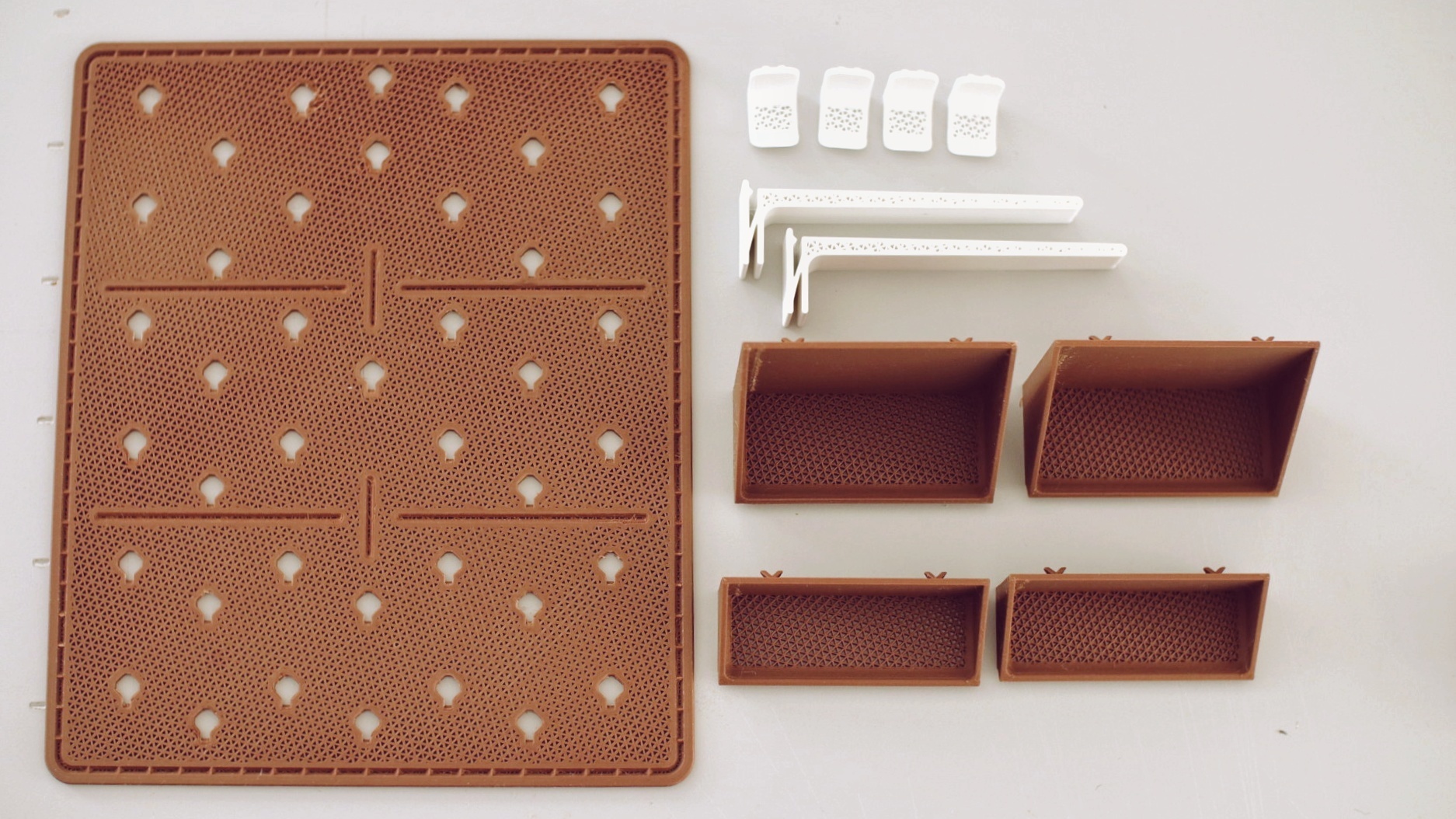

The modular system is based on three joints.

First:

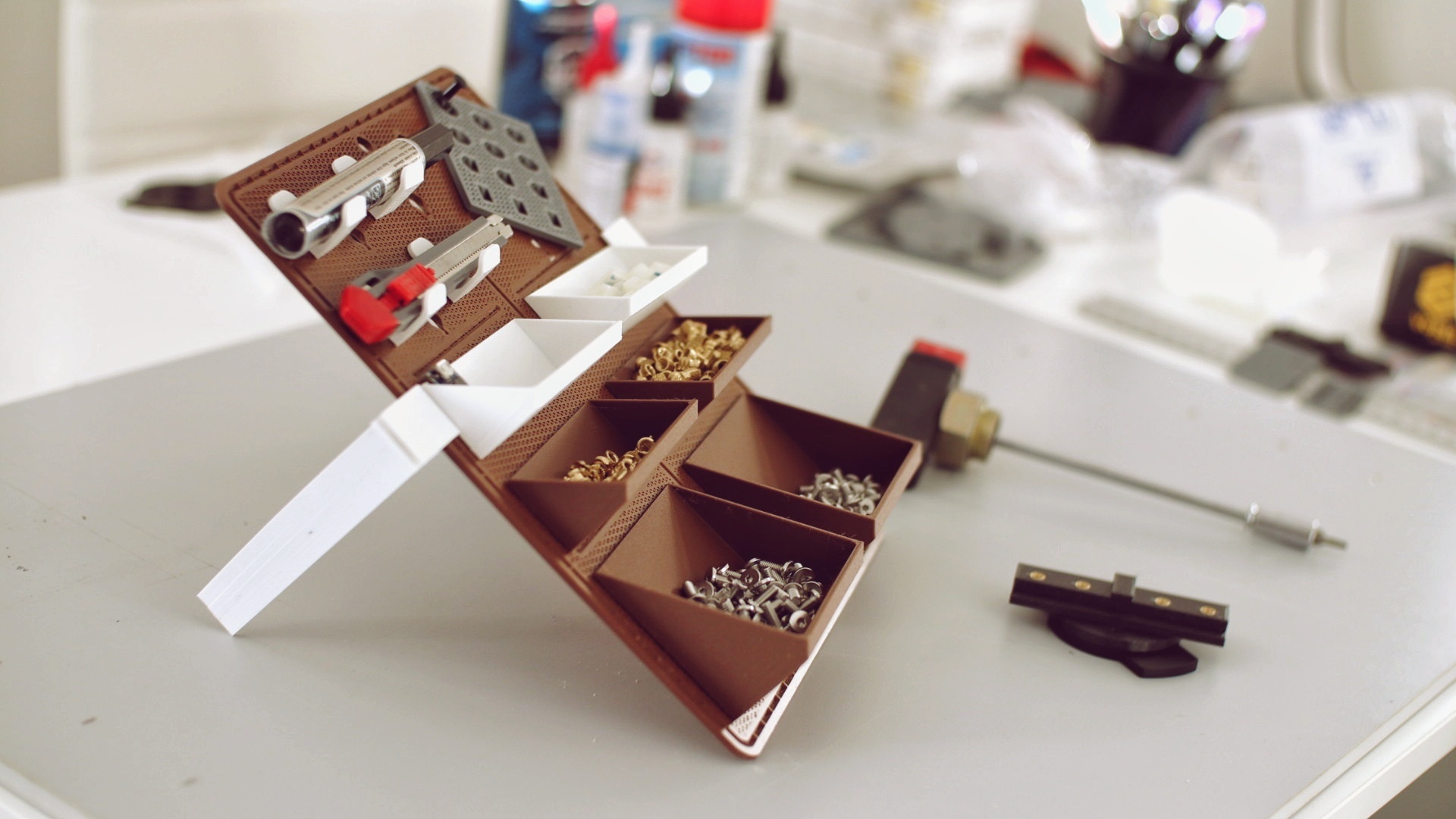

Rim joint on the edge that can clip support or other designed functional boxes. It also allows for changing the angle of the board.
Second:
Shuffle buttons for boxes, hooks, etc. They are designed to be printed from 4 sides without support.
Third:

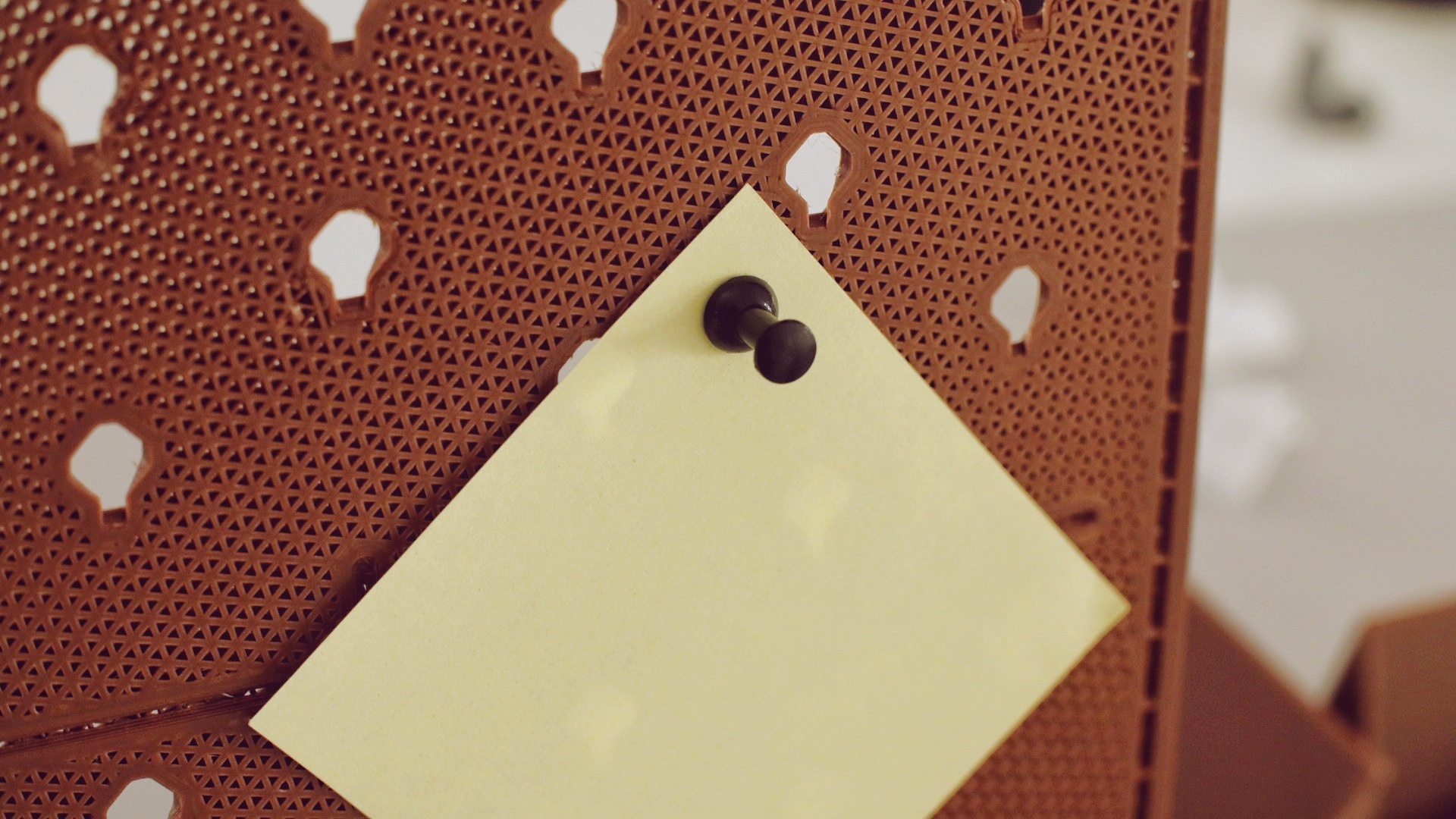

Exposed 50% triangle infill that perfectly fits regular office board pins.

3D printing settings

Layer height: 0.2
Perimeters: 2/3 (on the mainboard)
Solid layers: 0/0
Infill: 50% triangles
Support: no support required

Mainboard fits perfectly the print build of Prusa MK3 or any other printer that have a print area the same or more than 210x250mm.

3D printer file information

  • 3D design format: STL Folder details Close
    • Long_Box.stl
    • Short_Box.stl
    • Six_Pack_Board.stl
    • Support_Clip.stl
    • hook.stl
  • Last update: 2020/04/13 at 10:36
  • Publication date: 2020/04/07 at 11:01
