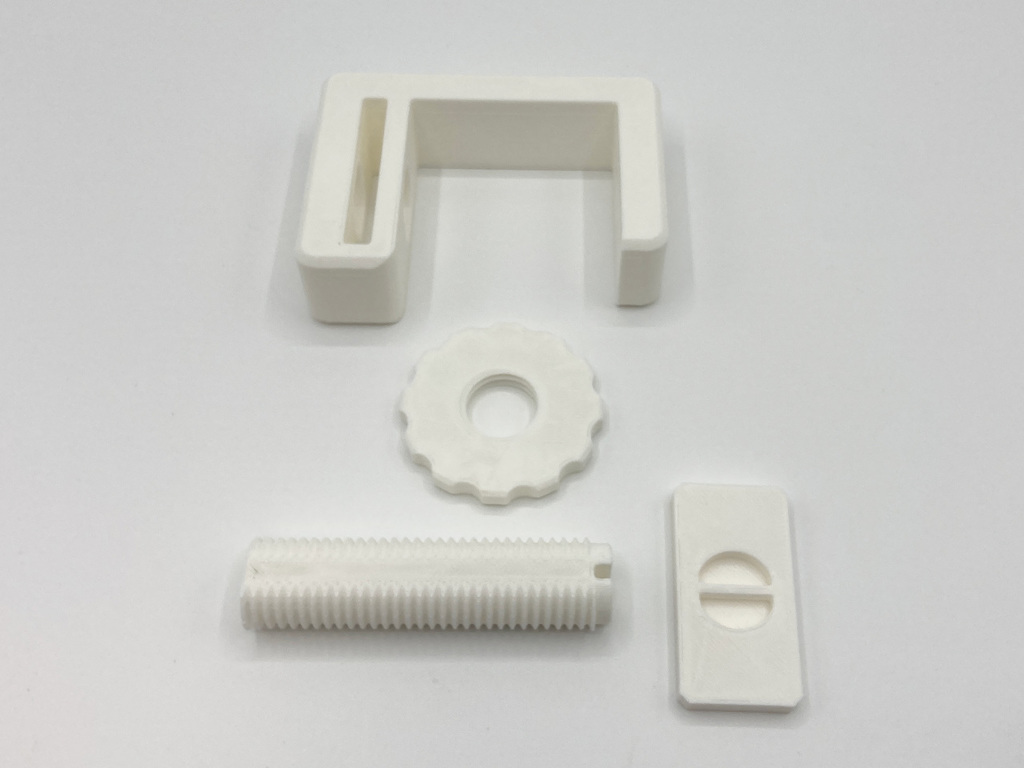

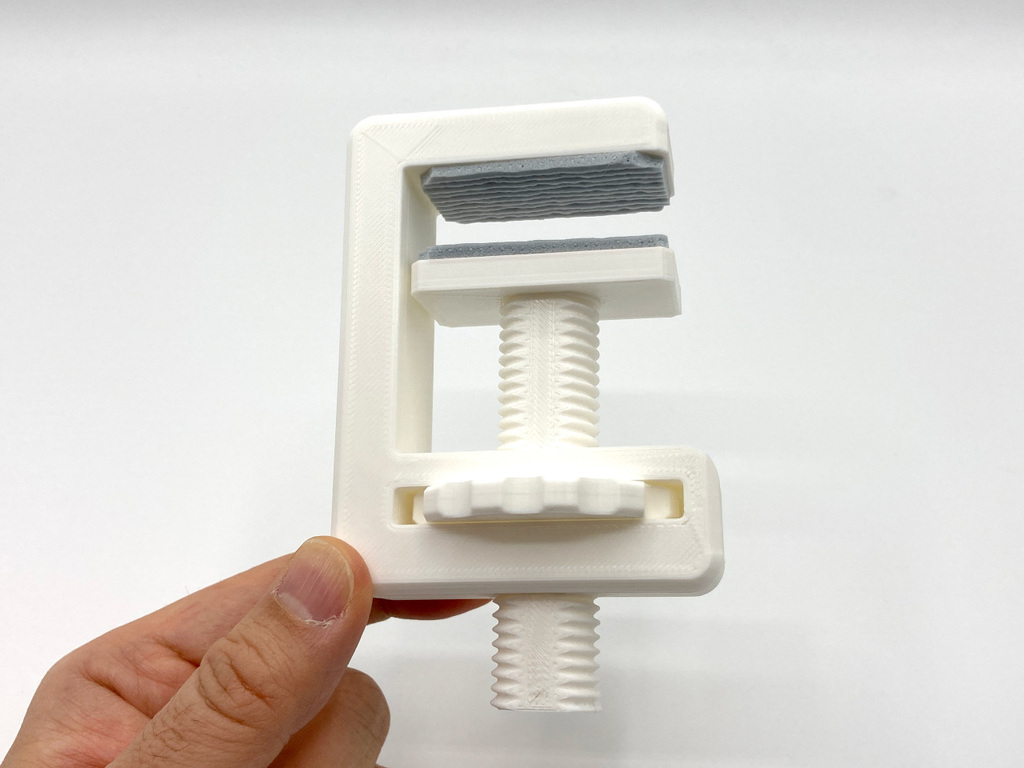

Simple C clamp using a flattened thread part. I hope this design will be remixed.
By incorporating the handle into the clamp body, the handle diameter was able to be enlarged while making the clamp compact as a whole.

Note that the thread part is reverse-threaded. When assembling, pay attention to the direction of rotation of the handle.

[Japanese]
寝かせて印刷する「側面を削って平たくしたネジ」を使ったCクランプです。再利用(リミックス)してもらうことを前提にしたモデルです。
ネジ頭にあたるハンドルをクランプ本体に組み込むことで、全体としてはコンパクトにしつつ、ハンドル径を大きくできました。

なお、ネジ部分は逆ネジになっています。組み立てる際にはハンドルの回転方向に注意してください。
