Sieg c1 steady rest

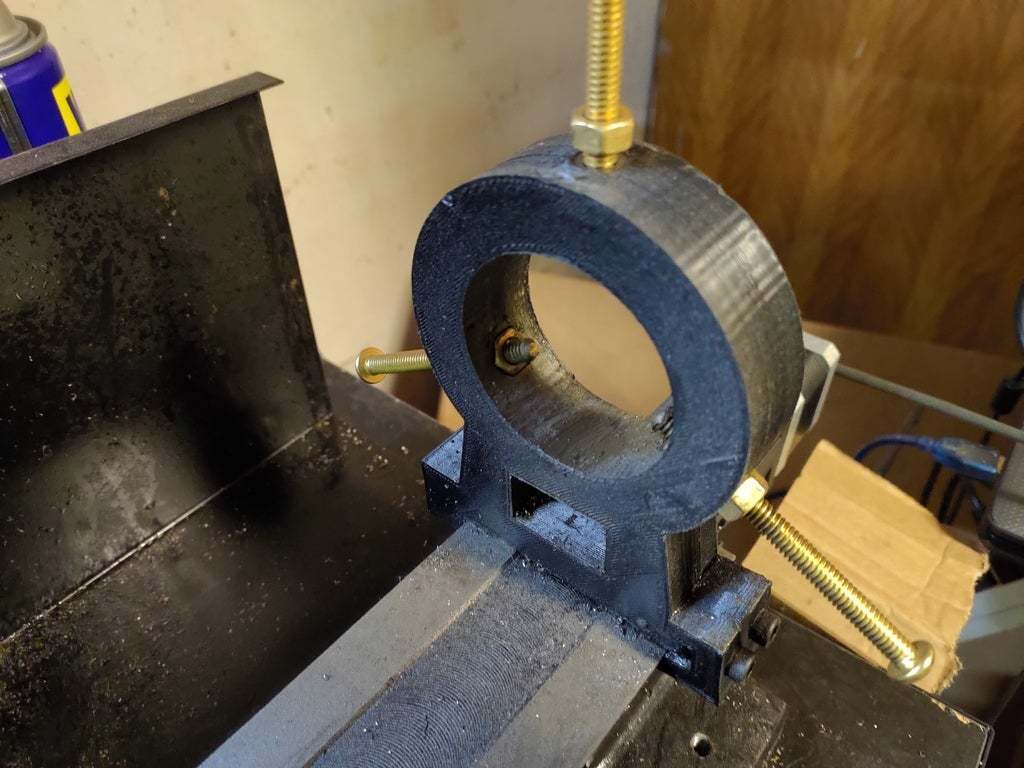

P_20200406_141825.jpg Free STL file Sieg c1 steady rest・Object to download and to 3D print, Punisher_4u

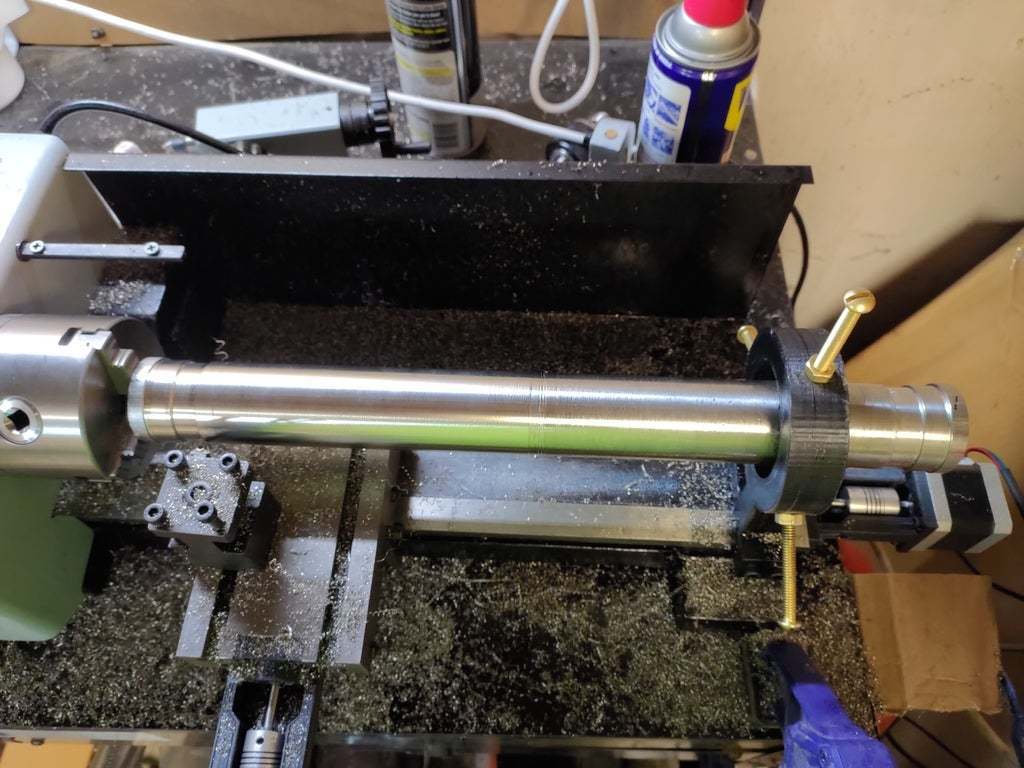

P_20200327_213413.jpg Free STL file Sieg c1 steady rest・Object to download and to 3D print, Punisher_4u
clamp.stl Free STL file Sieg c1 steady rest・Object to download and to 3D print, Punisher_4u
rest.stl Free STL file Sieg c1 steady rest・Object to download and to 3D print, Punisher_4u
Share
Add to
Make
?
Creation quality: 5.0/5 (1 vote)
Evaluation of members on the printability, utility, level of detail, etc.

3D model description

This is a remix of a design by Vaclav Krmela.
https://www.myminifactory.com/object/3d-print-steady-rest-for-lathe-23206

This is a steady rest for sieg c1 lathes. These lathes are also rebranded under different names.

parts needed
2 m5 nuts
2 m5x30mm socket head cap screw
6 1/4-20 brass nuts
3 2" 1/4-20 brass screws

Grind the tips of the brass screws at a 45 until there is about 1/16" of flat left on the tip.

The Fusion 360 file is also included.

3D printer file information

  • 3D design format: F3D and STL Folder details Close
    • clamp.stl
    • rest.stl
    • steady_rest.f3d

    Learn more about the formats

  • Publication date: 2020-04-07 at 08:53
    ?
    Published to Thingiverse on: 2020-04-07 at 02:21
