Sidney i3

?
Creation's quality: 5.0/5 (1 vote)
Evaluation of members on the printability, utility, level of detail, etc.
  • 1.4k views
  • 2 likes
  • 72 downloads

3D model description

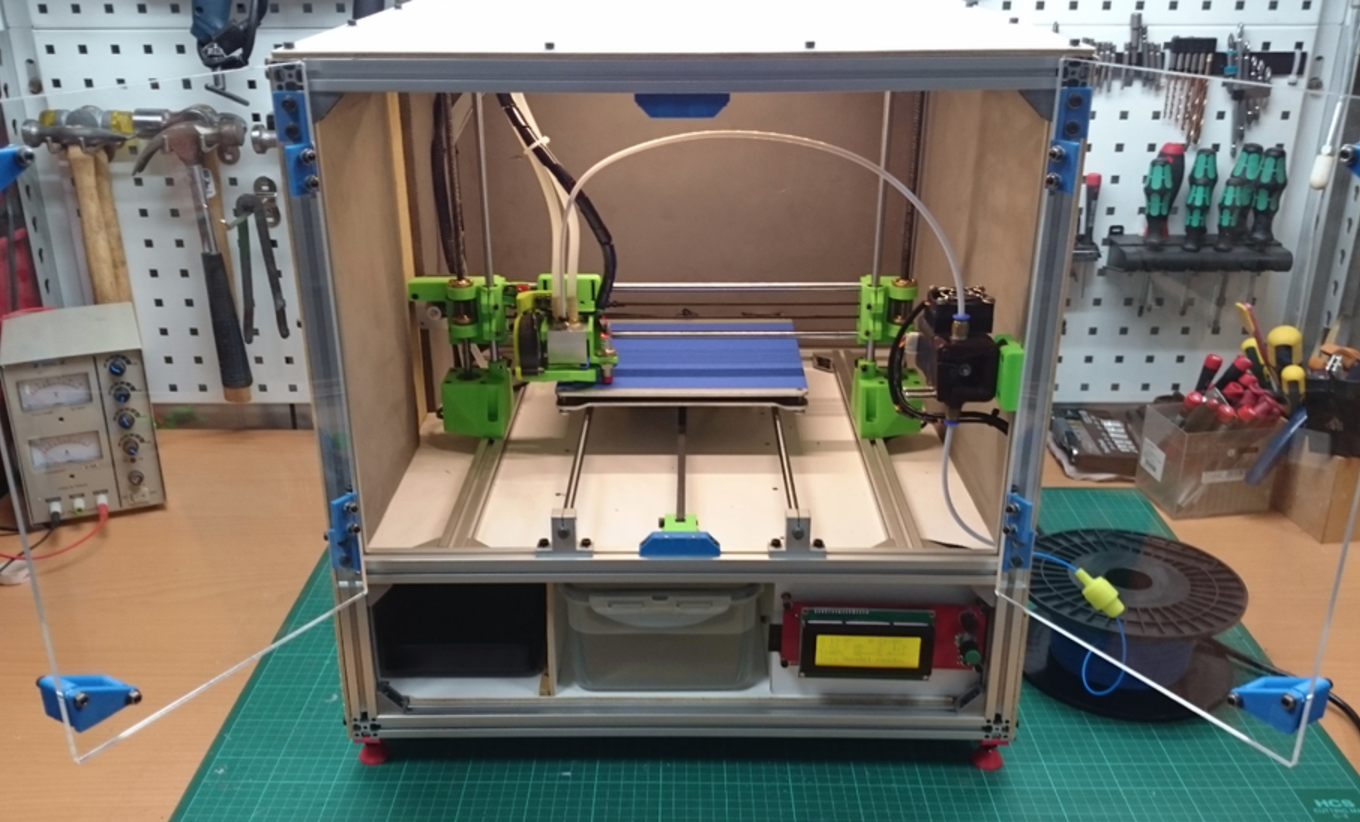

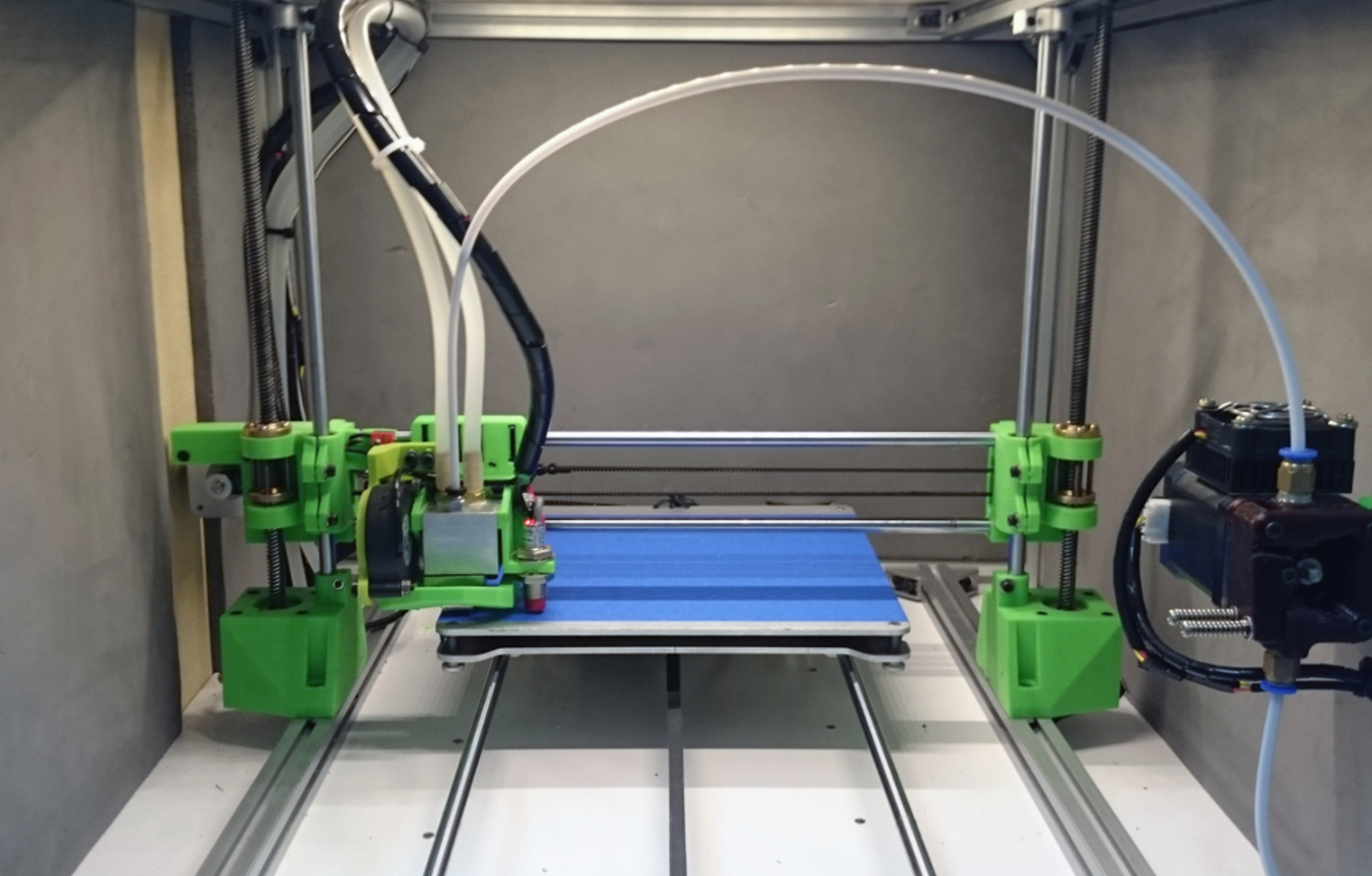

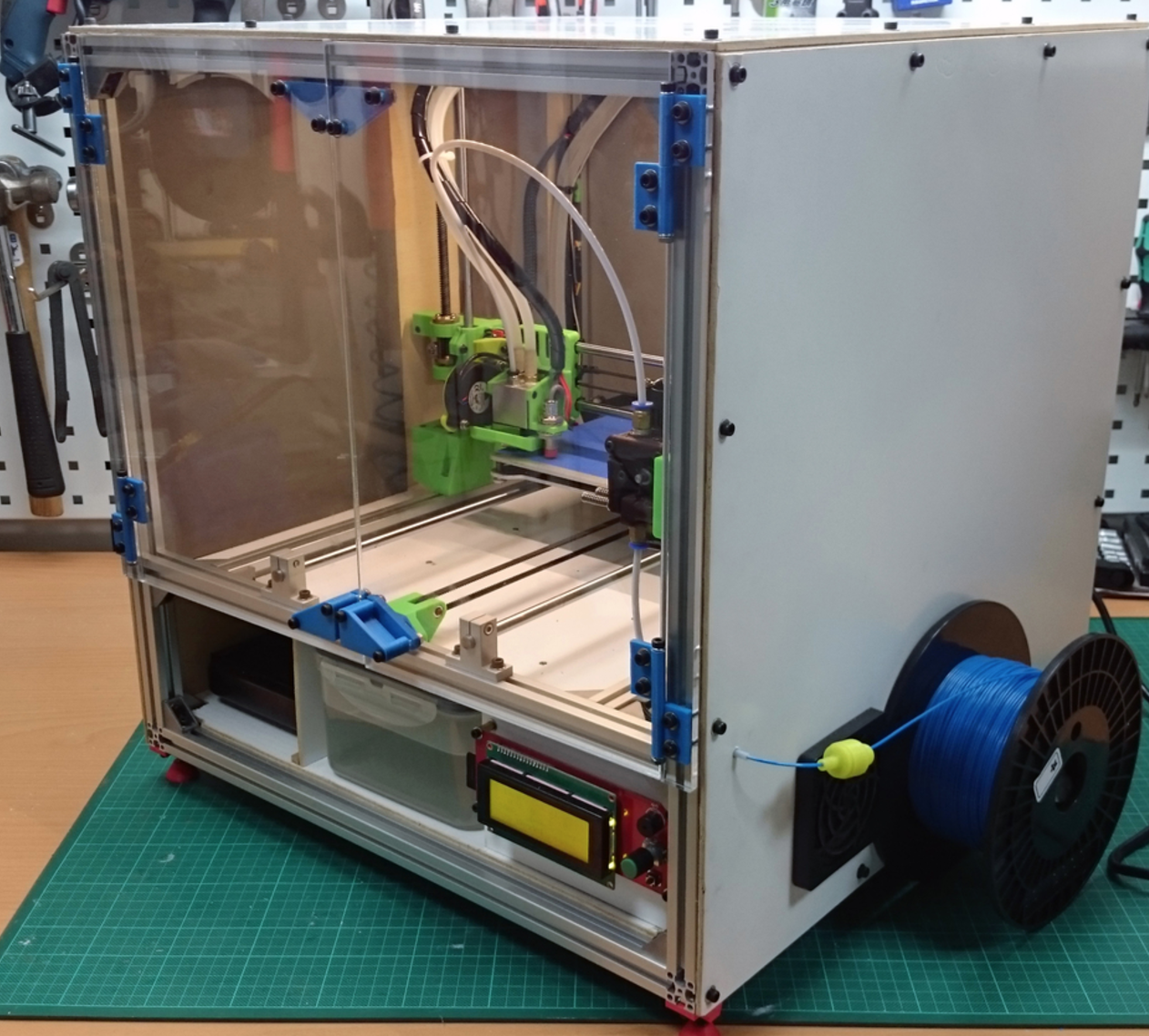

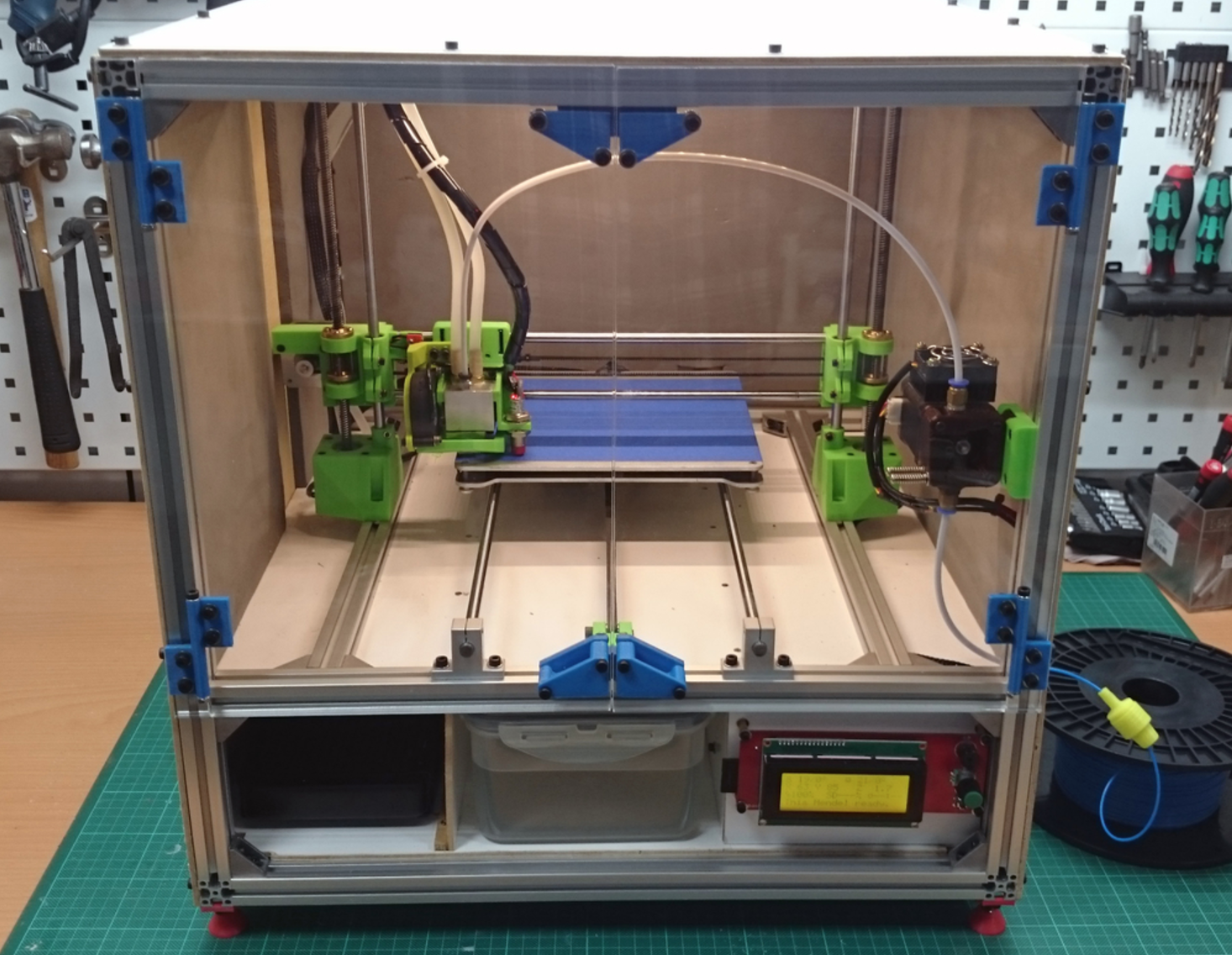

Aluminum Frame i3 Base on prusa i3

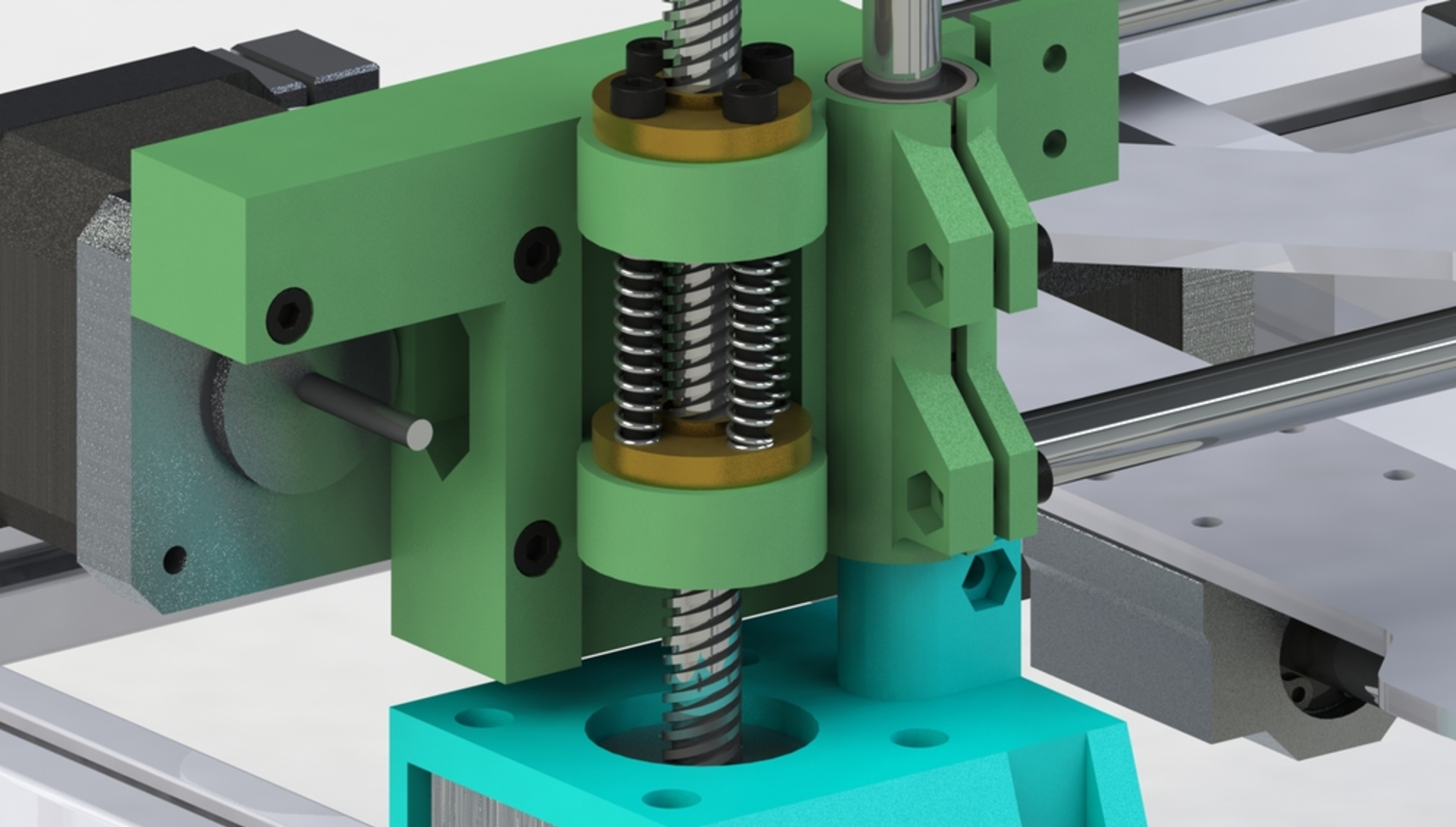

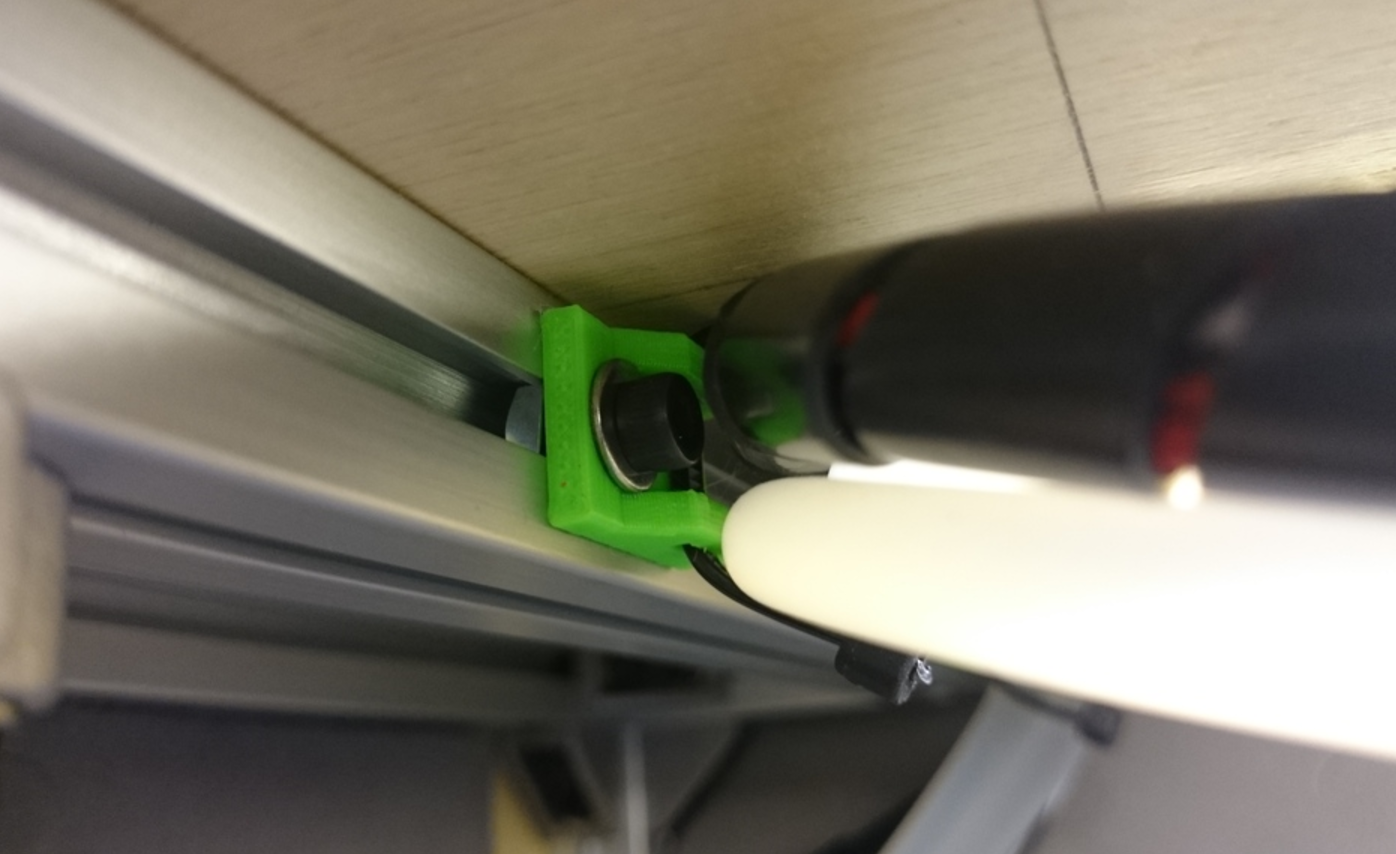

Include a new design to eliminate backlash of lead screw

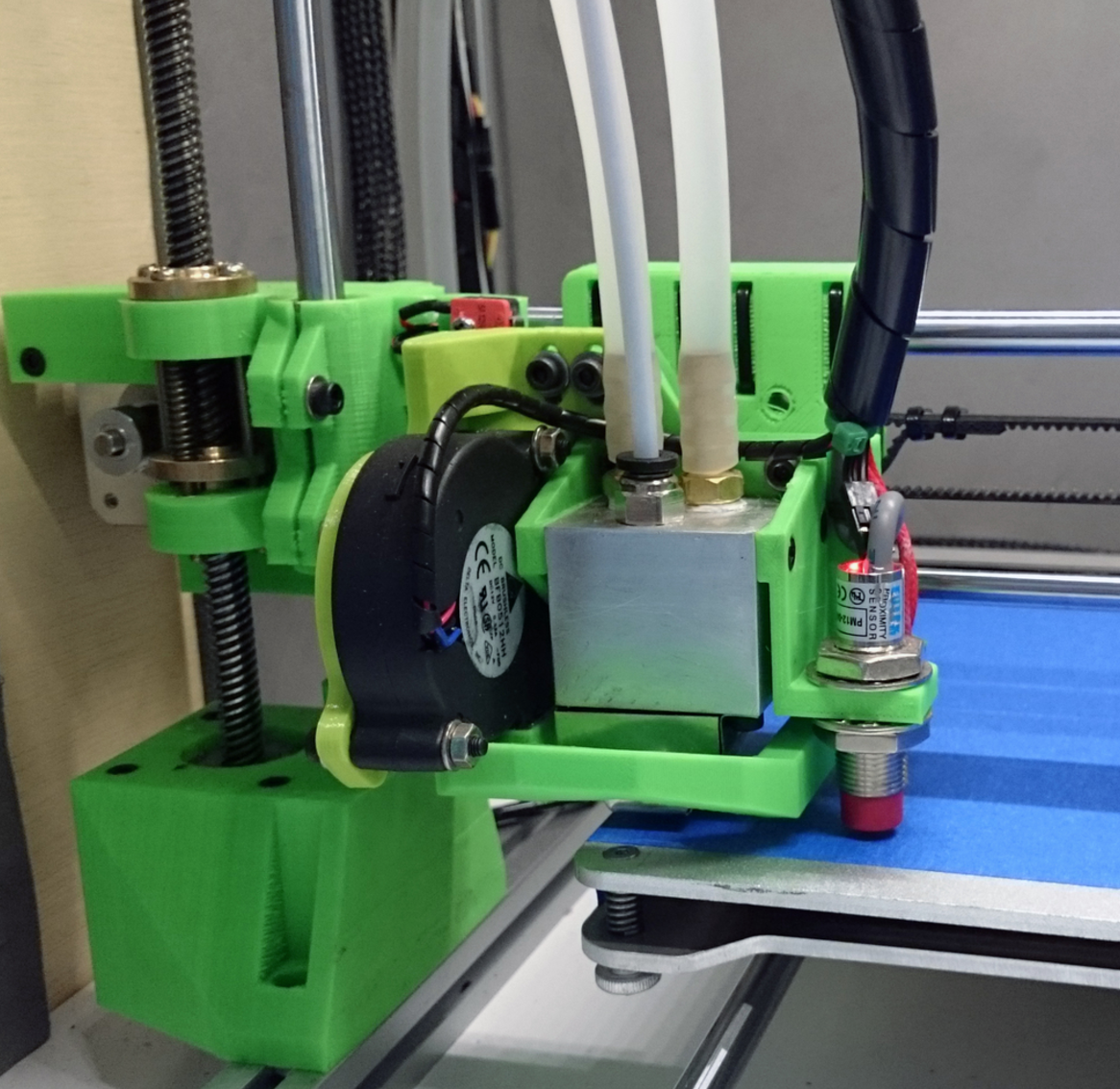

I use this X Carriage
http://www.thingiverse.com/thing:586636

Water Cooled Extruder
http://www.thingiverse.com/thing:1122033

Frame BOM:

https://docs.google.com/spreadsheets/d/1NMDV64ITaBIcRH5-fehJkepfXq_T5dhFiu3tFgBau-k/pubhtml

2016/03/25 UPDATE!!
NEW version of X end、X end motor,more stable!
X end、Y end now have two options for pulley screw(M5、M3)!

3D printer file information

  • 3D design format: STL Folder details Close
    • cable_fix.STL
    • handel.STL
    • handel_mirror.STL
    • hinge.STL

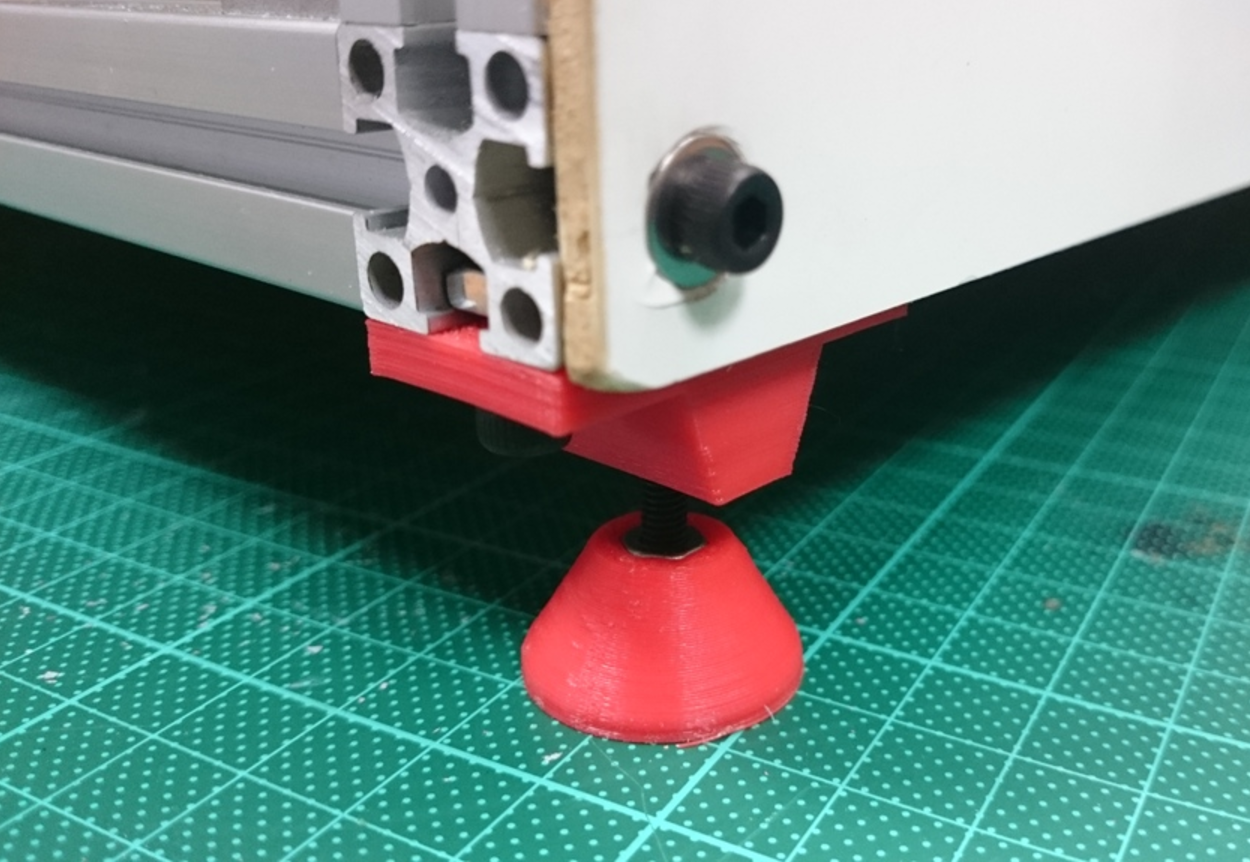

    • stand_1.STL
    • stand_2.STL
    • stopper_1.STL
    • stopper_2.STL
    • stopper_2_mirror.STL
    • x_end.STL
    • x_end_V2.stl
    • x_end_V2_3mm.STL
    • x_end_motor.STL
    • x_end_motor_V2.stl
    • y_carriage.STL
    • y_end.STL
    • y_end_3mm.stl
    • y_end_motor.STL
    • z_motor.STL

    Learn more about the formats

  • Publication date: 2017/06/01 at 11:19
