shunt enclosure

?
Creation's quality: 0.0/5 (0 votes)
Evaluation of members on the printability, utility, level of detail, etc.
  • 637 views
  • 1 like
  • 10 downloads

3D model description

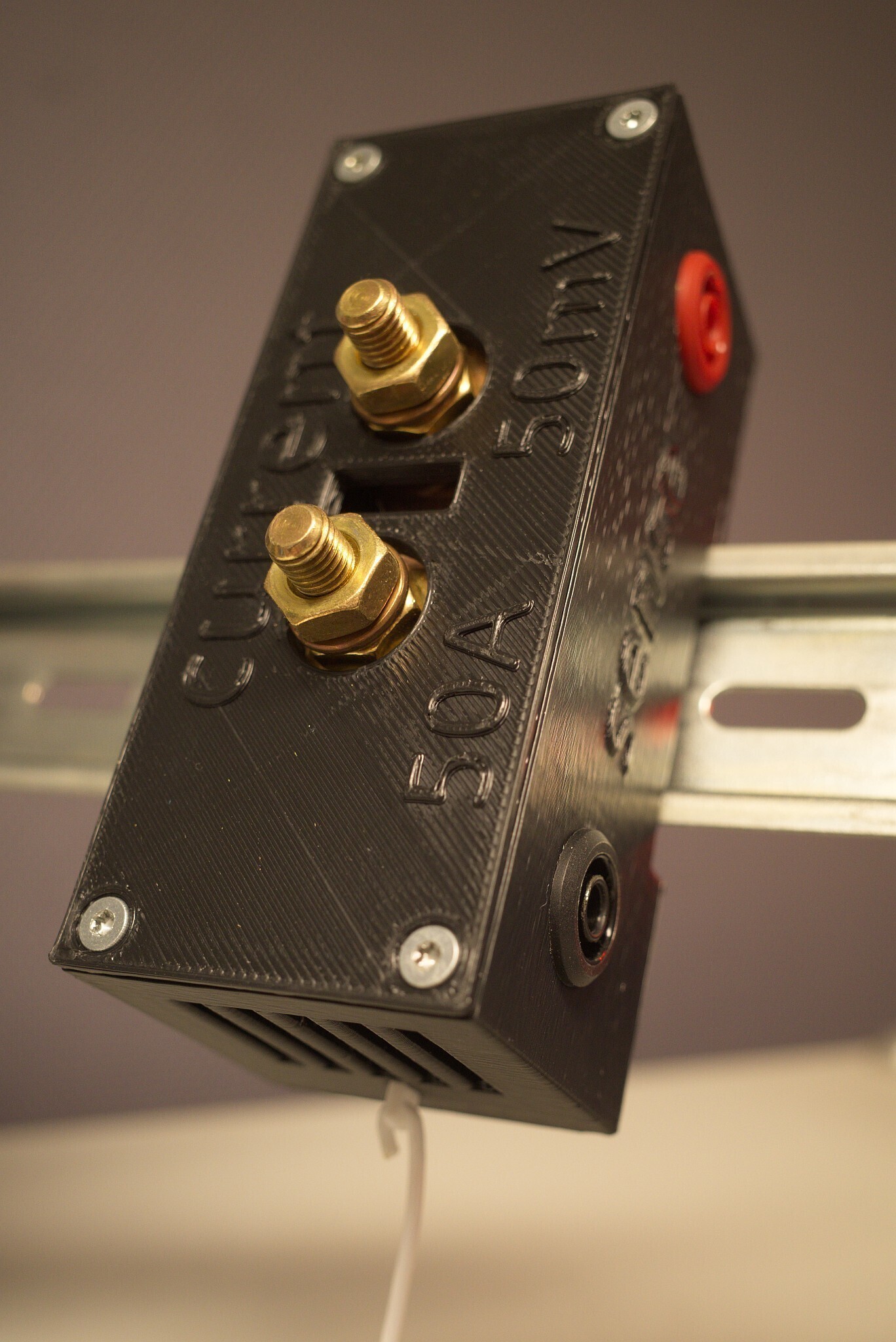

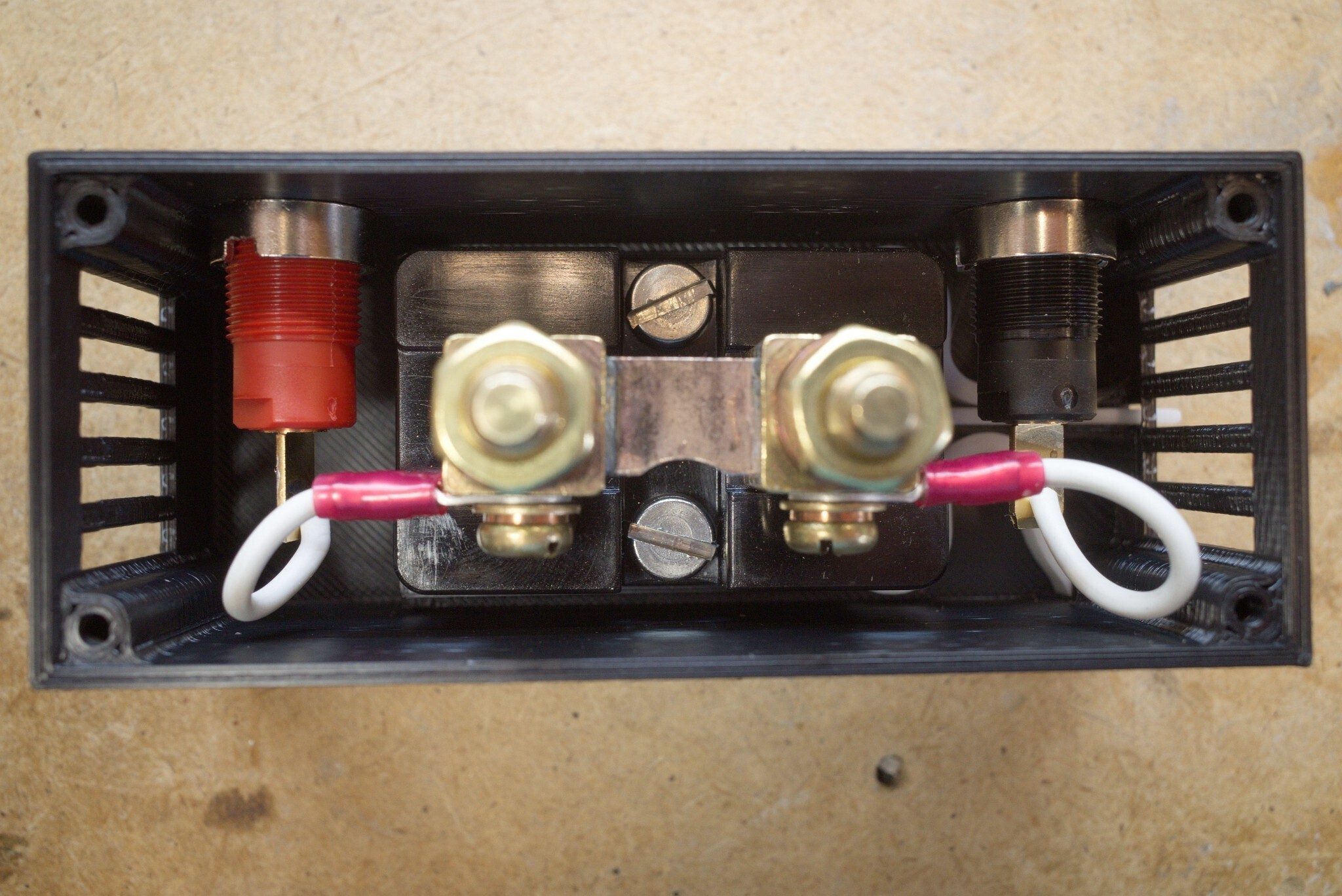

I needed an enclosure for a 50A shunt to prevent people touching it.

To make it more interesting, I also added a DIN-rail mount because... DIN rails.

You'll need some additional material:

) https://docs.rs-online.com/31c6/0900766b81362850.pdf (pt. #: 3020-01096-0)
) 2x Banana socket (https://at.rs-online.com/web/p/bananenstecker/7872782/)
) 2x M5 hex nuts
) 2x M5x12-20 screws
) 4x M3x10-25 coarse thread countersunk screws
) some piece of thin wire or some thick thread or a piece of filament for operating the DIN-rail release mechanism

I also have an older version without DIN rail mount (blue version in pics). I can upload that too if there's demand.
