Shoulder rig for DSLR (NOT just for Canon 5D)

Creation quality: 5.0/5 (1 vote)
Evaluation of members on the printability, utility, level of detail, etc.

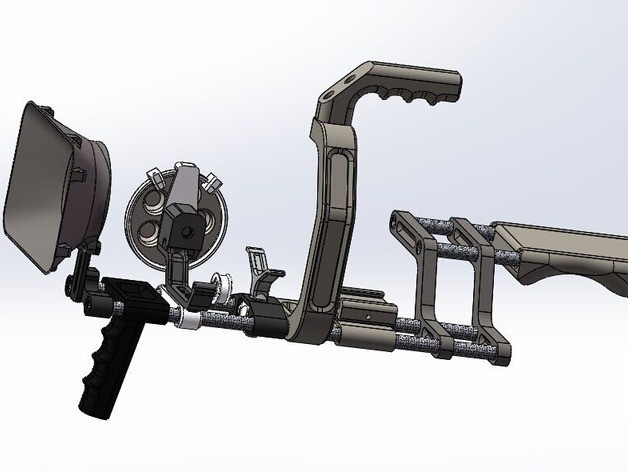

3D model description

One thing is that this set is not only fit the Canon 5D,but also other cameras,what you need to change is the quick release Plate(Clamp),redesign a plate and decrease the Raised.And the most of them is all can be adjusted...

The most important difference between shoulder rig on sale and mine is the diameter of the two rods.mine is using 12mm Carbon fiber pipe,not 15mm aluminium pipe.

I have add ext 0.4mm tolerance for most diameter,if you are assembling printing parts and feeling loose for the rod,maybe you need some glue...

Most of the printing parts were printed by the Overlord 3D printer which is made by the Dreammaker team,and the bigger one(TopHandleConnecter )was printed by Prsim,also is from Dreammaker,their Previous generation 3D printer.

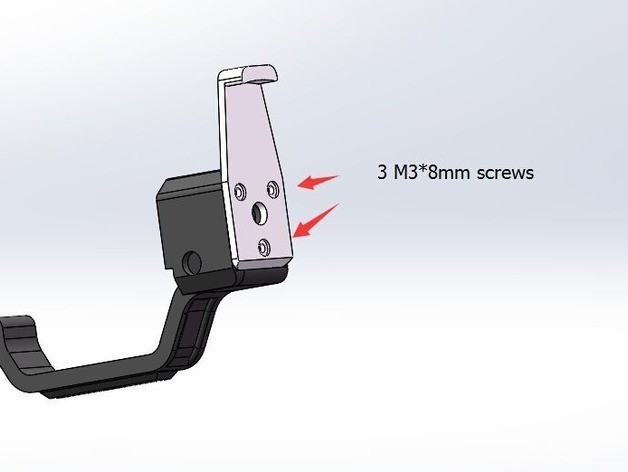

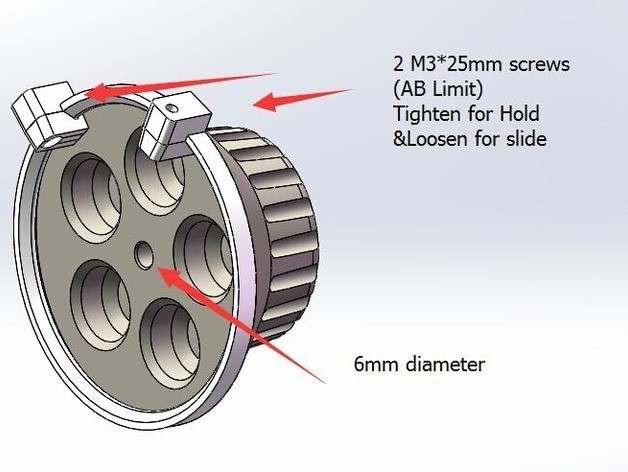

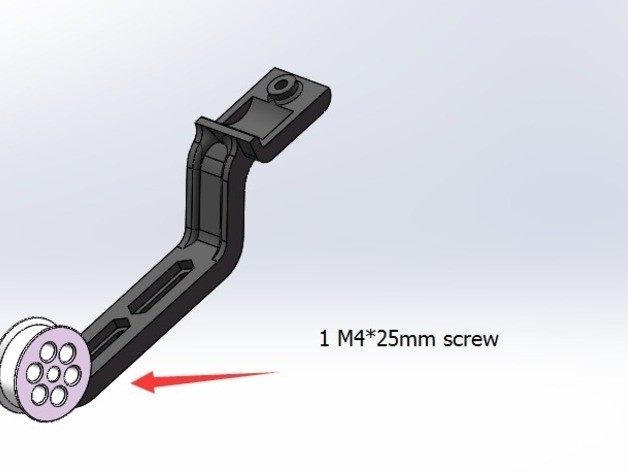

I have make a set of pictures that introduced screws assembling.

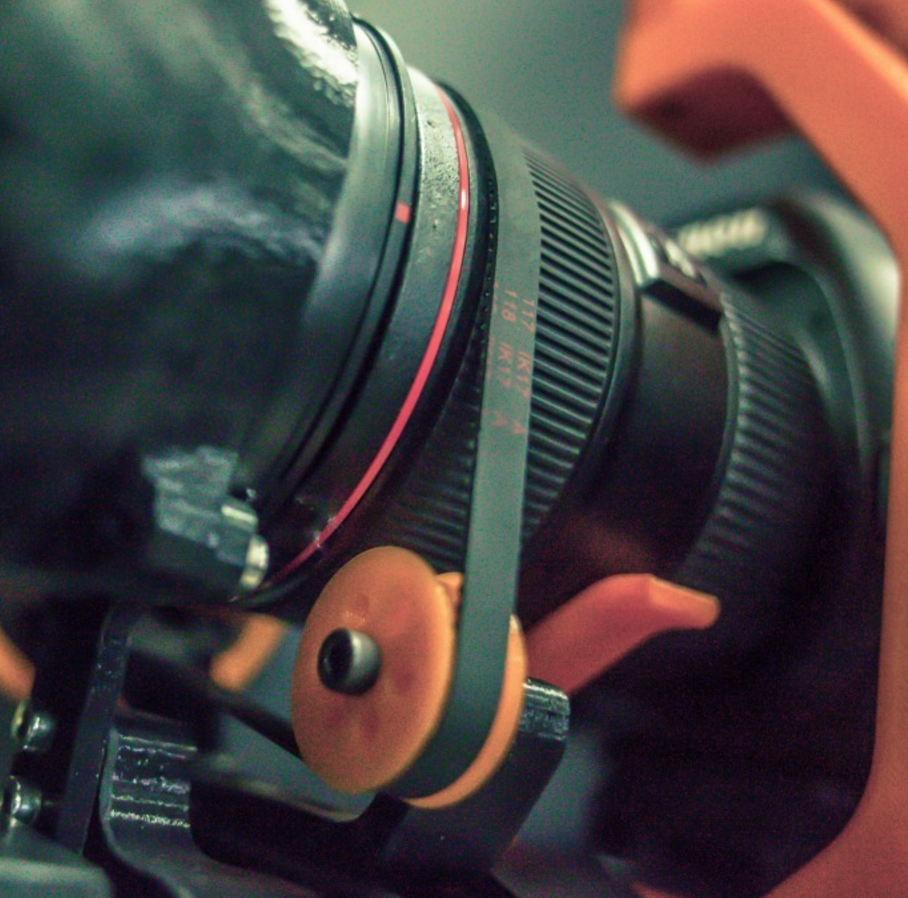

You also need one 175MXL Pulley belt for Canon 24-70 L II USM Lens

shoulder_Carrier_Connecter this part should be printed twice...(strength)

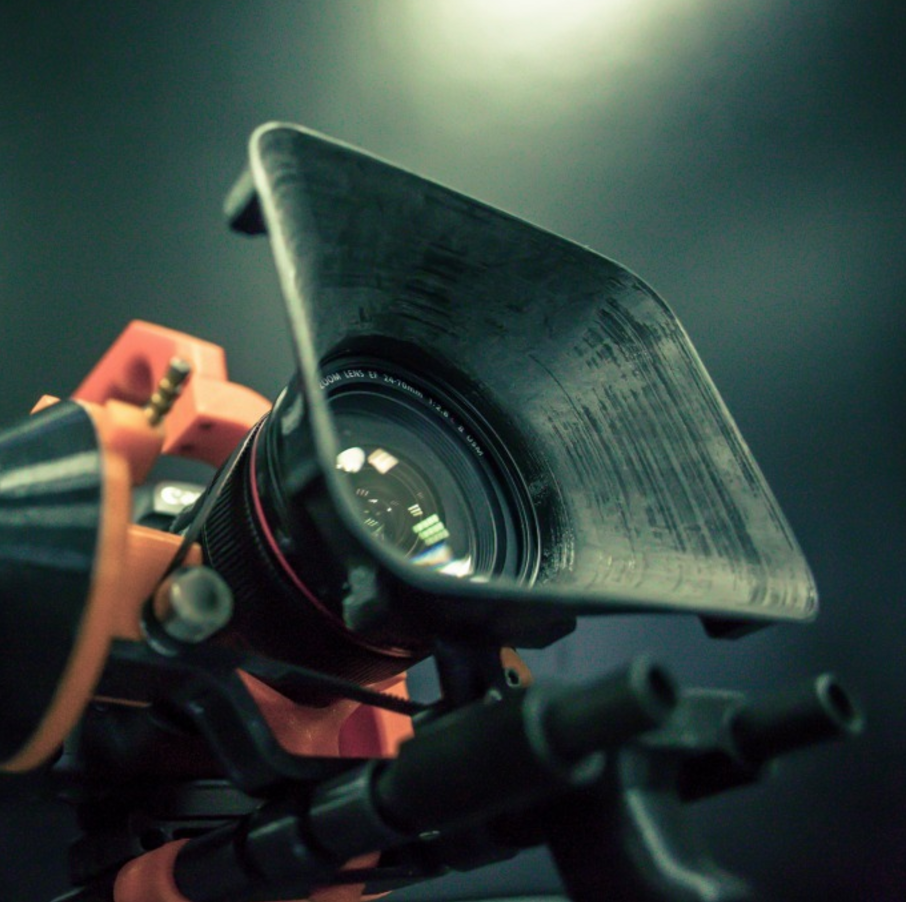

ps:there will be at lease three carbon fiber board for the Lens Hood ...I will publish the CAD file leter...

Leter, maybe I can shoot some great videos(actually I had allready do it)
And the worm gear link:
I really don't whether you guys can open it and buy it.....

and the rod that worm gear needs is 4mm&6mm
(if you buy it maybe you need to buy too )
and you can get it too from the same place,and the links is:

3D printing settings

Doesn't Matter




3D printer file information

  • 3D design format: STL Folder details Close
    • AB_Limit_Part1.STL
    • AB_Limit_Part2.STL
    • AB_Limit_Rail.STL
    • Clamp.STL
    • Clamp_Base.STL
    • Clamp_Base_Part2.STL
    • FocusAdjusting.STL
    • FocusNorb.STL
    • Front_Handle.STL

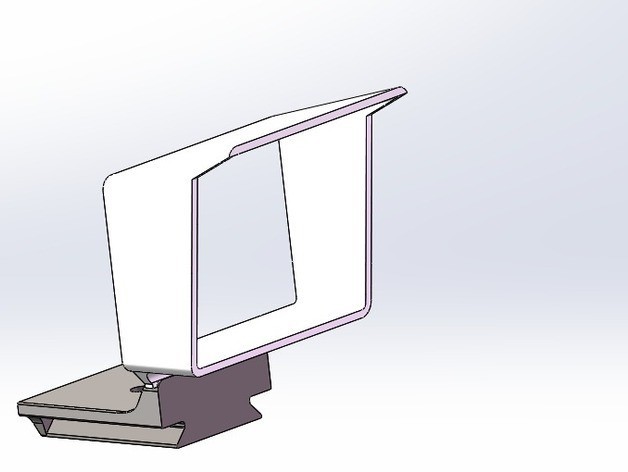

    • Glare_shield.STL
    • Lens_Driven_Wheel.STL
    • Lens_Focus_Plate.STL
    • Lens_Focus_Slider.STL
    • Lens_Holder.STL
    • Lens_Holder_Nut.STL
    • Lens_Holder_Plate.STL
    • Lens_Hood_Adjust.STL
    • Lens_Hood_Base.STL
    • Lens_Hood_For_82mm_UV.STL
    • Top_Handle.STL
    • Top_Handle_Connecter.STL
    • WormGears_Box.STL
    • shoulder_Carrier.STL
    • shoulder_Carrier_Connecter.STL

    Learn more about the formats

  • Publication date: 2016-11-22 at 10:28




Designs 20
Downloads 7k
Sales US$27.62
Followers 111
