Shaper Mechanism (quick return mechanism)

3D model description

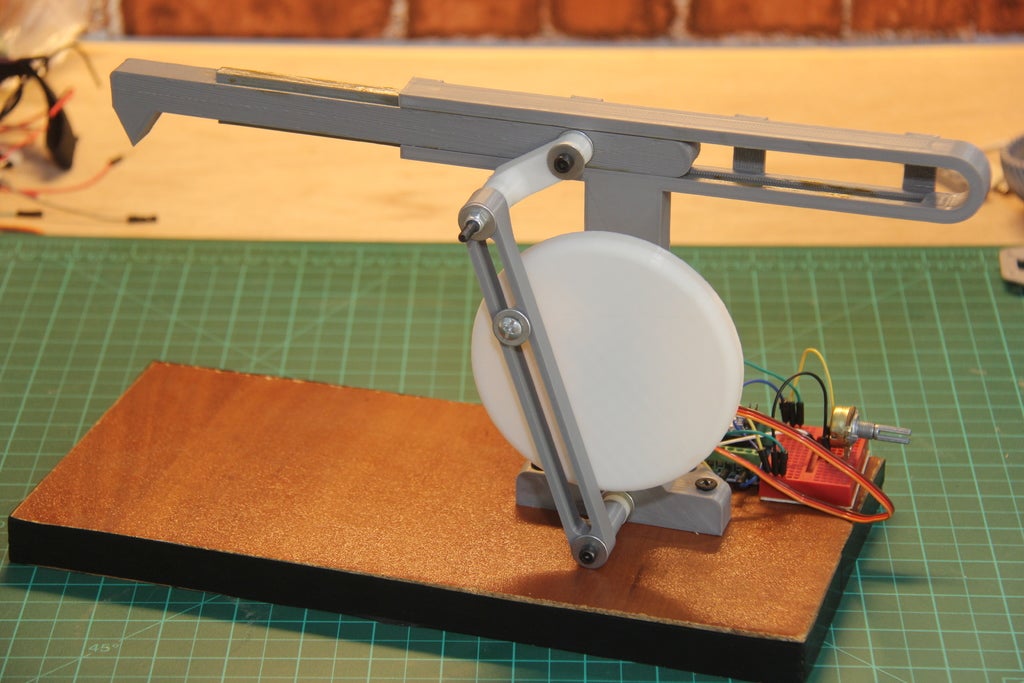

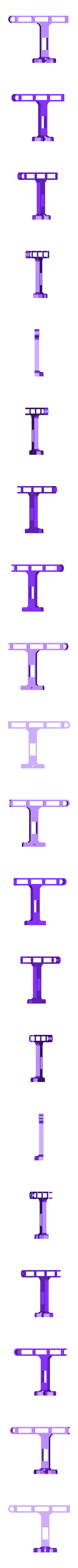

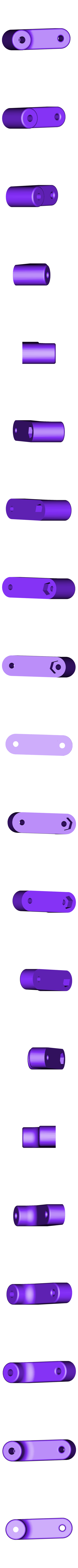

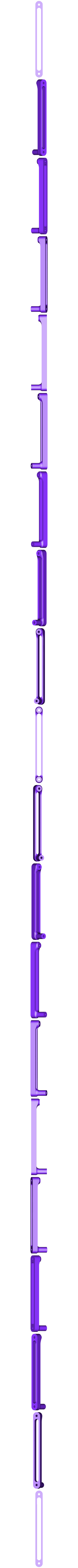

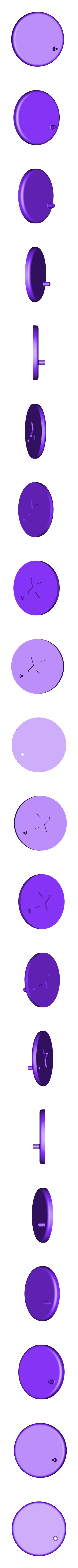

this is a simple prototype of the shaper mechanism also called quick return mechanism, it is designed in Solidworks for a first-year mechanical engineering course.

if you want to make this model you will need a full rotation servo motor and some M4 screws of different sizes and some washers and spacers.
you would also need a little bit of machining oil for the rail to be smooth.

the Solidworks files are available also in the download.
