Shapeoko - Spindle Adapter Plate

?
Creation's quality: 5.0/5 (1 vote)
Evaluation of members on the printability, utility, level of detail, etc.
  • 👁 228 views
  • 2 likes
  • 1 download

3D model description

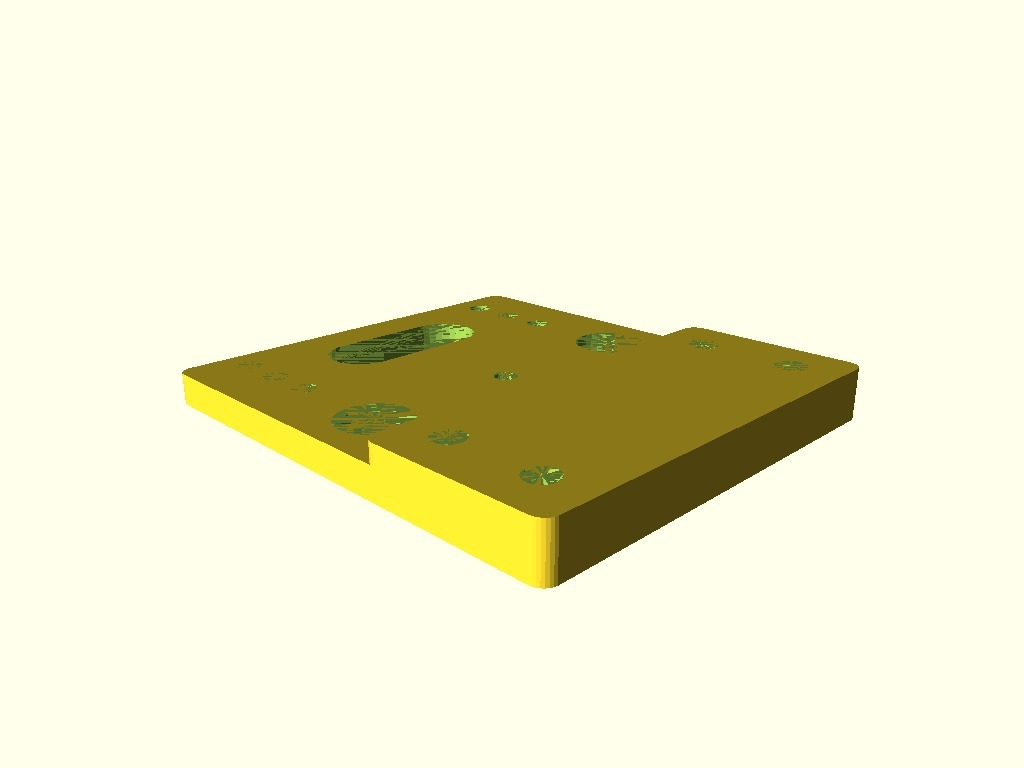

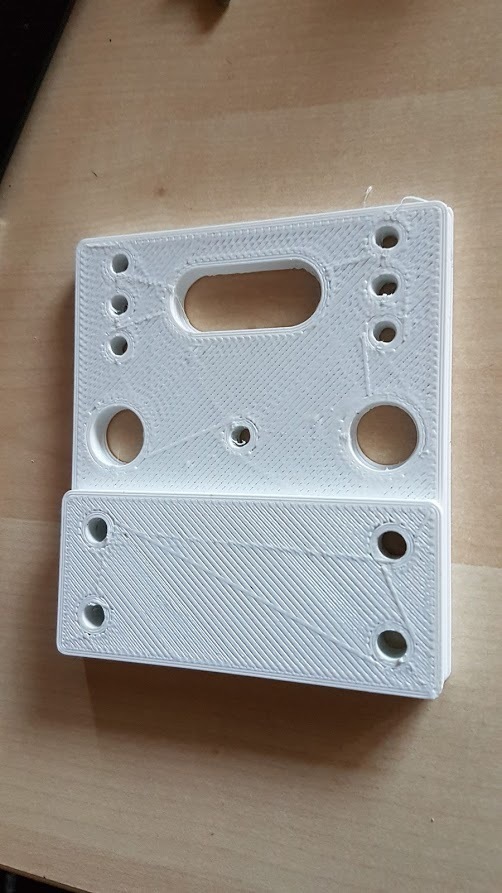

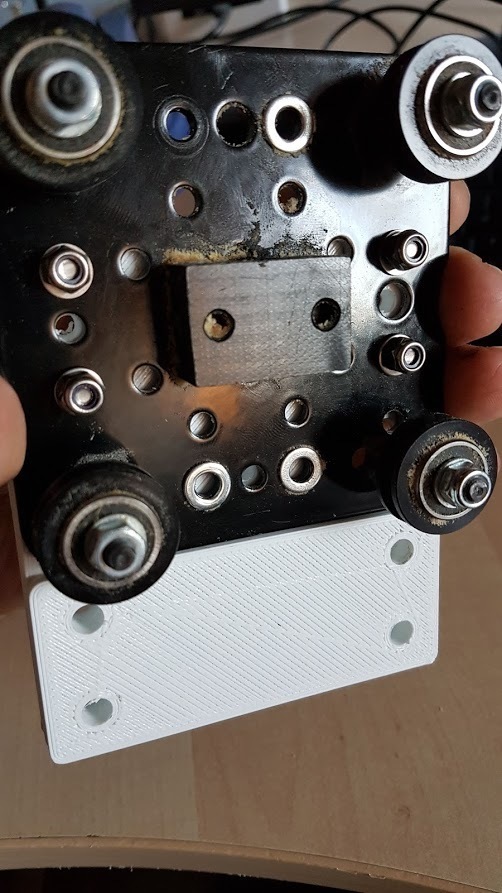

This is a adapter plate to mount a 52mm quite spindle on the Shapeoko CNC mill.
Without the adapter the spindle is too high and would not reach the spoil board.

I had to drill the holes after printing, but otherwise it worked well.


3D printing settings

-

3D printer file information

  • 3D design format: SCAD and STL Folder details Close
    • spindeladapter.scad
    • spindeladapter.stl

    Learn more about the formats

  • Publication date: 2021/10/15 at 01:38

License

CC BY SA

Tags

Creator

Software Developer, Hobby Designer and 3D Printer Owner.
Developer of GCodePrintr - The 3D Print App for Android (http://3dprintapps.de)
I'm based in Germany and I enjoy making useful objects.
