RFID Badge Lock

3D model description

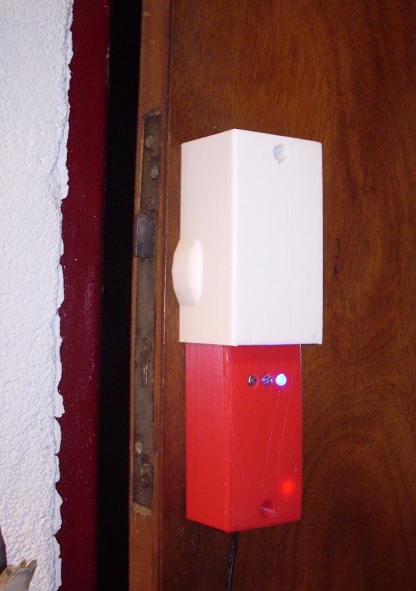

I propose here the first of the two locks with opening by RFID tags. This has the advantage of being able to be mounted directly on the door handle and to control the drive square to clear the bolt if the tag is recognized and authorized... There's a little bit of simple electronics ( it might trigger vocations)

Read more at:

3D printing settings

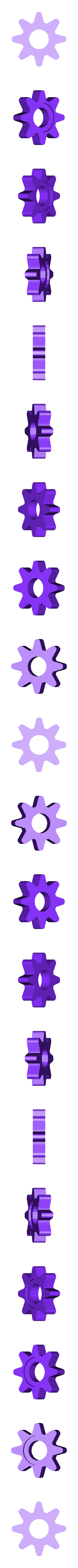

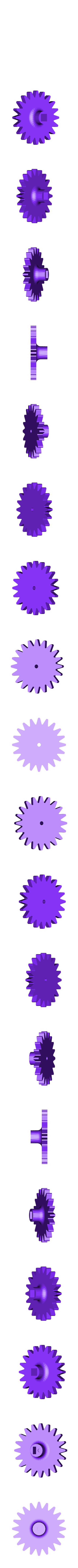

The parts (red lower cover, pinion, crown, support plate) are made of black and red PLA at 1.75 mm 190° and 40° of plate... The top cover in white is in PLA White 210°, 50° and 1,75 mm for removal problems but it may be my thread!

  • 3D model format: STL
