1-hand quick release clamp 3D printed

1.JPG 1-hand quick release clamp 3D printed
3.JPG 1-hand quick release clamp 3D printed
2.JPG 1-hand quick release clamp 3D printed
5.JPG 1-hand quick release clamp 3D printed
4.JPG 1-hand quick release clamp 3D printed
plateau.JPG 1-hand quick release clamp 3D printed
coeur.STL 1-hand quick release clamp 3D printed
couvercle.STL 1-hand quick release clamp 3D printed
poignee.stl 1-hand quick release clamp 3D printed
tete.STL 1-hand quick release clamp 3D printed
bouton A.STL 1-hand quick release clamp 3D printed
bouton B.STL 1-hand quick release clamp 3D printed
embout v1.STL 1-hand quick release clamp 3D printed
embout v2.STL 1-hand quick release clamp 3D printed
molette m4.STL 1-hand quick release clamp 3D printed
Advertising
Share
Add to
Make
?
Creation quality: 5.0/5 (2 votes)
Evaluation of members on the printability, utility, level of detail, etc.
Licence CULTS - Private Use
Publication date 2020-04-19 at 12:43
Design number 136721
3D design format
STL Folder details Close
  • bouton A.STL
  • bouton B.STL
  • coeur.STL
  • couvercle.STL
  • embout v1.STL
  • embout v2.STL
  • molette m4.STL
  • poignee.stl
  • tete.STL

Learn more about the formats
woody3d974

woody3d974

3D printer file info

3D model description

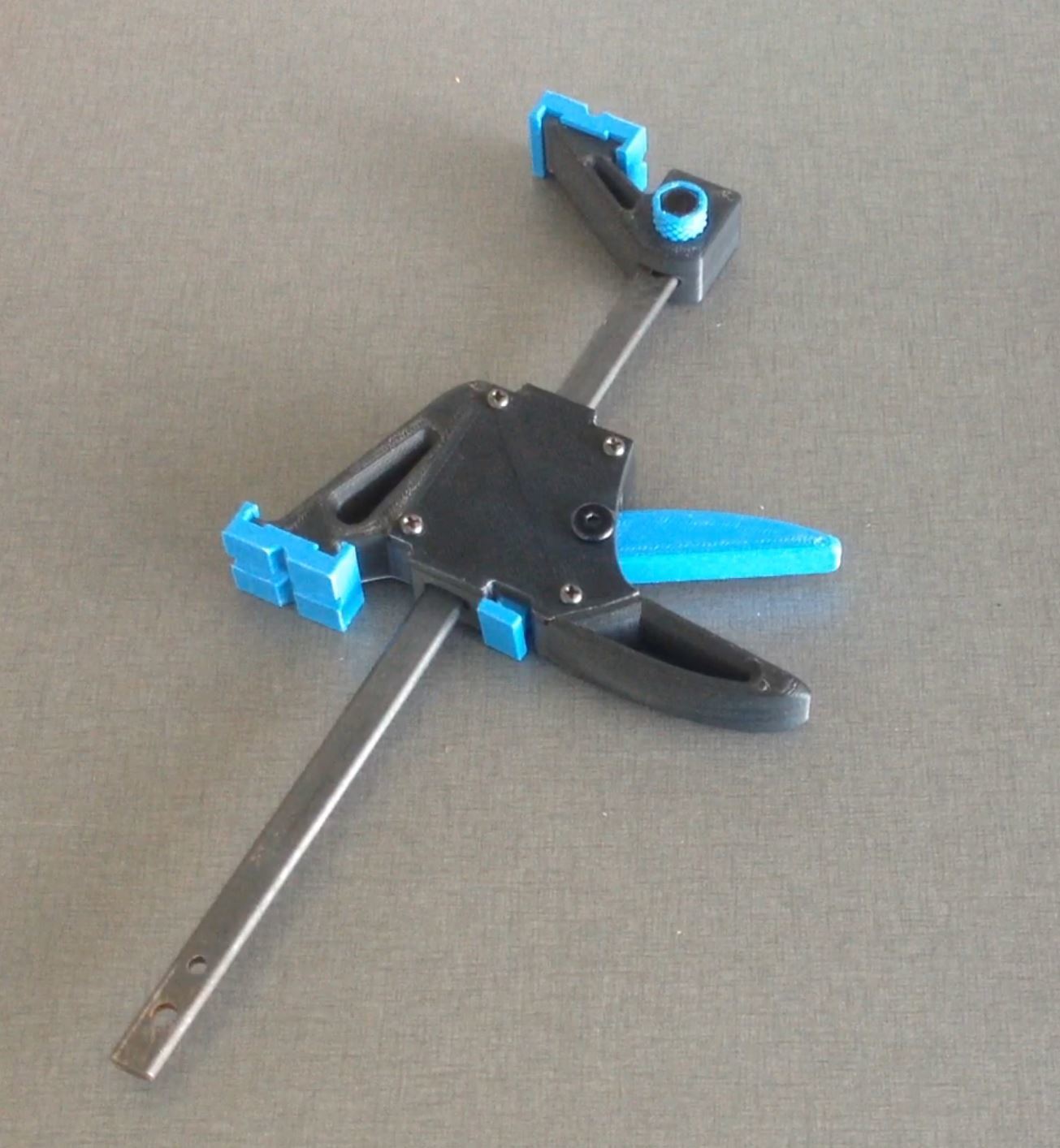

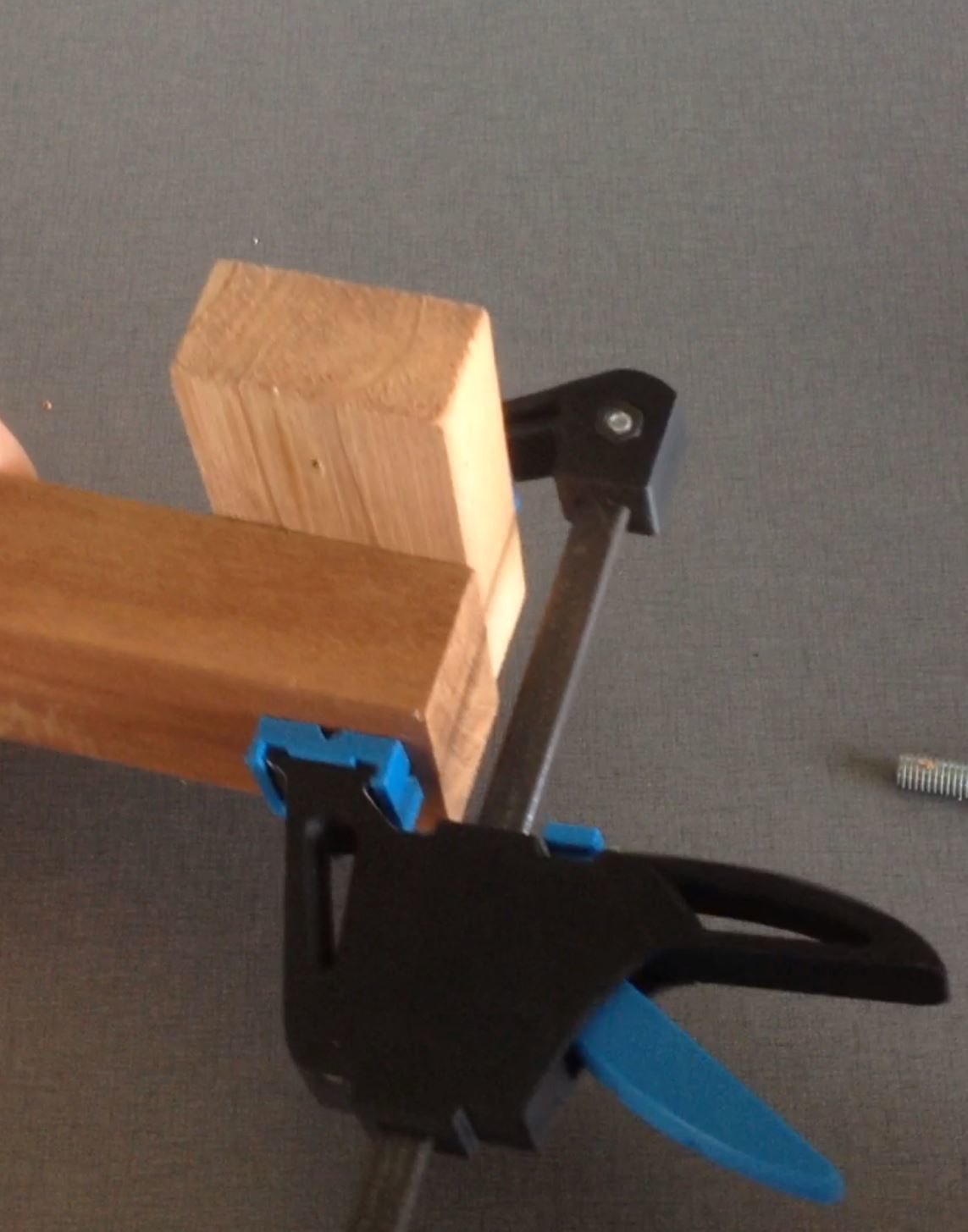

A small 1-hand quick release clamp.

https://youtu.be/2kgxtFQH6y0

Necessary:

  • 1 screw M3x12mm for the handle

and the parts of a small greenhouse attached like in the video...

or if you don't have one of those clamps attached:

  • 4 screws diameter 2.5mmx8mm

  • 1 M4x16mm hexagon head screw for the head of the clamp joint and its nut

  • 1 flat iron 8mmx3mm and about 20cm long

  • 2 small flat irons 21mmx6mmx2.5mm

  • 2 springs diameter 10mm and length 12mm

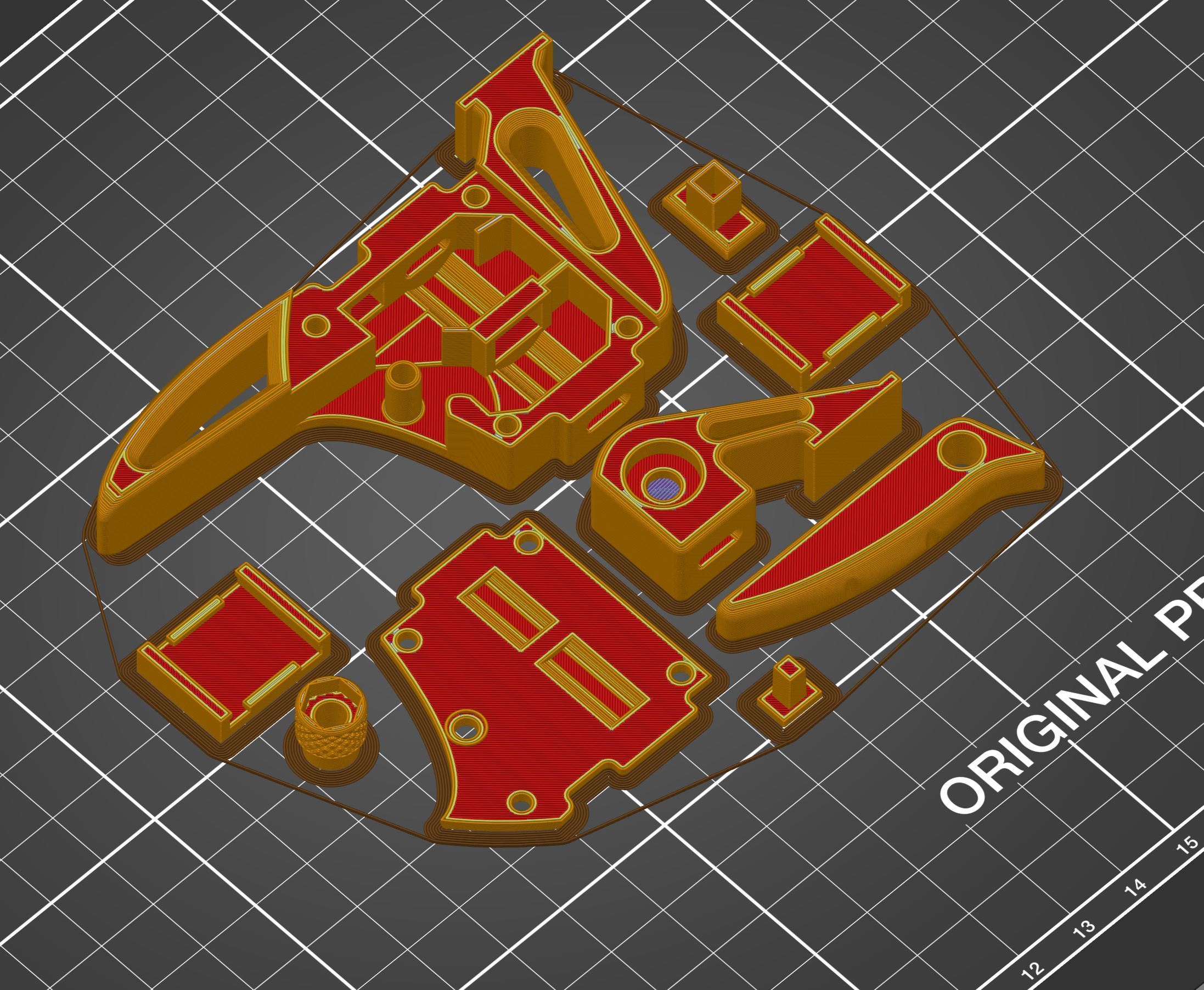

3D printing settings

-No print media required.

-Layer height: 0.2mm

-For strength, prefer at least 3 perimeters and a filling density of at least 50%.

-Printing time: less than 3 hours for a complete clamp.
