self-aligning bushing mount for flsun 3d printer

?
Creation's quality: 0.0/5 (0 votes)
Evaluation of members on the printability, utility, level of detail, etc.
  • 👁 1.9k views

3D model description

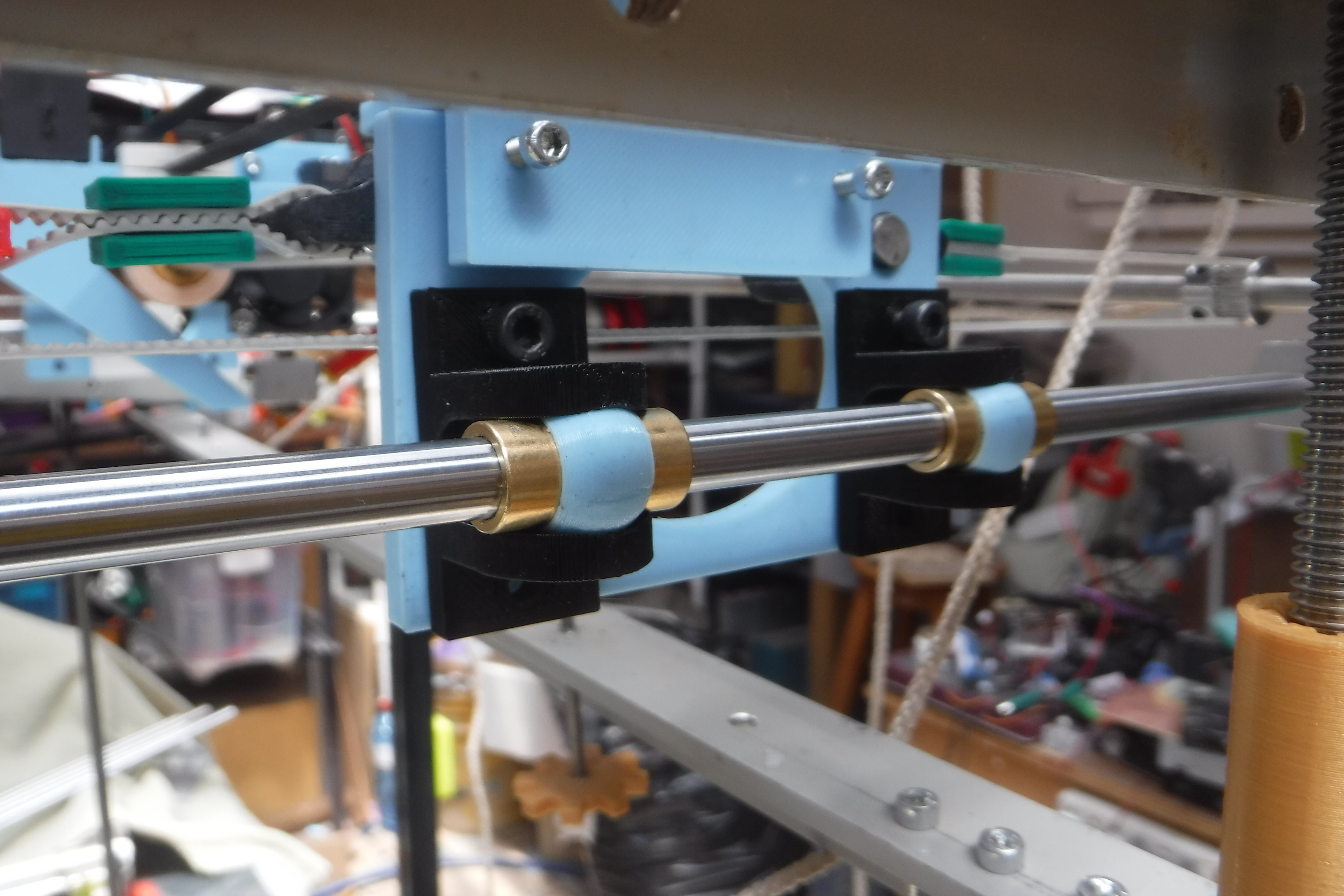

this is a self-aligning bushing mount for flsun cube and others. it is designed for 8x11x22 mm bronze sleeve linear bearing. it allows for imperfect mounting surfaces that can cause precision sleeves to bind. the ring/ball is a press fit for 11mm, and the mounting holes are the same as the stock flsun. i printed the ring in PLA and the base in PETG, but PLA should be ok for both.


3D printing settings

PLA 190, 40mms, 30% infill .2 layer height, .4 nozzle
PETG 230, 30mms, 30% infill .2 layer height, .4 nozzle

3D printer file information

  • 3D design format: STL Folder details Close
    • sleeve gimbal ball.stl
    • sleeve gimbal.stl

    Learn more about the formats

  • Last update: 2018/03/28 at 07:46
  • Publication date: 2018/03/27 at 01:55
