Sandpaper Holder with Magnets

Creation's quality: 5.0/5 (1 vote)
Evaluation of members on the printability, utility, level of detail, etc.

3D model description

Update March 2020:

Reason for the update:

**I’ve been using these trays for a few months now, & have now decided to go completely magnets, & in fact to go to larger in Diameter AND depth of magnets. I only wish I’d done this from the start, as it is now VERY hard to bump one sandpaper holder from the others! **

This was my first 'Thing', & also my 1st 'Fusion 360' design.

My other projects;

Riden RD6006 Power Supply case:—>

Tight-fitting Lids on Boxes. —>

Gear Driven Adjustable TUSH —>

1/3 Sheet Sandpaper Holders:

Parts List:

  1. Magnets 10mm x 3mm
  2. Silicon feet x 4 (for base only)

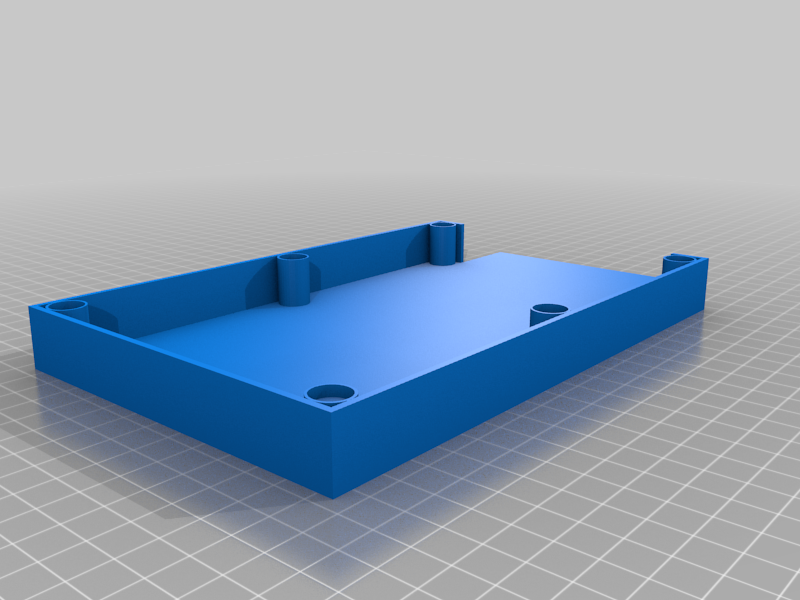

  3. Sandpaper Holder with Magnets FINAL.stl

Just print out the parts, insert the magnets with super-glue, stick on the feet, if this will be the ‘base’ & you’re all good to go!

Previous wording:

The FIRST thing i do when I come from the hardware store, is to cut my sandpaper to 1/3 sheets.

The SECOND thing i do then, is to LOSE them! I use a 1/3 sheet, put it away safe, then forget where 'safe' is!

What I've done here, is create a set of holders that you can use to separate your sheets into (as i do) ranges. How many you print is up to you, but I've found five, ascending in grit per inch gives a good way to start at 120grit, & move on up to 3000grit

This is my FIRST Creation. And also my first project under Fusion 360.

I originally had designed this to be the holder, built in pegs, & using 'supports' for each print. I quickly decided that doing that was both wasteful & poor design. I then moved to removable pegs, & designed an asymmetrical peg, that could be used on the bottom holder to give different heights of the bench for the first holder. I had some spare 8mm x 1mm Super Magnets laying around, & created depressions in the holes to allow EITHER pegs, or to glue a magnet within!

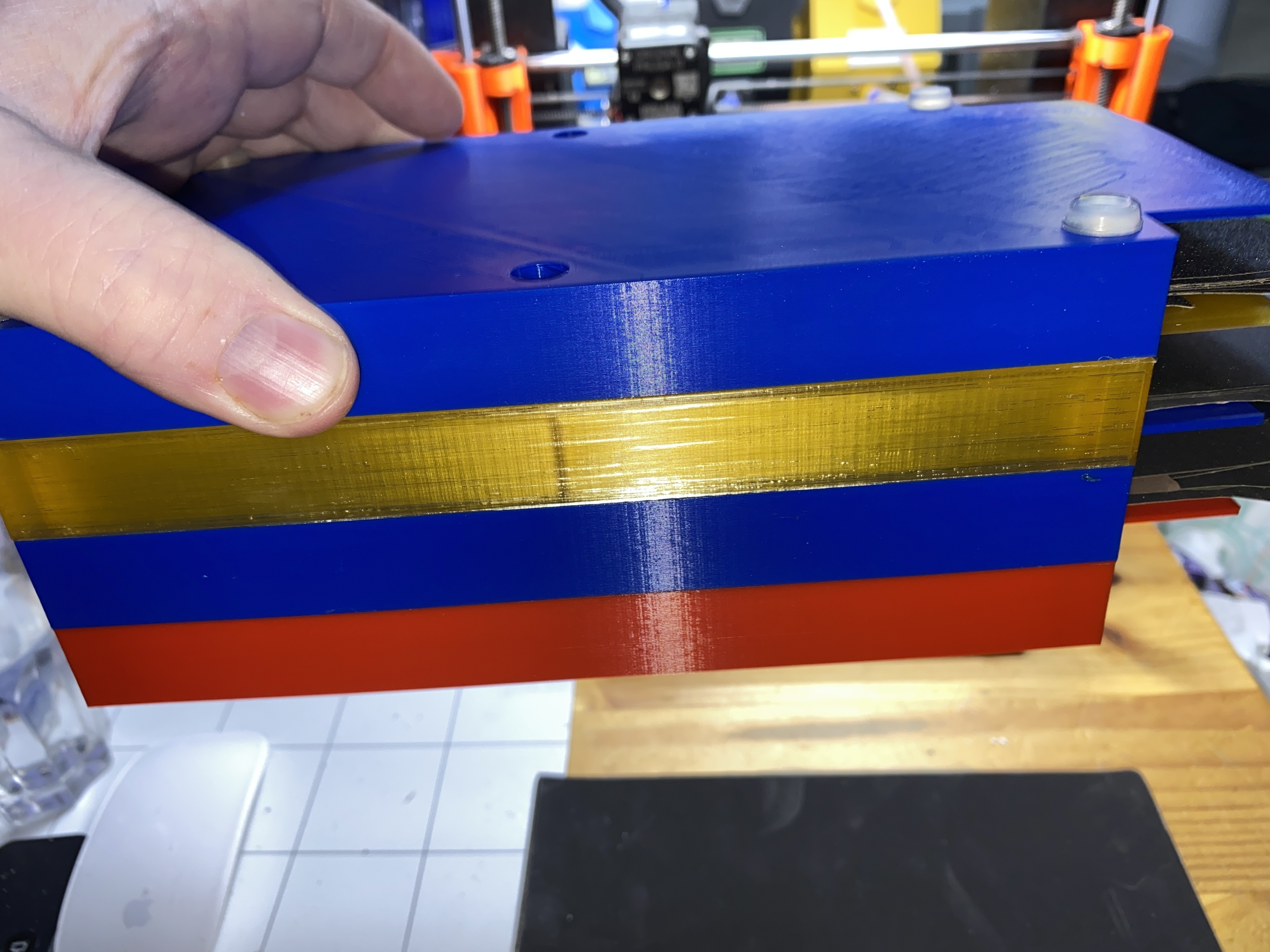

I've gone completely magnets, & pegs only for the first holder. There's six magnets, & provided you put them all in the SAME orientation, you can move holders up & down easily, or to allow access to the intermediate holders, as shown in the last JPEG.

  • 3D file format: GCODE and STL
  • Publication date: 2020/03/11 at 14:02
