Sanding Block, holds sandpaper

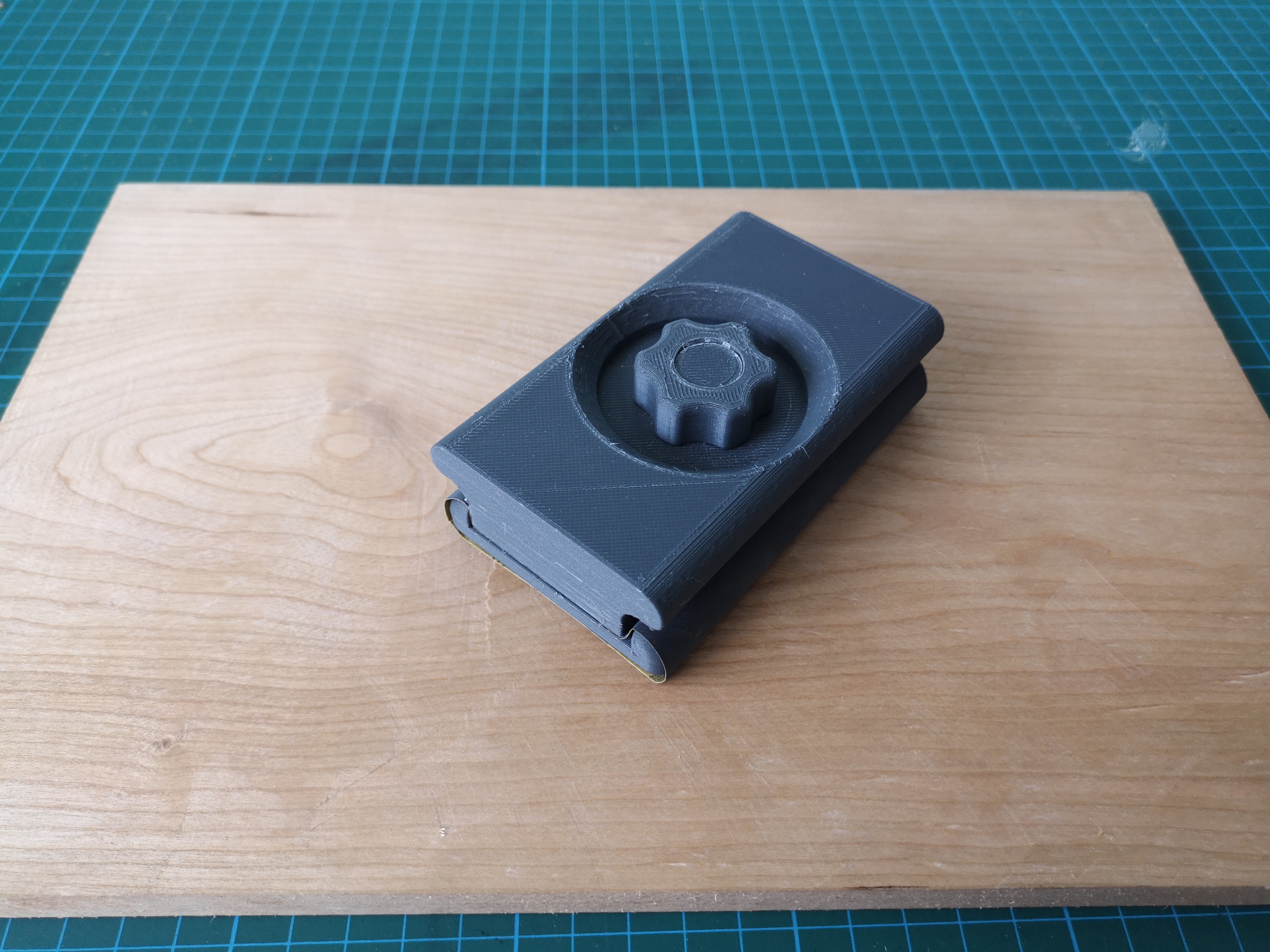

IMG_20210606_104123.jpg Download free STL file Sanding Block, holds sandpaper • Model to 3D print, keagan

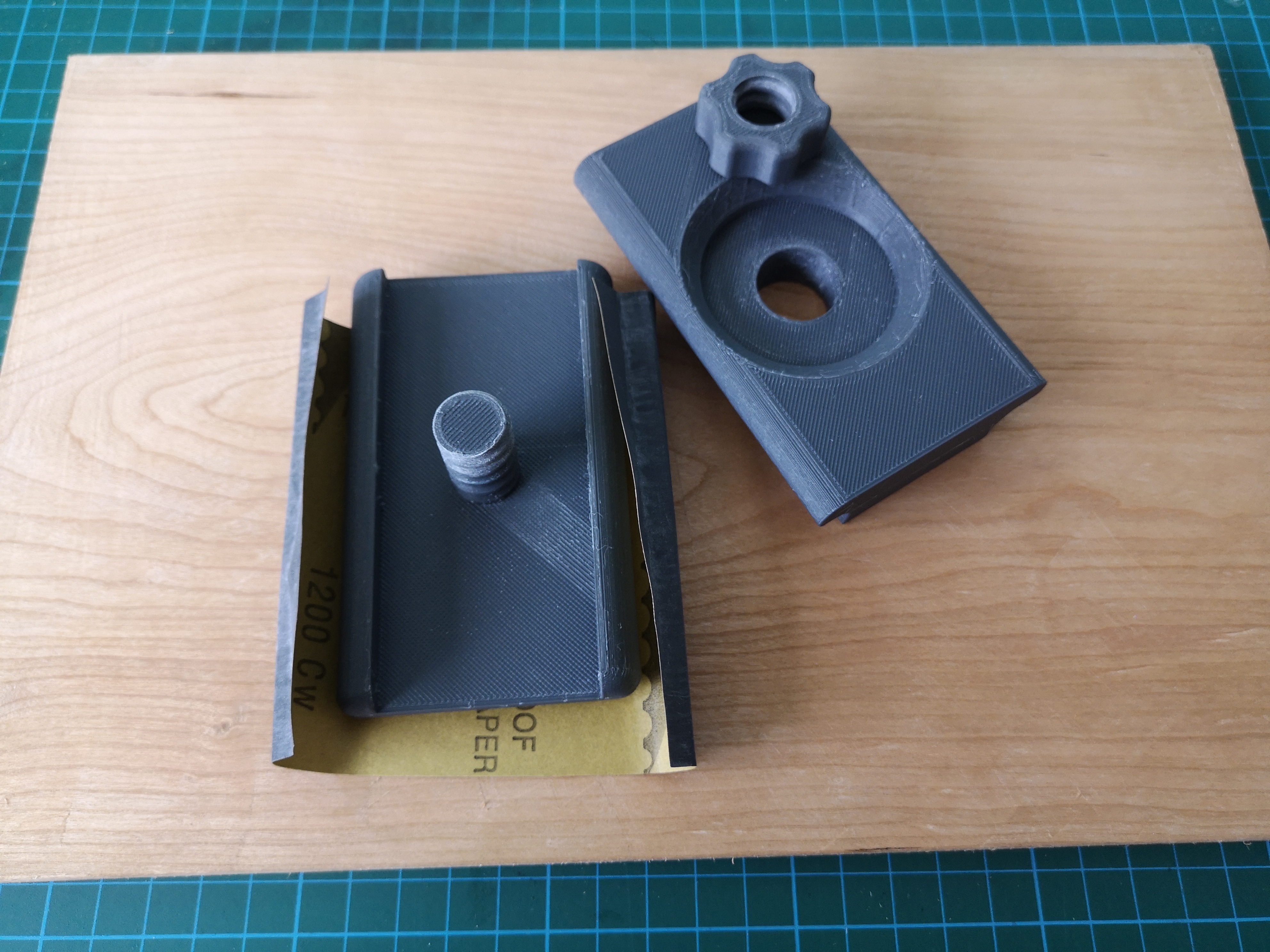

IMG_20210606_104230.jpg Download free STL file Sanding Block, holds sandpaper • Model to 3D print, keagan

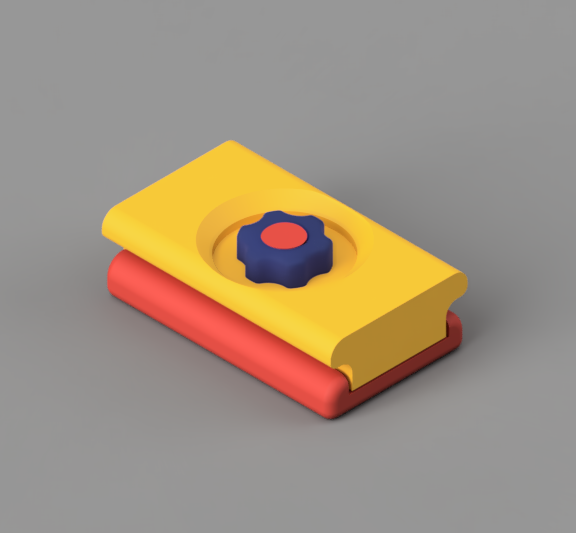

sanding_blockR1_sm.png Download free STL file Sanding Block, holds sandpaper • Model to 3D print, keagan

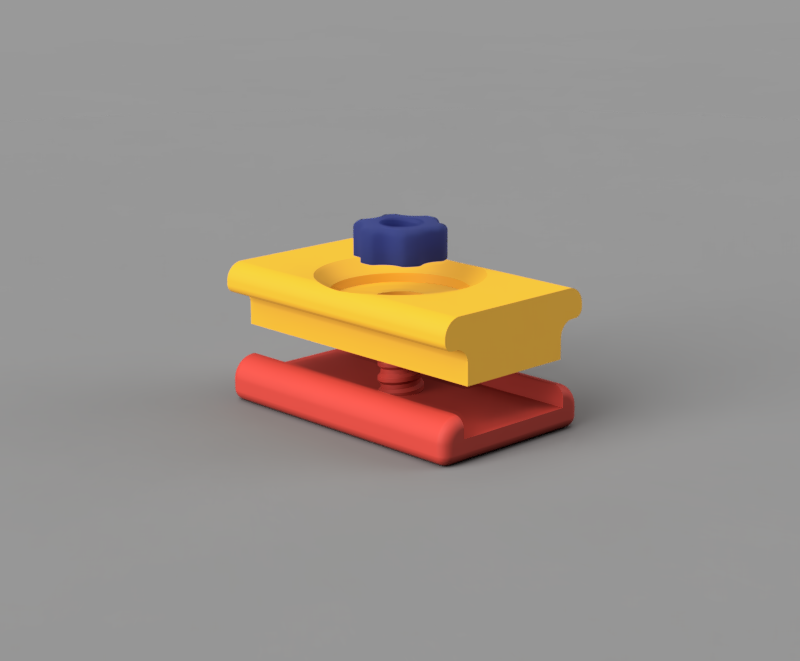

sanding_blockR2_sm.png Download free STL file Sanding Block, holds sandpaper • Model to 3D print, keagan
sanding_block_body.stl Download free STL file Sanding Block, holds sandpaper • Model to 3D print, keagan
sanding_block_nut.stl Download free STL file Sanding Block, holds sandpaper • Model to 3D print, keagan
sanding_block_base.stl Download free STL file Sanding Block, holds sandpaper • Model to 3D print, keagan
Share
Add to
Make
?
Creation quality: 4.0/5 (2 votes)
Evaluation of members on the printability, utility, level of detail, etc.

3D model description

Sanding block to hold sandpaper for hand sanding.

Measures 10cm (L) x 6cm (W) x 3cm (H).

Threads are custom trapezoidal shape with 45 deg overhang angle when printed vertically so most FDM printers should be able to handle them.

Threaded parts may be a tight fit initially, but thread surfaces should abrade to give a snug fit over time.

3D printing settings

Recommendation: Print the base portion with 50% or higher infill for structural rigidity.

Threaded parts best printed at 0.16mm layer height or smaller.

3D printer file information

  • 3D design format: STL Folder details Close
    • sanding_block_base.stl
    • sanding_block_body.stl
    • sanding_block_nut.stl

    Learn more about the formats

  • Publication date: 2021-06-06 at 05:05

License

CC BY
